Receiver Cards for the HIT
and Hit
Installation Instructions:
Step 1: Remove power from controller first!
Step 2: Remove the controller's lower faceplate by removing the
screws on each side.
Step 3: Clean lower right, inner side panel (inside controller, behind
front panel). Install the Receiver Card by pressing it onto the
spot you just cleaned. The Card comes with the double-
sided tape on the back (see picture below).
Step 4: Connect the interface cable (with white molex connector)
from the Card into the six pin interface socket on the
controller labeled "RF INTERFACE" (see picture below).
Step 5: Connect the antenna to the BNC fitting located on the
Receiver Card to have your antenna located inside the
controller or connect the threaded external mount antenna
with coax cable for max. range. The holes for the "Side-
Mount" antenna mount are pre-drilled on the right-hand side
of the controller.
Step 6: Re-install the controller faceplate and re-apply power.

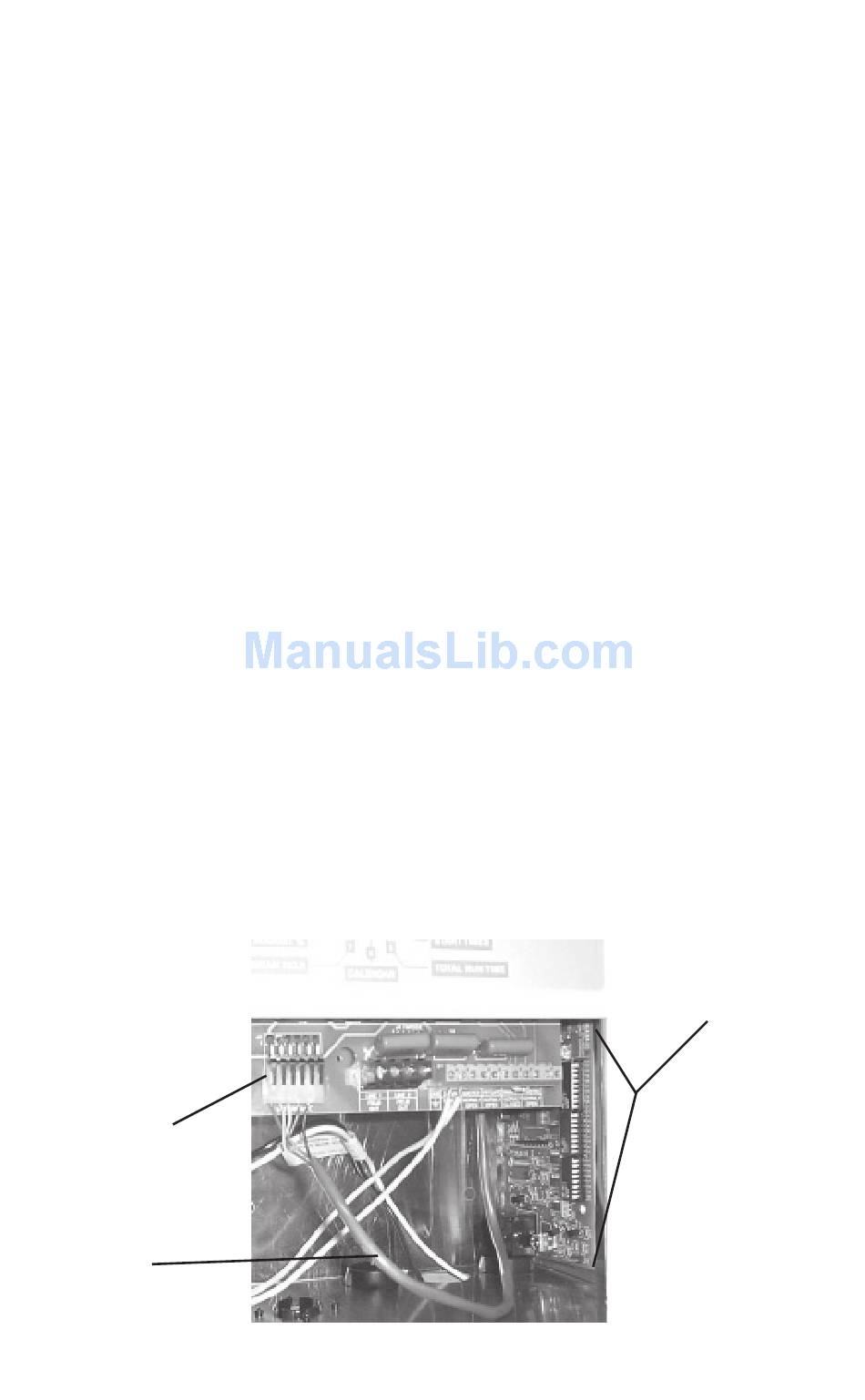

Molex connector
Interface Cable
Logic 3 Controller
800-275-8558 www.remotecontroltech.com
Logic 2
Receiver Card
21
