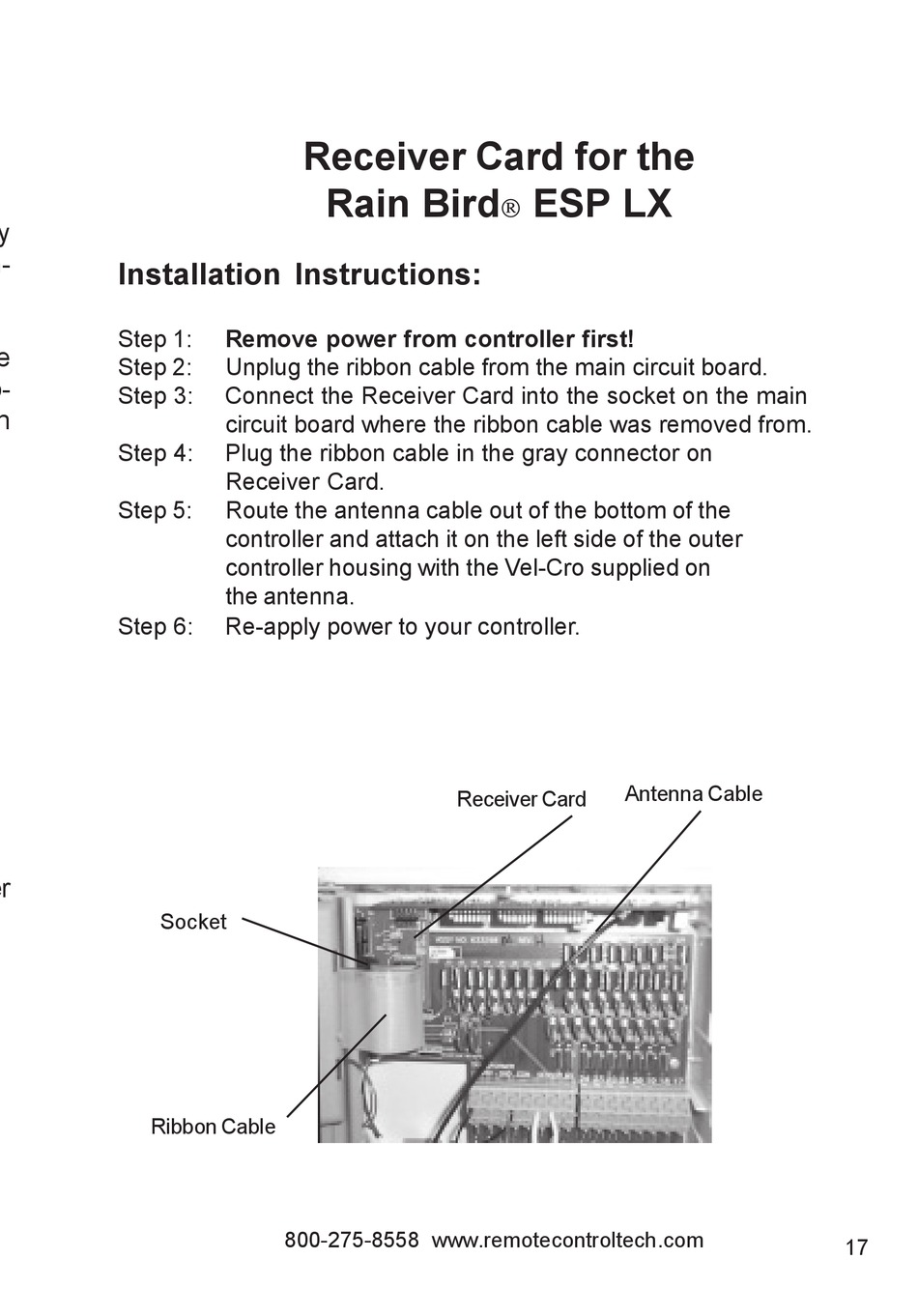

Installation Instructions:
Step 1:
Remove power from controller first!
Step 2:
Unplug the ribbon cable from the main circuit board.
Step 3:
Connect the Receiver Card into the socket on the main
circuit board where the ribbon cable was removed from.
Step 4:
Plug the ribbon cable in the gray connector on
Receiver Card.
Step 5:
Route the antenna cable out of the bottom of the
controller and attach it on the left side of the outer
controller housing with the Vel-Cro supplied on
the antenna.
Step 6:
Re-apply power to your controller.
Socket
Ribbon Cable
Receiver Card for the
Rain Bird
800-275-8558 www.remotecontroltech.com
ESP LX
Receiver Card
Antenna Cable
17
