TRC UNIVERSAL IRRIGATION REMOTE CONTROL Operation And Installation Manual page 18

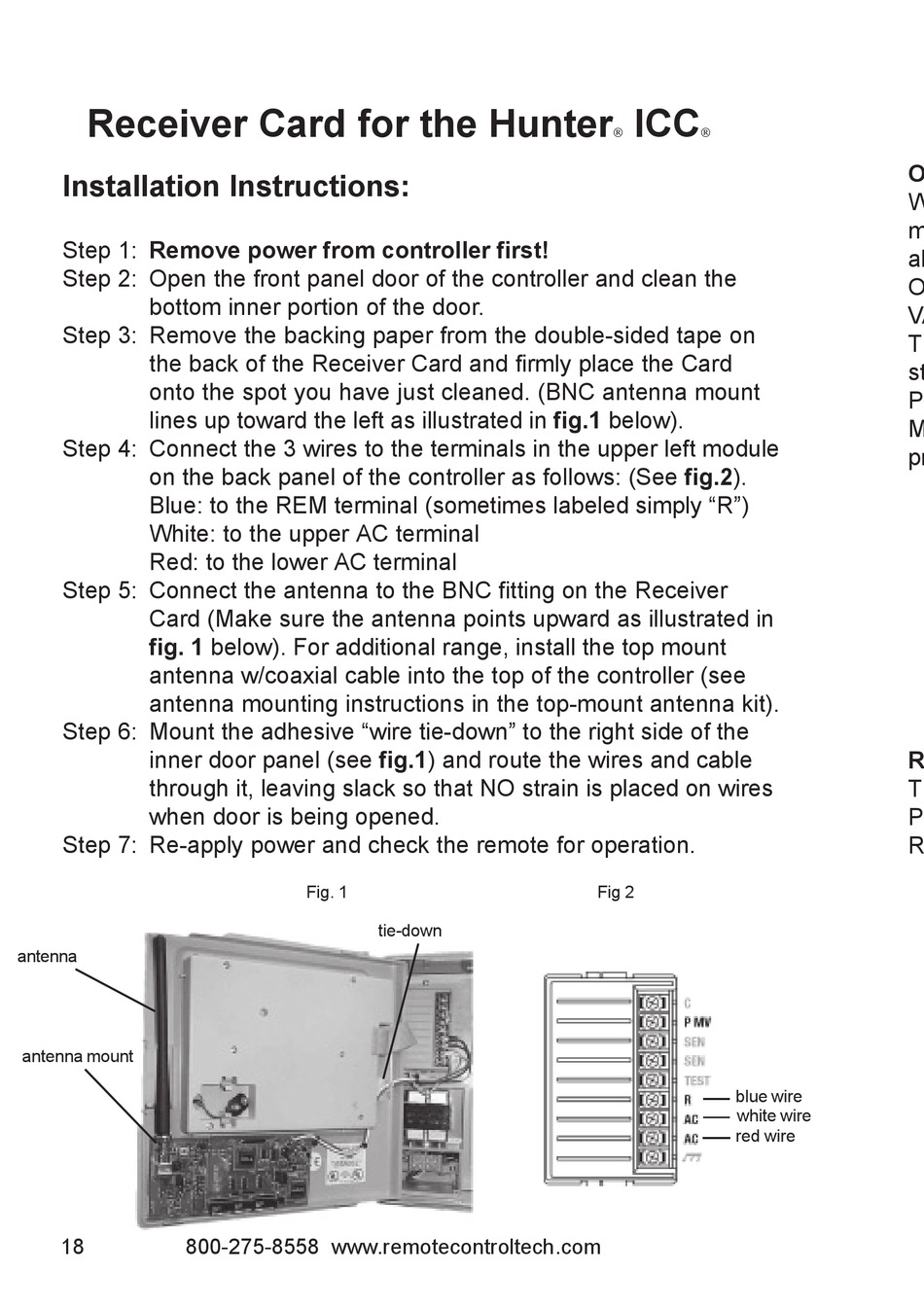

Receiver Card for the Hunter
Installation Instructions:
Step 1: Remove power from controller first!
Step 2: Open the front panel door of the controller and clean the
bottom inner portion of the door.
Step 3: Remove the backing paper from the double-sided tape on
the back of the Receiver Card and firmly place the Card
onto the spot you have just cleaned. (BNC antenna mount
lines up toward the left as illustrated in fig.1 below).
Step 4: Connect the 3 wires to the terminals in the upper left module
on the back panel of the controller as follows: (See fig.2).
Blue: to the REM terminal (sometimes labeled simply "R")
White: to the upper AC terminal
Red: to the lower AC terminal
Step 5: Connect the antenna to the BNC fitting on the Receiver
Card (Make sure the antenna points upward as illustrated in
fig. 1 below). For additional range, install the top mount
antenna w/coaxial cable into the top of the controller (see
antenna mounting instructions in the top-mount antenna kit).
Step 6: Mount the adhesive "wire tie-down" to the right side of the
inner door panel (see fig.1) and route the wires and cable
through it, leaving slack so that NO strain is placed on wires
when door is being opened.
Step 7: Re-apply power and check the remote for operation.
antenna
antenna mount
18
Fig. 1
800-275-8558 www.remotecontroltech.com
tie-down
ICC
 
Fig 2
blue wire
white wire
red wire
