TRC-780 Installation
TRC-780 Installation
Introduction
The TRC-780 is the controller to your Total Control System. Whether it's a home theater solution or whole
house solution, the TRC-780 installed with the MRX-10 Advanced Network System Controller receives feedback
from the MRX-10 using 2.4GHz technology. The system is also scalable and can be built to control multiple
zones of source equipment as needed. The TRC-780 features a "ROOMS" button that facilitates room
monitoring by compiling all of your programmed data for every room in the system, all without any additional
configuration. In a multi-zone Total Control system, sources can be linked together from different zones using
URC's groundbreaking room linking technology. Linked audio sources are sent via streams over the network to
and from DMS-1200 or DMS-100 amplifiers.
Whether you specify one TRC-780 or multiple TRC-780s depends on the total number of users per installation.
Up to 32 TRC-780s can be used in any one system.
Programming of the TRC-780 is performed using one simple application - URC Accelerator (see TRC-780
programming manual).

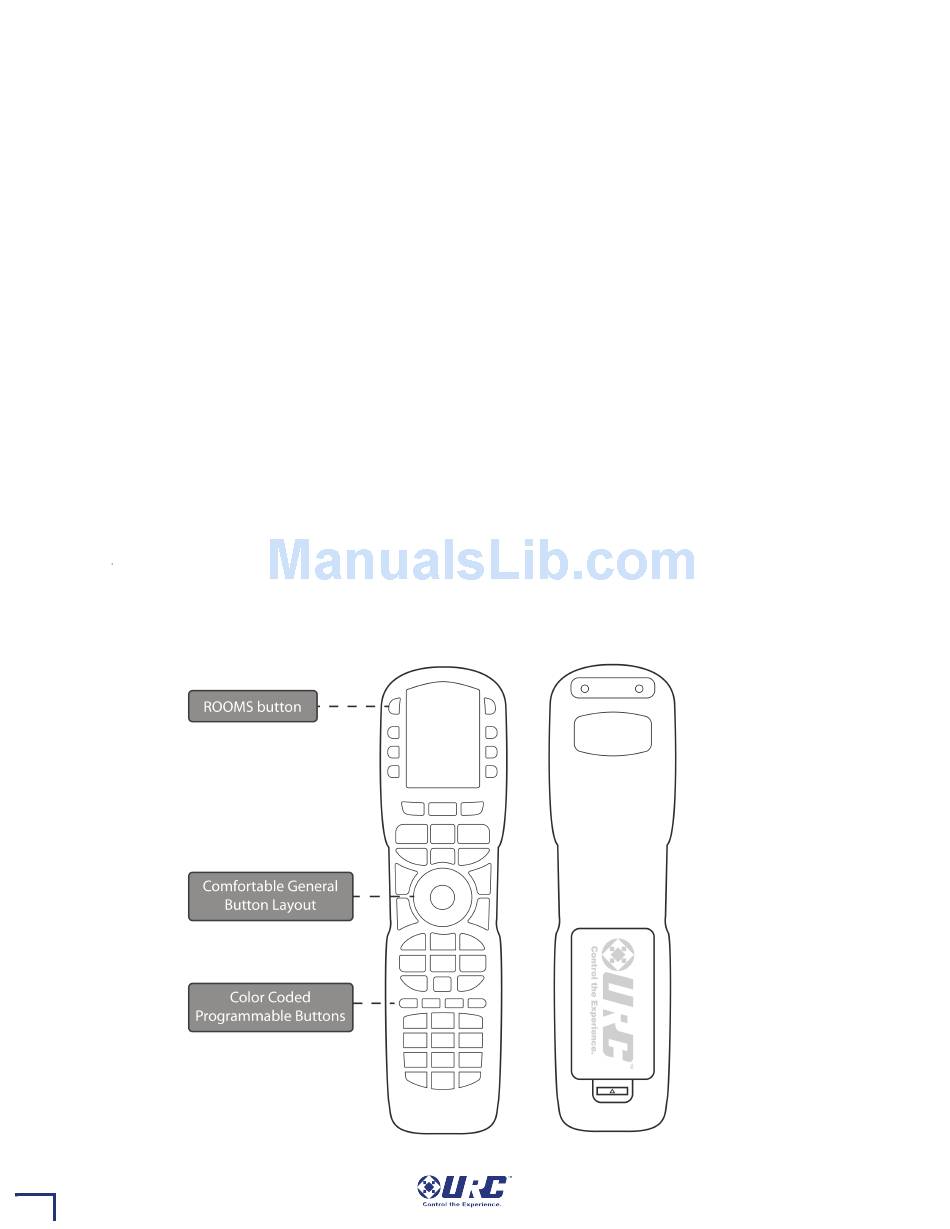

Front/Back Views
121
Advertisement
Related Manuals for TRC 780
Summary of Contents for TRC 780
- Page 1 TRC-780 Installation Introduction The TRC-780 is the controller to your Total Control System. Whether it’s a home theater solution or whole house solution, the TRC-780 installed with the MRX-10 Advanced Network System Controller receives feedback from the MRX-10 using 2.4GHz technology. The system is also scalable and can be built to control multiple zones of source equipment as needed.
- Page 2 USB Port In order to transfer programming to the TRC-780, it is necessary to connect the unit to a PC running the URC Accelerator software application. Using the supplied cable, connect the MINI-USB side to the TRC-780 and the Type A male USB connector to the computer.
-
Page 3: Application Diagram
Application Diagram... - Page 4 TRC-780. Song artist information and album artwork from the PSX-2 and SNP-1 are among the many two- way features the TRC-780 offers. In addition, the TRC-780 provides users with the ability to set their own event timers and sleep timers, set favorite channels and even enable vacation timers while away from home. (See MRX-10 section of the Total Control Installation Manual for MRX-10 setup details).
- Page 5 Color Screen Color screen settings give two configurable options. 1. Brightness: Adjust the screen brightness by pressing the screen buttons on the left and right side of the slider bar. Once the brightness has been adjusted, simply press the Save button. Pressing the Cancel button will revert to the remotes last saved brightness setting.
- Page 6 Button Light The Button Light settings page provides two configurable options for MS-780 button lights 1. Automatic ON: Adjusting this setting will control when the hard button backlight turns on. a. Automatic Light Yes: Every time a button is pressed the button back light automatically turns “On”.
- Page 7 Date/Time Settings The Date and Time is automatically sent from the MRX-10 to the MS-780. If you would like to adjust the time or date you can do so on the remote control. Note: Any Date or Time adjustment made on the MS-780 will automatically go out to all the other remotes and keypads in the system.
- Page 8 3. Display Date/Time: The MS-780 can display either the Time or the Date, but not both. Select which one you would like to display. Press the screen button next to Time or Date and then press the Save button. Button Beep Use the screen buttons to the left and right of the slider bar to adjust the button sound.
- Page 9 System Info: The System Info screen displays data about the TRC-780’s memory usage and operating system version. Pressing the “Next” screen button will take you to the Operating System information, and pressing the...
- Page 10 Erasing and Resetting WARNING! The factory reset option resets the memory of the TRC-780 to its factory condition. This means all of the programming inside of the remote will no longer be available until you re-load the remote using the Accelerator software application.
-
Page 11: Firmware Updates
Firmware updates are issued periodically for the TRC-780 in order to add features and enhance performance. It is best practice to ensure that your TRC-780s firmware is up to date before every installation. The best way to do this is to always check for LiveUpdates that may be available for your URC Accelerator software.
