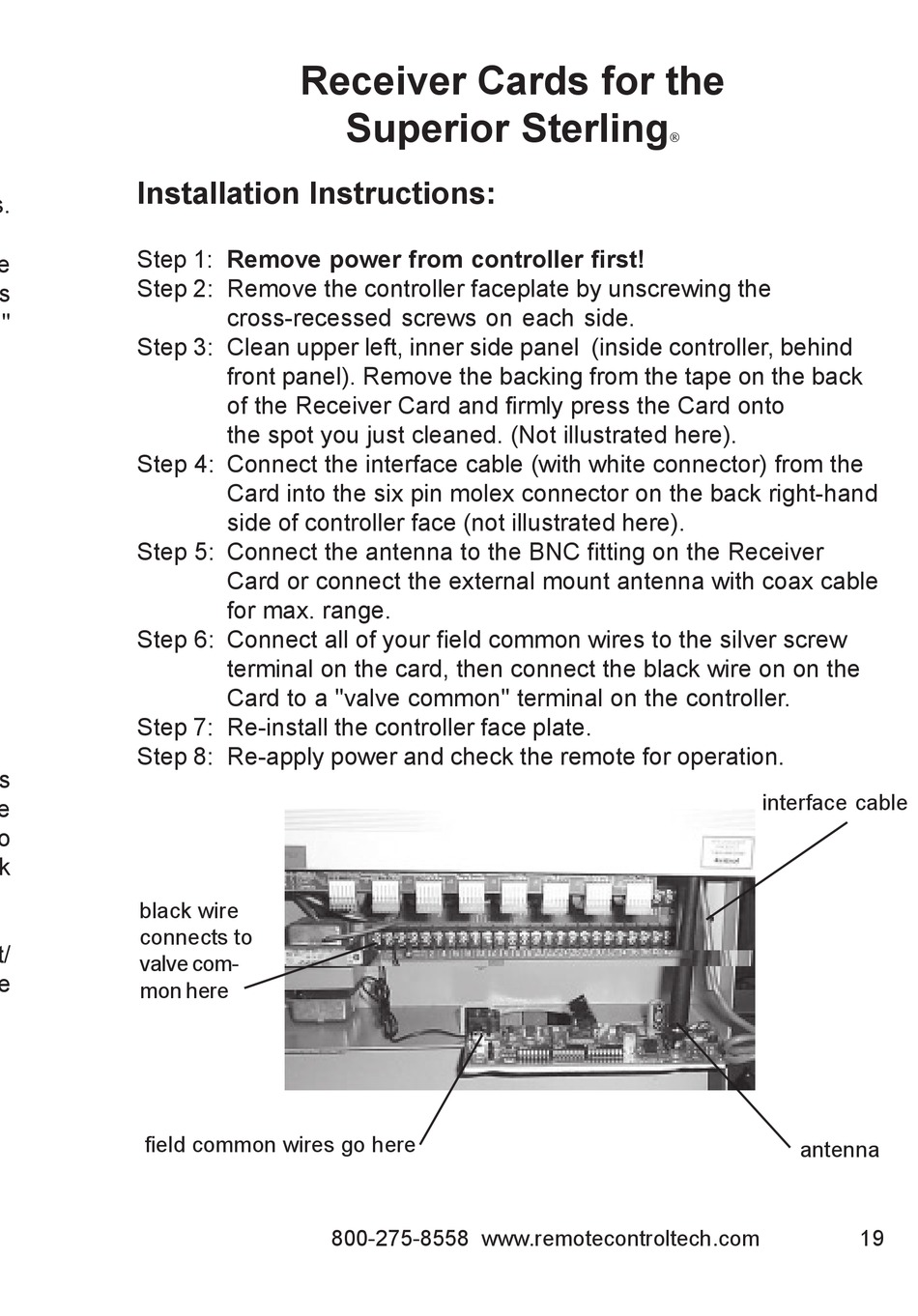

TRC UNIVERSAL IRRIGATION REMOTE CONTROL Operation And Installation Manual page 19

Installation Instructions:
Step 1: Remove power from controller first!
Step 2: Remove the controller faceplate by unscrewing the
cross-recessed screws on each side.
Step 3: Clean upper left, inner side panel (inside controller, behind
front panel). Remove the backing from the tape on the back
of the Receiver Card and firmly press the Card onto
the spot you just cleaned. (Not illustrated here).
Step 4: Connect the interface cable (with white connector) from the
Card into the six pin molex connector on the back right-hand
side of controller face (not illustrated here).
Step 5: Connect the antenna to the BNC fitting on the Receiver
Card or connect the external mount antenna with coax cable
for max. range.
Step 6: Connect all of your field common wires to the silver screw
terminal on the card, then connect the black wire on on the
Card to a "valve common" terminal on the controller.
Step 7: Re-install the controller face plate.
Step 8: Re-apply power and check the remote for operation.
black wire
connects to
valve com-
mon here
field common wires go here
Receiver Cards for the
Superior Sterling
800-275-8558 www.remotecontroltech.com

interface cable
antenna
