Summary of Contents for TRC Sidekick FM
-
Page 2: Fcc Regulations
FM transmitter to transmit up to 5 miles* while using only one 9V alkaline battery. For best results and to maximize the features and functions of any Sidekick FM system, carefully read this manual and keep it on hand for future reference. FCC REGULATIONS... -
Page 3: Warranty
These exclusions or limitations apply only in those states where permitted by law. Models and Description Several differing products are available in the Sidekick FM line of products, which are all designed to take advantage of the Sidekick FM transmitter. The Sidekick FM transmitter provides... - Page 4 The Sidekick FM 12 (PN: 01015) is a universal receiver capable of operating up to 12 stations on an irrigation controller. The Sidekick FM 24 (PN: 1010 & # 01010A) is a universal receiver capable of operating up to 24 stations on an irrigation controller.
-
Page 5: Getting To Know The Transmitter

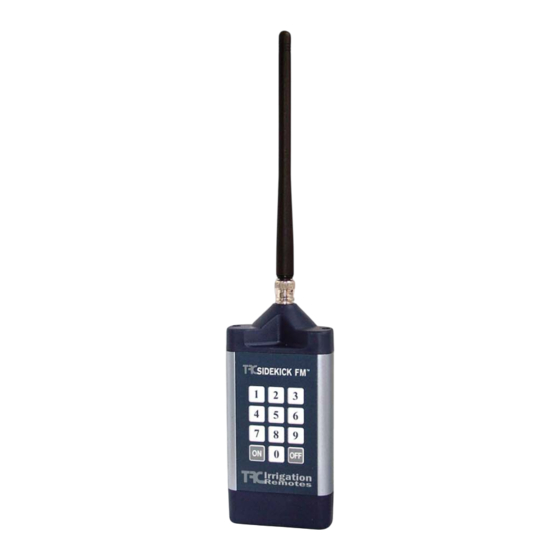

Getting To Know The Transmitter The Sidekick FM transmitter is designed to allow the user to operate one valve/station at a time, making it ideal for the irrigation maintenance professional to use for one time maintenance, seasonal start-ups and blowouts. To operate the transmitter... - Page 6 The Transmitter Key Pad To clearly indicate that a key on the keypad has been pressed, the Sidekick FM Transmitter makes an audible beep. The Transmitter will beep once when any Number Key is pressed. When the “ON” or “OFF” key is pressed the transmitter will beep twice.
- Page 7 Installing The Universal Receiver The Sidekick FM Universal Receiver is designed to work with most 24 VAC solenoid valve irrigation systems. Using a permanent controller connector the receiver connects to individual valves at the controller's terminal strip or directly to the valve wires at the controller, and bypasses the controller's functions by directly activating the valves.
- Page 8 1. Use Figure 4 (on the next page) as a pattern to locate the mounting holes to be drilled through the controller. Drill holes according to the diameters as shown. 2. Peel backing off gasket (2) and attach it to housing (1) as shown in figure 3.Peel backing off gasket (3) and attach it to the inside of housing door (4) as shown in figure 3.
- Page 9 IMPORTANT: Care should be taken to prevent connecting any wires of the cable to 110 VAC this will result in damage to the receiver. Operating instructions Plug the receiver directly in the connector as shown in figure 1. When the receiver is not in use, close and secure the housing door (4) by tightening the Allen head screw with a 3-32”...
- Page 10 Installing The Sidekick Receiver For Rain Bird Controllers Description The Sidekick FM System for Rain Bird controllers consist of three components a transmitter, receiver, and a Permanent Controller Cable (PCC-RB). The direct controller interface cable and the receiver are the only components that require installation. Once the PCC-RB cable is installed, it becomes a permanent access point for the receiver.
- Page 11 Installing The Sidekick Receiver For Irritrol Controllers Description The Sidekick FM System for the Irritrol Dial & MC controllers consist of three components a transmitter, receiver, and a direct controller interface cable. The direct controller interface cable and the receiver are the only components that require installation.
- Page 12 Connecting the Sidekick FM Receiver Connect the interface plug to the interface receptacle on the controller. Twist the plug clockwise until the plug stops. Do not over tight the plug. See diagram below Disconnecting the Sidekick FM Receiver Twist the circular plug in a counterclockwise motion and remove the plug from the receptacle.
- Page 13 Installing The Sidekick Receiver Superior Sterling Controllers Description Superior Sterling The Sidekick FM System for the controllers consist of three components a transmitter, receiver, and a direct controller interface cable. The direct controller interface cable and the receiver are the only components that require installation. Once the DCI-1 cable is installed, it becomes a permanent access point for the receiver.
- Page 14 Connecting the Sidekick FM Receiver Connect the interface plug to the interface receptacle on the controller. Twist the plug clockwise until the plug stops. Do not over tight the plug. See diagram below. Disconnecting the Sidekick FM Receiver Twist the circular plug in a counterclockwise motion and remove the plug from the receptacle.
- Page 15 Hit Logic 3 & 2 Controllers Description Hit Logic 3 & 2 The Sidekick FM System for the controllers consist of three components a transmitter, receiver, and a direct controller interface cable. The direct controller interface cable and the receiver are the only components that require installation.
- Page 16 Connecting the Sidekick FM Receiver Connect the interface plug to the interface receptacle on the controller. Twist the plug clockwise until the plug stops. Do not over tight the plug. See diagram below. Disconnecting the Sidekick FM Receiver Twist the circular plug in a counterclockwise motion and remove the plug from the receptacle.
- Page 17 Installing The Sidekick Receiver Hunter Controllers Description The Sidekick FM System for the Hunter controllers consist of three components a transmitter, receiver, and a direct controller interface cable. The direct controller interface cable and the receiver are the only components that require installation. Once the DCI-1-H cable is installed, it becomes a permanent access point for the receiver.
- Page 18 Connect the interface plug to the interface receptacle on the controller. Twist the plug clockwise until the plug stops. Do not over tight the plug. See diagram below. Disconnecting the Sidekick FM Receiver Twist the circular plug in a counterclockwise motion and remove the plug from the receptacle.
- Page 19 Description The Direct Controller interface (DCI) is an accessory designed for the Sidekick FM universal receivers, which allows the receiver to operate all of the stations that the controller has available and is not limited to 12 or 24 stations. The DCI is available for Irritrol , Hunter , and Rain Master controllers.
-
Page 20: Troubleshooting Chart
For Technical Support call 800-275-8558 Monday through Friday 7AM - 4PM PST. All goods returned to TRC Irrigation Remotes must be accompanied with a RMA. Please use our toll free # to obtain a RMA. - Page 21 Antenna Installation Tips Successful wireless communication range is achievable in most locations as long as these installation practices are observed. TRC Irrigation Remotes can supply connectors and RG58 Coaxial Cable in lengths from 3 – 100 feet (specify when ordering). Your range will be maximized...
