veloCD ReWRITER : User's Manual
AUDIO OUT
R G L
(not used)
Audio output
connector
Audio
Digital Analog
D G R G G L

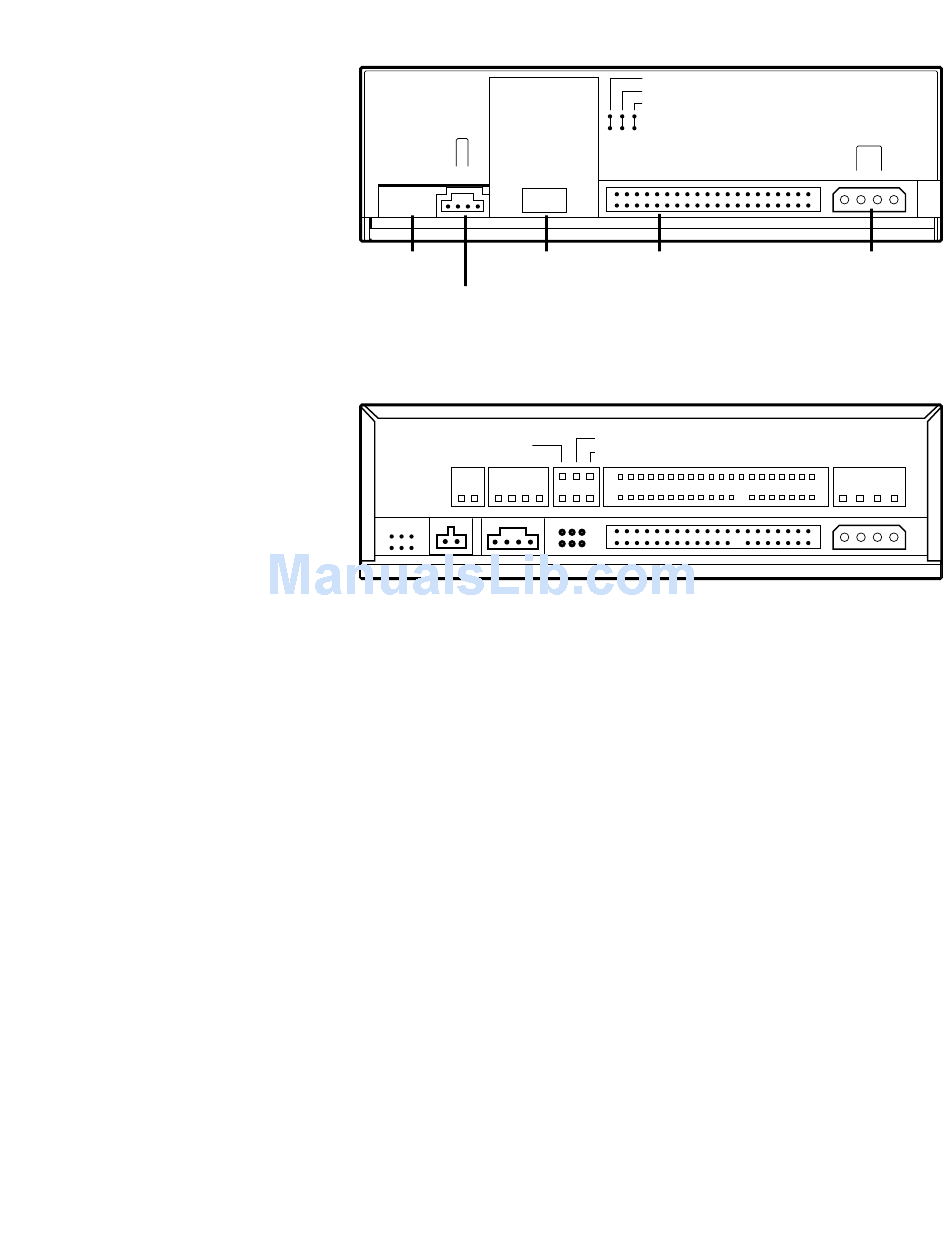

Figure 2: Rear Panel of the veloCD ReWRITER Internal Drive
Audio output connector: Outputs stereo analog signal. Use to connect to soundcard or audio amplifier.
•
Use standard MPC-3 type, 4-pin connector.
Jumpers: Use to select operation as an IDE master or slave, or for cable select. In general, leave
•
these jumpers at their factory settings.
IDE cable connector: Connects to IDE interface using 40-pin IDE flat ribbon cable.
•
Power connector: Connects to your computer's power supply to provide
•
DC +5V and +12V to the veloCD ReWRITER.
CABLE SELECT
SLAVE
MASTER
Jumpers
IDE
40
Jumper IDE cable
connector
CSEL Slave
Master
E-IDE Interface
39
40
DC INPUT
+5V GND +12V
1
Power
connector
Power
1
5V G G 12V
