TDK veloCD ReWRITER Installation And User Manual page 11

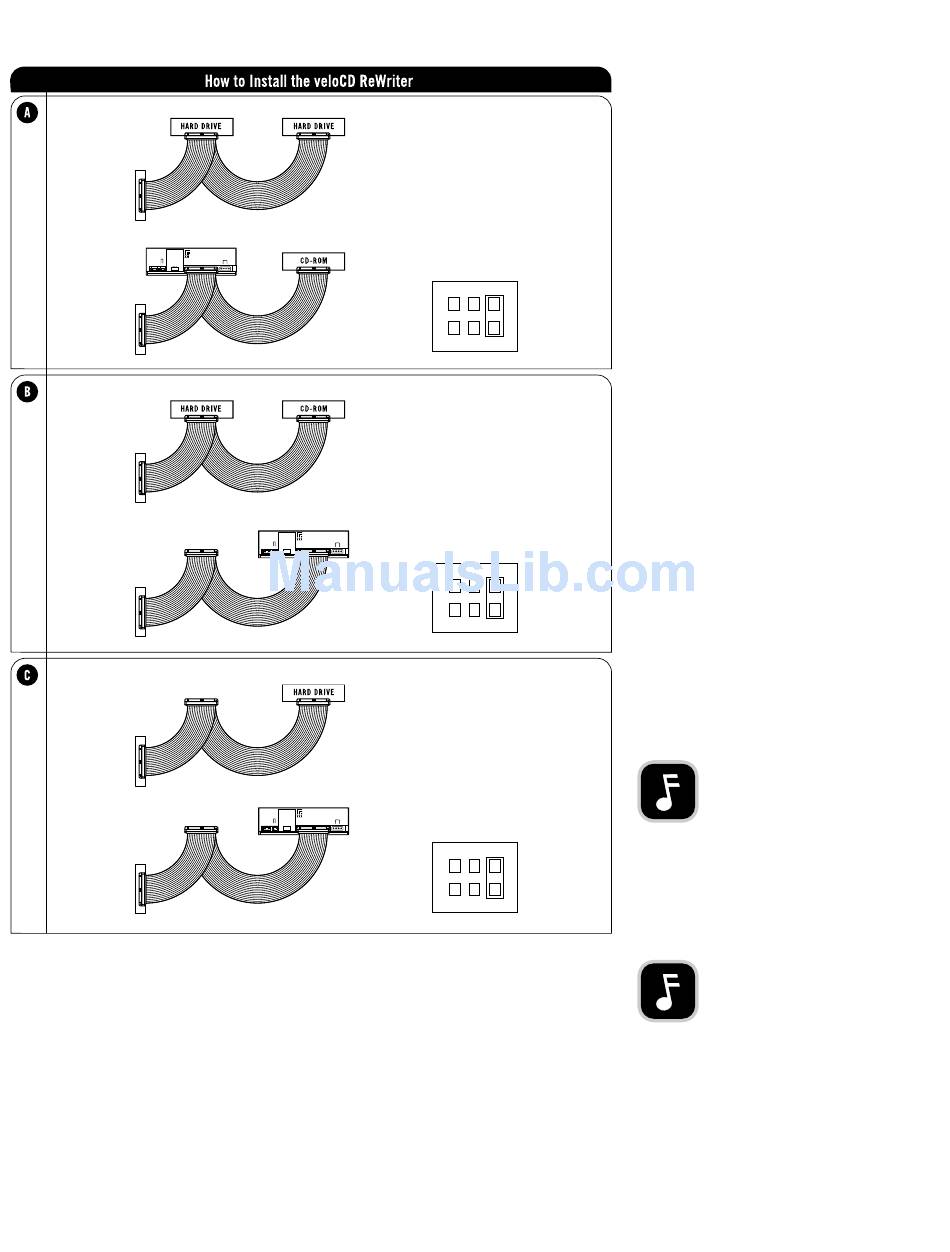

Connected as master
Primary
IDE port
Connect veloCD drive
as master
Secondary
IDE port
Connected as master
Primary
IDE port
Secondary
IDE port
Primary
IDE port
Connect veloCD drive
Secondary
IDE port
Connected as slave
Connect as slave
Connected as slave
Connect veloCD drive
as master
Connected as master
as master
Set veloCD's
jumper to:
CS S M
Set veloCD's
jumper to:
CS S M
Set veloCD's
jumper to:
CS S M
NOTE: For best performance, connect the veloCD
to the IDE port that is not connected to the hard
drive or to a CD-ROM drive. In most cases, connect
the veloCD to the secondary IDE port as a master.
NOTE: For best results, set the veloCD to be the
master, if possible. Enable DMA settings on
your system to achieve maximum writing speed.
