veloCD ReWRITER : User's Manual

ABOUT CABLE SELECT

The CABLE SELECT jumper position sets the veloCD ReWRITER to use the CSEL signal from the IDE
interface for configuration. This signal automatically selects the correct Master/Slave setting for
the veloCD. To use CSEL, you must have a computer that supports CSEL and a special CSEL IDE cable.
For Factory Use
If Applicable

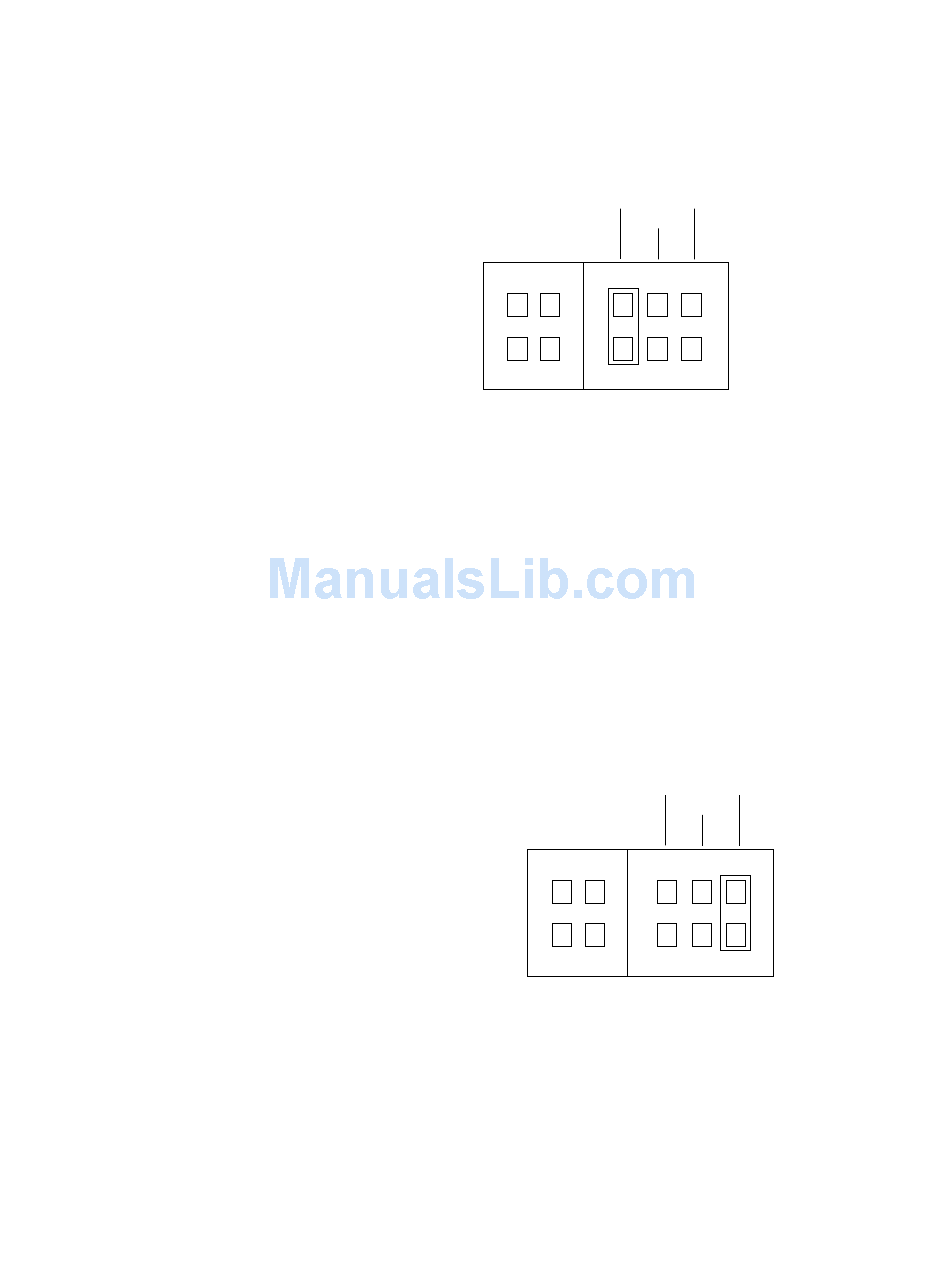

Figure 4: Using the CSEL Signal to Configure the veloCD ReWRITER

SET THE DRIVE'S JUMPERS

Specify your drive's master or slave setting before installing it. You do this by changing the position
of a jumper on the jumper block at the rear of the drive.
Your drive ships from our factory with its jumper set to operate the veloCD ReWRITER as a master.
Changing the Jumper on Your Internal veloCD ReWRITER
As shown in Figure 5, the veloCD ReWRITER arrives from the factory with its jumper set to MASTER.
(If jumper is installed then function is ON. If jumper is removed then function is OFF.)
Figure 5: Factory Settings for Jumpers at the Rear of the Drive
Changing to a Master, Slave, or Cable Select
The Master/Slave setting for the drive is determined by the jumper. To change the drive from being
a Master to a Slave or to Cable Select, remove the jumper with your fingers or needle nose pliers.
Then push on to your respective setting. For example, to change the veloCD ReWRITER to be a Slave,
move the jumper to the right set of pins, leaving the other pins uncovered. To change the drive for
Cable Select, move the jumper to the left set of pins.
Cable Select Master
Slave
Only
Cable Select
Slave
For Factory Use
Only
If Applicable
To use the host interface CSEL signal
for configuration, set the veloCD
ReWRITER's jumper to CABLE SELECT.
Master
