veloCD ReWRITER FEATURES AND CONTROLS

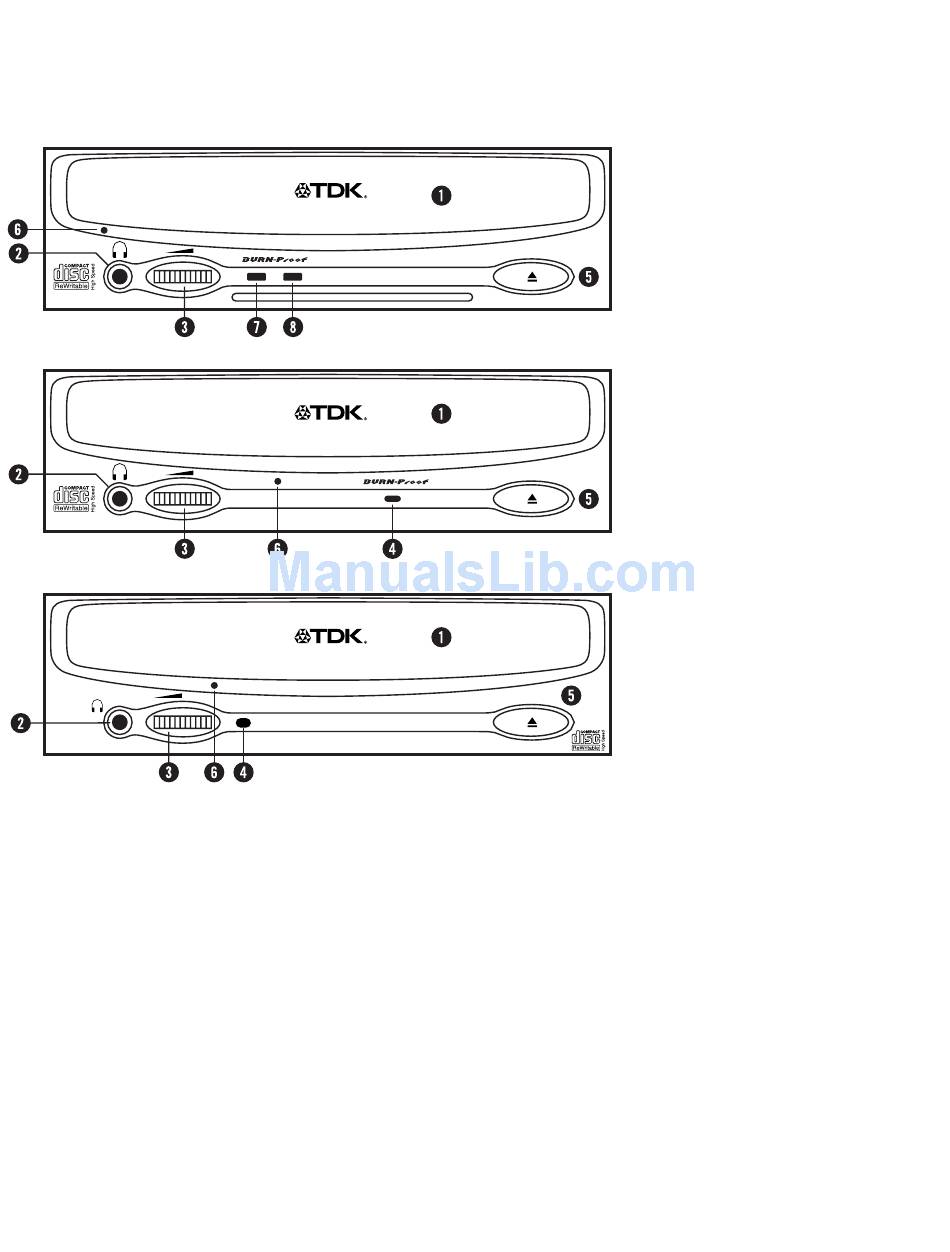

Figure 1: Front Panel of the veloCD ReWRITER Drive. (Find your drive above)
Things you should know: (see Figure 1)
1. Tray front door: Attached to tray drawer.
2. Headphone jack: Stereo mini-jack for headphones and powered speakers.
3. Volume control: Controls volume of headphone jack.
4. Disc indicator: Illuminated when disc is in the drive and power is ON. Blinks when reading or writing data.
5. Stop/eject button: Push to eject tray.
6. Emergency eject hole: Insert emergency eject stick, paper clip, or other thin, rigid object to eject
tray if automatic eject button does not work. Turn OFF power before using this feature.
7. Busy Indicator: Blinks when reading data.
8. Write Indicator: Blinks when writing data.
