Cable Select Jumper Settings
If you wish to use the veloCD in cable select mode, be certain that the veloCD is located
in the Master location on the cable select IDE cable.
Install jumpers this way
(vertically)
Figure 6: Install Jumpers Across Vertical Pairs of Pins

INSTALL THE veloCD REWRITER

Before proceeding to install the veloCD ReWRITER in your personal computer, double-check
your jumper setting.
Record the Serial Number
Record the serial number and TLA code of your drive on the last page of this manual.

Mount the veloCD ReWRITER in the Computer

Mount your internal veloCD ReWRITER in any available bay. Remove the small panel that covers
the bay you want to use.
If you don't have an empty bay, remove the existing IDE CD-ROM drive and install the veloCD.
You must make a minimum of two cable connections to your veloCD ReWRITER. The two cable
connections that you must make are:
IDE cable
•
Power cable
•
A third cable connection will need to be made if you are using a soundcard in your computer and
plan to connect the veloCD ReWRITER's audio output to the audio connector on the soundcard in
order to play audio using non-TDK software.

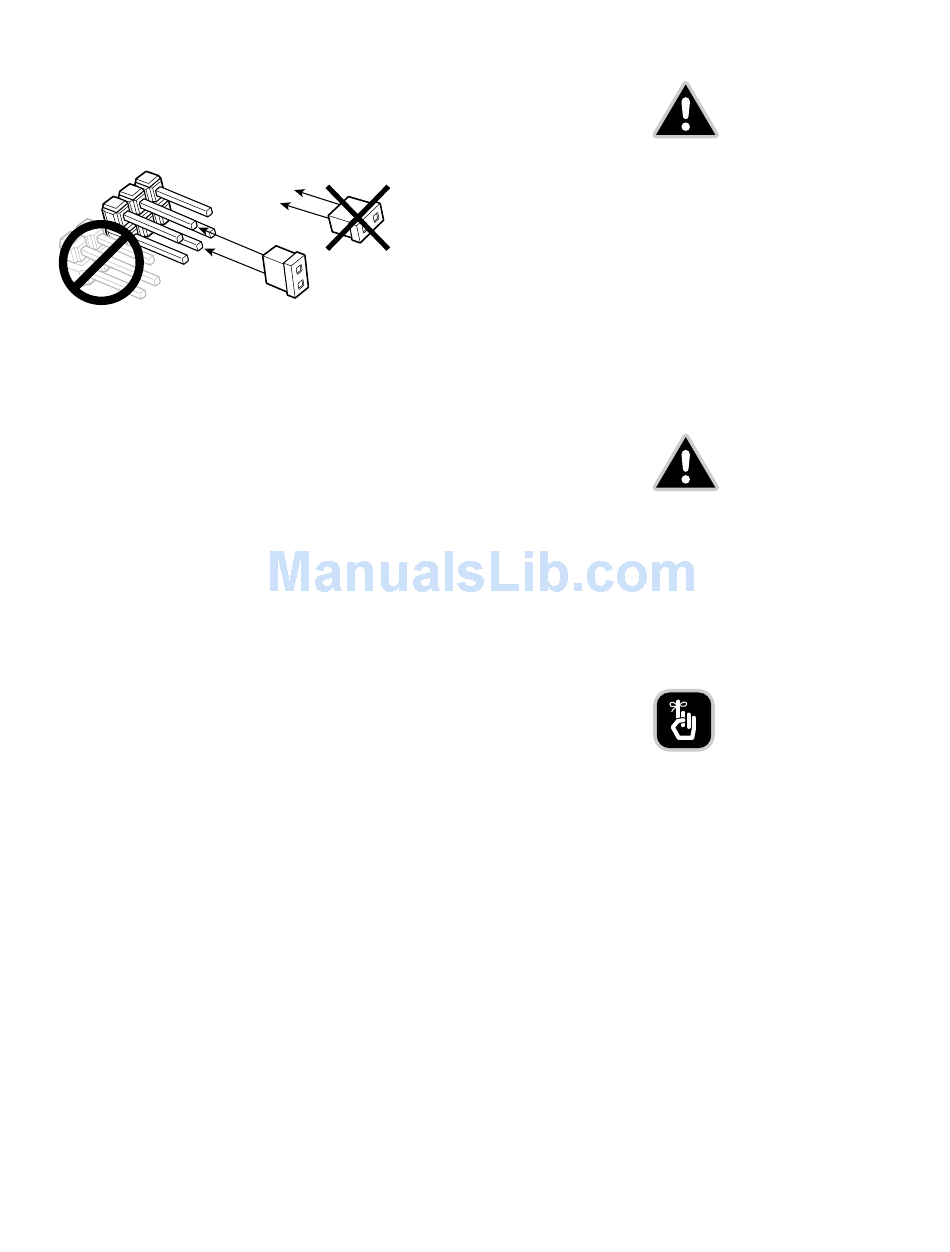

DO NOT install jumpers this way
(horizontally)
Jumper
CAUTION: Install jumpers across each pin as shown
(vertically). Do not connect one pin switch to another
by installing the jumpers lengthwise (horizontally).
Doing so could result in damage to the drive.
CAUTION: Install your veloCD ReWRITER horizontally.
TDK does not guarantee the drive's performance in
a vertical position.
FYI: A special utility in the TDK CD Blender software
suite sends the audio output from the veloCD
ReWRITER to your sound-card via the ATAPI bus.
This will enable you to play audio CDs from the
veloCD drive without a cable connection to the
soundcard.
SECTION 2 : Installing Your veloCD ReWRITER
9
