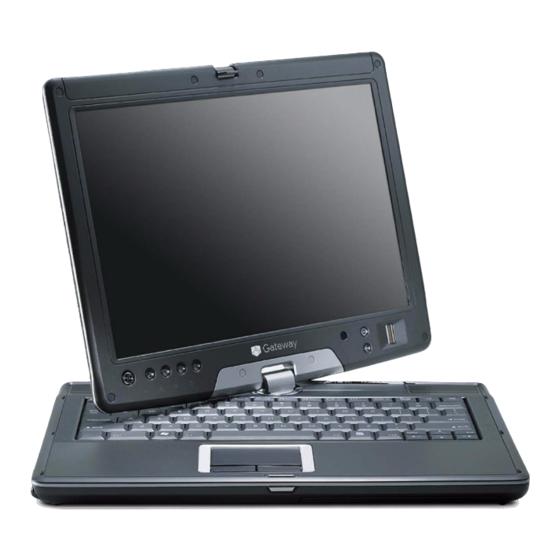

Gateway E-155C Technical Reference Manual

Gateway notebook pcs
Hide thumbs Also See for E-155C:
Table of Contents

Advertisement

Quick Links

#-155C
E-155C
Technical Reference Manual
Technical Reference Manual

Advertisement

Table of Contents
loading

Summary of Contents for Gateway E-155C

  • Page 1 #-155C E-155C Technical Reference Manual Technical Reference Manual...
  • Page 3: Table Of Contents

    www.mpccorp.com Contents Chapter 1: About This Reference ... . . 1 MPC contact information ......2 MPC model and serial number .
  • Page 4 Contents Enrolling your fingerprints ..... . . 29 Using the Fingerprint Control Center ....33 Using the fingerprint reader features .
  • Page 5 www.mpccorp.com Maximizing battery performance ....64 Conserving battery power ......65 Using alternate power sources .
  • Page 6 Contents Audio ........95 Batteries .
  • Page 7 www.mpccorp.com EMA001128-00...
  • Page 8: Chapter 1: About This Reference

    CHAPTER1 About This Reference • MPC contact information • Microsoft Certificate of Authenticity • For more information...
  • Page 9: Mpc Contact Information

    CHAPTER 1: About This Reference MPC contact information Important The labels shown in this section are for informational purposes only. Label information varies by model, features ordered, and location. MPC model and serial number The label on the bottom of your convertible notebook contains information that identifies your convertible notebook model and its features.
  • Page 10: Chapter 2: Checking Out Your Notebook

    CHAPTER2 Checking Out Your Notebook • • Front • Left • Right • Back • Bottom • Keyboard area...
  • Page 11: Top

    CHAPTER 2: Checking Out Your Notebook Power indicator Missing pen indicator Battery charge indicator Component Icon Description Missing pen LED on and missing pen alarm sounding or LED blinking indicator - Pen is not in the pen holder while the convertible notebook is turned off.
  • Page 12: Front

    www.mpccorp.com Front LCD panel release latch Component Icon Description LCD panel release Press to open the LCD panel. latch Left Digital pen Monitor port Ventilation fan Memory card reader PC Card slot Docking port Ethernet jack Component Icon Description Ventilation fan Helps cool internal components.
  • Page 13 CHAPTER 2: Checking Out Your Notebook Component Icon Description Monitor port Plug an analog VGA monitor or projector into this port. For more information, see “Viewing the display on a projector or monitor” on page Docking port Connect the optional port replicator to this port. Warning: Power is passed through this port.
  • Page 14: Right

    www.mpccorp.com Right IEEE 1394 Headphone jack USB ports Microphone jack Component Icon Description ® IEEE 1394 port Plug an IEEE 1394 (also known as Firewire ® i.Link ) device (such as a digital camcorder or MP3 player) into this 4-pin IEEE 1394 port. USB ports Plug USB devices (such as a diskette drive, flash drive, printer, scanner, camera, keyboard, or...
  • Page 15: Back

    CHAPTER 2: Checking Out Your Notebook Back Kensington Modem Power connector Component Icon Description Modem jack Plug a dial-up modem cable into this jack. For more information, see “Connecting the dial-up modem” on page Power Plug the AC adapter cable into this connector. connector Kensington™...
  • Page 16: Bottom

    www.mpccorp.com Bottom Battery Battery lock Battery latch Customer Memory care label Hard drive bay Component Icon Description Hard drive The hard drive is located in this bay. For more information, see “Replacing the hard drive kit” on page Customer Includes the Customer Care information. For more Care label information, see “MPC contact information”...
  • Page 17: Keyboard Area

    CHAPTER 2: Checking Out Your Notebook Keyboard area Tablet control buttons/ Microphone Microphone Ambient light sensor Status indicators Tablet control buttons Power button Fingerprint reader Speaker Speaker Keyboard Touchpad Component Icon Description Keyboard Provides all the features of a full-sized, computer keyboard.
  • Page 18 www.mpccorp.com Component Icon Description Ambient light Automatically adjusts the display brightness based on sensor the available light. For more information, see “Using the ambient light sensor” on page Fingerprint Provides enhanced security. For more information, see reader “Programming the Windows Journal button (Windows XP only)”...
  • Page 19: Chapter 3: Setting Up And Getting Started

    CHAPTER3 Setting Up and Getting Started • Working safely and comfortably • Connecting the AC adapter • Connecting the dial-up modem • Connecting to a broadband modem or network • Starting your convertible notebook • Using the status indicators • Using the keyboard •...
  • Page 20: Working Safely And Comfortably

    www.mpccorp.com Working safely and comfortably Before using your convertible notebook, follow these general guidelines for setting up a safe and comfortable work area and avoiding discomfort and strain: • Keep hands and arms parallel to the floor. • Adjust the screen so it is perpendicular to your line of sight.
  • Page 21: Setting Up Your Computer Desk And Chair

    CHAPTER 3: Setting Up and Getting Started • Avoid focusing your eyes on your screen for long periods of time. Every 10 or 15 minutes, look around the room, and try to focus on distant objects. • Where feasible, keep your head vertical while looking at the screen.
  • Page 22: Avoiding Discomfort And Injury From Repetitive Strain

    www.mpccorp.com Avoiding discomfort and injury from repetitive strain • Vary your activities to avoid excessive repetition. • Take breaks to change your position, stretch your muscles, and relieve your eyes. • Find ways to break up the work day, and schedule a variety of tasks.
  • Page 23 CHAPTER 3: Setting Up and Getting Started To connect the AC adapter: Connect the power cord to the AC adapter. Connect the AC adapter to your convertible notebook’s power connector. Plug the power cord into a wall outlet. The battery charge indicator turns on (see “Top”...
  • Page 24: Protecting From Power Source Problems

    www.mpccorp.com Protecting from power source problems During a power surge, the voltage level of electricity coming into your convertible notebook can increase to levels far above normal levels and cause data loss or system damage. Protect your convertible notebook and peripheral devices by connecting them to a surge protector, which absorbs voltage surges and prevents them from reaching your convertible notebook.
  • Page 25: Connecting To A Broadband Modem Or Network

    CHAPTER 3: Setting Up and Getting Started Connecting to a broadband modem or network Your convertible notebook has a network jack that you can use to connect to a cable or DSL modem or to a wired Ethernet network. To connect to a cable or DSL modem or to a wired Ethernet network: Insert one end of the network cable into the network jack...
  • Page 26: Starting Your Convertible Notebook

    www.mpccorp.com Starting your convertible notebook Warning Do not work with the convertible notebook resting on your lap. If the air vents are blocked, the convertible notebook may become hot enough to harm your skin. Caution Provide adequate space around your convertible notebook so air vents are not obstructed.
  • Page 27: Waking Up Your Convertible Notebook

    CHAPTER 3: Setting Up and Getting Started Attach and turn on any peripheral devices, such as printers, scanners, speakers, and port replicators. For more information about connecting peripheral devices, see “Installing a printer or other peripheral device” on page See the documentation that came with each device for its setup instructions.
  • Page 28 www.mpccorp.com Status indicators inform you when a drive is being used or when a button has been pressed that affects how the keyboard is used. The status indicators are located at the bottom of the LCD panel. Battery charge Drive Wireless network Num lock Caps lock...
  • Page 29: Using The Keyboard

    CHAPTER 3: Setting Up and Getting Started Using the keyboard Your convertible notebook features a full-size keyboard that functions the same as a desktop computer keyboard. Many of the keys have been assigned alternate functions, including shortcut keys for Windows, function keys for specific system operations, and the Num Lock keys for the numeric keypad.
  • Page 30: Key Types

    www.mpccorp.com Key types The keyboard has several different types of keys. Some keys perform specific actions when pressed alone and other actions when pressed in combination with another key. Key type Icon Description Function keys Press these keys labeled F1 to F11 to perform actions in programs.
  • Page 31: System Key Combinations

    CHAPTER 3: Setting Up and Getting Started System key combinations When you press the F key and a system key at the same time, your convertible notebook performs the action identified by the text or icon on the key. Press and hold To...
  • Page 32 www.mpccorp.com Press and hold To... , then press this system key... Increase the LCD panel brightness above the normal brightest setting. Use this feature in bright lighting situations, such as outside in bright sunlight. Press a second time to decrease the brightness below the normal lowest brightness setting.
  • Page 33: Using The Tablet Control Buttons

    CHAPTER 3: Setting Up and Getting Started Using the tablet control buttons Press the tablet control buttons to control the convertible notebook while it is in tablet mode. Wireless network Windows security Mobility Center/Windows Journal Screen rotation Button Icon Description Windows Provides the same action as pressing security...
  • Page 34: Programming The Windows Journal Button

    www.mpccorp.com Button Icon Description OK (located Performs the same action as the E NTER next to key on the keyboard. fingerprint reader) Back (located Performs the same action as the Back next to button in an Internet browser. fingerprint reader) Programming the Windows Journal button (Windows XP only) You can program the Windows Journal button to perform an...
  • Page 35: Using The Fingerprint Reader

    CHAPTER 3: Setting Up and Getting Started Click or tap Journal Button, then click or tap Change. The Change Tablet Button Actions dialog box opens. Select an action, then, if applicable, select a program. Using the fingerprint reader Your notebook includes a fingerprint reader that provides enhanced security and convenience.
  • Page 36: Running The Touchstrip Tutorial

    www.mpccorp.com • Secure logon to Windows and fast user switching between user accounts • Password bank feature which records and replays passwords used in Windows and Web-based applications. • A safe or folder for storing encrypted files that only a user with a matching fingerprint can access •...
  • Page 37 CHAPTER 3: Setting Up and Getting Started The User Enrollment wizard opens. If you want to run the TouchStrip Tutorial, leave the Run interactive tutorial check box selected, then click or tap Next. The TouchStrip Tutorial runs. For more information, see “Running the TouchStrip Tutorial”...
  • Page 38 www.mpccorp.com Click or tap the button above the finger you are enrolling. A new box appears with three empty circles in it. Swipe your finger. A sample will be created and is indicated by a fingerprint icon in one of the circles. Repeat Step 6 two more times, then click or tap Next.
  • Page 39 CHAPTER 3: Setting Up and Getting Started Click or tap Finish.
  • Page 40: Using The Fingerprint Control Center

    www.mpccorp.com Using the Fingerprint Control Center The Fingerprint Control Center lets the administrator of the convertible notebook control how the fingerprint reader is used. You can: • Add new fingerprints to the database • Edit or delete fingerprints from the database •...
  • Page 41: Using The Ez Pad Touchpad

    CHAPTER 3: Setting Up and Getting Started Using the EZ Pad touchpad The EZ Pad™ consists of a touchpad and two buttons. Touchpad Left button Right button When you move your finger on the touchpad, the pointer (arrow) on the screen moves in the same direction.
  • Page 42 www.mpccorp.com You can use the EZ-Pad left and right buttons below the touchpad to select objects. You can attach a mouse to the convertible notebook or optional port replicator using a USB port. You do not need to shut down the convertible notebook to connect a USB mouse.
  • Page 43: Using The Fingerprint Reader As A Touchpad

    CHAPTER 3: Setting Up and Getting Started To... Do this... Access a Position the shortcut menu pointer over the or find more object. Quickly information press and release about an the right button object on the once. This action screen. is called right-clicking.
  • Page 44: Using The Display

    www.mpccorp.com Using the display Your convertible notebook’s screen combines the eye-soothing readability of a liquid-crystal display with the responsiveness of a pen controller. The screen provides a hard, smooth writing surface, minimizes glare, and increases readability. • Your convertible notebook’s display responds to your convertible notebook’s digital pen, to a PDA stylus, or the touch of a fingertip.
  • Page 45 CHAPTER 3: Setting Up and Getting Started To convert the display from notebook mode to tablet mode: Open the LCD panel to the normal viewing position. Rotate the LCD panel until the back of the panel is facing you. The panel soft-locks into the final position. Important You can rotate the screen in either direction.
  • Page 46: Changing Display Orientation

    www.mpccorp.com Close the LCD panel onto the keyboard. There is a click when the LCD panel latch locks. Caution You can rotate the LCD panel in either direction when converting from notebook mode to tablet mode. However, you can rotate the LCD panel in only one direction when converting back to notebook mode.
  • Page 47 CHAPTER 3: Setting Up and Getting Started Using the ambient light sensor Your convertible notebook includes an ambient light sensor that automatically adjusts the screen brightness based on the amount of light available in the environment around the notebook. You can turn this feature on or off.
  • Page 48: Using The Digital Pen

    www.mpccorp.com Using the digital pen Your convertible notebook’s digital pen can write, tap, and input directly on your convertible notebook’s display. Caution Do not strike the display too sharply. Although the display is durable, it can break. The digital pen can do everything a mouse does. Just think “tap” instead of “click”.
  • Page 49: Pen Alarm

    CHAPTER 3: Setting Up and Getting Started To remove the digital pen from your convertible notebook: Push the digital pen into the convertible notebook. The pen pops out slightly. Pull the pen out of the convertible notebook. Pen alarm Your convertible notebook can sound a reminder tone if the digital pen is not in the pen holder when you turn the convertible notebook off or you place it in either Sleep or Hibernate mode.
  • Page 50: Using The Touch Sensitive Screen Feature

    www.mpccorp.com Using the touch sensitive screen feature In addition to the digital pen, you can use your finger or a PDA stylus to interact with the screen. Your convertible notebook was shipped to you with the touch sensitive feature turned on. Caution A finger-tap or PDA stylus works on your convertible notebook’s display as well as a the digital pen.
  • Page 51 CHAPTER 3: Setting Up and Getting Started Click or tap the Touch tab. Modify the touch actions or touch pointer. For Windows XP operating systems: To turn the touch-sensitive screen feature on or off: Click or tap Start. Right-click or button-tap My Computer, then click or tap Properties.
  • Page 52 www.mpccorp.com Double-click or double-tap Virtual Touch Driver. The Virtual Touch Driver Properties dialog box opens. Click or tap the arrow to open the Device usage list, then click or tap Use this device to turn on the touch-sensitive screen feature or click or tap Do not use this device to turn off the touch-sensitive screen feature.
  • Page 53: Turning Your Wireless Radio On Or Off

    CHAPTER 3: Setting Up and Getting Started Turning your wireless radio on or off Your MPC convertible notebook may have a factory-installed wireless radio. Warning Radio frequency wireless communication can interfere with equipment on commercial aircraft. Current aviation regulations require wireless devices to be turned off while traveling in an airplane.
  • Page 54 www.mpccorp.com To turn the Bluetooth radio on or off: • Press F + F6. -OR- Press the Wireless button . For more information, see “Using the tablet control buttons” on page Help For more information about Bluetooth, click or tap Start, then click or tap Help and Support.
  • Page 55 CHAPTER 3: Setting Up and Getting Started...
  • Page 56: Chapter 4: Using Drives And Accessories

    CHAPTER4 Using Drives and Accessories • Using the DVD drive • Using the memory card reader • Adding and removing a PC Card • Installing a printer or other peripheral device • Viewing the display on a projector or monitor •...
  • Page 57: Using The Dvd Drive

    CHAPTER 4: Using Drives and Accessories Using the DVD drive You can use your convertible notebook to enjoy a wide variety of multimedia features. Identifying drive types Your MPC convertible notebook may contain one of the following drive types. Look on the front of the drive for one or more of the following logos: If your drive has this This is your drive...
  • Page 58: Using A Cd Or Dvd

    www.mpccorp.com Using a CD or DVD Manual eject hole Eject button Important DVD discs and drives contain regional codes that help control DVD title exports and help reduce illegal disc distribution. To be able to play a DVD, the disc’s regional code and your DVD drive’s regional code must match. The regional code on your DVD drive is determined by your convertible notebook’s delivery address.
  • Page 59: Using The Memory Card Reader

    CHAPTER 4: Using Drives and Accessories Using the memory card reader You can use memory cards to transfer pictures from a digital camera to your convertible notebook. You can also use the memory card reader to transfer data between your convertible notebook and a device that uses memory cards, such as a PDA, MP3 player, or cellular telephone.
  • Page 60: Adding And Removing A Pc Card

    www.mpccorp.com Pull the memory card out of the convertible notebook. Adding and removing a PC Card Your convertible notebook has a PC Card slot (also known as a PCMCIA card slot). This slot accepts one Type II card. You do not need to restart your convertible notebook when changing most cards because your convertible notebook supports hot-swapping.
  • Page 61 CHAPTER 4: Using Drives and Accessories Click or tap the PC Card name, then click or tap OK. The Safe to Remove Hardware dialog box opens. Click or tap OK. Release the eject button by pressing the PC Card eject button once.
  • Page 62: Installing A Printer Or Other Peripheral Device

    www.mpccorp.com Installing a printer or other peripheral device Your convertible notebook or optional port replicator has one or more of the following ports: IEEE 1394 (also known as ® ® Firewire or i.Link ) and Universal Serial Bus (USB). You use these ports to connect peripheral devices such as printers, scanners, and digital cameras to your convertible notebook.
  • Page 63: Connecting An Ieee 1394 Device

    CHAPTER 4: Using Drives and Accessories To connect your USB device to your convertible notebook: Connect one end of the USB cable to your device. Connect the other end of the cable to a USB port your convertible notebook or optional port replicator. For the location of the USB ports on your convertible notebook, “Right”...
  • Page 64: Viewing The Display On A Projector Or Monitor

    www.mpccorp.com Viewing the display on a projector or monitor You can use your convertible notebook for giving presentations by connecting an external monitor or projector to your monitor (VGA) port. Your convertible notebook supports simultaneous LCD and external display. Simultaneous display lets you control the presentation from your convertible notebook at the same time as you face your audience.
  • Page 65 CHAPTER 4: Using Drives and Accessories For Windows XP operating systems: To use a projector or external monitor: Turn off your convertible notebook. Plug the projector or monitor cable into the monitor port on your convertible notebook or optional port replicator.
  • Page 66: Ordering Accessories

    www.mpccorp.com Ordering accessories To order accessories, click the Parts and Peripherals link at www.mpccorp.com. Accessories may not be available in all localities. Automobile/airplane power adapters With an automobile/airplane power adapter, you can save battery power by plugging your convertible notebook into an automobile cigarette lighter or an airplane in-flight power receptacle.
  • Page 67 CHAPTER 4: Using Drives and Accessories A port replicator also provides additional ports and other expansion features not included with your convertible notebook. Printers You can attach almost any type of printer to your convertible notebook. The most common types are inkjet and laser printers, which print in color or black and white.
  • Page 68: Chapter 5: Managing Power

    CHAPTER5 Managing Power • Recharging the battery • Changing the battery • Recalibrating the battery • Getting the most from your battery...
  • Page 69: Recharging The Battery

    CHAPTER 5: Managing Power Recharging the battery The battery recharges while it is installed and your convertible notebook is connected to AC power. While the battery recharges, the battery charge indicator turns on. Changing the battery Replacing the battery Warning Danger of explosion if battery is incorrectly replaced.
  • Page 70: Recalibrating The Battery

    www.mpccorp.com Slide the battery lock to the unlocked position , then slide the battery release latch. Slide the battery out of the bay. Slide a recharged battery into the bay until it snaps into place. Slide the battery lock to the locked position. Turn your convertible notebook over.
  • Page 71: Getting The Most From Your Battery

    CHAPTER 5: Managing Power After the battery is completely drained, reconnect your notebook to AC power. Charge the battery completely until the battery status indicator turns blue. Important If, after completing this procedure, the battery charge indicator still does not show an accurate charge, contact MPC Customer Care. For more information, see “MPC contact information”...
  • Page 72: Conserving Battery Power

    www.mpccorp.com Conserving battery power To conserve power while using the battery to power your convertible notebook: • Turn off wireless networking and Bluetooth. • Dim the display as low as is comfortable. • Disconnect all external devices, like IEEE 1394 and USB devices.
  • Page 73: Using Alternate Power Sources

    CHAPTER 5: Managing Power Using alternate power sources To extend battery life, use alternate power sources whenever possible. • If traveling internationally, take electrical adapters. Save the battery for times when you cannot use a power adapter. If you plan on taking your AC power adapter, also take a single-plug surge protector.
  • Page 74: Chapter 6: Traveling With Your Notebook

    CHAPTER6 Traveling with Your Notebook • Packing your convertible notebook • Traveling by air • Dial-up modem • Radio frequency wireless connections • Files • Security • Power • Additional tips...
  • Page 75: Packing Your Convertible Notebook

    CHAPTER 6: Traveling with Your Notebook Packing your convertible notebook • Remove all peripheral devices and cables. Remember to pack those you will need while traveling. • Pack your convertible notebook securely into a briefcase or hand-carried luggage, and keep it separate from toiletries, liquids, and food.
  • Page 76: Radio Frequency Wireless Connections

    www.mpccorp.com Radio frequency wireless connections Important If your convertible notebook came equipped with an internal embedded wireless device, see “Legal Information” on page 121 for general wireless regulatory guidelines. • Every country has different restrictions on the use of wireless devices. If your convertible notebook is equipped with a wireless device, check with the local radio approval authorities prior to your trip for any restrictions on the use of a wireless device in the...
  • Page 77: Security

    CHAPTER 6: Traveling with Your Notebook Security • Get a locking cable for your convertible notebook so you can attach a cable lock and leave your convertible notebook in your hotel room while you are away. • Always keep your convertible notebook with you while waiting in airports, train stations, or bus terminals.
  • Page 78: Power

    www.mpccorp.com Highlight Password on boot, then press E NTER Highlight Enabled, then press E NTER Open the Exit menu, highlight Exit Saving Changes, then press E NTER When you start your computer, you are prompted to enter the user password you set in Step Power •...
  • Page 79 CHAPTER 6: Traveling with Your Notebook...
  • Page 80: Chapter 7: Maintaining Your Notebook

    CHAPTER7 Maintaining Your Notebook • Caring for your convertible notebook • Cleaning your convertible notebook • Maintaining the battery • Cleaning CDs or DVDs • Recovering your system...
  • Page 81: Caring For Your Convertible Notebook

    CHAPTER 7: Maintaining Your Notebook Caring for your convertible notebook To extend the life of your convertible notebook: • Be careful not to bump or drop your convertible notebook, and do not put any objects on top of it. The case, although strong, is not made to support extra weight.
  • Page 82: Display Screen

    www.mpccorp.com Display screen • Use only your convertible notebook’s digital pen, a PDA stylus, or your finger on the display. Do not write on the surface with an ink pen or pencil. • Nothing heavier than your writing hand should be placed on top of the display.
  • Page 83: Cleaning Your Convertible Notebook

    CHAPTER 7: Maintaining Your Notebook To replace the pen point: Use the replacement tool to grab the old point and pull it out of the pen. Insert a new point and apply slight pressure to set it in place. Cleaning your convertible notebook Keeping your convertible notebook clean and the vents free from dust helps keep your convertible notebook performing at...
  • Page 84: Cleaning The Keyboard

    www.mpccorp.com Your convertible notebook is cooled by air circulated through the vents on the case, so keep the vents free of dust. With your convertible notebook turned off and unplugged, brush the dust away from the vents with a damp cloth. Be careful not to drip any water into the vents.
  • Page 85: Storing Batteries

    CHAPTER 7: Maintaining Your Notebook Do not expose the battery to high heat or freezing temperatures. Hot batteries discharge very quickly, and cold ones cannot create as much power. Short battery life is more likely to be caused by heat than by charge/discharge patterns. Keep your lithium-ion battery cool.
  • Page 86: Cleaning Cds Or Dvds

    www.mpccorp.com Consider removing the battery from your convertible notebook when running on fixed power. However, remember that when you have removed the battery from your convertible notebook while using it with an electrical outlet, the automatic battery charger no longer keeps the battery charged. Caution When the battery is in the convertible notebook and the convertible notebook is running on AC power, the battery constantly charges, even though...
  • Page 87: Using Microsoft System Restore

    CHAPTER 7: Maintaining Your Notebook • If only one or two items of software or hardware have stopped working correctly, the problem may be solved by re-installing the software or the hardware drivers. For instructions on reinstalling software and drivers that were not pre-installed, see that product’s documentation or support Web site.
  • Page 88 www.mpccorp.com On the left side of the window, click or tap Repair Windows using System Restore, then click or tap Next. The Choose a restore point dialog box opens. Click or tap the restore point you want, click or tap Next, then click or tap Finish.
  • Page 89 CHAPTER 7: Maintaining Your Notebook On the left side of the window, click or tap Create a restore point or change settings, then click or tap Next. The System Properties dialog box opens to the System Protection tab. Click or tap Create. The Create a restore point dialog box opens.
  • Page 90: Chapter 8: Upgrading Your Notebook

    CHAPTER8 Upgrading Your Notebook • Preventing static electricity discharge • Adding or replacing memory modules • Replacing the hard drive kit...
  • Page 91: Preventing Static Electricity Discharge

    CHAPTER 8: Upgrading Your Notebook Preventing static electricity discharge Warning To avoid exposure to dangerous electrical voltages and moving parts, turn off your convertible notebook, unplug the power cord, modem cable, and network cable, and remove the battery before opening the case. Warning To prevent risk of electric shock, do not insert any object into the vent holes of the convertible notebook.
  • Page 92: Adding Or Replacing Memory Modules

    www.mpccorp.com Adding or replacing memory modules Important Use only memory modules designed for your MPC convertible notebook. Tools You need a small Phillips screwdriver to replace memory modules. Your convertible notebook uses memory modules called SO-DIMMs (Small Outline Dual Inline Memory Modules). The modules are available in various capacities and any module can be placed in any slot.
  • Page 93 CHAPTER 8: Upgrading Your Notebook Turn your convertible notebook over so the bottom is facing up, then remove the battery. For more information, “Changing the battery” on page Loosen the two memory bay cover screws that secure the memory cover. (These screws cannot be removed.) Screw Scre Remove the memory bay cover.
  • Page 94 www.mpccorp.com Pull the memory module out of the slot. Hold the new or replacement module at a 30-degree angle and press it into the empty memory slot. This module is keyed so it can only be inserted in one direction. If the module does not fit, make sure that the notch in the module lines up with the tab in the memory bay.
  • Page 95: Replacing The Hard Drive Kit

    CHAPTER 8: Upgrading Your Notebook If you would like more hard drive capacity, you can replace your original drive with a higher-capacity drive. Hard drive To replace the hard drive kit: Create a Drivers and Applications Recovery disc. Back up any data you want to transfer to the new hard drive.
  • Page 96 www.mpccorp.com Loosen the two hard drive bay cover screws (they cannot be removed), then remove the hard drive bay cover. Screw Screw Remove the two hard drive screws. Screw Screw...
  • Page 97 CHAPTER 8: Upgrading Your Notebook Pull on the plastic strip to slide the old hard drive out of the convertible notebook. Remove the four screws that secure the hard drive to the hard drive bracket. Screw Screw Screw Screw...
  • Page 98 www.mpccorp.com Remove the bracket from the old drive. Insert the new drive into the bracket, label side up, so the screw holes line up. Replace the four screws that secure the bracket to the drive. Slide the new hard drive into your convertible notebook, then replace the screws that secure the hard drive to your convertible notebook.
  • Page 99 CHAPTER 8: Upgrading Your Notebook...
  • Page 100: Chapter 9: Troubleshooting

    CHAPTER9 Troubleshooting • Safety guidelines • First steps • Troubleshooting • Telephone support...
  • Page 101: Safety Guidelines

    CHAPTER 9: Troubleshooting Safety guidelines Warning Do not try to troubleshoot your problem if power cords or plugs are damaged, if your convertible notebook was dropped, or if the case was damaged. Instead, unplug your convertible notebook and contact a qualified computer technician.
  • Page 102: Troubleshooting

    www.mpccorp.com • If the convertible notebook will not turn on, try turning it on with the convertible notebook plugged in and the battery removed, then try turning the convertible notebook on with the convertible notebook unplugged and the battery installed. •...
  • Page 103: Diskette Drive (External)

    CHAPTER 9: Troubleshooting Diskette drive (external) The diskette drive is not recognized • Shut down and restart your convertible notebook. You see an “Access Denied” or “Write protect” error message • Move the write-protection tab in the upper-right corner of the diskette down (unprotected). •...
  • Page 104 www.mpccorp.com The text on the display is dim or difficult to read • Adjust the brightness using the system keys or Windows Mobility Center. For more information about adjusting the brightness, see “Adjusting brightness” on page • Change the display settings. •...
  • Page 105: Dvd Drives

    CHAPTER 9: Troubleshooting DVD drives Your convertible notebook does not recognize a disc • The disc may not be seated correctly in the tray. When you place a disc on the tray, make sure that you press the disc firmly onto the spindle so the retainers hold the disc in place.
  • Page 106: Ethernet

    www.mpccorp.com A DVD movie will not play • Make sure that the label or side you want to play is facing up, then try again. • Shut down and restart your convertible notebook. • Clean the DVD. For more information, see “Cleaning CDs or DVDs”...
  • Page 107: Fingerprint Reader

    CHAPTER 9: Troubleshooting Fingerprint reader The fingerprint reader does not recognize your fingerprint • Make sure that you are using the correct method for swiping your finger. For more information, see “Running the TouchStrip Tutorial” on page • Make sure that you are using a finger that you have enrolled.
  • Page 108: Internet

    www.mpccorp.com The hard drive cannot be accessed, or you see a “General failure reading drive C” error message • If a diskette is in the diskette drive, eject it and restart your convertible notebook. • Make sure that the hard drive is installed correctly. Remove it, firmly reinsert it, then restart your convertible notebook.
  • Page 109: Keyboard

    CHAPTER 9: Troubleshooting You see an “Unable to locate host” message and are unable to browse the Internet • This problem can occur when you have typed a URL (Web address) incorrectly, you have lost your Internet connection, or your ISP is having technical difficulties. Double-check the URL or try a different URL.
  • Page 110: Media Center

    www.mpccorp.com An external keyboard does not work • Make sure that the keyboard cable is plugged in correctly. • Remove all extension cables and switchboxes. • Clean the keyboard by using an aerosol can of air with a narrow, straw-like extension to remove dust and lint trapped under the keys.
  • Page 111 CHAPTER 9: Troubleshooting Important Cable connections must be made correctly for optimal video quality. A poor cable connection can lower video quality. • Screen resolution—By default, the convertible notebook uses a screen resolution optimized for the LCD screen. Many TVs cannot display this high of a resolution and may shift, scramble, or scroll the picture.
  • Page 112: Memory

    www.mpccorp.com You need to configure your computer to output to a TV • Your computer detects that you are using a VGA display device and automatically changes the display settings for the type of display device you are using. For more information, review the FAQ topic at www.mpccorp.com.
  • Page 113: Memory Card Reader

    CHAPTER 9: Troubleshooting For Windows XP operating systems: You see a “Not enough memory” error message • Close all programs, then restart your convertible notebook. To check the memory: Click or tap (Start), then click or tap Control Panel. The Control Panel window opens. Click or tap System and Maintenance.
  • Page 114 www.mpccorp.com • Make sure that the modem cable is less than 6 feet (1.8 meters) long. • Remove any line splitters or surge protectors from your telephone line, then check for a dial tone by plugging a working telephone into the telephone wall jack. •...
  • Page 115 CHAPTER 9: Troubleshooting To check the dialing properties: Click or tap (Start), then click or tap Control Panel. The Control Panel window opens. Click or tap Printers and Other Hardware or Hardware and Sound. Click or tap the Phone and Modem Options. The Phone and Modem Options dialog box opens.
  • Page 116 www.mpccorp.com You cannot connect to the Internet • The ISP may be having technical difficulties. Contact your ISP for technical support. • See if the modem works with a different communications program. The problem may be with just one program. •...
  • Page 117 CHAPTER 9: Troubleshooting Click or tap Phone and Modem Options. The Phone and Modem Options dialog box opens. Click or tap the Modems tab. Click or tap your modem, then click or tap Properties. The Modem Properties dialog box opens. Click or tap the Diagnostic tab, then click or tap Query Modem.
  • Page 118: Mouse

    www.mpccorp.com Mouse See also “Touchpad or pointing device” on page 119. The external mouse does not work • Make sure that the mouse cable is plugged in correctly. • Shut down and restart your convertible notebook. • Remove all extension cables and switch boxes. •...
  • Page 119 CHAPTER 9: Troubleshooting • Make sure that all computers are using the same Subnet Mask. • If you assigned IP addresses to the computers, make sure that all computers have different IP addresses. For home networks, IP addresses should be 192.168.N.N where N is a number you assign between 0 and 254.
  • Page 120: Networks (Wireless)

    www.mpccorp.com • Every home network is unique. See the documentation that came with your network equipment for troubleshooting information. Networks (wireless) You cannot use the wireless radio • Make sure that your notebook has a wireless radio. • Press F +F2 to turn the wireless radio on.
  • Page 121 CHAPTER 9: Troubleshooting To check the signal strength using Vista: Click or tap (Start), right-click or button-tap Network, then click or tap Properties. The Network and Sharing Center window opens. Click or tap View status for the network connection. The Wireless Network Connection Status dialog box opens.
  • Page 122 www.mpccorp.com You are in a wireless network, but no available networks are listed in the Connect to a network dialog box • If the network you are attempting to access does not broadcast its SSID, you need to request the SSID from the administrator and add that network’s information into the wireless utility.
  • Page 123: Passwords

    CHAPTER 9: Troubleshooting Passwords Your convertible notebook does not accept your password • Make sure that C and N are turned APS LOCK UM LOCK off, then retype the password. You forgot your startup password • The password feature (which is set in the BIOS Setup utility) is very secure, with no easy way to recover a forgotten password.
  • Page 124: Printer

    www.mpccorp.com Your convertible notebook is not working on battery power • Check the power management settings. • Make sure that the battery is installed correctly. For instructions on inserting your battery, see “Changing the battery” on page • Make sure that the battery is fully recharged. For more information about recharging the battery, see “Recharging the battery”...
  • Page 125: Sound

    CHAPTER 9: Troubleshooting Click or tap the Printers and Faxes icon or Printers. Right-click or button-tap the name of the printer you want to be the default printer, then click or tap Set as Default Printer. • Reinstall the printer driver. See the guide that came with your printer for instructions on installing the printer driver.
  • Page 126: Status Indicators

    www.mpccorp.com You are not getting sound from the built-in speakers • Make sure that headphones are not plugged into the headphone jack. • Make sure that the volume control on your convertible notebook is turned up. For more information about using your volume control, see “Turning your wireless radio on or off”...
  • Page 127: Telephone Support

    CHAPTER 9: Troubleshooting Telephone support Before calling MPC Customer Care If you have a technical problem with your convertible notebook, follow these recommendations before contacting MPC Customer Care: • Make sure that your convertible notebook is connected correctly to a grounded AC outlet that is supplying power.
  • Page 128: Appendix A: Legal Information

    APPENDIX Legal Information • Important safety information • Regulatory compliance statements • Environmental information • Notices...
  • Page 129 APPENDIX A: Legal Information Important safety information Warning Always follow these instructions to help guard against personal injury and damage to your MPC system. Warning Do not use MPC products in areas classified as hazardous locations. Such areas include patient care areas of medical and dental facilities, oxygen-laden environments, or industrial facilities.
  • Page 130: Replacement Parts And Accessories

    www.mpccorp.com • When the convertible notebook is turned off, a small amount of electrical current still flows through the convertible notebook. To avoid electrical shock, always unplug all power cables and modem cables from the wall outlets before cleaning the convertible notebook.
  • Page 131: United States Of America

    APPENDIX A: Legal Information Additional limitations, cautions, and concerns for specific countries are listed in the specific country sections (or country group sections). The wireless devices in your system are only qualified for use in the countries identified by the Radio Approval Marks on the system rating label. If the country you will be using the wireless device in, is not listed, please contact your local Radio Approval agency for requirements.
  • Page 132 www.mpccorp.com The FCC has set a general guideline of 8 inches (20 cm) separation between the device and the body, for use of a wireless device near the body (this does not include extremities). This device should be used more than 8 inches (20 cm) from the body when wireless devices are on. The power output of the wireless device (or devices), which may be embedded in your notebook, is well below the RF exposure limits as set by the FCC.
  • Page 133 APPENDIX A: Legal Information California Proposition 65 Warning Warning This product contains chemicals, including lead, known to the State of California to cause cancer, birth defects or reproductive harm. Mercury Warning Warning The lamp in this display contains mercury. Do not put in trash. Recycle or dispose as hazardous waste Telecommunications per Part 68 of the Code of Federal Regulations (CFR 47) (applicable to products fitted with...
  • Page 134 www.mpccorp.com Caution To prevent radio interference to licensed service or co-channel Mobile Satellite systems, this device is intended to be operated indoors and away from windows to provide maximum shielding. Equipment (or its transmit antenna) that is installed outdoors is subject to licensing. Low power, Radio transmitter type devices (radio frequency (RF) wireless communication devices), operating in the 2.4 GHz band and/or 5.15 –...
  • Page 135: Japanese Modem Notice

    APPENDIX A: Legal Information Telecommunications per Industry Canada CS-03 (for products fitted with an IC-compliant modem) The Industry Canada label identifies certified equipment. This certification means that the equipment meets certain telecommunications network protective, operation, and safety requirements. The Department does not guarantee the equipment will operate to the users’ satisfaction.
  • Page 136: Laser Safety Statement

    www.mpccorp.com Laser safety statement Warning Use of controls or adjustments or performance of procedures other than those specified in this manual may result in hazardous radiation exposure. To prevent exposure to laser beams, do not try to open the enclosure of a CD or DVD drive.
  • Page 137 APPENDIX A: Legal Information Notices Copyright © 2008 MPC Computers, LLC. All Rights Reserved 906 E. Karcher Rd. Nampa, ID 83687 USA All Rights Reserved This publication is protected by copyright and all rights are reserved. No part of it may be reproduced or transmitted by any means or in any form, without prior consent in writing from MPC.
  • Page 138: Index

    www.mpccorp.com Index release latch replacing AC adapter bays connecting battery connector hard drive international adapters memory accessories BIOS Setup utility purchasing Bluetooth safety precautions brightness acoustic handset coupler adjusting airplane power adapters system keys ambient light sensor buttons locating back using Mobility Center application key...
  • Page 139 Index cleaning flash drive inserting headphone i.Link CD drive IEEE 1394 See DVD drive keyboard cellular phone microphone memory cards modem (dial-up) Certificate of Authenticity monitor (VGA) cleaning mouse audio CD network case port replicator power printer keyboard projector LCD panel scanner notebook exterior speaker...
  • Page 140 www.mpccorp.com display connecting adjusting brightness jack brightness external monitor changing orientation EZ Pad touchpad maintaining See touchpad orientation properties switching troubleshooting using faxes troubleshooting docking port files double-clicking opening double-tapping transferring dragging troubleshooting drives fingerprint DVD/CD-RW enrolling DVD±RW fingerprint reader hard drive control center identifying drive types...
  • Page 141 Index IEEE 1394 port numeric keypad Sleep IEEE 802.11 system using while traveling system key combinations indicators toggle display See status indicators Windows installing battery devices labels digital camera Microsoft Certificate of digital video camera Authenticity hard drive model number memory serial number PC Card...
  • Page 142 www.mpccorp.com memory cards supported using navigation keys microphone network built-in troubleshooting jack network jack Microsoft Certificate of networking Authenticity turning off wireless Microsoft System Restore network Mobility Center turning on wireless network button mode Num Lock notebook status indicator tablet system key model number numeric keypad...
  • Page 143 Index adding memory cards color quality display properties port See digital pen screen resolution peripheral devices using Plug and Play devices IEEE 1394 support for USB support for radio approval authorities pointer radio frequency wireless identifying connections moving port replicator See memory docking port using...
  • Page 144 www.mpccorp.com security system keys startup password combinations locating security features Kensington cable lock system recovery security while travelling serial number tablet control buttons setting up back safety precautions locating shortcut menus Mobility Center accessing shortcuts Screen Rotation opening menu using Sleep Windows Security mode...
  • Page 145 Index general guidelines video camera hard drive connecting Internet connection volume keyboard adjusting LCD panel adjusting modem Media Center muting memory system keys memory card reader troubleshooting modem mouse network waking up notebook passwords Windows PC Cards power Product Key Code printer safety guidelines Windows Security button...
  • Page 147 MAN PHOENIX HW REF GDE V R1 2/08 EMA001128-00...

Table of Contents
