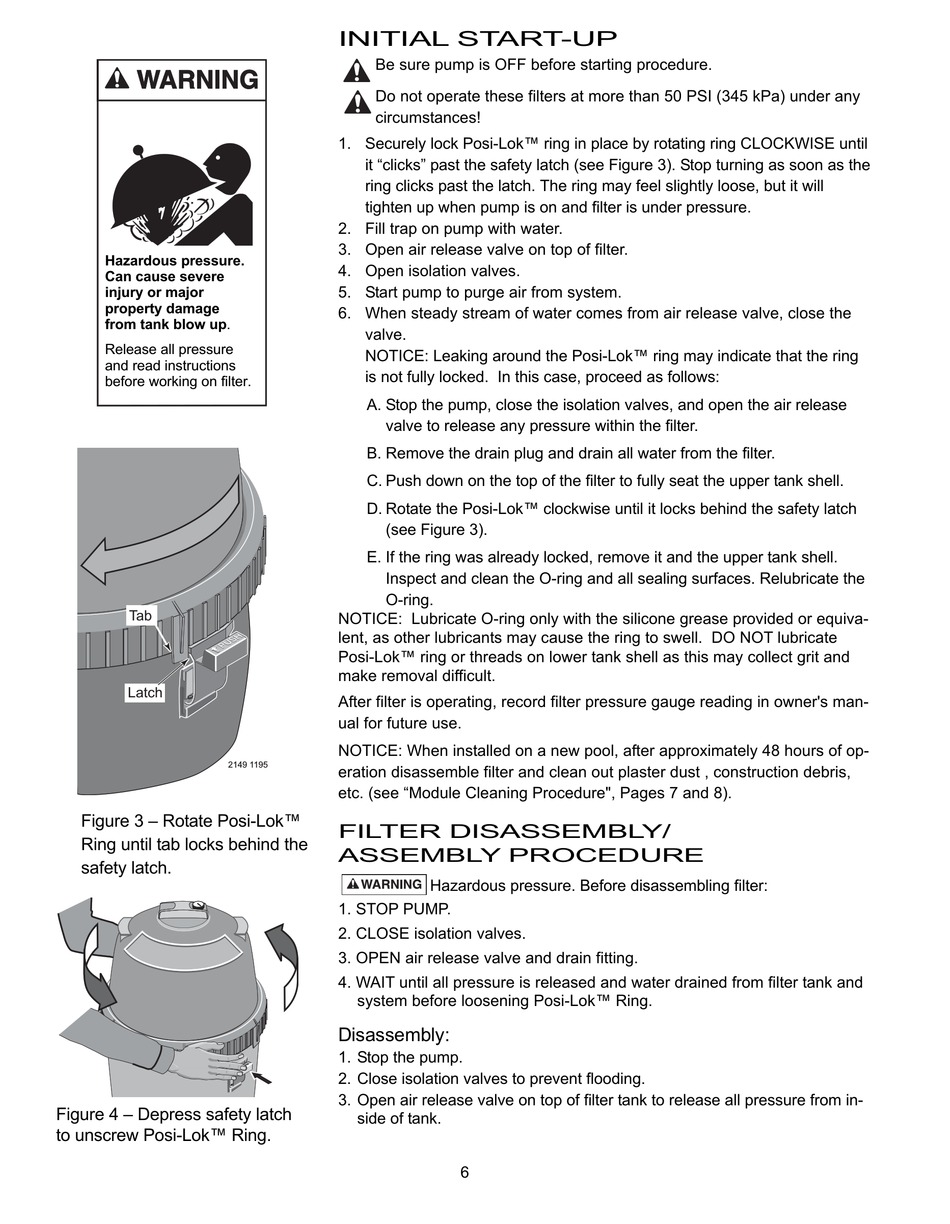

Initial Startup; Filter Disassembly / Assembly - STA-RITE System 2 Owner's Manual

Hazardous pressure.
Can cause severe
injury or major
property damage
from tank blow up.
Release all pressure
and read instructions
before working on filter.
Tab
Latch
Figure 3 – Rotate Posi-Lok™
Ring until tab locks behind the
safety latch.
Figure 4 – Depress safety latch
Depress Safety Latch
to unscrew Posi-Lok™ Ring.
to unscrew Posi-Lok™
INITIAL START-UP
Be sure pump is OFF before starting procedure.
Do not operate these filters at more than 50 PSI (345 kPa) under any
circumstances!
1. Securely lock Posi-Lok™ ring in place by rotating ring CLOCKWISE until
it "clicks" past the safety latch (see Figure 3). Stop turning as soon as the
ring clicks past the latch. The ring may feel slightly loose, but it will
tighten up when pump is on and filter is under pressure.
2. Fill trap on pump with water.
3. Open air release valve on top of filter.
4. Open isolation valves.
5. Start pump to purge air from system.
6. When steady stream of water comes from air release valve, close the
valve.
NOTICE: Leaking around the Posi-Lok™ ring may indicate that the ring
is not fully locked. In this case, proceed as follows:
A. Stop the pump, close the isolation valves, and open the air release
valve to release any pressure within the filter.
B. Remove the drain plug and drain all water from the filter.
C. Push down on the top of the filter to fully seat the upper tank shell.
D. Rotate the Posi-Lok™ clockwise until it locks behind the safety latch
(see Figure 3).
E. If the ring was already locked, remove it and the upper tank shell.
Inspect and clean the O-ring and all sealing surfaces. Relubricate the
O-ring.
NOTICE: Lubricate O-ring only with the silicone grease provided or equiva-
lent, as other lubricants may cause the ring to swell. DO NOT lubricate
Posi-Lok™ ring or threads on lower tank shell as this may collect grit and
make removal difficult.
After filter is operating, record filter pressure gauge reading in owner's man-
ual for future use.
NOTICE: When installed on a new pool, after approximately 48 hours of op-
2149 1195
eration disassemble filter and clean out plaster dust , construction debris,
etc. (see "Module Cleaning Procedure", Pages 7 and 8).
FILTER DISASSEMBLY/
ASSEMBLY PROCEDURE
1. STOP PUMP.
2. CLOSE isolation valves.
3. OPEN air release valve and drain fitting.
4. WAIT until all pressure is released and water drained from filter tank and
system before loosening Posi-Lok™ Ring.
Disassembly:
1. Stop the pump.
2. Close isolation valves to prevent flooding.
3. Open air release valve on top of filter tank to release all pressure from in-
side of tank.
Hazardous pressure. Before disassembling filter:
6
