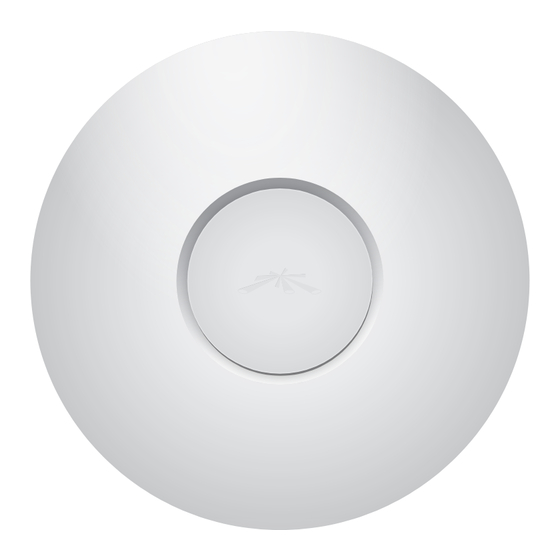

Ubiquiti UAP Quick Start Manual

Enterprise wifi ap system
Hide thumbs Also See for UAP:
Table of Contents

Advertisement

Quick Links

Enterprise WiFi System
Models:
UAP/UAP-LR (Long Range)

Advertisement

Table of Contents
loading

Related Manuals for Ubiquiti UAP

Summary of Contents for Ubiquiti UAP

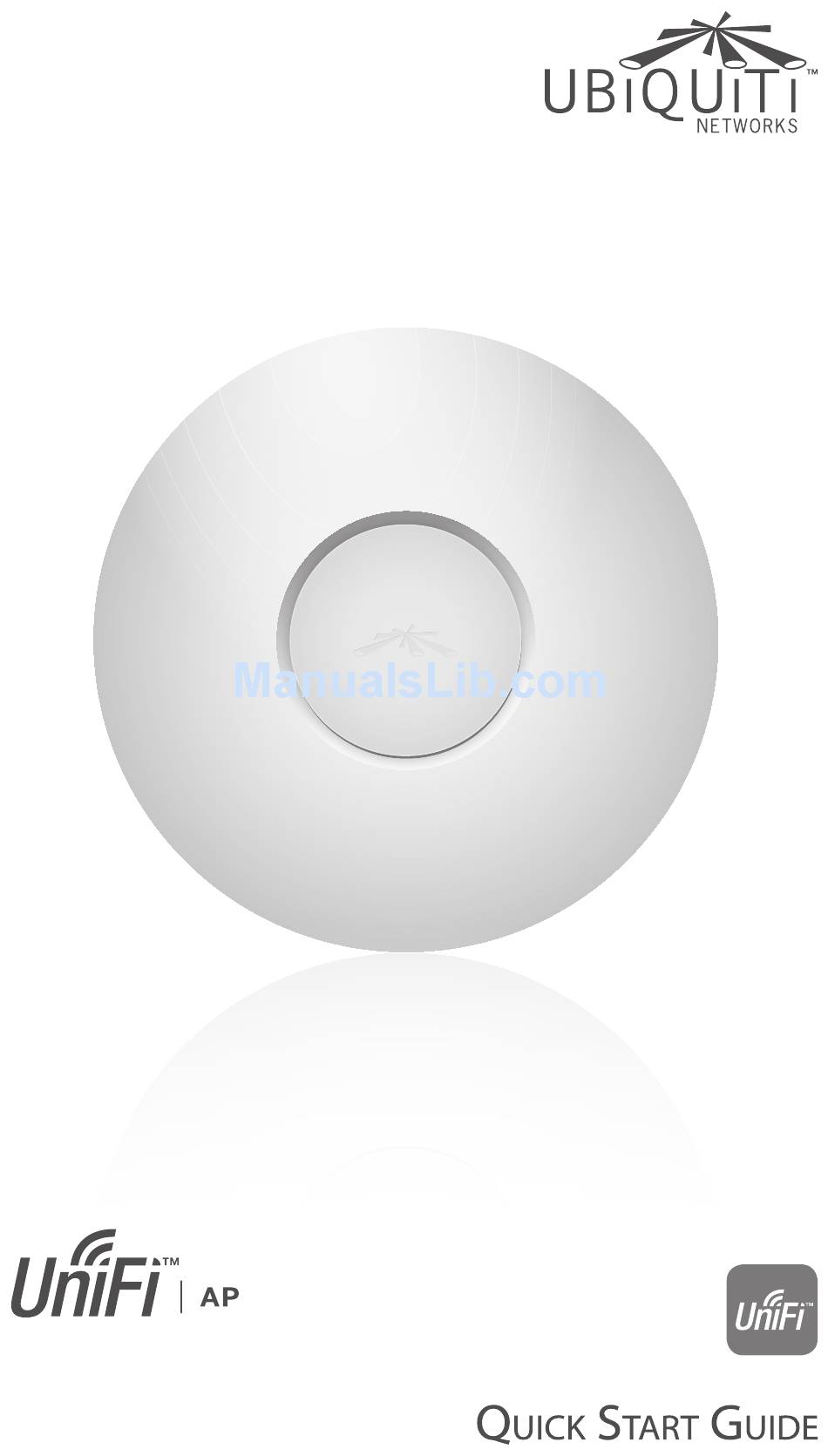

  • Page 1 Enterprise WiFi System Models: UAP/UAP-LR (Long Range)

  • Page 2: Package Contents

    This Quick Start Guide includes the warranty terms and is for use with the UniFi AP, model UAP, and the UniFi AP Long Range, model UAP-LR. This Quick Start Guide will refer to both models as the UniFi AP. The UniFi AP can be powered by the included PoE Adapter or a Ubiquiti Networks TOUGHSwitch ™...

  • Page 3: System Requirements

    • A management station computer running the UniFi Controller software, located either onsite and connected to the same Layer-2 network, or off-site in a cloud or NOC Wireless Uplinked UAP/UAP-LR Wired UAP/UAP-LR Router On-Site O -Site Management Station Cloud/NOC Sample Network Diagram 1.

  • Page 4: Hardware Overview

    Hardware Overview LED Color Status Flashing Amber Initializing. Factory default, waiting to be integrated. Steady Amber Device is busy; do not touch or unplug it. Alternating This usually indicates that a process such Amber/Green as a firmware upgrade is taking place. This is used to locate an AP.
  • Page 5 LAN and DHCP server. Power can be provided by either of the following: • Included PoE Adapter • Ubiquiti Networks TOUGHSwitch PRO, model TS-8-PRO Reset The Reset button serves two functions for the UniFi AP: Restart •...

  • Page 6: Installation Requirements

    Installation Requirements • CAT5/6 cable • Phillips screwdriver • Drill and drill bit (6 mm for wall-mounting or 3 mm for ceiling-mounting) • Optional: Drywall or keyhole saw (to cut 25 mm hole for Ethernet cable feed) Hardware Installation The UniFi AP can be mounted to the wall or ceiling. Perform the steps for the appropriate installation: Wall Mount 1.
  • Page 7 4. Insert the M3x20 Screw Anchors into the 6 mm holes. Secure the Mounting Bracket to the wall by inserting the M2.9x20 Screws into the anchors. 5. Connect the Ethernet cable to the Ethernet port.
  • Page 8 6. Align the notch on the UniFi AP with the notch on the Mounting Bracket. 7. Turn the UniFi AP clockwise until it locks into place.

  • Page 9: Ceiling Mount

    Ceiling Mount 1. Remove the ceiling tile. 2. Place the Mounting Bracket in the center of the ceiling tile. Mark the three mounting screw holes and 25 mm hole for the Ethernet cable. 25 mm Hole for Ethernet Cable Feed 3.
  • Page 10 4. Secure the Mounting Bracket to the ceiling tile using the Ceiling Backing Plate, M3x50 Flathead Screws, and M3 Keps Nuts. Then feed the Ethernet cable through the 25 mm hole.
  • Page 11 5. Set the ceiling tile back into place. 6. Connect the Ethernet cable to the Ethernet port. 7. Align the notch on the UniFi AP with the notch on the Mounting Bracket. 8. Turn the UniFi AP clockwise until it locks into place.
  • Page 12 Powering the UniFi AP The UniFi AP can be powered directly by a Ubiquiti Networks TOUGHSwitch or with the included PoE Adapter. Connecting to the TOUGHSwitch Connect the other end of the Ethernet cable coming from the Ethernet port on the UniFi AP directly to a PoE port on the Ubiquiti Networks TOUGHSwitch.

  • Page 13: Connecting Power Over Ethernet

    Connecting Power over Ethernet 1. Connect the other end of the Ethernet cable coming from the Ethernet port on the UniFi AP to the Ethernet port labeled POE on the PoE Adapter. 2. Connect an Ethernet cable from your LAN to the Ethernet port labeled LAN on the PoE Adapter.

  • Page 14: Software Installation

    Software Installation Download and install the latest version of the UniFi Controller software at downloads.ubnt.com/unifi. Launch the software and follow the on-screen instructions. Step-by-step instructions are available in the User Guide located on our website: documentation.ubnt.com/unifi After you have installed the software and run the UniFi Installation Wizard, a login screen will appear for the UniFi Controller management interface.

  • Page 15: Specifications

    Specifications UAP/UAP-LR Dimensions 200 x 200 x 36.5 mm Weight 290 g (430 g with Mounting Kits) Networking Interface (1) 10/100 Ethernet Port Buttons Reset Antennas 2 Integrated (Supports 2x2 MIMO with Spatial Diversity) Wi-Fi Standards 802.11 b/g/n (2.4 GHz)

  • Page 16: Safety Notices

    Safety Notices Read, follow, and keep these instructions. Heed all warnings. Only use attachments/accessories specified by the manufacturer. WARNING: Do not use this product in location that can be submerged by water. WARNING: Avoid using this product during an electrical storm.

  • Page 17: Limited Warranty

    UBIQUITI NETWORKS under normal use and operation. UBIQUITI NETWORKS’ sole and exclusive obligation and liability under the foregoing warranty shall be for UBIQUITI NETWORKS, at its discretion, to repair or replace any Product that fails to conform to the above warranty during the above warranty period.

  • Page 18: Limitation Of Liability

    SUBJECT TO LIMITATIONS, INTERRUPTIONS, DELAYS, CANCELLATIONS AND OTHER PROBLEMS INHERENT IN THE USE OF COMMUNICATIONS FACILITIES. UBIQUITI NETWORKS, ITS AFFILIATES AND ITS AND THEIR THIRD PARTY PROVIDERS ARE NOT RESPONSIBLE FOR ANY INTERRUPTIONS, DELAYS, CANCELLATIONS, DELIVERY FAILURES, DATA LOSS, CONTENT CORRUPTION, PACKET LOSS, OR OTHER DAMAGE RESULTING FROM ANY OF THE FOREGOING.
  • Page 19 Note Some countries, states and provinces do not allow exclusions of implied warranties or conditions, so the above exclusion may not apply to you. You may have other rights that vary from country to country, state to state, or province to province. Some countries, states and provinces do not allow the exclusion or limitation of liability for incidental or consequential damages, so the above limitation may not apply to you.

  • Page 20: Industry Canada

    Industry Canada This Class A digital apparatus complies with Canadian ICES-003. To reduce potential radio interference to other users, the antenna type and its gain should be so chosen that the equivalent isotropically radiated power (e.i.r.p.) is not more than that permitted for successful communication.
  • Page 21 RoHS/WEEE Compliance Statement English European Directive 2002/96/EC requires that the equipment bearing this symbol on the product and/or its packaging must not be disposed of with unsorted municipal waste. The symbol indicates that this product should be disposed of separately from regular household waste streams.
  • Page 22 Español La Directiva 2002/96/CE de la UE exige que los equipos que lleven este símbolo en el propio aparato y/o en su embalaje no deben eliminarse junto con otros residuos urbanos no seleccionados. El símbolo indica que el producto en cuestión debe separarse de los residuos domésticos convencionales con vistas a su eliminación.

  • Page 23: Declaration Of Conformity

    UBIQUITI NETWORKS device, megfelel a vonatkozó alapvetõ [Hungarian] követelményeknek és az 1999/5/EC irányelv egyéb elõírásainak. Íslenska Hér me l sir UBIQUITI NETWORKS yfir ví a UBIQUITI NETWORKS device, er í samræmi vi grunnkröfur og a rar kröfur, sem ger ar eru í [Icelandic] tilskipun 1999/5/EC.

  • Page 24: Online Resources

    NETWORKS device, è conforme ai requisiti essenziali ed alle altre [Italian] disposizioni pertinenti stabilite dalla direttiva 1999/5/CE. Latviski Ar o UBIQUITI NETWORKS deklar , ka UBIQUITI NETWORKS device, atbilst Direkt vas 1999/5/EK b tiskaj m pras b m un citiem ar to saist [Latvian] tajiem noteikumiem.
