Ubiquiti UAP-AC-M-PRO Quick Start Manual

802.11ac 3x3 mimo outdoor ap with plug & play mesh
Hide thumbs Also See for UAP-AC-M-PRO:
Table of Contents

Advertisement

Quick Links

802.11AC 3x3 MIMO Outdoor
AP with Plug & Play Mesh
Model: UAP-AC-M-PRO
Available from A1 Security Cameras
.a1securitycameras.com email: sales@a1securitycame

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the UAP-AC-M-PRO and is the answer not in the manual?

Questions and answers

Related Manuals for Ubiquiti UAP-AC-M-PRO

Summary of Contents for Ubiquiti UAP-AC-M-PRO

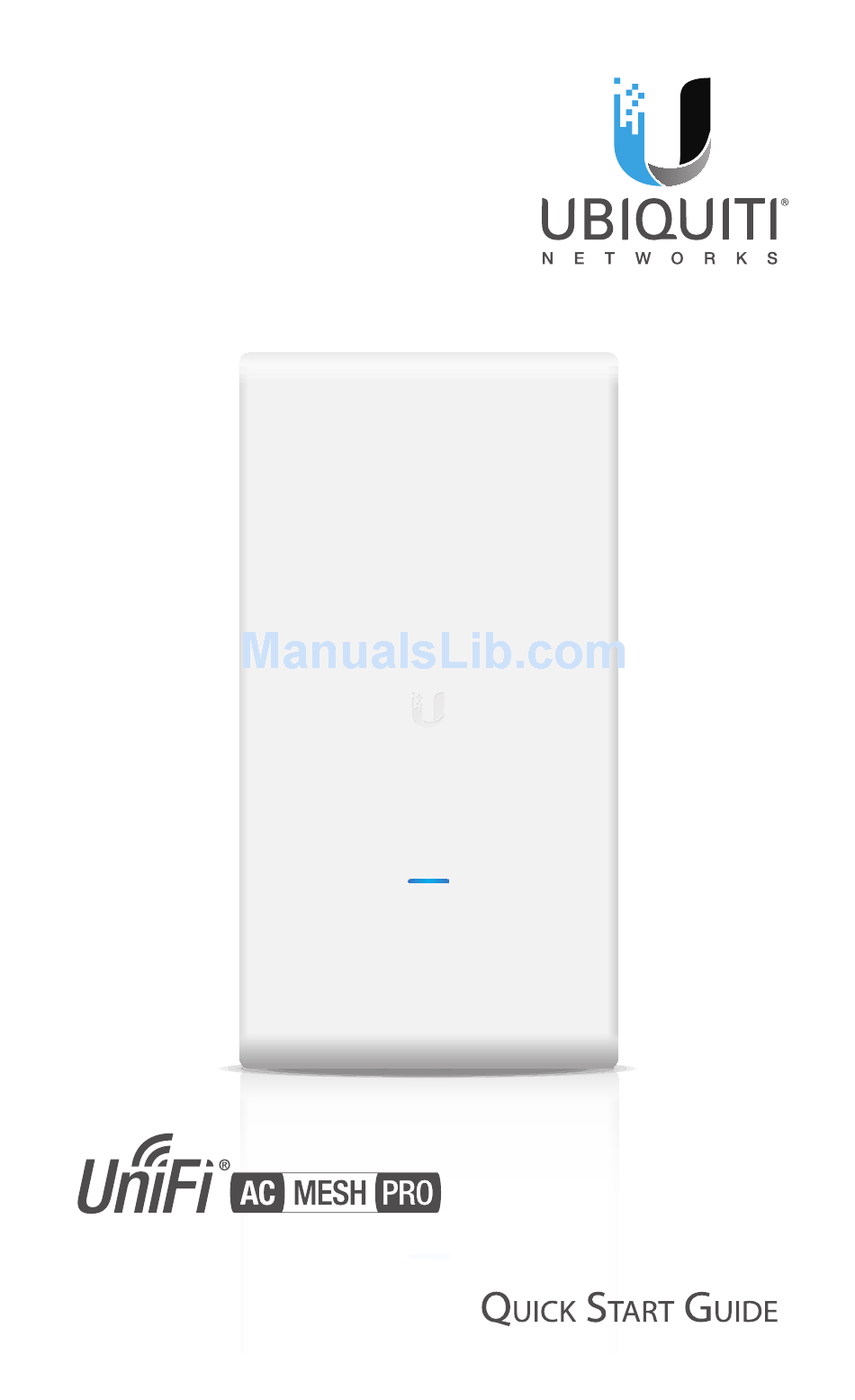

  • Page 1 802.11AC 3x3 MIMO Outdoor AP with Plug & Play Mesh Model: UAP-AC-M-PRO Available from A1 Security Cameras .a1securitycameras.com email: sales@a1securitycame...

  • Page 2: Package Contents

    Quick Start (48V, 0.5A) Guide TERMS OF USE: Ubiquiti radio devices must be professionally installed. Shielded Ethernet cable and earth grounding must be used as conditions of product warranty. TOUGHCable ™ is designed for outdoor installations. It is the customer’s responsibility to follow local country regulations, including operation within legal frequency channels, output power, and Dynamic Frequency Selection (DFS) requirements.

  • Page 3: Installation Requirements

    • The UniFi AP must be running firmware 3.7.7 or newer • At least one SSID enabled and operating on 5 GHz band • The UAP-AC-M-PRO must be within wireless range of the UniFi AP Available from A1 Security Cameras...

  • Page 4: Network Topology Requirements

    • A UniFi Cloud Key or management station running the UniFi Controller v5.1.1 (or newer) software, located either on-site and connected to the same Layer-2 network, or off-site in the cloud or NOC UAP-AC-PRO UniFi Cloud Key (UniFi Controller) UAP-AC-M-PRO UAP-AC-M-PRO US-16-150W USG-PRO-4 (DHCP Server) Internet Remote Access to...

  • Page 5: Hardware Overview

    Hardware Overview Status LED Color Status Flashing White Initializing. Steady White Factory default, waiting to be integrated. Device is busy; do not touch or unplug it. Alternating This usually indicates that a process such White/Blue as a firmware upgrade is taking place. Used to locate and identify a UniFi device.
  • Page 6 LAN and DHCP server. Power can be provided by one of the following: • Gigabit PoE Adapter (included) • Ubiquiti Networks UniFi Switch with PoE • 802.3af/802.3at PoE+ compliant switch Available from A1 Security Cameras...

  • Page 7: Hardware Installation

    Hardware Installation The UAP-AC-M-PRO includes hardware for mounting on a pole or mast. Alternatively, it can be installed on a wall using additional fastening hardware. Pole Mount 1. Insert two Carriage Bolts into each Pole Clamp and attach a Flange Nut on each bolt.
  • Page 8 3. Attach one of the Pole Clamps to the pole by sliding the Carriage Bolts around the pole and into the top two slots of the Mounting Bracket. 4. Uniformly hand-tighten each Flange Nut. Ensure the Pole Clamp is evenly clamped around the pole and tighten each Flange Nut to approximately 25 N-m.
  • Page 9 6. Attach the UniFi AP to the Mounting Bracket: a. Position the UniFi AP with the Mounting Bracket aligned between the mounting tabs on the back of the UniFi AP. b. Slide the UniFi AP downward into the grooves of the Mounting Bracket until the snap pins engage and lock the UniFi AP in place.

  • Page 10: Wall Mount

    Wall Mount To mount the UniFi AP on a wall, securely attach the Mounting Bracket to the wall using four fasteners (not included). Note: The Mounting Bracket must attach directly to a stud or other structurally stable surface. 1. Locate the stud. 2.
  • Page 11 6. Attach the UniFi AP to the Mounting Bracket: a. Position the UniFi AP with the Mounting Bracket aligned between the mounting tabs on the back of the UniFi AP. b. Slide the UniFi AP downward into the grooves of the Mounting Bracket until the snap pins engage and lock the UniFi AP in place.

  • Page 12: Connecting Ethernet

    Connecting Ethernet 1. Press down on the center of the port cover and slide it downward to remove it. Available from A1 Security Cameras .a1securitycameras.com email: sales@a1securitycame...
  • Page 13 2. Connect an Ethernet cable to the Main port. 3. Replace the port cover. Available from A1 Security Cameras .a1securitycameras.com email: sales@a1securitycame...
  • Page 14 Powering the UniFi AP Power the UniFi AP with the included Power Adapter or an 802.3af PoE switch. Powering with a PoE Adapter 1. Connect the Ethernet cable from the UniFi AP to the POE port of the Gigabit PoE adapter. 2.
  • Page 15 1. Ensure the UAP-AC-M-PRO is powered on, and then launch the UniFi Controller software. 2. Go to the Devices page, and the UAP-AC-M-PRO will show up as Pending Approval (Wireless). 3. Click Adopt. For information on configuring and using the UniFi Controller software, refer to the User Guide located on our website: documentation.ubnt.com/unifi...

  • Page 16: Software Installation

    You can adopt devices, manage your wireless network, and view network statistics using the UniFi Controller management interface. Mobile App Installation Ubiquiti Networks also offers the UniFi mobile app, which is available from the App Store (iOS) or Google Play Store ™...

  • Page 17: Specifications

    Specifications UAP-AC-M-PRO Dimensions 343.2 x 181.2 x 60.2 mm (13.51 x 7.13 x 2.37") Weight 633 g (1.40 lb) Networking Interface (2) 10/100/1000 Ethernet Ports Buttons Reset Power Method 802.3af PoE Power Supply 48V, 0.5A PoE Gigabit Adapter (Included) Supported Voltage Range 44VDC to 57VDC Max.

  • Page 18: Safety Notices

    Safety Notices Read, follow, and keep these instructions. Heed all warnings. Only use attachments/accessories specified by the manufacturer. WARNING: Do not use this product in location that can be submerged by water. WARNING: Avoid using this product during an electrical storm.

  • Page 19: Limited Warranty

    (VI) has no original Ubiquiti MAC label, or is missing any other original Ubiquiti label(s); or (VII) has not been received by Ubiquiti within 30 days of issuance of the RMA.

  • Page 20: Limitation Of Liability

    SUBJECT TO LIMITATIONS, INTERRUPTIONS, DELAYS, CANCELLATIONS AND OTHER PROBLEMS INHERENT IN THE USE OF COMMUNICATIONS FACILITIES. UBIQUITI NETWORKS, ITS AFFILIATES AND ITS AND THEIR THIRD PARTY PROVIDERS ARE NOT RESPONSIBLE FOR ANY INTERRUPTIONS, DELAYS, CANCELLATIONS, DELIVERY FAILURES, DATA LOSS, CONTENT CORRUPTION, PACKET LOSS, OR OTHER DAMAGE RESULTING FROM ANY OF THE FOREGOING.
  • Page 21 Note Some countries, states and provinces do not allow exclusions of implied warranties or conditions, so the above exclusion may not apply to you. You may have other rights that vary from country to country, state to state, or province to province. Some countries, states and provinces do not allow the exclusion or limitation of liability for incidental or consequential damages, so the above limitation may not apply to you.

  • Page 22: Industry Canada

    Industry Canada CAN ICES-3(A)/NMB-3(A) This Class A digital apparatus complies with Canadian ICES-003. To reduce potential radio interference to other users, the antenna type and its gain should be so chosen that the equivalent isotropically radiated power (e.i.r.p.) is not more than that permitted for successful communication. This device complies with Industry Canada licence-exempt RSS standard(s).
  • Page 23 RF Exposure Warning The antennas used for this transmitter must be installed to provide a separation distance of at least 20 cm from all persons and must not be located or operating in conjunction with any other antenna or transmitter, except as listed for this product’s certification.
  • Page 24 RoHS/WEEE Compliance Statement English European Directive 2012/19/EU requires that the equipment bearing this symbol on the product and/or its packaging must not be disposed of with unsorted municipal waste. The symbol indicates that this product should be disposed of separately from regular household waste streams.
  • Page 25 Español La Directiva 2012/19/UE exige que los equipos que lleven este símbolo en el propio aparato y/o en su embalaje no deben eliminarse junto con otros residuos urbanos no seleccionados. El símbolo indica que el producto en cuestión debe separarse de los residuos domésticos convencionales con vistas a su eliminación.

  • Page 26: Declaration Of Conformity

    [German] Anforderungen und den anderen relevanten Vorschriften der Richtlinie 1999/5/EG befindet. Ελληνική Δια του παρόντος, UBIQUITI NETWORKS, δηλώνει ότι αυτή η συσκευή UBIQUITI NETWORKS, είναι σε συμμόρφωση με τις [Greek] βασικές απαιτήσεις και τις λοιπές σχετικές διατάξεις της οδηγίας 1995/5/ΕΚ.
  • Page 27 NETWORKS zariadenie, je v súlade so základnými požiadavkami a [Slovak] ďalšími relevantnými ustanoveniami smernice 1999/5/ES. Español Por medio de la presente UBIQUITI NETWORKS declara que este dispositivo UBIQUITI NETWORKS, cumple con los requisitos [Spanish] esenciales y cualesquiera otras disposiciones aplicables o exigibles de la Directiva 1999/5/CE.

  • Page 28: Online Resources

    . u b n t . c o m ©2016 Ubiquiti Networks, Inc. All rights reserved. Ubiquiti, Ubiquiti Networks, the Ubiquiti U logo, the Ubiquiti beam logo, TOUGHCable, and UniFi are trademarks or registered trademarks of Ubiquiti Networks, Inc.
