UAP-AC-PRO Quick Start Guide
Package Contents

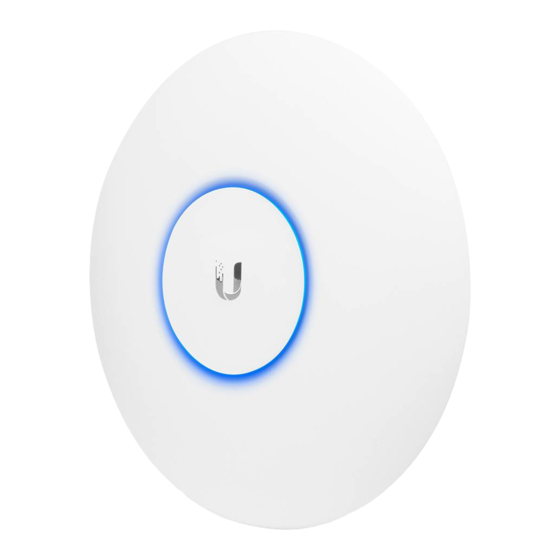

UniFi AP AC Pro
Flat Head Screws (Qty. 4)
Screw Anchors (Qty. 4)
Power Cord*
https://dl.ubnt.com/qsg/UAP-AC-PRO/UAP-AC-PRO_EN.html[12/19/2019 1:27:41 PM]
UAP-AC-PRO Quick Start Guide
Mounting Bracket
Keps Nuts (Qty. 4)
Cable Feed Plug
Ceiling Backing Plate
Screws (Qty. 4)
Gigabit PoE* (48V, 0.5A) with
Mount Bracket

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the UAP-AC-PRO and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Ubiquiti UAP-AC-PRO

Summary of Contents for Ubiquiti UAP-AC-PRO

  • Page 1 UAP-AC-PRO Quick Start Guide UAP-AC-PRO Quick Start Guide Package Contents UniFi AP AC Pro Mounting Bracket Ceiling Backing Plate Flat Head Screws (Qty. 4) Keps Nuts (Qty. 4) Screws (Qty. 4) Screw Anchors (Qty. 4) Cable Feed Plug Gigabit PoE* (48V, 0.5A) with...

  • Page 2: Outdoor Installation Requirements

    Outdoor Installation Requirements IMPORTANT: The UAP-AC-PRO may be installed outdoors under an eave or other protected location. Do not install the UniFi AP in an open environment. Mounting location should be at least 60 cm (2 ft) from the edge of the eave or ceiling.
  • Page 3 UAP-AC-PRO Quick Start Guide Security Slot If you need to remove the UniFi AP from the Mounting Plate, insert the included Release Tool in the Security Slot to release the Lock Tab and turn the UniFi AP counterclockwise. Secondary The Secondary port is a Gigabit Ethernet port used for bridging.

  • Page 4: Hardware Installation

    UAP-AC-PRO Quick Start Guide Hardware Installation The UniFi AP can be mounted on the wall or ceiling. Perform the steps for the appropriate installation: Wall Mount https://dl.ubnt.com/qsg/UAP-AC-PRO/UAP-AC-PRO_EN.html[12/19/2019 1:27:41 PM]...
  • Page 5 UAP-AC-PRO Quick Start Guide https://dl.ubnt.com/qsg/UAP-AC-PRO/UAP-AC-PRO_EN.html[12/19/2019 1:27:41 PM]...
  • Page 6 UAP-AC-PRO Quick Start Guide Optional https://dl.ubnt.com/qsg/UAP-AC-PRO/UAP-AC-PRO_EN.html[12/19/2019 1:27:41 PM]...
  • Page 7 UAP-AC-PRO Quick Start Guide https://dl.ubnt.com/qsg/UAP-AC-PRO/UAP-AC-PRO_EN.html[12/19/2019 1:27:41 PM]...
  • Page 8 UAP-AC-PRO Quick Start Guide https://dl.ubnt.com/qsg/UAP-AC-PRO/UAP-AC-PRO_EN.html[12/19/2019 1:27:41 PM]...
  • Page 9 UAP-AC-PRO Quick Start Guide https://dl.ubnt.com/qsg/UAP-AC-PRO/UAP-AC-PRO_EN.html[12/19/2019 1:27:41 PM]...
  • Page 10 UAP-AC-PRO Quick Start Guide https://dl.ubnt.com/qsg/UAP-AC-PRO/UAP-AC-PRO_EN.html[12/19/2019 1:27:41 PM]...
  • Page 11 UAP-AC-PRO Quick Start Guide https://dl.ubnt.com/qsg/UAP-AC-PRO/UAP-AC-PRO_EN.html[12/19/2019 1:27:41 PM]...
  • Page 12 UAP-AC-PRO Quick Start Guide Optional https://dl.ubnt.com/qsg/UAP-AC-PRO/UAP-AC-PRO_EN.html[12/19/2019 1:27:41 PM]...
  • Page 13 UAP-AC-PRO Quick Start Guide https://dl.ubnt.com/qsg/UAP-AC-PRO/UAP-AC-PRO_EN.html[12/19/2019 1:27:41 PM]...

  • Page 14: Ceiling Mount

    UAP-AC-PRO Quick Start Guide Ceiling Mount https://dl.ubnt.com/qsg/UAP-AC-PRO/UAP-AC-PRO_EN.html[12/19/2019 1:27:41 PM]...
  • Page 15 UAP-AC-PRO Quick Start Guide https://dl.ubnt.com/qsg/UAP-AC-PRO/UAP-AC-PRO_EN.html[12/19/2019 1:27:41 PM]...
  • Page 16 UAP-AC-PRO Quick Start Guide https://dl.ubnt.com/qsg/UAP-AC-PRO/UAP-AC-PRO_EN.html[12/19/2019 1:27:41 PM]...
  • Page 17 UAP-AC-PRO Quick Start Guide https://dl.ubnt.com/qsg/UAP-AC-PRO/UAP-AC-PRO_EN.html[12/19/2019 1:27:41 PM]...
  • Page 18 UAP-AC-PRO Quick Start Guide https://dl.ubnt.com/qsg/UAP-AC-PRO/UAP-AC-PRO_EN.html[12/19/2019 1:27:41 PM]...
  • Page 19 UAP-AC-PRO Quick Start Guide https://dl.ubnt.com/qsg/UAP-AC-PRO/UAP-AC-PRO_EN.html[12/19/2019 1:27:41 PM]...
  • Page 20 UAP-AC-PRO Quick Start Guide https://dl.ubnt.com/qsg/UAP-AC-PRO/UAP-AC-PRO_EN.html[12/19/2019 1:27:41 PM]...
  • Page 21 802.3af/802.3at PoE+ compliant switch Ubiquiti Gigabit PoE Adapter (48V, 0.5A) The single-pack of the UAP-AC-PRO includes one Gigabit PoE adapter. For multi-pack units, PoE adapters or a UniFi Switch with PoE may be purchased separately. Connecting to a PoE Switch Connect the Ethernet cable from the UniFi AP directly to a PoE port on the switch.
  • Page 22 UAP-AC-PRO Quick Start Guide Connecting to the PoE Adapter 1. Connect the Ethernet cable from the device to the POE port of the PoE adapter. 2. Connect an Ethernet cable from your LAN to the LAN port of the PoE adapter.

  • Page 23: Software Installation

    User Guide. Mobile App Installation Ubiquiti also offers the UniFi app, which is available from the App Store® (iOS) or Google Play™ Store (Android). You can use it to provision a UniFi AP for basic functionality without configuring a UniFi Controller.

  • Page 24: Specifications

    -10 to 70° C (14 to 158° F) Operating Humidity 5 to 95% Noncondensing Certifications CE, FCC, IC * Included with the single-pack of the UAP-AC-PRO Safety Notices 1. Read, follow, and keep these instructions. 2. Heed all warnings. 3. Only use attachments/accessories specified by the manufacturer.

  • Page 25: Electrical Safety Information

    UAP-AC-PRO Quick Start Guide WARNING: Avoid using this product during an electrical storm. There may be a remote risk of electric shock from lightning. Electrical Safety Information 1. Compliance is required with respect to voltage, frequency, and current requirements indicated on the manufacturer’s label.
  • Page 26 UAP-AC-PRO Quick Start Guide This radio transmitter has been approved by FCC. ISED Canada CAN ICES-3(A)/NMB-3(A) This device complies with ISED Canada licence-exempt RSS standard(s). Operation is subject to the following two conditions: 1. This device may not cause interference, and 2.

  • Page 27: Australia And New Zealand

    UAP-AC-PRO Quick Start Guide doit être utilisé conjointement à aucun autre de ces appareils. Australia and New Zealand Warning: This equipment is compliant with Class A of CISPR 32. In a residential environment this equipment may cause radio interference. Brazil Nota: Este equipamento não tem direito à...

  • Page 28: Declaration Of Conformity

    UAP-AC-PRO Quick Start Guide Declaration of Conformity Online Resources © 2019 Ubiquiti Inc. All rights reserved. https://dl.ubnt.com/qsg/UAP-AC-PRO/UAP-AC-PRO_EN.html[12/19/2019 1:27:41 PM]...
