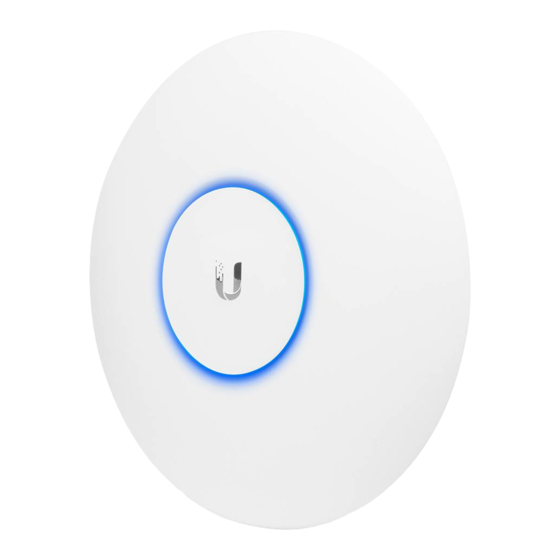

Ubiquiti UAP-AC-PRO Quick Start Manual

802.11ac dual-radio pro access point
Hide thumbs Also See for UAP-AC-PRO:
Table of Contents

Advertisement

Quick Links

Download this manual
Access Point Ubiquiti UniFi
Indoor UAP-AC-PRO
O UniFi é o revolucionário sistema Wi-Fi que combina
desempenho empresarial, escalabilidade ilimitada e um
controlador de gerenciamento central.
O Access Point possui a mais recente tecnologia Wi-Fi
802.11ac, 3x3 MIMO em um design industrial refinado e é
ideal para a implantação de redes sem fio de desempenho
máximo.
www.bztech.com.br

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the UAP-AC-PRO and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Ubiquiti UAP-AC-PRO

Summary of Contents for Ubiquiti UAP-AC-PRO

  • Page 1 Access Point Ubiquiti UniFi Indoor UAP-AC-PRO O UniFi é o revolucionário sistema Wi-Fi que combina desempenho empresarial, escalabilidade ilimitada e um controlador de gerenciamento central. O Access Point possui a mais recente tecnologia Wi-Fi 802.11ac, 3x3 MIMO em um design industrial refinado e é...
  • Page 2 802.11ac Dual-Radio Pro Access Point Model: UAP-AC-PRO...

  • Page 3: Package Contents

    Power Cord* with Mount Bracket * Included only in the single-pack of the UAP-AC-PRO TERMS OF USE: Ubiquiti radio devices must be professionally installed. Shielded Ethernet cable and earth grounding must be used as conditions of product warranty. TOUGHCable ™...

  • Page 4: Outdoor Installation Requirements

    AC ground of the PoE. We recommend that you protect your networks from harmful outdoor environments and destructive ESD events with industrial-grade, shielded Ethernet cable from Ubiquiti Networks. For more details, visit www.ubnt.com/toughcable System Requirements •...

  • Page 5: Network Topology Requirements

    • A UniFi Cloud Key or management station running the UniFi Controller v5.4 (or newer) software, located either on-site and connected to the same Layer-2 network, or off-site in the cloud or NOC UniFi Cloud Key (UniFi Controller) UAP-AC-PRO UAP-AC-HD UAP-AC-M-PRO US-16-150W USG-PRO-4 (DHCP Server)

  • Page 6: Hardware Overview

    Hardware Overview LED Color Status White Factory default, waiting to be integrated. Flashing White Initializing. Device is busy; do not touch or unplug it. Alternating This usually indicates that a process such White/Blue as a firmware upgrade is taking place. Indicates the device has been successfully Blue integrated into a network and is working...
  • Page 7 Ports Security Slot Secondary Main Port Port Reset Button Port Secondary The Secondary port is a Gigabit Ethernet port used for bridging. Reset The Reset button serves two functions for the UniFi AP: Restart • Press and release the Reset button quickly. •...
  • Page 8 Upgrade from UAP-PRO The design of the UAP-AC-PRO Mounting Bracket facilitates upgrades from the UAP-PRO, by eliminating the need to drill new holes in the wall or ceiling tile. The following illustrations show the Mounting Bracket holes that are used for the...

  • Page 9: Hardware Installation

    Hardware Installation The UniFi AP can be mounted on the wall or ceiling. Perform the steps for the appropriate installation: Wall Mount 1. Position the Mounting Bracket at the desired location on the wall with the Arrow pointing up. 2. Mark the four mounting holes, and use a 6 mm drill bit to drill the holes.
  • Page 10 3. Insert the Screw Anchors into the 6 mm holes. Secure the Mounting Bracket to the wall by inserting the Screws into the anchors. Note: If upgrading from the UAP-PRO, secure the new Mounting Bracket to the wall using the existing holes.
  • Page 11 5. If the Ethernet cable runs along the mounting surface, skip to step 6. If the Ethernet cable is fed through the wall or ceiling, insert the Cable Feed Plug. 6. Feed the Ethernet cable through the port cover. Note: The feed hole will stretch to accommodate the RJ45 connector, and then seal around the cable.
  • Page 12 8. Align the Notch on the top edge of the UniFi AP with the Arrow on the Mounting Bracket. Notch Arrow Lock 9. Rotate the UniFi AP clockwise until the tabs lock into place and the Lock Tab engages.

  • Page 13: Ceiling Mount

    Ceiling Mount 1. Remove the ceiling tile. 2. Place the Ceiling Backing Plate in the center of the ceiling tile. Mark the four mounting screw holes and an 18 mm hole for the Ethernet cable feed. 18 mm Hole for Ethernet Cable Feed 3.
  • Page 14 Ethernet cable through the tile and bracket. Note: If upgrading from the UAP-PRO, insert the Flat Head Screws through the new Mounting Bracket, the ceiling tile, and the Ceiling Backing Plate. (Either re-use the UAP-PRO Ceiling Backing Plate or replace it with the new UAP-AC-PRO plate.)
  • Page 15 5. Insert the Cable Feed Plug. 6. Remove the port cover from the UniFi AP, and then feed the Ethernet cable through the port cover. Note: The feed hole will stretch to accommodate the RJ45 connector, and then seal around the cable. 7.
  • Page 16 8. Align the Notch on the top edge of the UniFi AP with the Arrow on the Mounting Bracket. Lock Tab Arrow Notch 9. Rotate the UniFi AP clockwise until the tabs lock into place and the Lock Tab engages. 10.
  • Page 17 • Ubiquiti Networks UniFi Switch with PoE • 802.3af/802.3at PoE+ compliant switch • Ubiquiti Networks Gigabit PoE Adapter (48V, 0.5A) The single-pack of the UAP-AC-PRO includes one Gigabit PoE adapter. For multi-pack units, PoE adapters or a UniFi Switch with PoE may be purchased separately.
  • Page 18 Connecting to a PoE Adapter 1. Connect the Ethernet cable from the device to the POE port of the Gigabit PoE adapter. 2. Connect an Ethernet cable from your LAN to the LAN port of the Gigabit PoE adapter. 3. Connect the Power Cord to the adapter, and then plug the Power Cord into a power outlet.

  • Page 19: Software Installation

    UniFi Controller management interface. For information on configuring and using the UniFi Controller software, refer to the User Guide. Mobile App Installation Ubiquiti Networks also offers the UniFi mobile app, which is available from the App Store® (iOS) or Google Play Store ™...

  • Page 20: Specifications

    802.11 a/b/g/n/ac Wireless Security WEP, WPA-PSK, WPA-Enterprise (WPA/WPA2, TKIP/AES) Mounting Wall/Ceiling (Kits Included) Operating Temperature -10 to 70° C (14 to 158° F) Operating Humidity 5 to 95% Noncondensing Certifications CE, FCC, IC Included with the single-pack of the UAP-AC-PRO...

  • Page 21: Safety Notices

    Safety Notices Read, follow, and keep these instructions. Heed all warnings. Only use attachments/accessories specified by the manufacturer. WARNING: Do not use this product in a location that can be submerged by water. WARNING: Avoid using this product during an electrical storm.

  • Page 22: Limited Warranty

    Limited Warranty www.ubnt.com/support/warranty/ The limited warranty requires the use of arbitration to resolve disputes on an individual basis, and, where applicable, specify arbitration instead of jury trials or class actions. Compliance Changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment.

  • Page 23: Rf Exposure Warning

    ISED Canada CAN ICES-3(A)/NMB-3(A) This device complies with ISED Canada licence-exempt RSS standard(s). Operation is subject to the following two conditions: This device may not cause interference, and This device must accept any interference, including interference that may cause undesired operation of the device. This radio transmitter (IC: 6545A-UAPACPRO) has been approved by ISED Canada.
  • Page 24 CE Marking CE marking on this product represents the product is in compliance with all directives that are applicable to it. Country List AT BE BG CY CZ DE DK EE EL ES FR HR LU MT NL PL PT RO BFWA (Broadband Fixed Wireless Access) members noted in blue Note: This device meets Max.
  • Page 25 RoHS/WEEE Compliance Statement English European Directive 2012/19/EU requires that the equipment bearing this symbol on the product and/or its packaging must not be disposed of with unsorted municipal waste. The symbol indicates that this product should be disposed of separately from regular household waste streams.
  • Page 26 Español La Directiva 2012/19/UE exige que los equipos que lleven este símbolo en el propio aparato y/o en su embalaje no deben eliminarse junto con otros residuos urbanos no seleccionados. El símbolo indica que el producto en cuestión debe separarse de los residuos domésticos convencionales con vistas a su eliminación.

  • Page 27: Declaration Of Conformity

    Français [French] Le soussigné, UBIQUITI NETWORKS, déclare que l’équipement radioélectrique du type UAP-AC-PRO est conforme à la directive 2014/53/UE. Le texte complet de la déclaration UE de conformité est disponible à l’adresse internet suivante: www.ubnt.com/compliance Deutsch [German] Hiermit erklärt UBIQUITI NETWORKS, dass der Funkanlagentyp UAP-AC-PRO...
  • Page 28 Slovenčina [Slovak] UBIQUITI NETWORKS týmto vyhlasuje, že rádiové zariadenie typu UAP-AC-PRO je v súlade so smernicou 2014/53/EÚ. Úplné EÚ vyhlásenie o zhode je k dispozícii na tejto internetovej adrese: www.ubnt.com/compliance Slovenščina [Slovenian] UBIQUITI NETWORKS potrjuje, da je tip radijske opreme UAP-AC-PRO skladen z Direktivo 2014/53/EU.

  • Page 29: Online Resources

    . u b n t . c o m ©2016-2018 Ubiquiti Networks, Inc. All rights reserved. Ubiquiti, Ubiquiti Networks, the Ubiquiti U logo, the Ubiquiti beam logo, TOUGHCable, and UniFi are trademarks or registered trademarks of Ubiquiti Networks, Inc.
