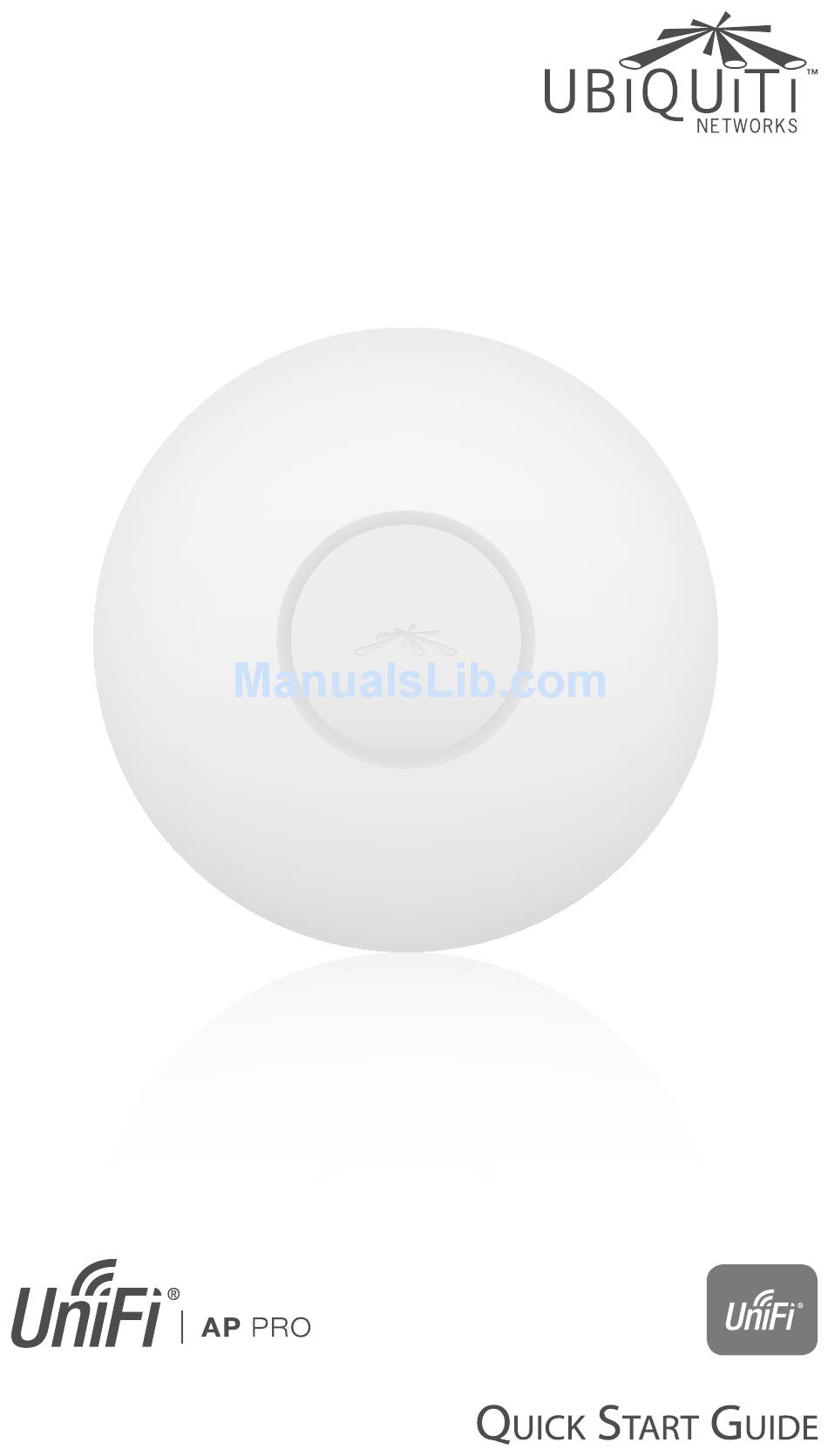

  • Page 1 Enterprise WiFi System Models: UAP-PRO...

  • Page 2: Installation Requirements

    Controller software, which allows you to manage your wireless network using a web browser. The UniFi Controller software is available for download at downloads.ubnt.com/unifi This Quick Start Guide includes the warranty terms and is for use with the UniFi AP‑PRO, model: UAP‑PRO.

  • Page 3: System Requirements

    • A management station computer running the UniFi Controller software, located either onsite and connected to the same Layer‑2 network, or off‑site in a cloud or NOC UAP-Pro UAP/UAP-LR Router On-Site...

  • Page 4: Hardware Overview

    Hardware Overview LED Color Status Initializing. Flashing White Factory default, waiting to be integrated. Steady White Device is busy; do not touch or unplug it. Alternating This usually indicates that a process such White/Blue as a firmware upgrade is taking place. This is used to locate an AP.
  • Page 5 Ports Reset Button Main/48V Secondary Ethernet Port Ethernet Port Cable Feed Plug Main/48V This Gigabit Ethernet port is used to connect the power and should be connected to the LAN and DHCP server. Power can be provided by any of the following: •...

  • Page 6: Hardware Installation

    Hardware Installation The UniFi AP‑PRO can be mounted to the wall or ceiling. Perform the steps for the appropriate installation: Wall Mount 1. Position the Mounting Bracket at the desired location on the wall with the cable feed slot pointed towards the floor. 2.
  • Page 7 4. Insert the Screw Anchors into the 6 mm (0.24 in) holes. Secure the Mounting Bracket to the wall by inserting the Screws into the anchors. 5. Connect the Ethernet cable to the Main/48V Ethernet port.
  • Page 8 6. Align the notch on the UniFi AP‑PRO with the notch on the Mounting Bracket. 7. Turn the UniFi AP‑PRO clockwise until it locks into place.

  • Page 9: Ceiling Mount

    Ceiling Mount 1. Remove the ceiling tile. 2. Place the Mounting Bracket in the center of the ceiling tile. Mark the three mounting screw holes and 25 mm (1 in) hole for the Ethernet cable. 25 mm (1 in) Hole for Ethernet Cable Feed 3.
  • Page 10 4. Secure the Mounting Bracket to the ceiling tile using the Ceiling Backing Plate, Flathead Screws, and Keps Nuts. Then feed the Ethernet cable through the 25 mm (1 in) hole.
  • Page 11 5. Set the ceiling tile back into place. 6. Connect the Ethernet cable to the Main/48V Ethernet port. 7. Align the notch on the UniFi AP‑PRO with the notch on the Mounting Bracket. 8. Turn the UniFi AP‑PRO clockwise until it locks into place.
  • Page 12 Powering the UniFi AP‑PRO The UniFi AP‑PRO can be powered by the included PoE GigE Adapter or a compatible PoE device. Connecting to the PoE GigE Adapter 1. Connect the other end of the Ethernet cable coming from the Main/48V Ethernet port of the UniFi AP‑PRO to the Ethernet port labeled POE on the PoE GigE Adapter.

  • Page 13: Software Installation

    TOUGHSwitch PRO Power Connection Diagram Software Installation Download and install the latest version of the UniFi Controller software at downloads.ubnt.com/unifi and follow the on‑screen instructions. After you have installed the software and run the UniFi Installation Wizard, a login screen will appear for the UniFi Controller management interface.

  • Page 14: Specifications

    Specifications UniFi AP PRO Dimensions 200 x 200 x 36.5 mm (7.87 x 7.87 x 1.44 in) Weight 298 g (10.51 oz) 358 g (12.63 oz) Mounting Kits Included Networking Interface (2) 10/100/1000 Ethernet Ports Buttons Reset Antennas 2.4 GHz 3 Integrated (Supports 3x3 MIMO with Spatial 5 GHz...

  • Page 15: Safety Notices

    Safety Notices Read, follow, and keep these instructions. Heed all warnings. Only use attachments/accessories specified by the manufacturer. WARNING: Do not use this product in location that can be submerged by water. WARNING: Avoid using this product during an electrical storm.

  • Page 16: Limited Warranty

    NETWORKS’ facility freight prepaid in accordance with the RMA process of UBIQUITI NETWORKS. Products returned without an RMA number will not be processed and will be returned freight collect or subject to disposal. Information on the RMA process and obtaining an RMA number can be found at: www.ubnt.com/support/warranty.

  • Page 17: Limitation Of Liability

    Disclaimer EXCEPT FOR ANY EXPRESS WARRANTIES PROVIDED HEREIN, UBIQUITI NETWORKS, ITS AFFILIATES, AND ITS AND THEIR THIRD PARTY DATA, SERVICE, SOFTWARE AND HARDWARE PROVIDERS HEREBY DISCLAIM AND MAKE NO OTHER REPRESENTATION OR WARRANTY OF ANY KIND, EXPRESS, IMPLIED OR STATUTORY, INCLUDING, BUT NOT LIMITED TO, REPRESENTATIONS, GUARANTEES, OR WARRANTIES OF MERCHANTABILITY, ACCURACY, QUALITY OF SERVICE OR RESULTS, AVAILABILITY, SATISFACTORY QUALITY, LACK OF VIRUSES, QUIET ENJOYMENT, FITNESS...
  • Page 18 Note Some countries, states and provinces do not allow exclusions of implied warranties or conditions, so the above exclusion may not apply to you. You may have other rights that vary from country to country, state to state, or province to province. Some countries, states and provinces do not allow the exclusion or limitation of liability for incidental or consequential damages, so the above limitation may not apply to you.

  • Page 19: Industry Canada

    Industry Canada This Class A digital apparatus complies with Canadian CAN ICES‑3(B). To reduce potential radio interference to other users, the antenna type and its gain should be so chosen that the equivalent isotropically radiated power (e.i.r.p.) is not more than that permitted for successful communication.
  • Page 20 RoHS/WEEE Compliance Statement English European Directive 2002/96/EC requires that the equipment bearing this symbol on the product and/or its packaging must not be disposed of with unsorted municipal waste. The symbol indicates that this product should be disposed of separately from regular household waste streams.
  • Page 21 Español La Directiva 2002/96/CE de la UE exige que los equipos que lleven este símbolo en el propio aparato y/o en su embalaje no deben eliminarse junto con otros residuos urbanos no seleccionados. El símbolo indica que el producto en cuestión debe separarse de los residuos domésticos convencionales con vistas a su eliminación.

  • Page 22: Declaration Of Conformity

    Declaration of Conformity Česky UBIQUITI NETWORKS tímto prohla uje, e tento UBIQUITI NETWORKS device, je ve shod se základními po adavky a dal ími p íslu n mi [Czech] ustanoveními sm rnice 1999/5/ES. Dansk Undertegnede UBIQUITI NETWORKS erklærer herved, at følgende udstyr UBIQUITI NETWORKS device, overholder de væsentlige krav [Danish] og øvrige relevante krav i direktiv 1999/5/EF.

  • Page 23: Online Resources

    [Portuguese] Directiva 1999/5/CE. Română Prin prezenta, UBIQUITI NETWORKS declară că acest dispozitiv UBIQUITI NETWORKS este în conformitate cu cerințele esențiale și [Romanian] alte prevederi relevante ale Directivei 1999/5/CE. Online Resources Support support.ubnt.com Community community.ubnt.com Downloads downloads.ubnt.com...
  • Page 24 w w w . u b n t . c o m ©2012‑2014 Ubiquiti Networks, Inc. All rights reserved. Ubiquiti, Ubiquiti Networks, the Ubiquiti U logo, the Ubiquiti beam logo, EdgeRouter, TOUGHSwitch, and UniFi are trademarks or registered trademarks of Ubiquiti Networks, Inc.
