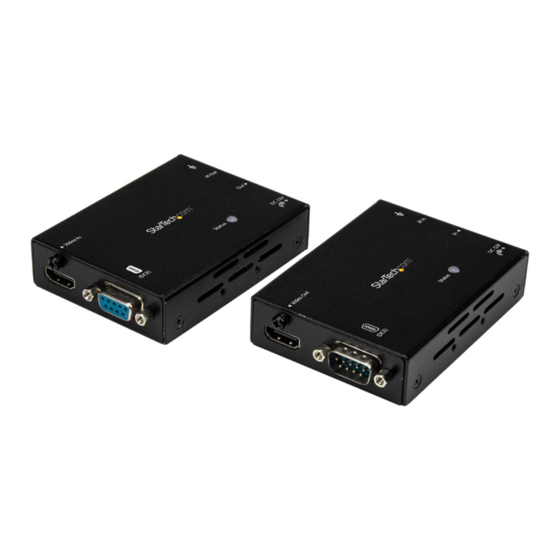

HDMI over CAT5 HDBaseT Extender - 4K
ST121HDBTL
*actual product may vary from photos
DE: Bedienungsanleitung - de.startech.com
FR: Guide de l'utilisateur - fr.startech.com
ES: Guía del usuario - es.startech.com
IT: Guida per l'uso - it.startech.com
NL: Gebruiksaanwijzing - nl.startech.com
PT: Guia do usuário - pt.startech.com
For the most up-to-date information, please visit: www.startech.com
Manual Revision: 12/08/2020
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for StarTech.com ST121HDBTL
Summary of Contents for StarTech.com ST121HDBTL
- Page 1 DE: Bedienungsanleitung - de.startech.com FR: Guide de l'utilisateur - fr.startech.com ES: Guía del usuario - es.startech.com IT: Guida per l'uso - it.startech.com NL: Gebruiksaanwijzing - nl.startech.com PT: Guia do usuário - pt.startech.com For the most up-to-date information, please visit: www.startech.com Manual Revision: 12/08/2020...
- Page 2 StarTech.com. Where they occur these references are for illustrative purposes only and do not represent an endorsement of a product or service by StarTech.com, or an endorsement of the product(s) to which this manual applies by the third-party company in question. Regardless of any direct acknowledgement elsewhere in the body of this document, StarTech.com hereby...
-
Page 3: Table Of Contents
Table of contents Product Diagram ..................1 Front View - Transmitter / Receiver Unit.................... 1 Rear View - Transmitter/Receiver Unit ....................1 Introduction ....................2 Packaging Contents ..........................2 System Requirements ..........................2 Preparing Your Site ................3 Installation ....................3 Hardware Installation ..........................3 Specifications ..................5 Technical Support ..................6 Warranty Information ................6... -
Page 4: Product Diagram
Product diagram Front view - transmitter and receiver units Link LEDs HDMI in Local RS-232 HDMI out Remote RS-232 port port port port Rear view - transmitter and receiver units Power Power adapter adapter Local IR port Remote port port IR port Grounding Grounding... -
Page 5: Introduction
Package contents • 1 x HDBaseT transmitter • 1 x HDBaseT receiver • 2 x Mounting brackets • 1 x universal power adapter (NA, EU, UK, ANZ) • 1 x IR receiver • 1 x IR blaster • 2 x mounting brackets •... -
Page 6: Preparing Your Site
Preparing your site 1. Determine where your local video source will be located and set up the device. 2. Determine where your remote display will be located and place/ mount the display appropriately. Note: This HDBaseT kit features Power over cable, allowing both the transmitter and receiver to be powered from a single power source that connects to either the transmitter or receiver unit. - Page 7 2. Install the receiver a) Position and ground the HDBaseT receiver near your video source. b) Connect your remote display to the HDMI out port on the receiver. c) (Optional) If you’ve chosen to power the HDBaseT kit using the receiver, connect the included power adapter to the power adapter port on the transmitter and to an AC outlet.
-
Page 8: Specifications
Note: The resolution performance of this HDBaseT extender will vary depending on the length of your cabling. Please review the chart below to determine the best solution for your setup. For best results, StarTech.com recommends shielded CAT6 cable. Distance Maximum resolution 35 m (115 ft.) or less... -
Page 9: Technical Support
Limitation of Liability In no event shall the liability of StarTech.com Ltd. and StarTech.com USA LLP (or their officers, directors, employees or agents) for any damages (whether direct or indirect, special, punitive, incidental, consequential, or otherwise), loss of profits, loss of business, or any pecuniary loss, arising out of or related to the use of the product exceed the actual price paid for the product. - Page 10 StarTech.com is an ISO 9001 Registered manufacturer of connectivity and technology parts. StarTech.com was founded in 1985 and has operations in the United States, Canada, the United Kingdom and Taiwan servicing a worldwide market.
