Altronix Sav4D Installation Manual page 8

Sav36D

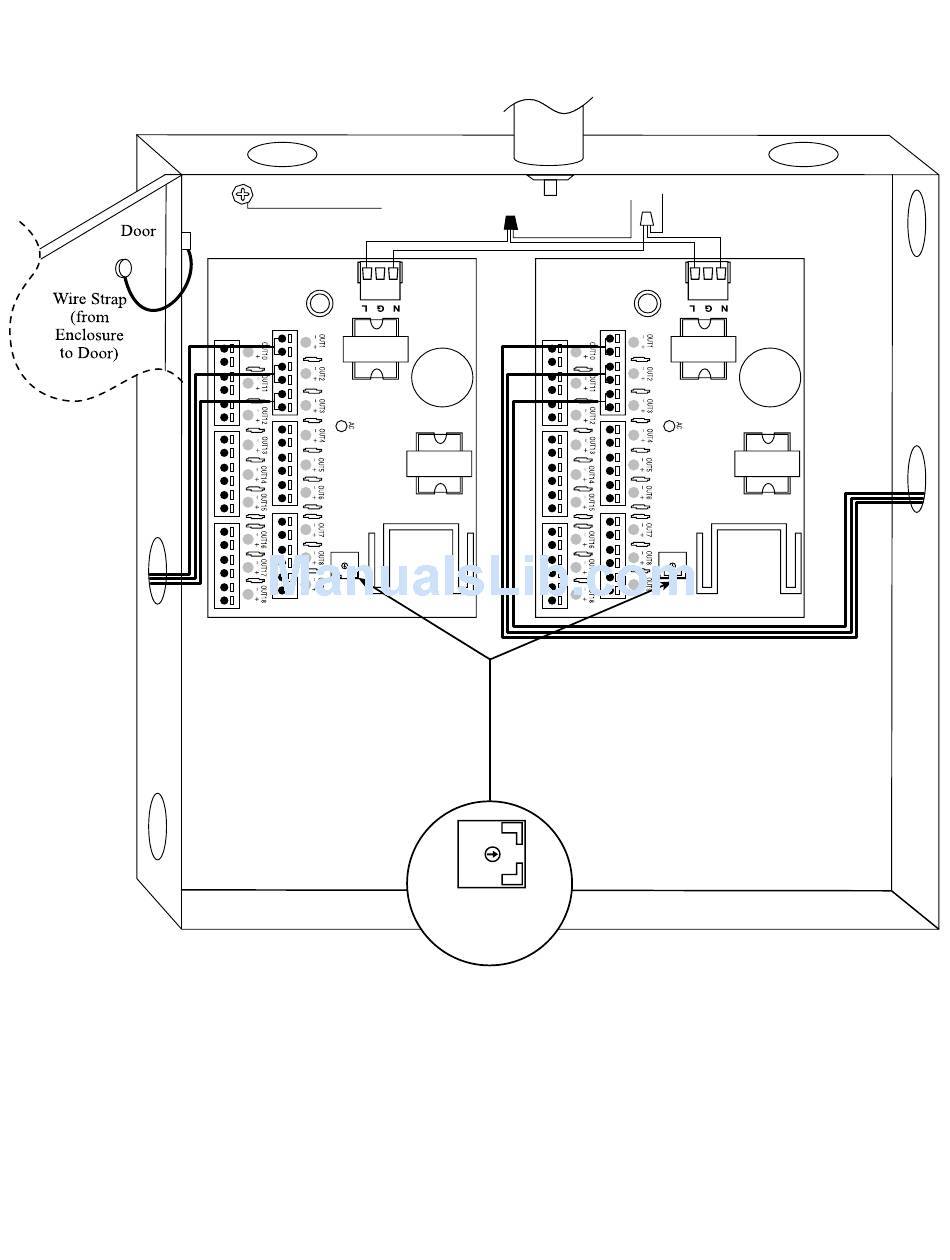

Fig. 6
Keep power-limited wiring separate from non power-limited. Use minimum 0.25" spacing.
- 8 -
Green Lead
12VDC power outputs
(For wiring utilize
knockouts on the
left hand side
of enclosure)
Class 2 not wet, Class 3 wet,
wiring to be used.
Fig. 6a
115VAC, 60Hz / 230VAC, 50Hz
power mains non power-limited Class 1
Black Lead
12VDC power outputs
(For wiring utilize knockouts on
the right hand side of enclosure)
Class 2 not wet, Class 3 wet,
wiring to be used.
Voltage
Adjustment
White Lead
Sav4/9/18/182/36D
