Altronix Sav4D Installation Manual page 6

Sav18D

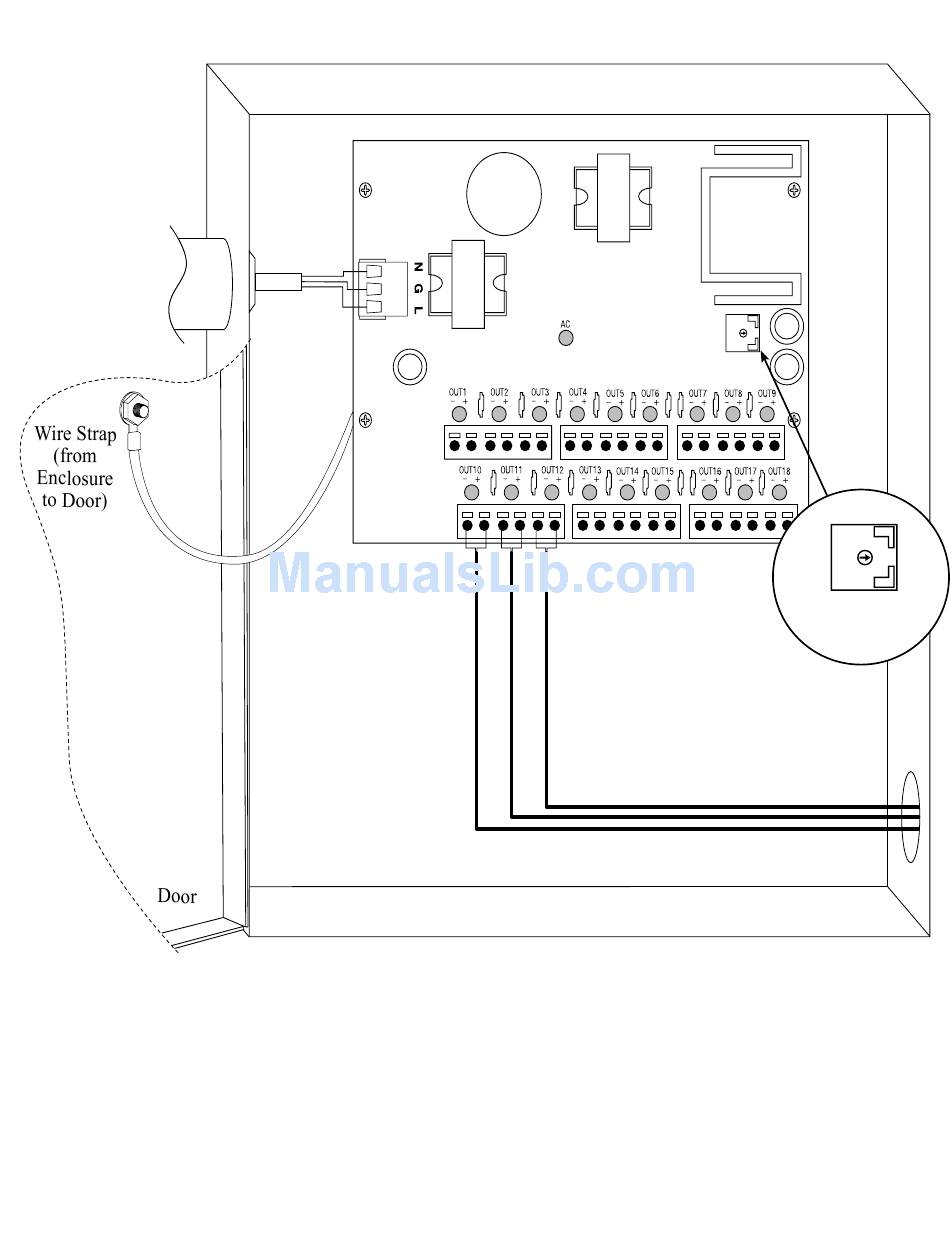

Fig. 4
115VAC, 60Hz/
230VAC, 50Hz
power mains
non power-
limited
Class 1
Keep power-limited wiring separate from non power-limited. Use minimum 0.25" spacing.
- 6 -
Green
Lead
Fig. 4a
12VDC power outputs
(For wiring utilize knockouts on the
right hand side of enclosure)
Class 2 not wet, Class 3 wet,
wiring to be used.
Voltage
Adjustment
Sav4/9/18/182/36D
