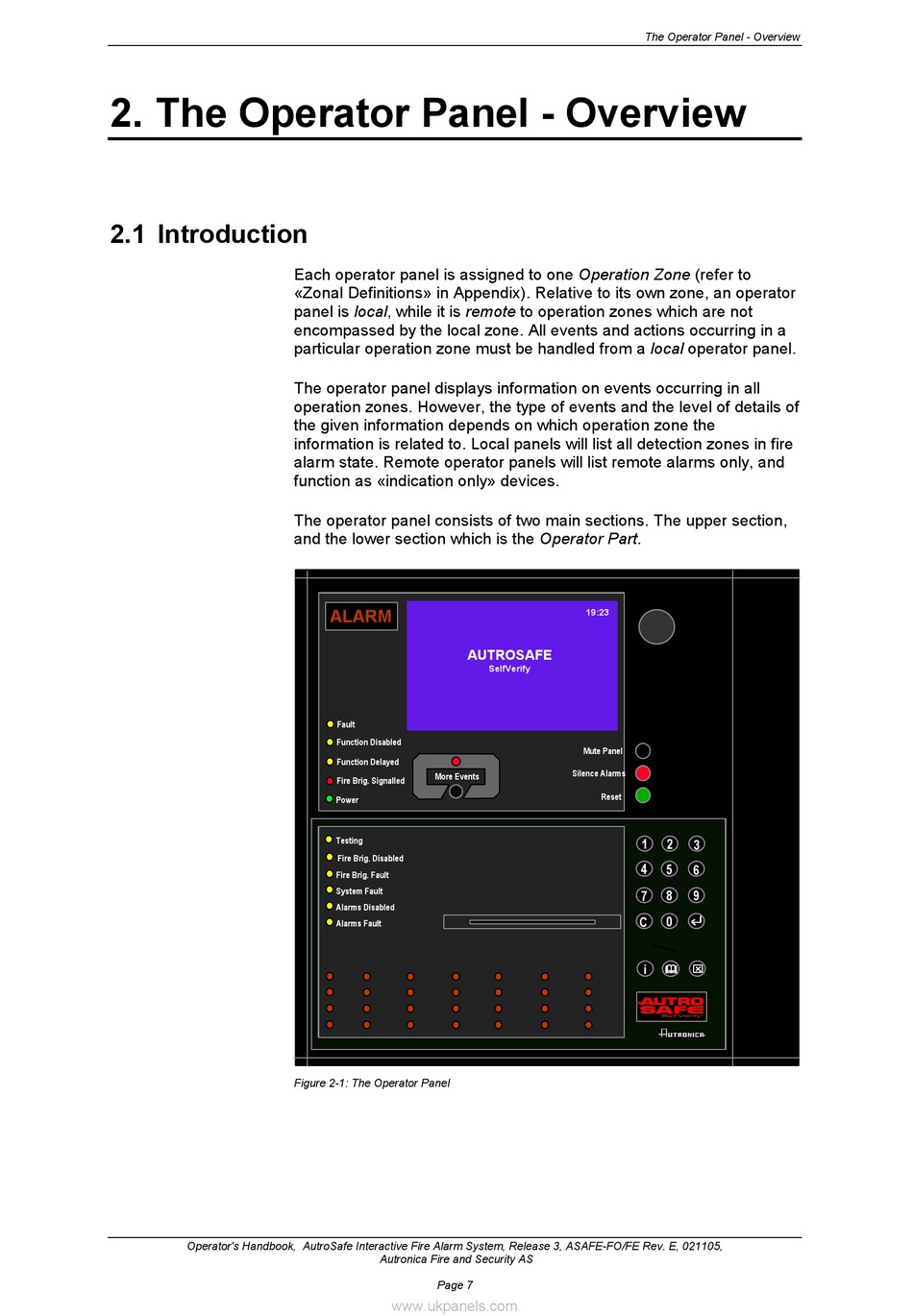

2. The Operator Panel - Overview

2.1 Introduction

Operator's Handbook, AutroSafe Interactive Fire Alarm System, Release 3, ASAFE-FO/FE Rev. E, 021105,
Each operator panel is assigned to one Operation Zone (refer to
«Zonal Definitions» in Appendix). Relative to its own zone, an operator
panel is local, while it is remote to operation zones which are not
encompassed by the local zone. All events and actions occurring in a
particular operation zone must be handled from a local operator panel.
The operator panel displays information on events occurring in all
operation zones. However, the type of events and the level of details of
the given information depends on which operation zone the
information is related to. Local panels will list all detection zones in fire
alarm state. Remote operator panels will list remote alarms only, and
function as «indication only» devices.
The operator panel consists of two main sections. The upper section,
and the lower section which is the Operator Part.
ALARM
Fault
Function Disabled
Function Delayed
More Events
Fire Brig. Signalled
Power
Testing
Fire Brig. Disabled
Fire Brig. Fault
System Fault
Alarms Disabled
Alarms Fault
Figure 2-1: The Operator Panel
Autronica Fire and Security AS
Page 7
www.ukpanels.com
19:23
AUTROSAFE
SelfVerify
Mute Panel
Silence Alarms
Reset
The Operator Panel - Overview
1 2
3
4
5
6
8 9
7
0
C
