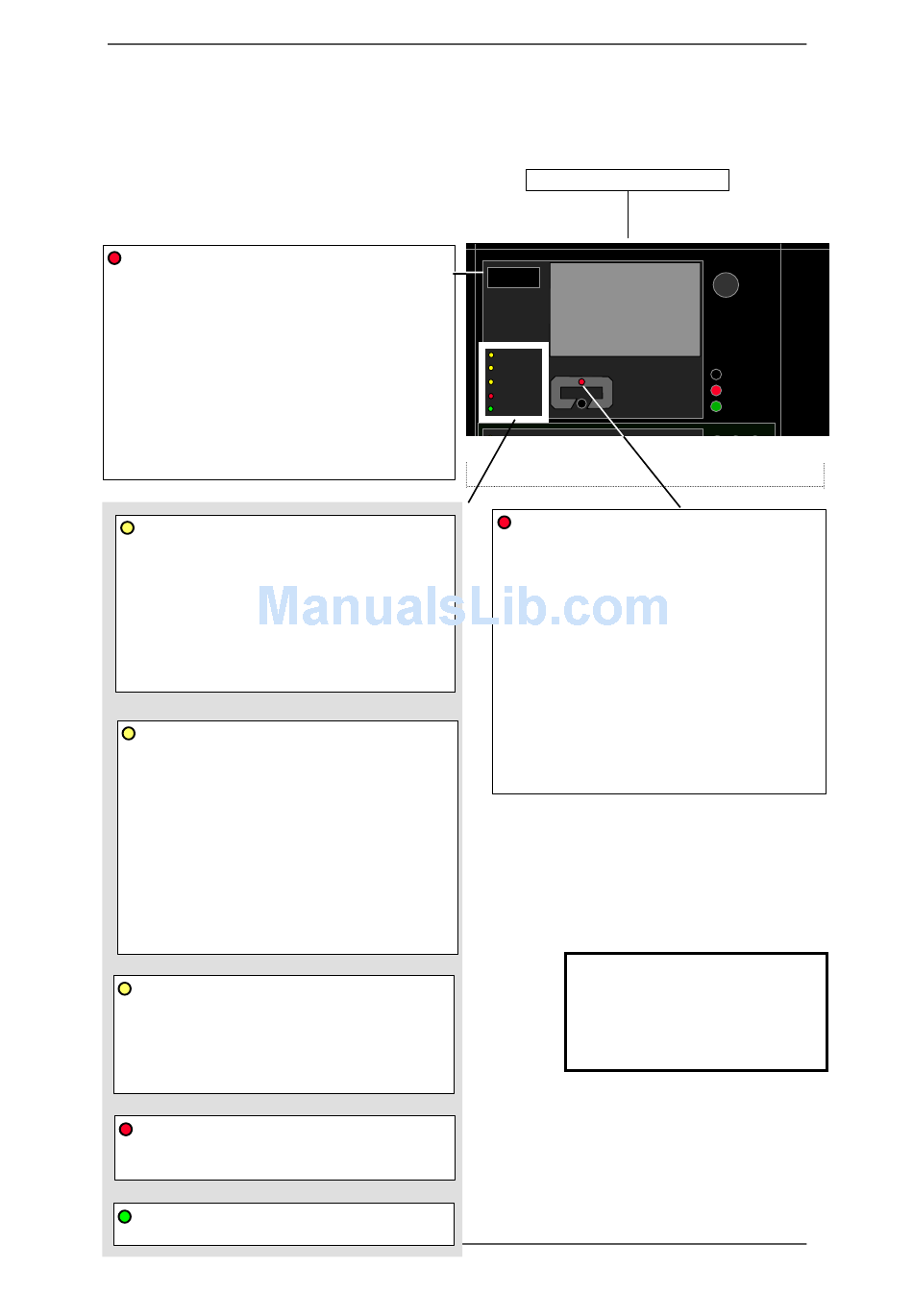

The Operator Panel - Overview

2.2 Indication Devices

2.2.1 Upper Section

ALARM
The red alarm indicator shows that one or more
detection zones within the operating zone of the
Operator Panel are in the fire alarm state.
•
Blinking red light:
In the event of a fire alarm. The Fire Alarm
Devices (FAD) are still in active state.
•
Steady red light:
All FADs activated by the fire alarm condition
have been deactivated by operating the Silence
Alarms button. The control and indicating
equipment still remain in the fire alarm condition.
Fault
The yellow Fault Warning indicator shows the
presence of a fault within the operation zone of
the operator panel.
•
Blinking light
Unaccepted fault warnings exist.
•
Steady light
All fault warnings are accepted.
Function Disabled
Steady yellow light when one or more of the
following components within the operation zone
of the operator panel are in the disabled state:
•
function delayed
•
individual points
•
detection zones
•
alarm zones
•
Fire Alarm Devices, Fire Alarm Routing
Equipment, Fire Protection Equipment and
Fault Warning Routing Equipment.
Function Delayed
Steady yellow light indicates that Immediate Output
Actioning has been disabled (manual operation in
Menu Mode), i.e. a delay period is active for Fire
Alarm Devices (FAD) or Fire Alarm Routing
Equipment (FARE). Configurable.
Fire Brig. Signalled
Steady red light when the message is sent to the
Fire Brigade.
Power
Steady green light when power is ON.
Operator's Handbook, AutroSafe Interactive Fire Alarm System, Release 3, ASAFE-FO/FE Rev. E, 021105,
Text Display - See chapter 2.3.
A L A R M A L A R M A L A R M A L A R M
Fault
Function Disabled
Function Delayed
Fire Brig. Signalled
Power
More Events
In the event of more than one alarm.
The red More Events indicator shows that several
detection zones within an operating zone are in
the fire alarm state.
•
Blinking red light:
In the event of a fire alarm. The Fire Alarm
Devices (FAD) are still in active state.
•
Steady red light:
The Silence Alarms button has been pressed.
All
FADs activated by the fire alarm are no longer
active. The control and indicating equipment
still remain in the fire alarm condition.
Autronica Fire and Security AS
Page 8
www.ukpanels.com
Mute Panel
Silence Alarms
More Events
Reset System
Note that there are several
national variants of this panel.
The Indication Devices shown in
this handbook deals with
the Indication Devices for the
standard panel.
