11.1.1

KVM Console

To open the KVM console either click on the icon Console or Remote Control >
KVM Console of the menu entry on the left or Click to open of the console picture
on the right.

11.1.2 Telnet Console/SSH Console

In general, the Telnet or SSH interface supports two operation modes: the
command line mode and the terminal mode. The command line mode is used
to control or display some parameters. In terminal mode, the pass-through
access to serial port is activated (if the serial settings were configured
accordingly). All inputs and outputs are redirected to the device via the serial
port, and its answers are displayed on the Telnet interface.
In order to log in with Telnet or SSH, you have to enable the access settings
from
Device Settings > Network.

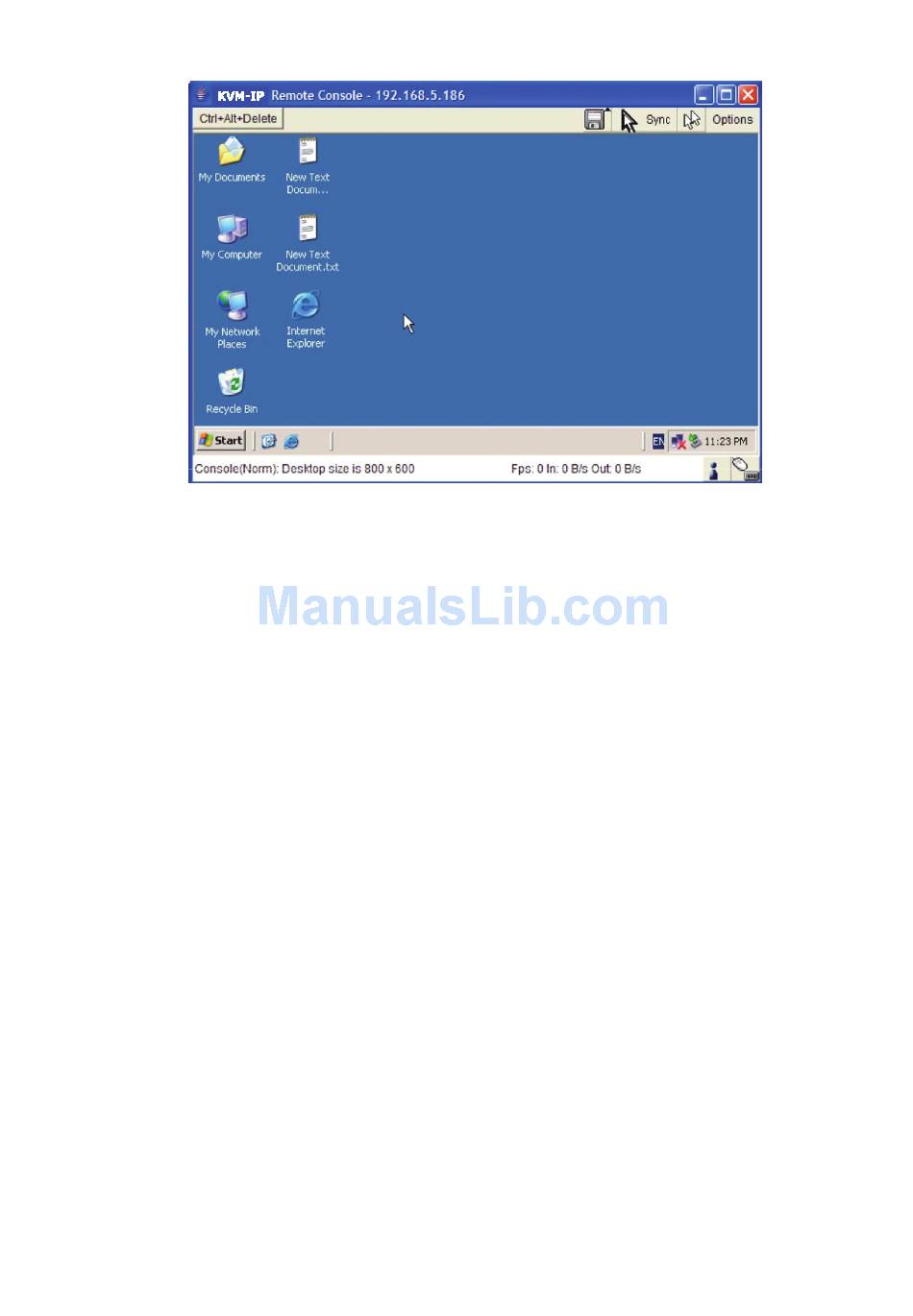

Figure 49: KVM Console
-62-
