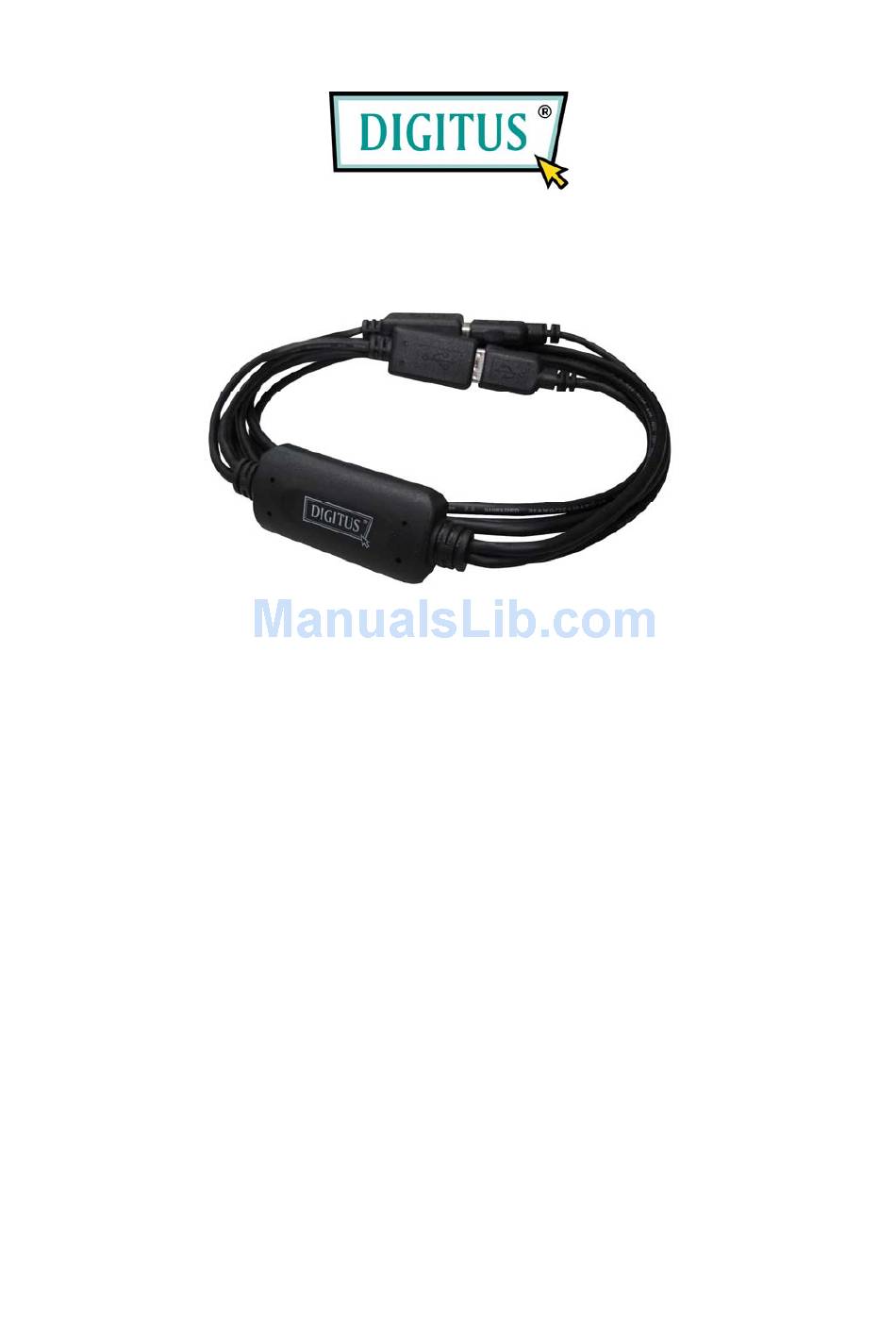

USB Keyboard and Mouse
Console Switch

User Manual

(DS-16100)
1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the DS-16100 and is the answer not in the manual?

Questions and answers

Related Manuals for Digitus DS-16100

Summary of Contents for Digitus DS-16100

  • Page 1: User Manual

    USB Keyboard and Mouse Console Switch User Manual (DS-16100)

  • Page 2: Specifications

    INTRODUCTION The USB Keyboard and Mouse Console Switch provides a user to control two computers and associated display screens by using a mouse to move the cursor and switch without the panel select buttons. It is great to work easily between your computers by a set of keyboard/mouse.

  • Page 3: Hardware Installation

    Hardware Installation Connect USB devices to the USB port of Switch as shown below. Note: Make sure that the cables are properly connected between the Switch and the computers, and the keyboard/mouse to the Switch. Please check that the USB 1/USB 2 is plugged into correct Left PC/Right PC USB port.
  • Page 4 Hot Keys Functions To hold down “Ctrl” + “Alt” + “1” ( ) to select Left PC and release all keys. To hold down “Ctrl” + “Alt” + “2” ( ) to select Right PC and release all keys. Note: Before you start the OS operation, you have to use the Hot Key function to switch. And when you boot up to OS without install software, you still can work with Hot Key function to select the PC.

  • Page 5: Software Installation

    Note: When you boot up to OS without install software, you still can work with Mouse Key function to select the PC. The Green LED glows when the PC1 or PC2 is in use. Software Installation Windows 1. Please insert the CD into your computer’s CD-ROM or DVD drive. 2.
  • Page 6 1. Please insert the CD into your computer’s CD-ROM or DVD drive. 2. Open KMS_Setup.pkg 3. Please follow the process of Installation step by step. 4. When the Installation is complete, the screen appears and you can use Switch. Note: The software must be installed for all connected computers before you use a USB mouse to move the cursor seamlessly between your computers.

  • Page 7: Troubleshooting

    Auto-Detect Functions Switch can auto switch from one PC to the other when shutting down one of PCs. Note: The auto-detect function may not be activated on some PCs because some PCs support USB port connection-oriented after shutting down. Troubleshooting 1.
