Summary of Contents for Digitus DS-12850

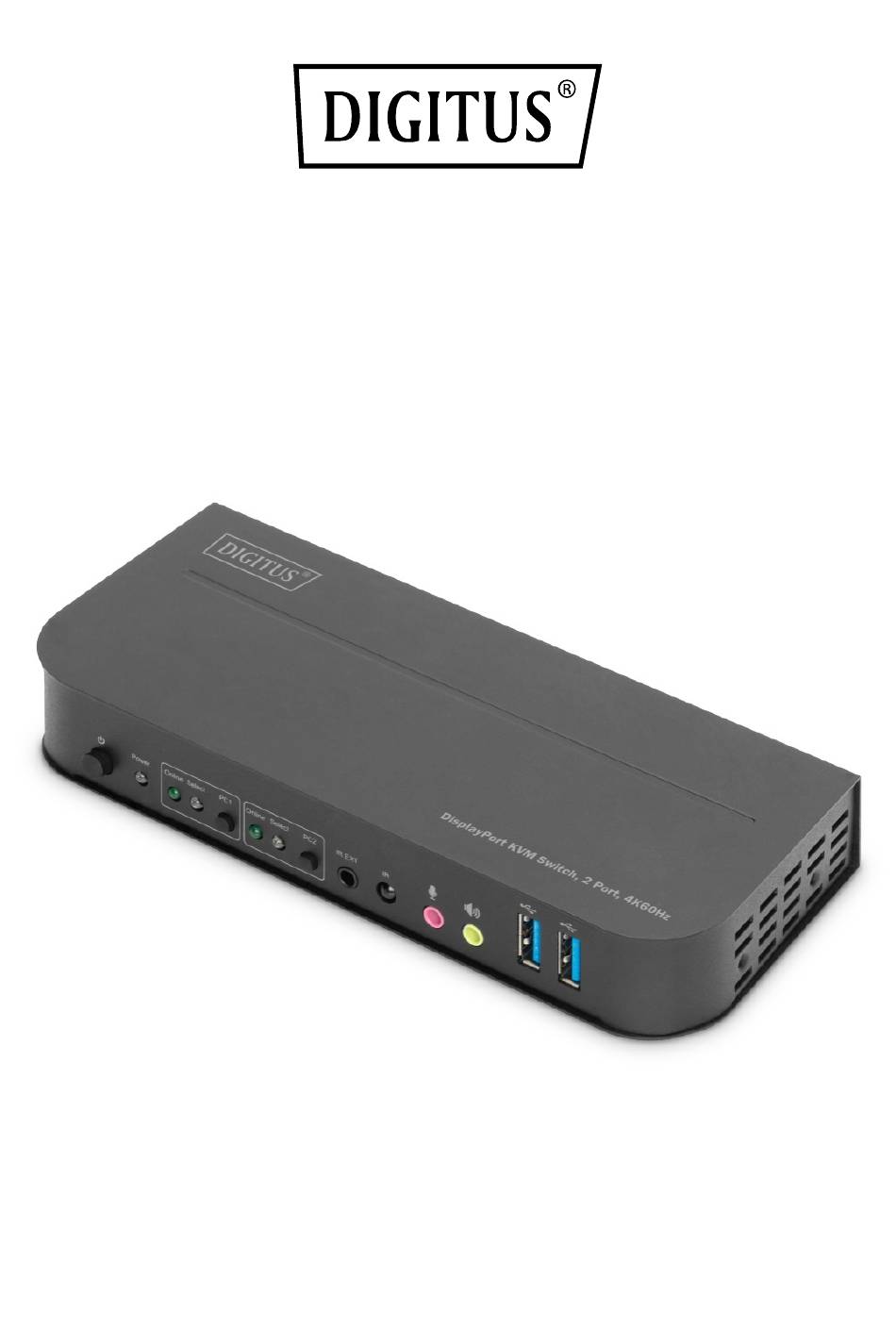

- Page 1 DISPLAYPORT KVM SWITCH 2 PORT, 4K60HZ User Manual 12850...
-
Page 2: Table Of Contents
Contents INTRODUCTION ................3 PACKAGE CONTENTS ............... 3 FEATURES ..................4 PANEL DESCRIPTION ................ 5 SPECIFICATIONS ................7 CONNECTION AND OPERATION ............8 CONNECTION DIAGRAM ..............10... -
Page 3: Introduction
DEAR CUSTOMER Thank you for purchasing this product. For optimum performance and safety, please read these instructions carefully before connecting, operating or using this product. Please keep this manual for future reference. 1. INTRODUCTION This is a high-performance DP-KVM switcher. It routes high definition video (in multiple resolutions up to 4kx2k@60Hz) and audio from any one of the several sources to display units. -
Page 4: Features
3. FEATURES 1) Support resolution up to 4Kx2K@60Hz 2) Support RGB 4:4:4/ YCbCr 4:4:4/ YCbCr 4:2:2/ YCbCr 4:2:0 3) Support KVM function 4) Support a display(Either DP or HDMI) and a set of Keyboard and Mouse to control two PCs with DP ports 5) DisplayPort: Support 8.1Gbps per channel (32.4Gbps all channels) bandwidth Support 16bit per channel (48bit all channels) deep color... -
Page 5: Panel Description

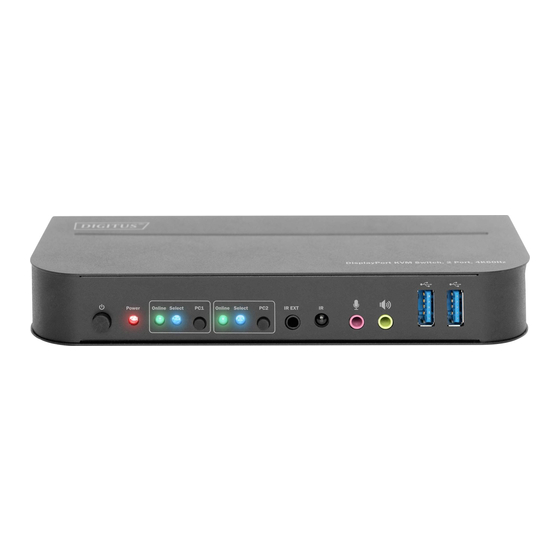

4. PANEL DESCRIPTION Front Panel 1) Power Button: Press to turn on/off the unit. 2) Power Indicator: The LED will light up once the DC/5V is provided and the unit is turned on. 3) Input Selection: When PC1/PC2 is selected, the corresponding “Select” lights up to indicate input selection(“Select”... - Page 6 Back Panel 9) Output ports: Connect to a mouse or a keyboard. Connect to a keyboard or a mouse. Connect to an amplifier. Connect to a MIC. Connect “HDMI Out” to HDMI display. Connect “DisplayPort Out” to DP display. 10) PC1 input ports: Respectively connect to DisplayPort, USB, MIC, stereo ports of PC1.
-
Page 7: Specifications
5. SPECIFICATIONS Connectors Console Connectors • USB 2.0-A x2(Back) • DisplayPort Female x1(Back) • HDMI Female x1(Back) • 3.5mm Stereo Jack(Green, 1 Front, 1 Back) x2 • 3.5mm Stereo Jack(Pink, 1 Front, 1 Back) x2 KVM Connectors • USB 3.0-B x2(Back) •... -
Page 8: Connection And Operation
6. CONNECTION AND OPERATION Operation 1) Connect PCs to USB-B ports of the unit with USB cables; Respectively connect MIC and stereo ports of the PCs to those(above the “DisplayPort In”) of the unit with 3.5mm audio cables; Connect PCs to “DisplayPort In” ports of the unit with DisplayPort cables. - Page 9 Special Function Operation: 1) Mouse traversal function: Place the mouse on the far right side of the display and continue to slide to the right for 2 seconds, the unit automatically switches to the next port. Switching order is : PC1→PC2→PC1→…; 2) USB-B detection switching function: •...
-
Page 10: Connection Diagram
Note • Hot keys are not case-sensitive; • Buzzer sounds when switching between PC1 and PC2. “++” means to press 2 times in rapid succession. For example: “Scroll Lock ++ Scroll Lock + 1” means to press the Scroll Lcok button twice in rapid succession and then press number “1” button. The detection between each hotkey code times out for 5 seconds. - Page 11 Back Panel Mouse ①. ⑥. Keyboard PC 1 ②. ⑦. HDMI Display PC 2 ③. ⑧. Amplifier Power Supply ④. ⑨. DisplayPort Display ⑤. Hereby Assmann Electronic GmbH, declares that the Declaration of Conformity is part of the shipping content. If the Declaration of Conformity is missing, you can request it by post under the below mentioned manufacturer address.
