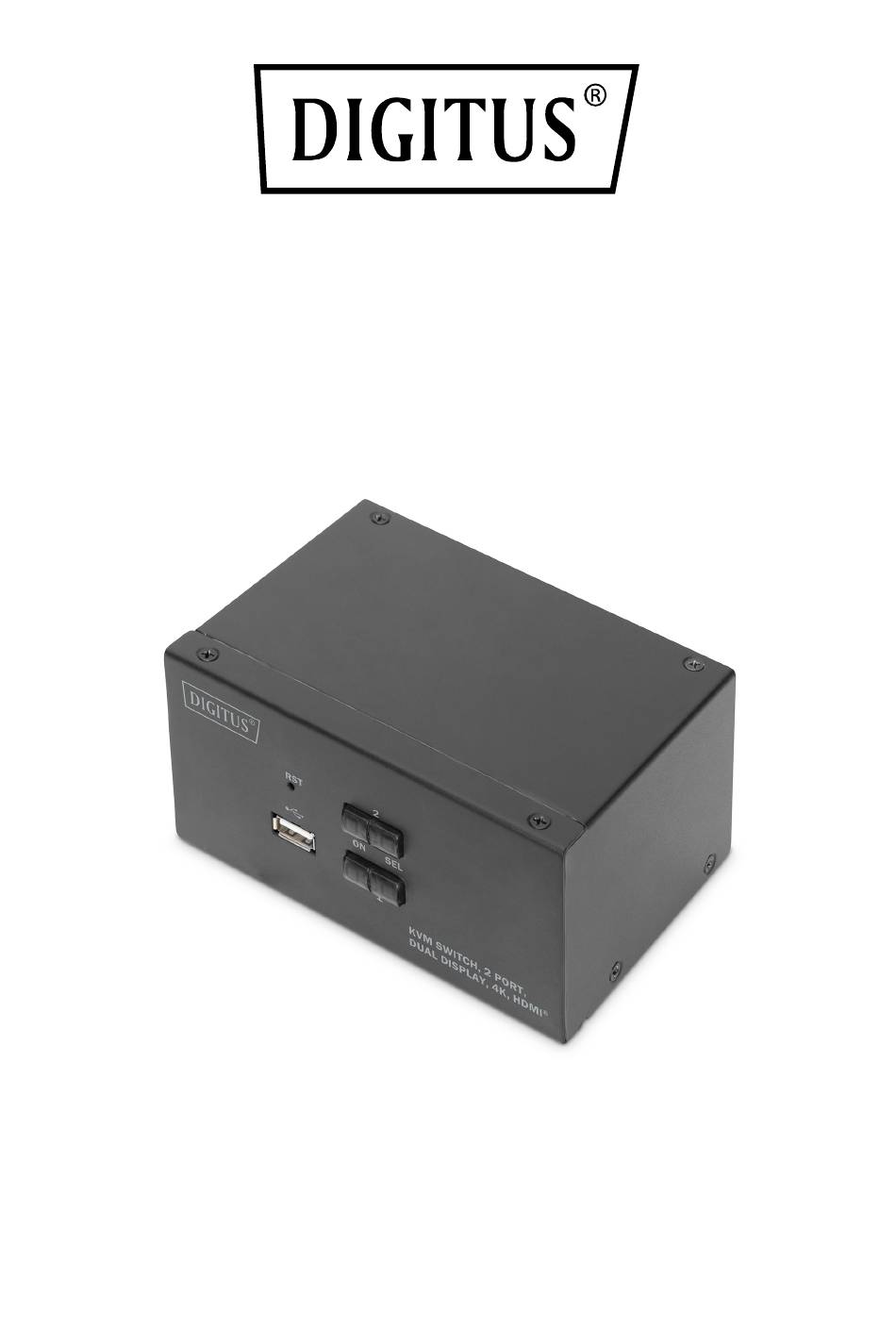

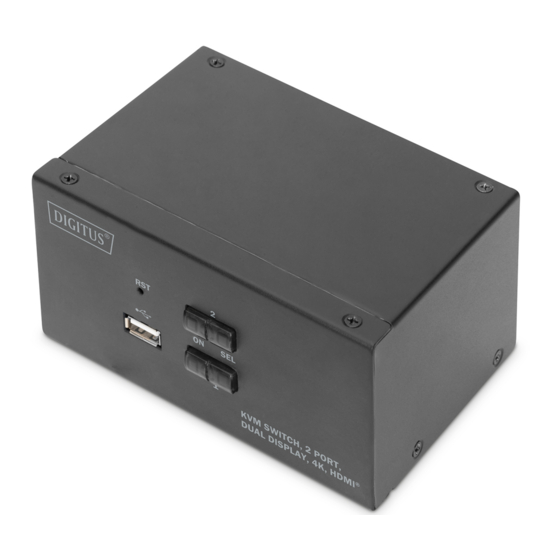

- Page 1 KVM SWITCH, 2 PORT, DUAL DISPLAY, 4K, HDMI User Manual DS-12860...
- Page 2 User consideration The manufacturer has the right to modify and change the information, documents and specifications contained in the manual without prior notice. The manufacturer does not warrant, express, imply or statutorily declare its contents or specifically disclaims its merchantability and fitness for a particular purpose. Any of the manufacturer's software described in this manual that is sold and licensed.
-
Page 3: Table Of Contents
Contents About manual......................4 Product information ....................4 Chapter 1 ........................5 Introduction ......................5 Product description ....................5 Product features......................5 Operating system ....................... 6 Components ....................... 7 Chapter 2 ........................8 Hardware installation ..................... 8 Cable connection and installation ................8 Chapter 3 ........................ -
Page 4: About Manual
About manual This User Manual will assist you in the effective use of product features, including the installation, setup, and operation of your equipment. You can find out what is included in this manual from the following: Chapter 1 Introduction - This chapter describes the rack-mounted KVM device system, including its functions, features, and benefits, and describes and describes its front and rear panel components. -
Page 5: Chapter 1
Chapter 1 Introduction Product description As a KVM switch, 2 port desktop KVM Series Switches allows users to access from a single USB keyboard, mouse and HDMI display console accesses 2 computers. As per built in USB hub, it allows each computer (one computer at a time) to access the connected peripherals. -
Page 6: Operating System
Operating system Operating systems supported by remote users' computers include: Windows XP and above The operating systems supported by the server connected to the switch are shown in the following table: operating system version Windows Windows 2000/XP/2003/200 8 /Vista/7/10 Linux RedHat 9.0 or higher... -
Page 7: Components
Components Front view Rear view ①. Power Indicator ④. Power 9V DC=, optional ②. Power Button ⑤. For HDMI video interface ③. Front USB interface, you can ⑥. For the integrated audio connect mouse and keyboard, and MIC interface, U disk storage device and printer. connect to KVM cable ⑦. -
Page 8: Chapter 2
Chapter 2 Hardware installation Cable connection and installation KVM switches can be placed on any suitable surface, and is sufficient to safely support the weight of the device plus the additional cable; clean and make sure that no other plane debris would affect the switch ventilation and normal operation. To install For a 2 port desktop KVM device, follow these steps: 1. -
Page 9: Chapter 3
Chapter 3 Basic operation Overview There are two ways for the KVM switch to access the connected computer: the combination hotkey on the USB keyboard to switch operations or the manual switch operation on the front of the KVM device. Manual switching method The user only needs to press the corresponding touch button on the front panel of the KVM , and the buzzer will sound a tone indicating that the switch port is... -
Page 10: Chapter 4
Chapter 4 Keyboard operation Overview The KVM product in this desktop series offers a large number of easy hotkey operations, making it easy to set up KVM via the keyboard or to complete port switching. Hotkey setting: This series of products provides 4 combinations of hotkeys for user selection and setting. - Page 11 2.[ SCROLL ] + [ SCROLL ] mode Hotkey combination Description 【 SCROLL 】 【 SCROLL 】 【 1 】 or Switch to the computer corresponding to the port of [ 1 ] [ 2 ] 【 2 】 【 SCROLL 】 【 SCROLL 】 【→】 or Switch to the next computer 【↓...
- Page 12 4.[ CAPS ] + [ CAPS ] mode Hotkey combination Description Switch to the computer corresponding 【CAPS 】【CAPS 】【 1 】 or 【 2】 to the port of [ 1 ] [ 2 ] 【 CAPS 】【 CAPS 】 [→] or [ ↓ ] Switch to the next computer 【...
-
Page 13: Appendix
Appendix safety instructions General This product is for indoor use only. Please read all instructions and use them for future reference. Please follow all warnings and instructions on the device. Do not place the device on any uneven surface (such as a cart, shelf, table, etc.). If the device is dropped, it will be made. - Page 14 Please properly fix the system cable and power cord to ensure that nothing is pressed against the cable. Do not insert any objects into the machine through the slots in the casing. There is a risk of contact with dangerous voltage points or short-circuiting parts that could result in fire or electric shock.
-
Page 15: Product Specification
Product specification Features DS-12860 Computer connections Port selection Front panel buttons/Hotkey Control monitor 2 x HDMI Type A female port keyboard 1 x USB Type A female mouse 1 x USB Type A female Connector speaker 1 x Mini stereo jack... - Page 16 Hereby Assmann Electronic GmbH, declares that the Declaration of Conformity is part of the shipping content. If the Declaration of Conformity is missing, you can request it by post under the below mentioned manufacturer address. www.assmann.com Assmann Electronic GmbH Auf dem Schüffel 3 58513 Lüdenscheid Germany...
