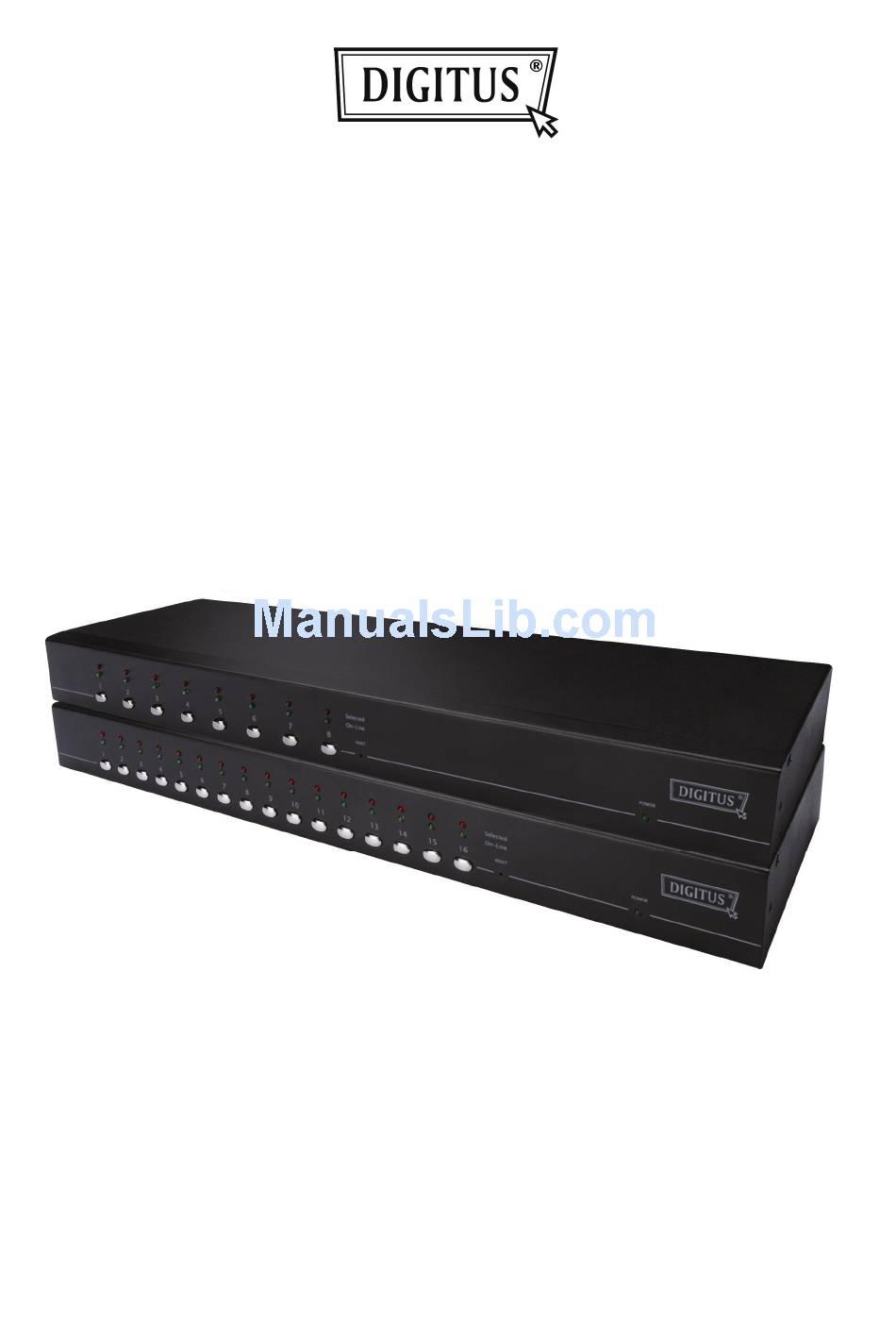

- Page 1 CAT.5 IP COMBO-KVM SWITCH 8-PORT/16-PORT Quick Installation Guide DS-15202-1 / DS-16202-1...
-
Page 2: System Requirements
1. System Requirements Hardware Local Host side : The following equipment must be equipped with each computer or server A VGA, SVGA or Multisync card Type A USB port or PS/2 6 pin mini-DIN for Keyboard and Mouse. ... - Page 3 2.1.4. If your computeres work under Windows 98, please connect KVM switch to computers via PS/2 ports, because Windows 98 does not support installation at first time as through USB HID installation driver. 2.1.5. Some kind of old computers must enable USB setting in BIOS in advance to make USB interface work.
-
Page 4: System Connection
2.1.10. System connection: Please use Custom combo CAT5 cable to connect your computers. Please refer to the figures and instructions shown below for System connection. Note: Please contact your dealer to purchase the custom combo 4-in-1 CAT5 dongle (DS-19202) if you need. Figure : Custom Combo 4-in-1 CAT5 dongle (DS-19202) You can connect to computers via three... - Page 5 Connect only PS/2 (keyboard/mouse) and VGA connectors to computers. Figure : PS/2 (Keyboard & Mouse) and VGA connected C. Connect only USB and VGA connectors to computers. Figure : USB and VGA video connected...
- Page 6 2.2. Cascade Chaining CAT5 Combo Free 8-port & 16-port KVM switch support 3 level cascades; control up to 8/64/512 PCs ( for 8-port only ) and 16/256/4096 PCs ( for 16-port only ), from a single console; cascaded chaining units do not need special configuration.
- Page 7 1. Master KVM Switch 2. Second level Slave KVM Switch (connecting to Master KVM Switch) if any. 3. Third level Slave KVM Switch (connecting to second level Slave KVM Switch) if any. 4. All computers connecting to Master/Slave KVM Switch. G.
- Page 8 Figure : Cascade chaining Firmware upgradeable download connector The min-USB female connector on the rear of KVM switch is for firmware upgrade function. To update your KVM firmware, please contact your dealer.
- Page 9 2.3. Rack Mounting Figure : Rack mounting shows you how to attach mounting brackets to the KVM Switches Figure 11 unit for standard 19-inch rack cabinet. 1. Screw the mounting brackets into the sides of the unit. KVM-Switches 2. Install the unit into the rack cabinet.
-
Page 10: Hotkey Operation
3. Hot Key Operation 3.1. Call OSD Menu Press < Scroll Lock> twice and <Enter>, then the OSD “Main Menu” will be displayed on the monitor screen. All of the KVM parameters can be setup in OSD mode. You can also execute some KVM functions in OSD. <Scroll Lock>... - Page 11 Note: You can also select computers in OSD menu. Move the indicator bar to the chanel to switch by using <arrow key>, <Page Up> or <Page Down>, then press <Enter> to select the connected computer. 3.2.2. Start auto-scan function <Scroll Lock> → <Scroll Lock> → <S> → <Enter>. The auto-scan banner will be shown on screen to indicate the scanning channel.
-
Page 12: Initial Configuration
3.3. Call Adjust Video Menu Press < Scroll Lock> twice, then <C> and <Enter>, then the OSD “Adjust Video” will be displayed on the monitor screen. You can adjust video quality for current active channel in first layer. <Scroll Lock> → <Scroll Lock> → <C> → <Enter> 3.4. -
Page 13: Fcc Statement
address from the drop-down list. You can find your CAT5 8-PORT/16-PORT IP-KVM’s MAC ID on a label located on the bottom of your CAT5 8-PORT/16-PORT IP-KVM. The device's MAC address has the same number sequence as the device's MAC ID. 4.6.
