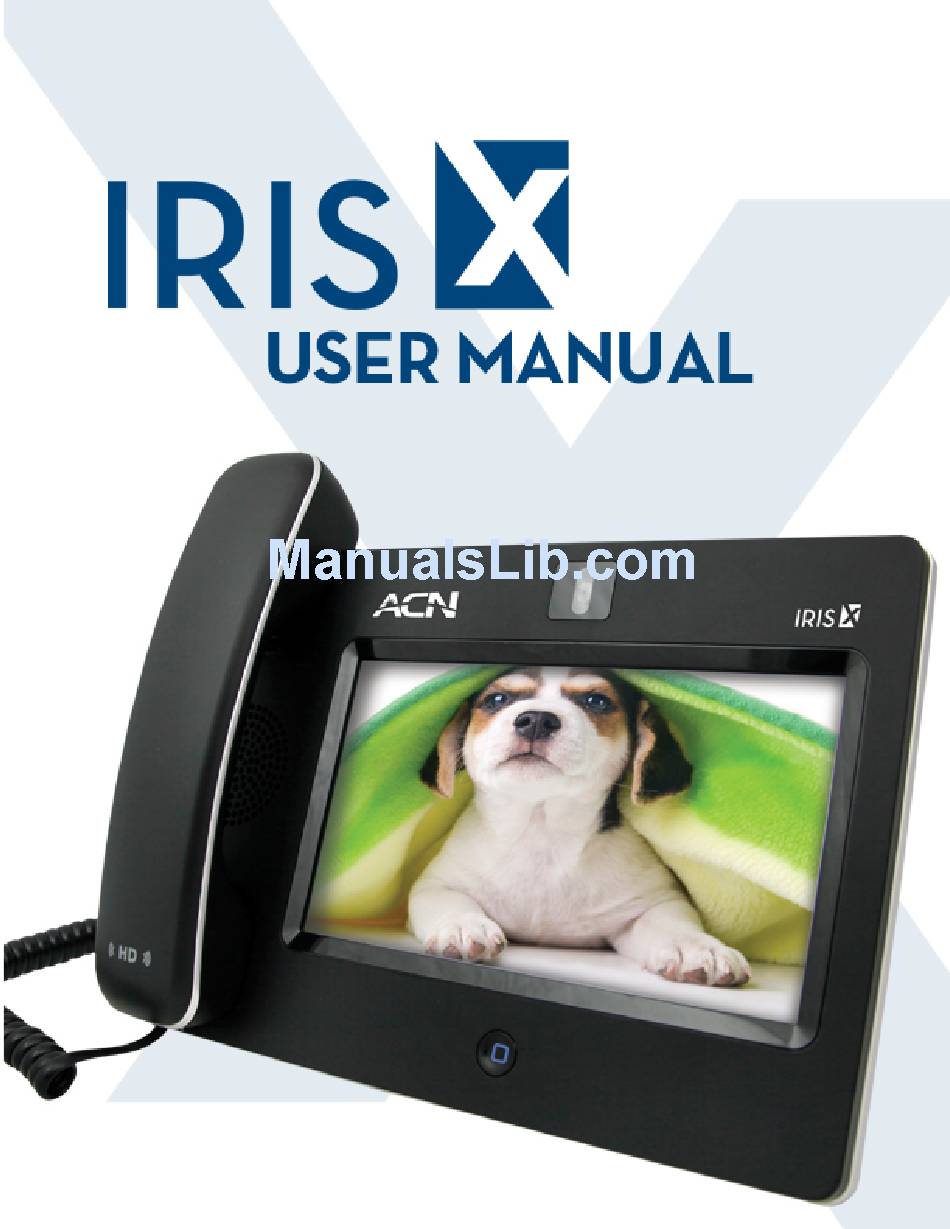

ACN IRIS X User Manual

Hide thumbs Also See for IRIS X:
Table of Contents

Advertisement

Quick Links

Download this manual

Advertisement

Table of Contents
loading

Related Manuals for ACN IRIS X

Summary of Contents for ACN IRIS X

  • Page 2: Table Of Contents

    Contents Features ....................................5 Main Screen and Navigation ............................... 5 Handset, Speaker and Headset Mode ..........................5 Making a Call ..................................5 Answering Calls ................................... 7 Call Function Options ................................8 Call Hold (Call Options Menu) ............................10 3-Way Conference Calling (Call Options Menu) ....................... 11 Mute (Call Options Menu) ..............................
  • Page 3 World Photo (MENU-> Photos-> World Photo) ........................ 25 Widgets ....................................26 Contacts Favorite (Widget Bar) ............................26 Info (Widget Bar) ................................26 Photo Frame (Widget Bar) ..............................26 Weather (Widget Bar) ............................... 27 World Clock (Widget Bar) ..............................27 System Settings ..................................28 Screen Calibration (Accessible via Home Button) ......................
  • Page 4 The person I’m calling can’t see me ..........................49 Screen Responsiveness ..............................50 How Do I Enter Information into the IRIS X? (Virtual Keyboard) ..................50 I want to attach a keyboard and/or mouse ........................50 How do I factory reset my IRIS X? ............................. 50 Appendix ....................................

  • Page 5: Features

    Handset, Speaker and Headset Mode The ACN IRIS X allows you to switch from handset to speaker by pressing the corresponding icon in the Dial Pad. If a headset is plugged in, the headset icon will be available to select. Standard three-conductor 3.5mm wired headsets are supported.
  • Page 6 Dial by Call History 4. By Contacts • Access the phone menu by pressing the MENU icon in idle screen. Then select Contacts or choose the Contacts icon in the dial pad to access the contact list. • The screen monitor will display the contact list. Scroll to the contact to be dialed. •...

  • Page 7: Answering Calls

    Dial by Contact List – more contact information 5. By Contact Favorite in idle screen In the idle screen, press and select to open the Contacts widget. You can add a contact to the favorite list. Select the contact and press to dial out.

  • Page 8: Call Function Options

    2. Incoming Audio Call: When an audio only call is coming in, select Accept Audio or Reject. Answer incoming video call 3. Missed Call: If the call is unanswered, a missed call message will show up on the Home screen. You can press this message to access the detail of the missed call or view missed calls via the Call History option.
  • Page 9 Use Call Options during a video call ACN IRIS X CALL FUNCTIONS OPTION MENU FUNCTION DESCRIPTION Dial Pad Select to enter in touch tone responses or to dial another number Hold Press to hold the call. To take the call off hold, press Unhold...

  • Page 10: Call Hold (Call Options Menu)

    Call Hold (Call Options Menu) Places the incoming call on hold 1. Call Hold: During a call, press the Hold button to place the call on hold. The line icon will become yellow after call hold. The following will be displayed on the screen. 2.

  • Page 11: 3-Way Conference Calling (Call Options Menu)

    To initiate a 3-Way audio conference call, follow the steps below: 1. The conferencer initiates a call with the first party. 2. While on this call, the conferencer expands the Options menu on the IRIS X by touching the middle button of the options icon.

  • Page 12: Do Not Disturb (Status Bar)

    Do Not Disturb (Status Bar) With this feature enabled, all incoming calls are treated as busy (default is to forward to voice mail) without ringing or displaying on the phone. • This feature is accessed by selecting the status bar on the Homepage where a number of additional options are available.

  • Page 13: Keypad Input

    Widgets. The IRIS X keypad is displayed any time an app or function is selected that may require end you input. The IRIS X supports English, Chinese, Russian and Korean for text input. The English keyboard will be presented for all languages except China, Russian and Korean.

  • Page 14: Apps

    Browser (MENU -> Browser) The IRIS X has a Web Browser for Internet browsing. Press on the blank area in the navigation bar to enter the URL via soft keyboard and press Enter in the keyboard to visit the website.

  • Page 15: Calendar (Menu -> Tools -> Calendar)

    Calculator: Science Calculator: Finance Calendar (MENU -> Tools -> Calendar) The Calendar application is accessed by selecting MENU-> Tools-> Calendar. You can view the calendar and add events to the calendar and synchronize it to an existing Google calendar account. Calendar Application...
  • Page 16 Press to move and select the month and year. After pressing on a date in the calendar, the date will turn red and will display any event information in the window on the right of the screen. To add a new event, you can press button on the right window after pressing on the selected day.
  • Page 17 To enable the feature to display holidays for different countries, press Settings and select countries from the dropdown list. The ACN IRIS X gives you the ability to display holidays for up to three different countries. Press Save after the setting.

  • Page 18: Call History (Menu -> Call History)

    Call History (MENU -> Call History) ACN IRIS X stores up 100 dialed calls, 100 received calls and 100 missed calls. You may access the phone’s call records through MENU -> Call History. Call History You can select among the four tabs All, Received, Dialed and Missed to access the corresponding call record.

  • Page 19: File Manager (Menu-> Tools->File Manager)

    Paste. Select Paste to copy the file inside the folder. You can also create a new directory by selecting New directory. Total you capacity on the IRIS X is 100MB. You files should be stored in the Screenshot, Ringtone, or Video directories. You files can also be stored directly to USB or SD storage.
  • Page 20 Media Player->Play Music Icon Function Skip to play the next item in playlist Play Skip to play the previous item in playlist Pause/Stop Volume. Scroll the volume bar to adjust the volume. Delete the item in playlist Scroll to the previous item in playlist Scroll to the next item in playlist Options: Add File to List, Open File, Open Folder, Output, Clear List Loop: Single Loop, List Loop, Loop None...

  • Page 21: Movie Trailer (Menu-> Video -> Movie Trailer)

    Movie Trailer (MENU-> Video -> Movie Trailer) The ACN IRIS X’s Movie Trailer enables you to access the latest movie information by watching trailers. Select MENU- >VIDEO->Movie Trailer. The screen will display recent movies. Select the movie you would like to see additional information or view the trailer.

  • Page 22: Picture-In-Picture Pip (Menu-> Pip Or Task Bar)

    Select to watch a trailer Picture-In-Picture PIP (MENU-> PIP or Task Bar) In MENU -> PIP, you can utilize the IRIS X built-in camera to take photos and record video. The PIP application also allows for a self view display.
  • Page 23 Press on the folder to open and select the photos in the folder. The screen will look similar to the above screen shot. For example, open the first picture from the screensaver folder. Viewing an image in Photo Viewer You can swipe their finger across the screen to view the previous/next photo. To view the photo in full screen, press and the screen will show as below.

  • Page 24: Slide Show (Menu-> Photos->Slide Show)

    Icon Function View the previous photo View the next photo View the photo in full screen View the photo in slideshow Exit View the photo in regular mode Zoom in Zoom out Expand to fit the screen Expand to fit the screen Horizontal flip Vertical flip Rotate in clockwise direction...

  • Page 25: Youtube (Menu -> Video Folder)

    If Customized Folder is selected in Source, you will need to specify the folder by pressing Browser to select a folder from local or external storage device. YouTube (MENU -> Video Folder) Access the YouTube application through the quick launch bar on the bottom of the home screen or via the Menu -> Video folder.

  • Page 26: Widgets

    Widgets In the ACN IRIS X’s desktop, there are four main screens. In each screen, you can customize the look by placing different widgets on the desktop. To personalize the desktop, press and hold an existing widget for 2-4 seconds to activate the for the setting and closing options.

  • Page 27: Weather (Widget Bar)

    Weather (Widget Bar) The weather information includes humidity, visibility (mile), wind direction, wind speed (mph) and temperature in unit as configured by you. • Press to access weather settings. Enter the Update Time (m) and select Unit (Fahrenheit or Celsius) according to your preference.

  • Page 28: System Settings

    Wi-Fi Settings (MENU-> Settings -> Network Wi-Fi tab) The ACN IRIS X supports 802.11b/g/n. By default, the Wi-Fi function on the phone is disabled. You can configure the wireless settings by selecting Enable in the Wi-Fi Function. There are two methods to configure Wi-Fi.
  • Page 29 The IRIS X displays this icon in the top right of the screen if the device is using the wired connection. If the IRIS X is using wireless, it will display this icon in the top right of the screen.

  • Page 30: Time Settings (Menu-> Settings -> Time)

    Time Settings (MENU-> Settings -> Time) The ACN IRIS X allows the time to be updated automatically through an NTP Server. You can define the Time Zone or use a Self-defined Time Zone. The display format for the time and date can also be specified by accessing the application and selecting MENU->System Settings->Time.

  • Page 31: Maintenance (Menu-> Settings -> Maintenance)

    Note: To complete a factory reset, you must be connected to a WIRED network. A factory reset performed on a device connected to a Wi-Fi network will result in the device losing its ACN configurations. If that happens, connect the device to a wired network and repeat the factory reset process.

  • Page 32: Factory Functions

    Press Start and follow the instructions on the screen for each test. Debug The Debug page contains the built-in debug tools for the ACN IRIS X. The debug tools make it more convenient to diagnose issues when the system encounters problems. To start capturing traces, you need to Enable the Debug application and press the Start button next to the Capture Packets option.

  • Page 33: Background (Menu-> Settings -> Background)

    Background (MENU-> Settings -> Background) ACN IRIS X has four desktops and each desktop can be set with a different background according to your preference. For each desktop, you can select a color or an image from local/external files to display. After the selection, you can preview the settings.
  • Page 34 In the page Ring Tones, you can set the ringtone for incoming calls. Press Save for the configuration to take effect. Ring Tones Settings...

  • Page 35: Language (Menu-> Settings -> Language)

    Language (MENU-> Settings -> Language) There are multiple built-in languages available in ACN IRIS X. Press on the Down arrow and make the selection in Select Language. Press Save then the phone will prompt an alert message Do you want the reboot to take effect immediately now.
  • Page 36 System shows the product model, hardware version, part number, system up time and software version. System Info Network shows the phone’s MAC address, IP address, subnet mask, gateway, DNS server and NAT type. Network Info...

  • Page 37: Advanced Features

    Use this format for the contact file you import. Below is a spreadsheet template to create a CSV file that will import to the IRIS X. Note: Re-enter the work, mobile or home phone number in the primary phone field if desired. If you leave primary blank, the work number will be the primary.

  • Page 38: Wi-Fi Hotspot Configuration Examples

    Wi-Fi Hotspot Configuration Examples Hotel Wi-Fi Configuration (Country Inn) 1. Select System Settings – Network: 2. Select Wi-Fi Tab, Enable Wi-Fi, Click Apply, then Click Scan...
  • Page 39 3. Double Click Desired ESSID 4. Click Save...
  • Page 40 6. Go back to Home screen and Verify Registration – The name and icon on the top of the Info widget should be Green. The IRIS X is now connected to the Wi-Fi network, able to place and receive calls, and browse the...

  • Page 41: Starbucks Wi-Fi Configuration

    Starbucks Wi-Fi Configuration 1. Go to System Settings 2. Click on Network Settings...
  • Page 42 3. Go to Wi-Fi tab, Click Enable, Click Apply 4. Click Scan...
  • Page 43 5. Wait for Scan to Finish 6. Double click desired ESSID...
  • Page 44 7. Click Save 8. Exit Back to Home Screen – Open Browser...
  • Page 45 9. If prompted to continue because of untrusted certificate press OK 10. Check the `I agree to Terms` checkbox - Click the Connect button...
  • Page 46 11. Go back to Main screen - Connection should now be enabled (Green Icon)

  • Page 47: Troubleshooting

    Info widget. 5. Installation of the IRIS X is complete when the Info widget on the Home screen shows a green icon on the top right and you have an IP address in the bottom line of the Info widget.

  • Page 48: I Am Having Problems With Wi-Fi

    3. If the IRIS X works on a wired connection and not via Wi-Fi, verify your Wi-Fi is working by browsing to your favorite web site with a wireless computer on the same network router. If you are able to connect and browse using a wireless computer, you will need to configure your IRIS X Wi-Fi settings: •...

  • Page 49: The Quality Of My Video Or Audio Is Poor

    The person I’m calling can’t see me The camera on the IRIS X has a privacy feature that allows the camera to be disabled. To enable the camera, rotate the adjustment wheel located in the top center on the back of the video phone.

  • Page 50: Screen Responsiveness

    Screen Responsiveness 1. For best performance, use the stylus with the IRIS X. The stylus is designed to provide an optimal experience with the IRIS X touch screen. 2. When the Video Phone has been idle for some time, you may experience a slight delay when you initially press the screen to initiate an action.

  • Page 51: Appendix

    Appendix Phone Status Indicators Type Icon Definition Connected to the network Network Failed to connect to the network Call Related Auto Answer Call Forward Ring Volume Ring volume, ranges from 0-9 Phone Status Camera disabled Do-Not-Disturb (DND) Missed Call. Audio Output The headset is in use and is off hook The headset is plugged in The speaker phone is active...
  • Page 52 External devices SD card USB flash drive USB keyboard USB mouse USB LED light 1 USB LED light 2 HDMI...

  • Page 53: Feature Codes

    Feature Codes ACN IRIS X has a number of features that can be managed by two or three digit feature codes. To activate (or deactivate) take the video phone off the hook and enter the applicable code below. You will hear a confirmation message after code entry.
