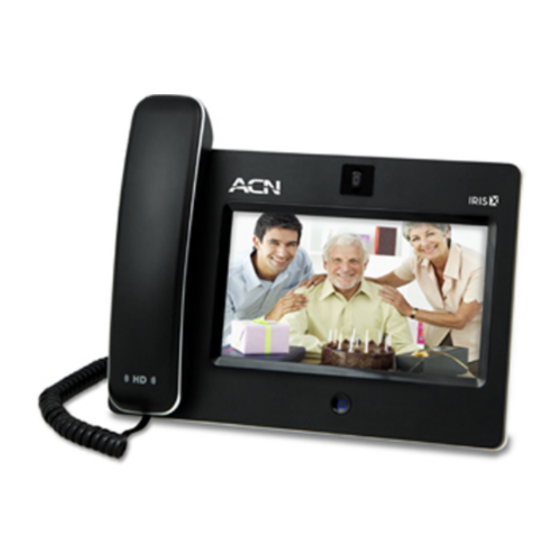

ACN Iris X User Manual

Hide thumbs Also See for Iris X:
Table of Contents

Advertisement

Quick Links

Download this manual See also: User Manual
acnpacific.com.au

Advertisement

Table of Contents
loading

Related Manuals for ACN Iris X

Summary of Contents for ACN Iris X

  • Page 1 acnpacific.com.au...

  • Page 2: Table Of Contents

    Contents Features ............................4   Main   S creen   a nd   N avigation   ........................   4   Handset,   S peaker   a nd   H eadset   M ode   ......................   4   Making  ...
  • Page 3 Widgets ............................25   Contacts   F avorite   ( Widget   B ar)   ......................   2 5   Info   ( Widget   B ar)   ............................   2 5   Photo   F rame   ( Widget   B ar)   ........................   2 5  ...

  • Page 4: Features

    For an explanation of icons, refer to the appendix. The ACN IRIS X supports up to 3 inbound or outbound concurrent calls. When the phone is off-hook, users can press Hold then select Line1/Line2/Line3 to place additional concurrent calls.
  • Page 5 Dial by Call History 4. By Contacts Access the Phone Menu by pressing the MENU icon in idle screen. Then select Contacts or choose • the Contacts icon in the dial pad to access the contact list. The screen monitor will display the contact list. Scroll to the contact to be dialed. •...

  • Page 6: Answering Calls

    Dial by Contact List – more contact information 5. By Contact Favorite in idle screen In the idle screen, press and select to open the Contacts widget. Users can add a contact to the favorite list. Select the contact and press to dial out.

  • Page 7: Call Function Options

    2. Incoming Audio Call: When an audio only call is coming in, select Accept Audio or Reject. Answer incoming audio call 3. Missed Call: If the call is unanswered, a missed call message will show up on the Home screen. Users can press this message to access the detail of the missed call or view missed calls via the Call History option.

  • Page 8: Call Hold (Call Options Menu)

    Use Call Options during a video call ACN IRIS X CALL FUNCTIONS OPTION MENU FUNCTION DESCRIPTION Dial Pad Select to enter in touch tone responses or to dial another number Hold Press to hold the call. To take the call off hold, press Unhold...

  • Page 9: 3-Way Conference Calling (Call Options Menu)

    To initiate a 3-Way audio conference call, follow the steps below: 1. The conferencer initiates a call with the first party. 2. While on this call, the conference expands the Options menu on the IRIS X by touching the middle button of the options icon 3.

  • Page 10: Mute (Call Options Menu)

    Snap Shot Users can utilise the built-in camera in the ACN IRIS X to take snapshots from calls in progress. To take a photo, press “Snapshot” and then the photo will be saved to folder “Snapshot” in File Manager.

  • Page 11: Enhanced Do Not Disturb

    Forwards your calls to a number specified by you on the following occasions: Forward all calls to a specific number without appearing or ringing on your phone • Forward all calls to a specific number when you do not answer your phone •...

  • Page 12: Speed Dial

    Apps and Widgets. The IRIS X keypad is displayed any time an app or function is selected that may require end user input. The IRIS X supports English, Chinese, Russian and Korean for text input. The English keyboard will be presented for all languages except China, Russian and Korean.

  • Page 13: Apps

    Browser (MENU à Browser) The IRIS X has a Web Browser for Internet browsing. Select the blank area in the navigation bar to enter the URL via the soft keyboard and press Enter on the keyboard to visit the website.

  • Page 14: Calendar (Menu À Tools À Calendar)

    Calculator: Science Calculator: Finance Calendar (MENU à Tools à Calendar) The Calendar application is accessed by selecting MENU à Tools à Calendar. Users can view the calendar and add events to the calendar and synchronize it to an existing Google calendar account. Calendar Application 14  ...
  • Page 15 Press to move and select the month and year. After pressing on a date in the calendar, the date will turn red and will display any event information in the window on the right of the screen. To add a new event, the user can press button on the right window after pressing on the selected day.

  • Page 16: Call History (Menu À Call History)

    Call History (MENU à Call History) ACN IRIS X stores up to 100 dialed calls, 100 received calls and 100 missed calls. Users may access the phone’s call records through the MENU selecting Call History.

  • Page 17: Contacts (Menu À Contacts)

    Call History Users can select from the four tabs All, Received, Dialed and Missed to access the corresponding call record. For each record, users can choose to Call , Message , Edit and Save to Contacts or Delete by pressing the icon. To delete all the call records in one page, press on the Empty button. Contacts (MENU à...

  • Page 18: Media Player (Menu À Video À Media Player)

    New directory and Paste. Select Paste to copy the file inside the folder. Users can also create a new directory by selecting New directory. Total user capacity on the IRIS X is 100MB. User files should be stored in the Screenshot, Ringtone, or Video directories. User files can also be stored directly to USB or SD storage.
  • Page 19 Media Player à Play Music Icon Function Skip to play the next item in playlist Play Skip to play the previous item in playlist Pause/Stop Volume. Scroll the volume bar to adjust the volume Delete the item in playlist Scroll to the previous item in playlist Scroll to the next item in playlist Options: Add File to List, Open File, Open Folder, Output, Clear List Loop: Single Loop, List Loop, Loop None...

  • Page 20: Movie Trailer (Menu À Video À Movie Trailer)

    Movie Trailer (MENU à Video à Movie Trailer) The ACN IRIS X’s Movie Trailer enables users to access the latest movie information by watching trailers. Select MENU à VIDEO à Movie Trailer. The screen will display recent movies. Select the movie you would like to see additional information or view the trailer.

  • Page 21: Picture-­-In-­-Picture   P Ip   ( Menu   À   P Ip   O R   T Ask   B

    Select to watch a trailer Picture-In-Picture PIP (MENU à PIP or Task Bar) In MENU à PIP, users can utilize the IRIS X built-in camera to take photos and record video. The PIP application also allows for a self view display.
  • Page 22 Press on the folder to open and select the photos in the folder. The screen will look similar to the above screen shot. For example, open the first picture from the screensaver folder. Viewing an image in Photo Viewer Users can swipe their finger across the screen to view the previous/next photo. To view the photo in full screen, press and the screen will show as below.

  • Page 23: Slide Show (Menu À Photos À Slide Show)

    View the photo in slideshow Exit View the photo in regular mode Zoom in Zoom out Expand to fit the screen Expand to fit the screen Horizontal flip Vertical flip Rotate in clockwise direction Rotate in counter clockwise direction Slide Show (MENU à Photos à Slide Show) The Slide Show application allows the user to select a set of photos and display photos in a slideshow.

  • Page 24: Youtube (Menu À Video Folder)

    YouTube (MENU à Video Folder) Access the YouTube application through the quick launch bar on the bottom of the home screen or via the Menu à Video folder. Besides viewing videos, users can also search for videos according to keyword and preferences. This is done by pressing Option à...

  • Page 25: Widgets

    Widgets In the ACN IRIS X’s desktop, there are four main screens. In each screen, users can customize the look by placing different widgets on the desktop. To personalize the users’ desktop, press and hold an existing widget for 2-4 seconds to activate the for the setting and closing options.

  • Page 26: World   C Lock   ( Widget   B Ar)

    To check weather in a particular location, users will need to add the city first. Press on the blank area of City Name and enter the name via the soft keyboard. Press Search. The results will appear in Search Result. Select the desired location and press Add button. Users can add more than one city in weather widgets according to the demands.

  • Page 27: System Settings

    It is important that the touch screen is properly calibrated to enable all its features and functions. Using the stylus will provide the best results. The stylus can be found attached to the back of the Iris X. Method 1 Go to Menu à...

  • Page 28: Time Settings (Menu À Settings À Time)

    Time Settings (MENU à Settings à Time) The ACN IRIS X allows the time to be updated automatically through an NTP Server. Users can define the Time Zone or use a Self-defined Time Zone. The display format for the time and date can also be specified by accessing the application and selecting MENU à...

  • Page 29: Display (Menu À Settings À Display)

    à Maintenance: Reboot, Backup, Factory Functions, and Debug. The Reboot page has the options of rebooting the device or performing a factory reset. A reboot will simply power cycle the device. A factory reset will erase all settings and reload the ACN configurations and settings.
  • Page 30 Press Start and follow the instructions on the screen for each test. Debug The Debug page contains the built-in debug tools for the ACN IRIS X. The debug tools make it more convenient to diagnose issues when the system encounters problems. To start capturing traces, users 30  ...

  • Page 31: Camera (Menu À Settings À Camera)

    Press Save for the settings to take effect. Background (MENU à Settings à Background) ACN IRIS X has four desktops and each desktop can be set with a different background according to users’ preference. For each desktop, users can select a color or an image from local/external files to display. After the selection, users can preview the settings.

  • Page 32: Tones (Menu À Settings À Language)

    Background Settings Tones (MENU à Settings à Language) The Tones Manager configures the volume and ringtones. The Tones menu is accessible by selecting MENU à System Settings à Tones. The Volume page allows users to turn up/down the key volume and ring volume by pressing Tones à...

  • Page 33: Language (Menu À Settings À Language)

    Language (MENU à Settings à Language) There are multiple built-in languages available in ACN IRIS X. Press on the Down arrow and make the selection in Select Language. Press Save then the phone will prompt an alert message Do you want the reboot to take effect immediately now.

  • Page 34: System Info (Menu À System Info)

    Note: this screen shows multiple accounts. The IRIS X supports a single telephone number which can be used to place up to three concurrent calls. This functionally is supported by the appearance of multiple accounts.

  • Page 35: Advanced Features

    USB Device Support The IRIS X supports connections for the following USB devices: Keyboard, Mouse and Flash Drives. If your USB device is supported by the IRIS X, it will be automatically detected when it is connected. Screen Capture You can perform screen captures on the IRIS X by using a connected USB keyboard: 1.

  • Page 36: Importing And Exporting Contacts

    To determine the appropriate file format for your imported contacts, it is useful to create a couple contacts on the IRIS X and then export them to a file. Copy that file to a USB or SD card, open that file on a computer and examine the file format.

  • Page 37: I   A M   H Aving   P Roblems   W Ith   W I

    Info Widget. HDMI (TV Out) does not work This is a future feature. There are certain TVs that may work at this time. ACN is working to expand this capability going forward. IRIS X bandwidth requirement The IRIS X default setting requires 384kbps minimum and continuous download and upload bandwidth for an optimal audio and video experience.

  • Page 38: Screen Responsiveness

    Screen Responsiveness 1. For best performance, use the stylus with the IRIS X. The stylus is designed to provide an optimal experience with the IRIS X touch screen. 2. When the Video Phone has been idle for some time, you may experience a slight delay when you initially press the screen to initiate an action.

  • Page 39: Appendix

    Appendix Phone Status Indicators Type Icon Definition Connected to the network Network Failed to connect to the network Call Related Auto Answer Call Forward Ring Volume Ring volume, ranges from 0-9 Phone Status Camera disabled Do-Not-Disturb (DND) Missed Call. Audio Output The headset is in use and is off hook The headset is plugged in...

  • Page 40: Usb Mouse

    USB LED light 1 USB LED light 2 HDMI ACN Pacific Pty Ltd ABN 85 108 535 708 PO Box 667 North Sydney NSW 2059 Phone 1300 881 778 Fax 1300 880 609 acnpacific.com.au IRIS X Manual v1 15.08.2012 MKT-1181 40  ...
