- Page 1 Product User Guide TCTemp2000 TCTemp2000 Thermocouple Temperature Data Logger with LCD Red 485 Dark Blue Pantone 289 Light Blue 58% of Pantone 289 *Thermocouple Plugs/Probes Sold Separately...
- Page 2 TCTemp2000 Table of Contents Quick Start Steps ............3 Product Overview ............4 Display Overview ............4 Software Installation ........... 5 Device Operation ............5-6 Computer Interface ............6 Front Panel Overview ............ 7 Screen Descriptions ........... 8-9 Device Maintenance ..........10...
- Page 3 To download data, connect the data logger to the windows PC with the IFC200, select the device in the list, click the Stop icon, and then click the Download icon. A graph will automatically display the data. Please refer to the TCTemp2000 Product Manual for full product details by going to www.madgetech.com/product-documentation.

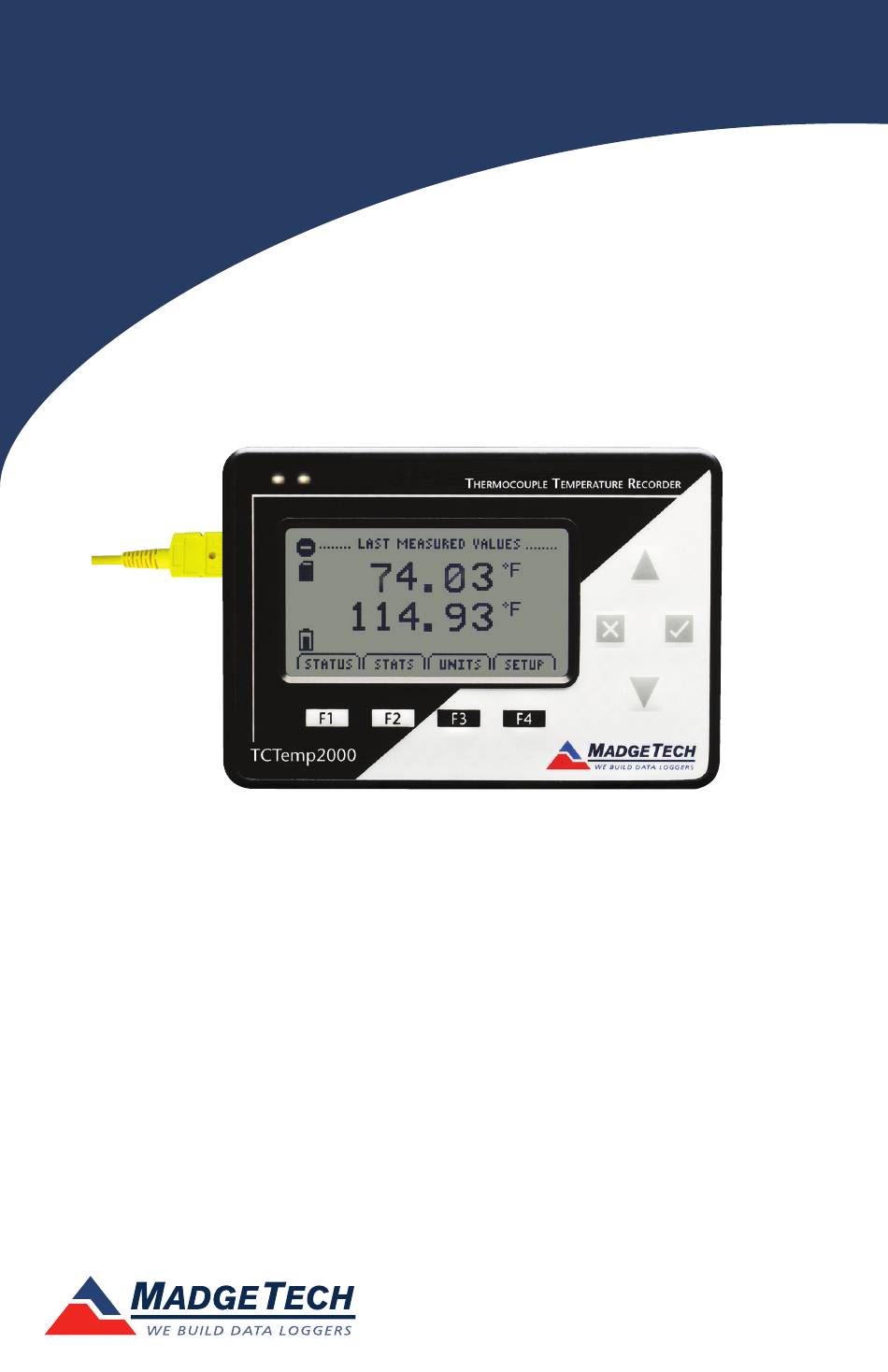

- Page 4 TCTemp2000 Product Overview The TCTemp2000 is a thermocouple based temperature data logger with LCD display. The convenient LCD provides access to the current temperature reading, as well as minimum, maximum and average statistics. Display Overview Power Jack Indicators Communication LCD Display...
- Page 5 Software Installation Installing the MadgeTech 4 Software The MadgeTech 4 Software makes the process of downloading and reviewing data quick and easy, and is free to download from the MadgeTech website. Download the MadgeTech 4 Software on a Windows PC by going to: www.madgetech.com/software-download.
- Page 6 TCTemp2000 Connecting and Starting the data logger Once the software is installed and running, plug the interface cable into the data logger. Connect the USB end of the interface cable into an open USB port on the computer. The device will appear in the Connected Devices list, highlight the desired data logger.
- Page 7 Front Panel Overview Changing the display units The TCTemp2000 comes with factory default display units of °C for both the internal temperature and external probe channels. These units can be easily changed by pressing the F3 button in the main screen and then selecting either F1 for the internal temperature or F2 for external probe.
- Page 8 TCTemp2000 Screen Descriptions Main Screen Displays last measured values Status Screens Run Parameters Memory Status Date and Time Statistics Statistics Menu Screen: Displays options Channel Statistics: Displays statistics available within the statistics menu ...
- Page 9 Product User Guide Device Configuration Menu Displays options available within the device configuration menu F1 = DISPLAY: enters Adjust Visibility screen F2 = POWER: enters Power Modes screen F3 = INFO: goes to Device Information screens F4 = EXIT: returns to main screen CANCEL = returns to main screen OK = returns to main screen UP = no function...
- Page 10 For any other maintenance or calibration issues, we recommend the unit be returned to the factory for service. Before returning the device, you must obtain an RMA from the factory. Recalibration The TCTemp2000 standard calibration is one point at 25 °C for the internal channel and 0 mV for the thermocouple channel. Additional: Custom calibration and verification point options available, please call for pricing.
- Page 11 +0.5 °C -50 to +1760 0.5 °C +2.0 °C -50 to +1760 0.5 °C +2.0 °C +50 to +1820 0.5 °C +2.0 °C -270 to +1300 0.1 °C +0.5 °C Specifications subject to change. See MadgeTech’s terms and conditions at www.madgetech.com...
