MadgeTech TC101A Product Information Card

Part Number
Internal Channel Temperature Sensor
Internal Channel Temperature Resolution
Internal Channel Accuracy
Remote Channel Temperature Sensor,
Range, Resolution & Accuracy
Cold Junction Compensation
Channels
Memory
Wrap Around
Sample Rate
LED Indicator
Required Interface Package
Baud Rate
Typical Battery Life
Operating Environment
Material
Dimensions
Approvals
* Remote Channel Range, Resolution & Accuracy
Thermocouple Range (°C)
J -210 to +760
K -270 to +1370
T -270 to +400
E -270 to +980
R -50 to +1760
S -50 to +1760
B +50 to +1820
N -270 to +1300
Battery Warning
WARNING: FIRE, EXPLOSION, AND SEVERE BURN HAZARD. DO NOT SHORT CIRCUIT, CHARGE,
FORCE OVER DISCHARGE, DISASSEMBLE, CRUSH, PENETRATE OR INCINERATE. BATTERY MAY
LEAK OR EXPLODE IF HEATED ABOVE 80°C (176°F).
Specifications subject to change.
See MadgeTech's terms and conditions at www.madgetech.com
MadgeTech, Inc.
6 Warner Road
Phone 603.456.2011
www.madgetech.com
TC101A
Semiconductor
0.1°C (0.18°F)
+0.50°C
*See Table for Details
Automatic
1 internal & 1 remote
1,000,000 readings; 500,000 readings in multiple
start/stop mode or trigger settings mode
Yes
1 second up to 24 hours
Red and Green
IFC200
115,200
10 years at a 15 minute reading rate
–40°C to +80°C (-40°F to +176°F),
0 to 95%RH non–condensing
ABS plastic
1.4" x 2.2" x 0.6" (36mm x 56mm x 16mm)
CE
Resolution Accuracy
0.1°C +0.5°C
0.1°C +0.5°C
0.1°C +0.5°C
0.1°C +0.5°C
0.5°C +2.0°C
0.5°C +2.0°C
0.5°C +2.0°C
0.1°C +0.5°C
Warner, NH 03278
l
Fax 603.456.2012
l
info@madgetech.com
l
DOC-1218035-00 REV 14 2013.04.02
Product Information Card
TC101A

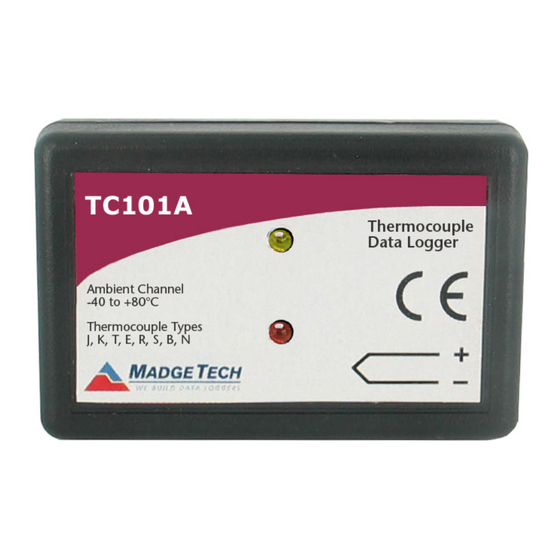

Thermocouple Based Temperature Recorder
TC101A
Red 485
Dark Blue Pantone 289
Light Blue 58% of Pantone 289
