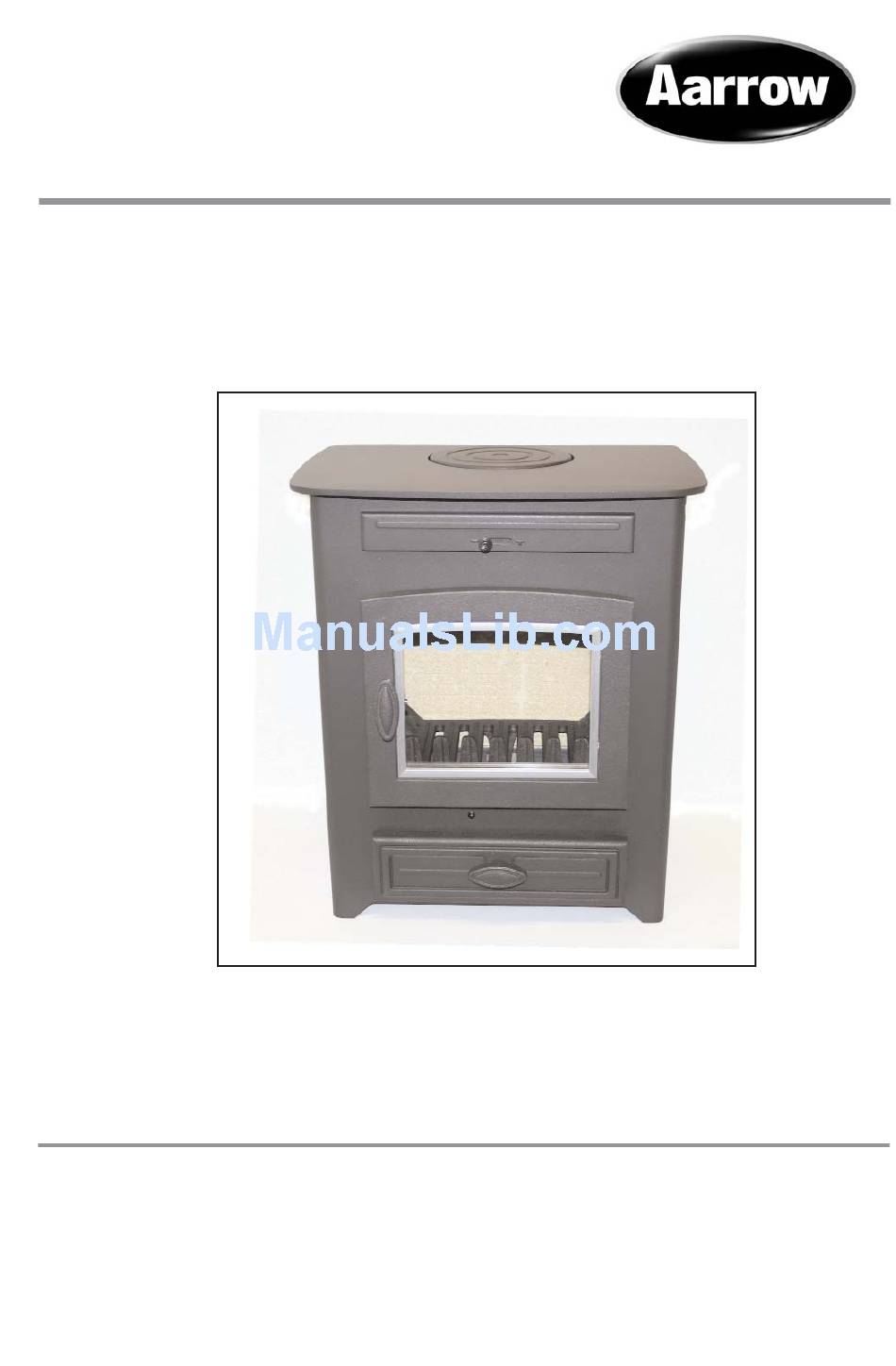

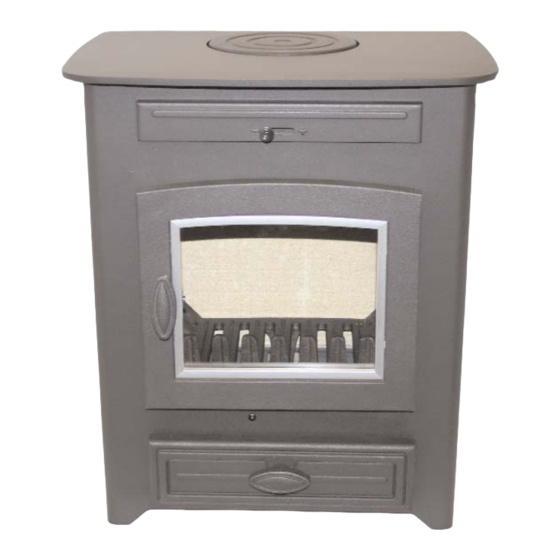

- Page 1 Operating & Installation Manual Beacon Multifuel Stoves AARROW BEACON SHOWN PLEASE RETAIN THESE INSTRUCTIONS FOR FUTURE REFERENCE Rev 1 October 2005 AFS 1269...
- Page 2 Congratulations on your choice of an Aarrow Stove. More than 20 years experience has been put into the development of our Beacon stove to ensure ultimate performance and years of trouble free enjoyment. Every detail on the fire has been carefully engineered and designed which is why we are so confident in the reliability of our product.
-
Page 3: Table Of Contents
CONTENTS INTRODUCTION Page INSTALLATION Page Safety Notices General Precautions The Principle of the Fire Handling Check List Hearth Technical Data Combustible Materials OPERATING INSTRUCTIONS Air For Combustion Firebox Linings and Throat Plate Firebox Liner Panels Multifuel Grate Romoval Of The Throat Plate Air inlet Controls Fitting The Flue Outlet &... - Page 4 TO USE THESE FUELS WILL INVALIDATE THE APPLIANCE GUARANTEE IF IN DOUBT CONTACT THE SOLID FUEL ASSOCIATION TELEPHONE NUMBER 0800 600 000 www.solidfuel.co.uk THE USE OF SPARE PARTS OTHER THAN THOSE SUPPLIED BY ARADA LTD WILL INVALIDATE THE APPLIANCE GUARANTEE. Beacon Multifuel Stoves...
-
Page 5: Introduction
• Use gloves to provide additional grip. controlled by the air inlet mechanism. Aarrow Fires are also fitted with an "air wash" so called because it provides a curtain of high speed THE PRINCIPLE OF THE FIRE... -
Page 6: Check List
&Visual Aid Beacon 75 Beacon 77 (not to scale) 1. Cast Grate 2. Throat plate 3. Flue spigot 1(5”) 1(5”) 4. Hot plate 1(5”) 1(5”) 5. Ash pan 6.Operating tool 7. Rear liner 8. Side liners 9. Instructions Beacon Multifuel Stoves... -
Page 7: Technical Data
N /A N /A Max Output to Water (kW) Height (mm) Width (mm) Depth (mm) Height to Centre of Rear Flue Depth from Back to Centre of Flue Flue Diameter 127 (5”) 127 (5”) Weight packed (Kg) Beacon Multifuel Stoves... -
Page 8: Operating Instructions
Fig. 1. Even when all the slots are com- pletely shut a "bleed" of secondary air will be main- The static cast grate fitted to your Beacon multifu- el stove, is designed to burn solid fuel briquettes, tained ensuring that inflammable gases are burnt well seasoned wood and peat. -
Page 9: Interlock
DOOR TRIM Step 5 Follow this procedure in reverse to fit Beacon fire doors are fitted with a brushed steel replacement door glass or gasket. finish trim as standard. This, clips on to the small lugs at the top and bottom of the aperture in the cast iron fire door, as a "spring fit". -
Page 10: Door Adjustment
•Refit the door and check to ensure it now sits square to the body; if not repeat above steps. Raising the door as follows: •When the appliance is cold, open the fire door so that it is at a right angle to the front. Beacon Multifuel Stoves... -
Page 11: Fuel Types
The Hetas Ltd, "Three Tick" appliance approval only covers the use of the following fuels in this appliance; Phurnacite, Phurnacite Plus, Centurion, Maxibrite, Extracite, Pureheat, Blazebrite, Taybrite, Sunbrite (Doubles/Singles), Anthracite (Large Nuts), and Welsh Dry Steam Coal (Large/Small Nuts). Beacon Multifuel Stoves... -
Page 12: Overnight Burning
Do not attempt to re-light the fire until the are non-toxic, but which certain persons may find cause of the fume emission has been identified and have an unpleasant or irritant effect. Ensure that corrected. the area is well ventilated during this time. Beacon Multifuel Stoves... -
Page 13: Over-Firing
Do not use the appliance until the chimney and connector have been inspected and any damaged parts repaired or replaced. This should be done by a competent person such as a HETAS registered engineer. Beacon Multifuel Stoves... -
Page 14: Annual Maintenance
Aarrow dealer. With a wire brush clean inside OUTER FINISH the appliance paying particular attention to the... -
Page 15: Accessories
•Fit the front clamps and tighten. •Fit the required blanking plates as shown in stage 2. Traditional canopies (High or Low) are available for your Beacon multifuel stove. They are easy to fit and can always be added afterwards. Fig 8... -
Page 16: Installation
Care should be taken to make sure that the hinges are not damaged during installation. Beacon Multifuel Stoves... -
Page 17: Firebox Liner Panels
INSTALLATION FIREBOX LINER PANELS The Beacon Multifuel stove uses firebox liner panels to the sides and back. The throat plate sits on top of the side and rear panels (fig 9). These should come fitted to your fire, if however they are not proceed as follows to fit them. -
Page 18: Fitting The Flue Outlet & Hot Plate
Building Regulations and BS 6461: Part 1. Factory made insulated chimney complying with BS 4543: Part 2 (often called "Class 1 prefabricated metal chimney"). These types of chimney should be installed in accordance with the Building Regulations and BS 7566: Parts 1 to Beacon Multifuel Stoves... - Page 19 Stationery Bookshops also Engineer): telephone 0800 0924019 viewed ODPM website www.nace.org.uk www.safety.odpm.gov.uk/bregs/brads.htm NACS (National Association of Chimney Details on the relevant Building Regulations and Sweeps): telephone 01785 811732 BS British Standards are given in the "General www.chimneyworks.co.uk Beacon Multifuel Stoves...
- Page 20 INSTALLATION Beacon Multifuel Stoves...
- Page 21 BS7566 P WITH BUILDING REGULATIONS AND IEW OF REGISTER PLATE AND CLEARANCES FOR NON INSULATED FLUES A is minimum clearance for non-insulated flue = 1.5 x D to a non-combustible surface/material 3 x D to combustible surface/material Beacon Multifuel Stoves...
-
Page 22: Installation Check List
I/we the undersigned confirm that the above details are correct. In my opinion, these works comply with the relevant requirements in Part J of Schedule 1 to the Building regulations. Print name and title....................Profession................Capacity........................Telephone................Address................................Post code........Signed......................Date......... Registered membership of..(e.g. CORGI, OFTEC, HETAS, NACE, NACS)..........Beacon Multifuel Stoves... -
Page 23: Part List
Part No. Part No. 1. Replacement Instruction Manual AFS1269 AFS1269 2. Throat Plate AFS1019 AFS1019 3. Grate AFS1083 AFS1083 4. Hot Plate AFS010 AFS010 5. Operating Tool AFS008 AFS008 6. Ashpan AFS058 AFS058 7. Flue Spigot AFS009 AFS009 Beacon Multifuel Stoves... - Page 24 AFS1072 AFS1072 11. Glass Replacement Kit Complete with AFS069 AFS088 Gasket 12. Glass Clips and Gasket AFS070 AFS089 13. Hinge kit Comprises 2 Hinges & 4 Fixings Per Set. AFS047 AFS047 14. New 2002 Airwash AFS1077 AFS1077 Beacon Multifuel Stoves...
- Page 25 Door Rope Glue. AFS048 AFS048 16. Main Door Assembly Complete with Handle,Glass, AFS1270 AFS1272 Gaskets,Clips and Seal. 17. Decorative Door Surround AFS094A AFS095 18. Fire Door Locking Assembly AFS1146 AFS1146 19. Aarrow Fires Gauntlet Gloves AFS997 AFS997 Beacon Multifuel Stoves...
-
Page 26: Guarantee
WILL INVALIDATE THE APPLIANCE a Beacon multifuel stove. WARRANTY. When you buy an Aarrow Fire, you are not only All Guarantee periods commence on the date of buying a first class appliance - you are buying a purchase and are non-transferable. -
Page 27: Service Record
Work Carried Out Signature Date of Visit Should you have any questions about your Beacon Multifuel Stove that is not covered in this manual please contact your Aarrow retailer. Please keep all repair receipts safely. Please ensure you have this manual available when an engineer visits as they will complete the service record chart. -
Page 28: Final Factory Check List
FINAL FACTORY CHECK LIST Model........Serial No......QUALITY FINISH I’ve checked it PARTS and it’s O.K. FLUE OUTLET HOT PLATE OPERATING INSTRUCTIONS GRATE Assembled by......FIREBOX LININGS THROAT PLATE Checked by ........ AIR WASH DOOR CATCHES INTERLOCK ASH PAN OPERATING TOOL Please ensure the enclosed registration card is completed and returned to Arada Ltd and the following information completed for your own information.
