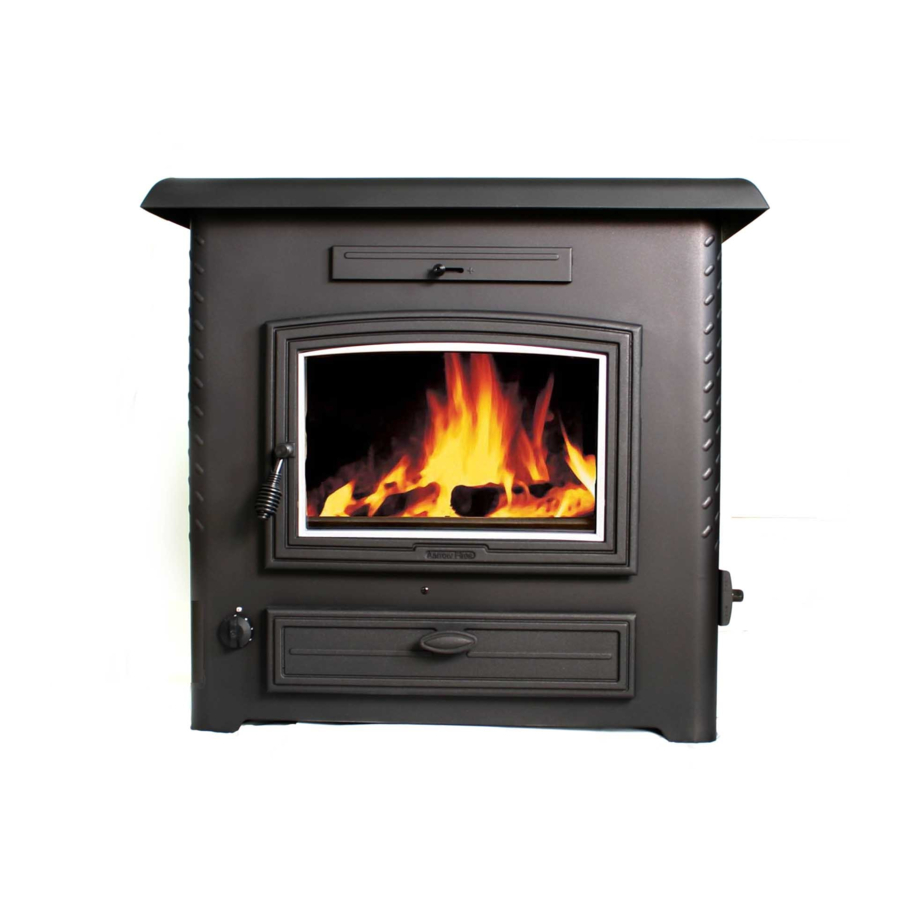

Operating & Installation Manual
Acorn
Multifuel Stoves
The Acorn 4 Multifuel Stove (shown above)
PLEASE RETAIN THESE INSTRUCTIONS FOR FUTURE REFERENCE
Arada Ltd
Rev 4
The Fireworks
Part No: AFS1126
Bridport
November 2006
Dorset, DT6 3BE
Great Britain
Tel. (44) 01308 427234
Fax. (44) 01308 423441
www.aarrowfires.com

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Tf 70 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Aarrow Tf 70

  • Page 1 Operating & Installation Manual Acorn Multifuel Stoves The Acorn 4 Multifuel Stove (shown above) PLEASE RETAIN THESE INSTRUCTIONS FOR FUTURE REFERENCE Arada Ltd Rev 4 The Fireworks Part No: AFS1126 Bridport November 2006 Dorset, DT6 3BE Great Britain Tel. (44) 01308 427234 Fax.
  • Page 2 Congratulations on your choice of an Aarrow Stove. More than 20 years experience has been put into the development of our Acorn Multifuel to ensure ultimate performance and years of trouble free enjoyment. Every detail on the fire has been carefully engineered and designed which is why we are so confident in the reliability of our product that we offer a 3 year guarantee.
  • Page 3: Table Of Contents

    INTRODUCTION Safety Notices The Principle of the Fire Check List Technical Data INSTALLATION General Precautions Handling Hearth Combustible Materials Air For Combustion Firebox Liner Panels Removal of the Throat Plate Fitting the Optional Floor Fixing Kit Assembling the Multifuel Grate Flues &...
  • Page 4 WARNING TO ALL MULTIFUEL USERS PETROLEUM COKE SOME OF WHOSE BRAND NAMES ARE "CALCO", "PETROCOKE" OR "WONDERCO" MUST NOT BE BURNED IN THIS APPLIANCE TO USE THESE FUELS WILL INVALIDATE THE APPLIANCE GUARANTEE IF IN DOUBT CONTACT THE SOLID FUEL ASSOCIATION TELEPHONE NUMBER 0800 600 000 www.solidfuel.co.uk THE USE OF SPARE PARTS OTHER THAN THOSE SUPPLIED...
  • Page 5: Introduction

    SAFETY A fireguard conforming to BS 8423: 2002 should be used in the presence of children and old/or infirm people. If the appliance is used with the fire door open, a spark guard conforming to BS 3248 should be fitted. Do not use aerosol sprays or any other flamable materials near the appliance under fire.
  • Page 6: Check List

    CHECK LIST Inside the appliance you should find the following: Part Description & Visual Aid (not to scale) 1. Grate bars 2. Integral front brace/ reatainer 3. Throat plate 4. Flue spigot 5. Hot plate 6. Ash pan 7.Operating tool 8.
  • Page 7: Technical Data

    TECHNICAL DATA Room Min/Max Room Heater Only Output (kW) Room Heater with Domestic Hot Water with add in boiler type Max Output to Room (kW) Max Output to Water (kW) Height (mm) Width (mm) Depth (mm) Height to Centre of Rear Flue Depth from Back to Centre of Flue Flue Diameter (mm) Weight Unpacked...
  • Page 8: Installation

    INSTALLATION GENERAL PRECAUTIONS Note - All installations must conform to the appropriate building regulations. The Building Regulations for England and Wales 2000 ref Approved Document J 2002 edition (issued by the DTLR). The Building Standards (Scotland) (Consolidation) Regulations. Detailed recommendations for installation of appliances, chimneys and flues are outlined in the current issue of the following British Standards:- BS6461, BS8303 and BS4543.
  • Page 9: Firebox Liner Panels

    FIREBOX LINER PANELS The Acorn Multifuel stoves have reflective liners to the sides and back. The throat plate sits on top of the side and rear panels. These should come fitted to your fire, if however they are not proceed as follows to fit them.
  • Page 10: Assembling The Multifuel Grate

    INSTALLATION MULTIFUEL GRATE GRATE The grates in the Acorn Multifuel units comprise a series of reciprocating cast iron bars seated on a pivoted "comb". All bars in the grate are identical, but every other bar is turned through 180 degrees, with the ends of the bars marked "H"...
  • Page 11: Fitting The Flue Outlet And Hot Plate

    FITTING THE FLUE OUTLET AND HOT PLATE The flue outlet spigot is found inside the appliance. It is removed by turning clockwise. Smear a very thin layer of fire cement on the faces of the flue outlet and the blanking plate. Fit the outlet to the appliance in the desired position.
  • Page 12: For All Appliances

    INSTALLATION Due to the gradual introduction of European Chimney Standards chimneys will be specified according to their performance designation as defined in BS EN 1443 that covers the General Requirements for chimneys. The minimum performance designation required for use with solid fuel burning stoves is T450 N2 S D3.
  • Page 13 INSTALLATION TYPICAL REAR FLUE OUTLET Acorn Multifuel Stoves...
  • Page 14 INSTALLATION TYPICAL METAL INSULATED CHIMNEY SYSTEM O BE INSTALLED TO THE CHIMNEY MANUFACTURERS INSTRUCTIONS IN COMPLIANCE IEW OF REGISTER PLATE AND CLEARANCES FOR NON INSULATED FLUES A is minimum clearance for non-insulated flue = 1.5 x D to a non-combustible surface/material 3 x D to combustible surface/material WITH BUILDING REGULATIONS AND BS7566 P...
  • Page 15: Add In Boilers

    ADD IN BOILERS Acorn 4 & 5 multifuel stoves offer the option of a slab boiler, which occupies the position of the rear firebox liner panels. Fitting: •Remove the fuel retainers, rear firebox liner panels and throat plate. •Knock out the blanking discs in the back plate corresponding to the terminals on the boiler.
  • Page 16: Final Check

    INSTALLATION INSTRUCTIONS The expansion tank should have a capacity of at least 7 % of the system's water capacity. The cold water feed pipe should be at least 22mm diameter. There must not be any shut off valves in the circuit. Pipes should be run to avoid air locks.
  • Page 17: Disassemble Airwash

    Fig. 7 Fully Closed Fig. 8 Fully Open Even when all the slots are completely shut a "bleed" of secondary air will be maintained ensuring that inflammable gases are burnt off. DISASSEMBLE AIRWASH The Aarrow air wash may be disassembled for cleaning or adjustment.
  • Page 18: Adjusting The Door Hinges

    OPERATING INSTRUCTIONS Fig. 11b fitting new glass •Replace the two lower retaining clips and nuts. •Replace the upper airwash cover and nuts. Do not over-tighten the nuts as damage may occur to the glass (Fig.11c) Fig. 11c tightening nuts ADJUSTING THE DOOR HINGES Once the appliance has been under fire for a period of time the fire door may appear to have moved out of alignment with relation to the door aperture or...
  • Page 19: Lighting The Fire

    Approval does not cover the use of other fuels either alone or mixed with a suitable fuel listed above, nor does it cover instructions for use of other fuels. For latest details please refer to Hetas website www.hetas.co.uk. Do not use Homefire (six sided) and smaller sizes than Stovesse, e.g.
  • Page 20: Ash Removal

    OPERATING INSTRUCTIONS In the morning •Open the air control fully until embers begin to glow brightly and place pieces of fuel on the fire until it is well established. WARNING: When wood is burnt slowly in a closed appliance it produces moisture and tar, which will create condensation and deposits in the chimney.
  • Page 21: Chimney Sweeping

    CLEANING Important; Under some circumstances soot can quickly build up on the throat plate and adjacent areas. The throat plate should be removed and checked monthly, and any debris stripped off. Similarly, clean the upper surface of the firebox. ANNUAL MAINTENANCE It is important that your fire is regularly serviced in accordance with these instructions.
  • Page 22: Final Check List

    FINAL CHECK LIST Hearths, Fireplaces, Flues and chimneys This checklist is to ensure hearths, fireplaces, flues and chimneys are satisfactory, and to show what you have done to comply with the requirements of The Building Regulations 2000 Approved Document J 2002. 1.
  • Page 23: Parts List

    Part Description 1. Integral Front Brace/ Retainer 2. Throat Plate 3. Grate Bar 4. Hot Plate 5. Operating Tool 6. Ashpan 7. Flue Spigot Acorn Multifuel Stoves Visual Aid Acorn 4 (not to scale) Part No. AFS1101 AFS1086 AFS001 AFS064 AFS008 AFS1273 AFS009A...
  • Page 24 PARTS LIST Part Description 8. Liner Set 9. Side Liner 10. Back Liner Set 11. Glass Replacement Kit Complete with Gasket 12. Glass Clips 13. Hinge kit Comprises 2 Hinges & 4 Fixings Per Set. 14. Airwash Visual Aid Acorn 4 (not to scale) Part No.
  • Page 25 17. Comb with Extension 18. Fire Door Locking Assembly Including Fire Door Handle 19. Rear Grate Bar Support 20. Aarrow Fires Gauntlet Gloves 21. Optional Floor Fixing Kit. Acorn Multifuel Stoves Visual Aid Acorn 4 (not to scale) Part No.
  • Page 26: Guarantee

    GUARANTEE Guarantee Once again we would like to thank you for buying an Aarrow fire. When you buy an Aarrow Fire, you are not only buying a first class appliance - you are buying a commitment from us to look after you and your appliance for as long as you want.
  • Page 27: Service Record

    SERVICE RECORD Company Work Carried Out Signature Date of Visit Should you have any questions about your Acorn Multifuel Stove that is not covered in this manual please contact your Aarrow retailer. Please keep all repair receipts safely. Please ensure you have this manual available when an engineer visits as they will complete the service record chart.
  • Page 28: Final Factory Check List

    FINAL FACTORY CHECK LIST Model... Serial No... QUALITY FINISH PARTS FLUE OUTLET HOT PLATE FRONT INTEGRAL BRACE GRATE FIREBOX LININGS THROAT PLATE AIR WASH DOOR CATCHES ASH PAN OPERATING TOOL OPERATING INSTRUCTIONS Please ensure the enclosed registration card is completed and returned to Arada Ltd and the following infor- mation completed for your own information.

This manual is also suitable for:

Acorn 4Acorn 5
