Operating & Installation Manual

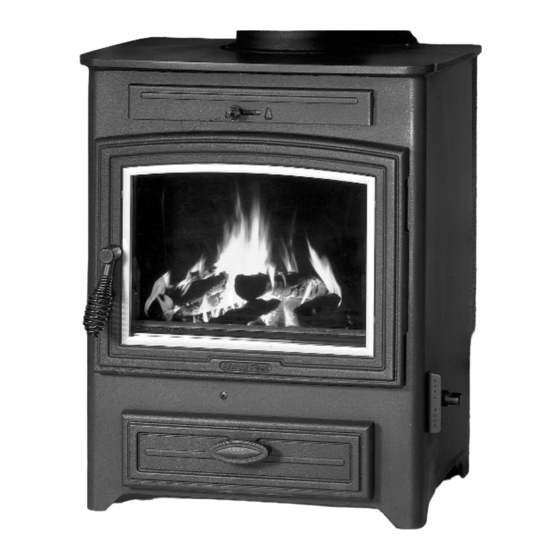

The Becton
Multifuel Stoves
Becton 7 Multifuel
PLEASE RETAIN THESE INSTRUCTIONS FOR FUTURE REFERENCE
Rev 6
October 2005

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Becton 7 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Aarrow Becton 7

  • Page 1 Operating & Installation Manual The Becton Multifuel Stoves Becton 7 Multifuel PLEASE RETAIN THESE INSTRUCTIONS FOR FUTURE REFERENCE Rev 6 October 2005...
  • Page 2 Lifetime Guarantee . Should you have any questions about our Becton Stoves that are not covered in this manual, please contact the Aarrow dealer in your area, or call our Technical support department on 01308 427234 ©...
  • Page 3: Table Of Contents

    CONTENTS INTRODUCTION Page INSTALLATION Page Safety Notices General Precautions The Principle of the Fire Handling Check List Hearth Technical Data Combustible Materials OPERATING INSTRUCTIONS Firebox Liner Panels Firebox Linings and Throat Plate Removal Throat Plate Inspection Airwash System Assembling the Multifuel Grate Interlock Flues &...
  • Page 4 WARNING TO ALL MULTIFUEL USERS PETROLEUM COKE SOME OF WHOSE BRAND NAMES ARE "CALCO", "PETROCOKE" OR "WONDERCO" MUST NOT BE BURNED IN THIS APPLIANCE TO USE THESE FUELS WILL INVALIDATE THE APPLIANCE GUARANTEE IF IN DOUBT CONTACT THE SOLID FUEL ASSOCIATION TELEPHONE NUMBER 0800 600 000 www.solidfuel.co.uk THE USE OF SPARE PARTS OTHER THAN THOSE SUPPLIED...
  • Page 5: Introduction

    • Use gloves to provide additional grip. controlled by the air inlet mechanism. Aarrow Fires are also fitted with an "air wash" so called because it provides a curtain of high speed THE PRINCIPLE OF THE FIRE...
  • Page 6: Check List

    CHECK LIST Inside the appliance you should find the following: Part Description Becton &Visual Aid Becton 7 Becton 11 Becton 18 Bunny (not to scale) 1. Grate Bars 2. Fuel retainers 3. Throat plate 4. Flue spigot 1(4”) 1(5”) 1(5”) 1(6”)
  • Page 7: Technical Data

    TECHNICAL DATA TECHNICAL DATA Becton Becton 7 Becton 11 Becton 18 Bunny Room Min/Max Room Heater Only Output (kW) 1.5-7 2-11 3-18 Room Heater with Domestic Hot Water with add in boiler type Max Output to Room (kW) 14.4 11.5...
  • Page 8: Operating Instructions

    MULTIFUEL GRATE Note: Opening or part opening of the ash door is controlled by the "interlock" device located in the The Aarrow Multifuel grate comprises of a series of front of the unit (refer to INTERLOCK section on page 9).
  • Page 9: Interlock

    THE FIRE DOOR MUST BE OPENED FIRST. MULTI - PURPOSE OPERATING TOOL Your Aarrow fire comes with a multi-purpose tool, Fig. 5 which is used to open the ashpit door, riddling and setting multifuel grate position and for emptying the ash pan.
  • Page 10: Door Adjustment

    OPERATING INSTRUCTIONS Step 4 Remove the glass completely. Store glass- •Gently tap the two hinge pins in a direction to retaining clips and white gasket (if sound) safely compensate for the misalignment.(fig 7) for re-use. Step 5 Follow this procedure in reverse to fit replacement door glass or gasket.
  • Page 11: Fuels

    OPERATING INSTRUCTIONS FUEL TYPES Approval does not cover the use of other fuels either alone or mixed with the suitable fuels listed above, nor does it cover instructions for the use of Wood- Any type of wood is suitable provided it is other fuels.For latest details please refer to Hetas well seasoned and has a moisture content below website www.hetas.co.uk.
  • Page 12: Overnight Burning

    OPERATING INSTRUCTIONS OVERNIGHT BURNING ENSURE THAT YOU HAVE READ & UNDERSTOOD THESE INSTRUCTIONS The appliance will bur overnight provided: BEFORE LIGHTING THE FIRE. •Sufficient fuel is placed in the firebox. •The controls are set correctly. ALWAYS WEAR SUITABLE PROTECTIVE •Excess draught is not present in the chimney. FIRE GLOVES WHEN REFUELLING YOUR •Close the door.
  • Page 13: Over-Firing

    OPERATING INSTRUCTIONS ASH REMOVAL over-firing. If the chimney connector or casing glows red it is being over-fired. If this occurs The ash pan should be emptied at least twice a day immediately close all air inlets to the appliance to or when the level of ash reaches the top of the ash reduce the air supply to the fire.
  • Page 14: Annual Maintenance

    Aarrow dealer. With a wire brush clean inside OUTER FINISH the appliance paying particular attention to the...
  • Page 15: Accessories

    •Fit the required blanking plates as shown in stage 2. Traditional canopies (High or Low) are available for Becton 7, 11, 18, For the Becton 'Bunny' only a low canopy only is available. They are easy to fit and can always be added afterwards.
  • Page 16: Installation

    INSTALLATION GENERAL PRECAUTIONS HEARTH The fire should be installed to stand on a constructional hearth of non-combustible materials Note - All installations must conform to the not less than 125mm (5'') thick conforming to appropriate building regulations. Building Regulations. Dimensions of the hearth should project at least 300mm (12'') forward of the The Building Regulations for England and Wales front of the appliance and 150mm (6'') at the sides.
  • Page 17: Firebox Liner Panels

    INSTALLATION FIREBOX LINER PANELS The Becton Multifuel stoves use firebox liner panels to the base, sides and back. The Becton Multifuel stoves have reflective liners to the sides and back. The throat plate sits on top of the side and rear panels.
  • Page 18: Assembling The Multifuel Grate

    INSTALLATION MULTIFUEL GRATE GRATE GRATE BAR REPLACEMENT The grates in the Becton Multifuel units comprise a After extended use it may be necessary to replace series of reciprocating cast iron bars seated on a some of the grate bars. Periodic inspection of the pivoted "comb".
  • Page 19: Flues & Chimneys

    INSTALLATION FITTING THE FLUE OUTLET AND FLUES AND CHIMNEYS HOT PLATE Please remember that chimney draught is dependent on four main factors: The flue outlet spigot is found inside the appliance. • Flue gas temperature. The hot plate (blanking plate) is supplied fitted to •...
  • Page 20 INSTALLATION Due to the gradual introduction of European Precautions" section page 16 of these instructions. Chimney Standards chimneys will be specified A chimney may comply with the regulations but according to their performance designation as still be subject to down draught and similar defined in BS EN 1443 that covers the General problems.
  • Page 21 INSTALLATION Becton Multifuel Stoves...
  • Page 22 INSTALLATION YPICAL ETAL NSULATED HIMNEY YSTEM O BE INSTALLED TO THE CHIMNEY MANUFACTURERS INSTRUCTIONS IN COMPLIANCE BS7566 P WITH BUILDING REGULATIONS AND IEW OF REGISTER PLATE AND CLEARANCES FOR NON INSULATED FLUES A is minimum clearance for non-insulated flue = 1.5 x D to a non-combustible surface/material 3 x D to combustible surface/material Becton Multifuel Stoves...
  • Page 23: Add In Boilers/Water Connections

    INSTALLATION ADD IN BOILERS The constructional requirements of installing and connecting the appliance also need to be taken into account when selecting. Design and calculations Becton multifuel stoves offer the option of a for individual heating systems should be carried out cantilever boiler or a slab boiler, which occupies by a qualified heating engineer.
  • Page 24: Final Check List

    INSTALLATION Primary flow and return pipes should be 28mm •Operate the heating system and set the diameter. The cylinder should be installed at a pump head. higher level than the appliance, and as close to it as possible (the higher the cylinder the faster the •Balance the radiators.
  • Page 25 INSTALLATION CHECKLIST Hearths, Fireplaces, Flues and chimneys This checklist is to ensure hearths, fireplaces, flues and chimneys are satisfactory, and to show what you have done to comply with the requirements of The Building Regulations 2000 Approved Document J 2002. 1.
  • Page 26: Parts List

    PARTS LIST Becton Visual Aid Becton 7 Becton 11 Becton 18 Part Description Bunny (not to scale) Part No. Part No. Part No. Part No. 1. Fuel Retainers AFS155 AFS152 AFS153 AFS154 2. Throat Plate AFS1018 AFS1019 AFS1020 AFS034A 3. Grate Bar Set...
  • Page 27 PARTS LIST Becton Visual Aid Becton 7 Becton 11 Becton 18 Part Description Bunny (not to scale) Part No. Part No. Part No. Part No. 8. Liner Set AFS1015 AFS1016 AFS1017 AFS1045 9. Side Liner AFS1058 AFS1060 AFS1062 AFS1064 10. Back Liner Set...
  • Page 28: Parts List

    PARTS LIST Becton Visual Aid Becton 7 Becton 11 Becton 18 Part Description Bunny (not to scale) Part No. Part No. Part No. Part No. 15. Fire Door Rope Kit Complete with Door Rope Glue. AFS048 AFS048 AFS048 AFS048 16. Main Door...
  • Page 29: Guarantee

    WILL INVALIDATE THE APPLIANCE a Becton fire. WARRANTY. When you buy an Aarrow Fire, you are not only All Guarantee periods commence on the date of buying a first class appliance - you are buying a purchase and are non-transferable.
  • Page 30: Service Record

    Date of Visit Should you have any questions about your Becton Multifuel Stove that is not covered in this manual please contact your Aarrow retailer. Please keep all repair receipts safely. Please ensure you have this manual available when an engineer visits as they will complete the service record chart.
  • Page 31: Lifetime Guarantee

    Documentation must be retained and produced in the event of a warranty claim. This guarantee specifically does not cover accidental damage, misuse, wear & tear. The use of non Aarrow replacement parts will invalidate your warranty. For full details contact your local Aarrow dealer. All guarantees are in addition to your statutory rights.
  • Page 32: Final Factory Check List

    FINAL FACTORY CHECK LIST Model........Serial No......QUALITY FINISH I’ve checked it PARTS and it’s O.K. FLUE OUTLET HOT PLATE FUEL RETAINERS GRATE Assembled by......FIREBOX LININGS THROAT PLATE Checked by ........ AIR WASH DOOR CATCHES INTERLOCK ASH PAN OPERATING TOOL OPERATING INSTRUCTIONS Please ensure the enclosed registration card is completed and returned to Arada Ltd and the following information completed for your own information.
