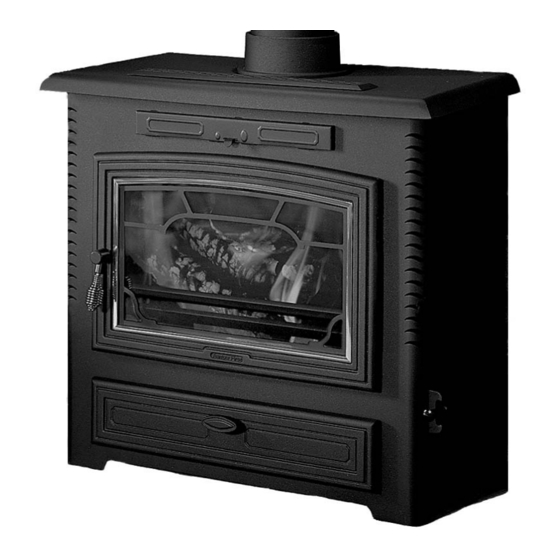

- Page 1 INSTALLATION & OPERATING INSTRUCTIONS Stratford Multifuel Sf & Si Stoves Stratford Sf 50 Convector PLEASE RETAIN THESE INSTRUCTIONS FOR FUTURE REFERENCE...
- Page 2 © COPYRIGHT July 2001 Aarrow Fires Ltd This booklet has copyright & may not be copied in whole or part or be used for any purpose other than that for which it is supplied without express written consent from Aarrow fires Ltd.
-
Page 3: Table Of Contents
Stratford Sf & Si Installation and Operating Instructions Contents Operating Instructions Introduction - The Principle of the Fire Checklist A - Stratford Sf B - Stratford Si Fire Bed Firebrick Lining for Sf only Throat Inspection The Air System A - Interlock B - Multi-Purpose Operating Tool Glass/Trim Door Adjustments... - Page 4 MUST NOT BE BURNED IN THIS APPLIANCE TO USE THIS FUEL WILL INVALIDATE THE APPLIANCE WARRANTY IF IN DOUBT CONTACT THE SOLID FUEL ASSOCIATION TELEPHONE FREEPHONE 0800 600000 THE USE OF SPARE PARTS OTHER THAN THOSE SUPPLIED BY AARROW FIRES LTD WILL INVALIDATE THE APPPLIANCE GUARANTEE.
-
Page 5: Introduction - The Principle Of The Fire
Aarrow fires are also fitted with an "air wash" so called because it provides a curtain of high speed preheated air in front of the glass to help keep it clean and to provide secondary air/over draught. -
Page 6: Checklist
2. CHECK LIST Inside the appliance you should find the following. Stratford Sf Stratford Sf Stratford Sf Stratford Sf Stratford Si Stratford Si Conv. Boil. Conv. Boil. Conv. Boil. Conv. Boil. Conv. Boil. Conv. Boil. Grate Bars Fire Bed Surround Refractory Lining 230x197 Refractory lining... -
Page 7: Fire Bed
3. FIRE BED Grate The grates in the Stratford Sf & Si Multifuel units comprise a series of reciprocating cast iron bars seated on a pivoted "comb". All bars in the grate are identical, but every other bar is turned through 180 degrees, with the ends of the bars marked "H"... -
Page 8: Firebrick Lining For Sf Only
4. REFRACTORY LINING FOR Sf CONVECTOR MODELS ONLY Warning: Refractory linings are very fragile, handle with extreme care. Stratford Sf Multifuel Convectors are lined with reflective panels, consisting of a combination of rectangular linings, which sit on the rear ledge, and side linings which sit on the landings. A throat plate is sited above the grate, so shaped that it rests on steel guides and between the side linings. -
Page 9: Throat Inspection
Remove front fuel retainer bars. • Set the four linings on the side ledges on either side of the firebox. See Fig 5. • Set the three 197mm x 230mm rectangular linings on the upper surface of the grate bar channel at the rear of •... -
Page 10: The Air System
6. THE AIR SYSTEM Flue Outlet/Hot Plate only for Sf The flue outlet is packed together with the firebrick lining and multi-purpose tool, inside the appliance. The hot plate comes fitted on the top of the fire. To fit flue outlet: Select the desired position (top or rear outlet) •... -
Page 11: B - Multi-Purpose Operating Tool
Disassemble Air Wash (see fig. 7) The air wash may be disassembled for cleaning or adjustment to achieve this the following procedure should be followed when the fire is cold and unlit. Support Air Wash cover with one hand • Move cover up by smartly tapping the bottom with a hammer. -
Page 12: Glass/Trim
DOOR KNOB ASHPPAN OPERATING TOOL OPERATING TOOL Ash pit door Figure 8 7. GLASS/TRIM A gilt trim fitted around firedoor glass comes as standard. It clips on to the small lugs at the top and bottom of the aperture in the cast iron firedoor, as a "spring fit". When fitted, the trim locks the glass retaining clips in position. -
Page 13: Door Adjustments
8. DOOR ADJUSTMENTS The catch can be adjusted by sharply tapping the catch on the inside of the door as shown in Fig 10. Once the appliance has been under fire for a period of time the fire door may appear to have moved out of alignment with relation to the door aperture or catch on the door interlock mechanism. -
Page 14: Spare Parts List
AFS008 AFS008 AFS008 AFS008 Door Rope Kit (Not Shown), Complete with Glue & Shims AFS048 AFS048 AFS048 AFS048 Comb AFS168 AFS170 AFS172 AFS173 Use of spare parts other than those supplied by Aarrow Fires Ltd will invalidate the appliance guarantee. -
Page 15: B -Stratford Si
AFS021 Operating Tool AFS008 AFS008 Door Rope Kit (Not Shown), Complete with Glue & Shims AFS048 AFS048 Side trim, 1 pair AFS026A AFS027A Use of spare parts other than those supplied by Aarrow Fires Ltd will invalidate the appliance guarantee. -
Page 16: Accessories
10. ACCESSORIES Stands Elegant stands are available for the Stratford Sf only. These increase the height of the appliance and rear flue outlet by approximately 125mm (6''). Check current brochure for details. Traceries For added decorative effect, beautiful Door Traceries (Arches, Dawn & Sunburst) are available for the complete Stratford fires range. -
Page 17: Fuels
TECHNICAL DATA THE STRATFORD Sf RANGE Stratford Sf 30 Stratford Sf 50 Stratford Sf 70 Stratford Sf 90 Conv. Boiler Conv. Boiler Conv. Boiler Conv. Boiler Room Min/Max 2 - 8 3 - 11 4 - 19 5 - 26 Heater output (kw) only... -
Page 18: Lighting The Fire
Recommended fuels are as fellows: The Hetas Ltd, "Three Tick" appliance approval only covers the use of the following fuels in this appliance; Phurnacite, Phurnacite Plus, Centurion, Maxibrite, Extracite, Pureheat, Blazebrite, Taybrite, Sunbrite (Doubles/Singles), Anthracite and Welsh Dry Steam Coal (Large/Small Nuts). Approval does not cover the use of other fuels either alone or mixed with the suitable fuels listed above, nor does it cover instructions for the use of other fuels. -
Page 19: Overnight Burning
Lighting the fire Solid fuel burning On multifuel fires with variable grate setting facility set the grate to the "coal" burning position. • Ensure that ash pan is in position and the fire door closed. • Set the air wash to one quarter open position. •... -
Page 20: Ash Removal
In the morning Open air control fully until the embers begin to glow brightly. • Lightly de-ash. • Place smaller pieces of fuel on the fire up to the top of the fuel retainer bars. • When the fire is well established de-ash and empty the ash pan. •... -
Page 21: Cleaning
For Stratford Si Engage the operating tool on the comb extention. • Move up and down vigorously the riddling lever (Ash will fall into the ash pan beneath the grate). • When de-ashing is complete re-set grate to previous position. •... -
Page 22: Safety
Aarrow fires are designed so that the flue can be swept through the appliance once the throat plate has been removed. Access for cleaning should also be incorporated in the chimney (i.e. a soot door). Door Glass The door glass should remain clear during normal daytime burning. However under certain conditions-such as burning at a low rate with damp fuel, or overnight burning of wood, the glass may become somewhat blackened. -
Page 23: Installation Instructions
Installation Instructions For The Stratford Sf & Si Multifuel 17. GENERAL During installation ensure that adequate precautions are taken to avoid unnecessary risk to yourself or any householder. In particular the danger from asbestos dust and the caustic nature of the fire cement should be avoided by using these accepted methods: Thoroughly soak any asbestos sheet prior to cutting or drilling. -
Page 24: Air For Combustion
21. AIR FOR COMBUSTION There must always be a permanent means of providing air for combustion into the room in which the fire is installed. A permanent vent with a total free area of at least 550 mm for every kW rated output above 5kw should be connected directly to the outside air or to an adjacent room which itself has a permanent vent of the same size direct to the outside air. -
Page 25: Installing The Fire
When a flue lining is fitted (to stainless steel or pumice chimney systems) it should be supported independently to the appliance, i.e. with clips, brackets, flue lintels, etc. NOT simply resting on top of the appliance. It should be possible to remove the fire for major maintenance work. Note: if the appliance is fitted with a draught stabiliser or if one is fitted to the flue pipe or chimney in the same room as the appliance, then the permanent air entry opening (or openings) should be increased by 300mm... - Page 26 B - The Stratford Si Take out the removable items from the appliance (see section 18 Handling). Plug boiler connections, which are not required. Checking the thermostat. The thermostat is fitted within the outer casing on the left hand side of the unit's front.
-
Page 27: Flues & Chimneys
Reinstate brickwork around pipes using lime mortar, and make good. Fill the space around the appliance level with the top unit with Vermiculite cement (6 parts Vermiculite granules to 1 part Portland cement). The flue socket in the appliance is designed to receive 5'' or 6" nominal cast iron or heavy duty steel pipe connector which should be caulked with asbestos rope and fire cement. - Page 28 Rain cap 600mm (24") minimum TYPICAL PREFABRICATED INSULATED CHIMNEY SYSTEM 50mm (2") gap to wall 2.4 metres (8' 0") maximum between support brackets Maximum Horizontal 150mm (6") Soot door Non-combustible register plate TOP FLUE OUTLET IN INGLENOOK TOP FLUE OUTLET ALL INSTALLATIONS MUST CONFORM TO THE BUILDING REGULATIONS...
- Page 29 TYPICAL INSTALLATIONS FOR INTEGRAL BOILER 22mm OPEN VENTS COLD WATER FEED AND EXPANSION TANK TANK RADIATORS GRAVITY DOMESTIC HOT WATER RADIATOR DRAW OFF GRAVITY RETURN 28mm PIPE DRAIN COCK PIPE STAT GRAVITY FLOW INDIRECT HOT 28mm PIPE WATER TANK RADIATORS DOMESTIC HOT WATER RETURN 28mm PIPE COMMON RETURN TO...
-
Page 30: Water Connections
26. WATER CONNECTIONS Heating systems The size of the heating system, which can be run, will depend on the output rating of the appliance. It will be necessary to work out heat loss calculations for the system envisaged in order to establish the kW/hr rating. An appliance that will meet this figure can then be chosen;... - Page 31 The following details must be checked and completed by the installer at the time of the installation. Please answer all questions as fully as possible. Aarrow Fires Ltd cannot be held responsible for chimney or installation. GENERAL HOT WATER SYSTEMS 1.
-
Page 32: Guarantee
Parts will be repaired or replaced at the discretion of Aarrow Fires Ltd. The price of replacement shall be shared by the manufacturer and purchaser as follows: During the first year of purchase the manufacturer will pay 100% of the cost of parts only. -
Page 33: Service Record
30. SERVICE RECORD Date of Visit Company Name of Telephone Work Parts Stamp or Engineer Carried Out Replaced Signature Should you have any questions about your fire that are not covered in this manual please contact our Technical Department on 01308 427234 Please keep all repair receipts safely Please ensure you have this manual available when an engineer visits as he will complete the service record chart. - Page 34 Manufactured by July 2001...
