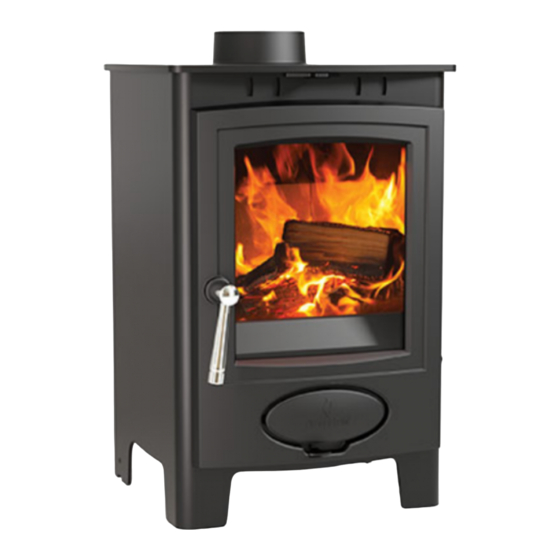

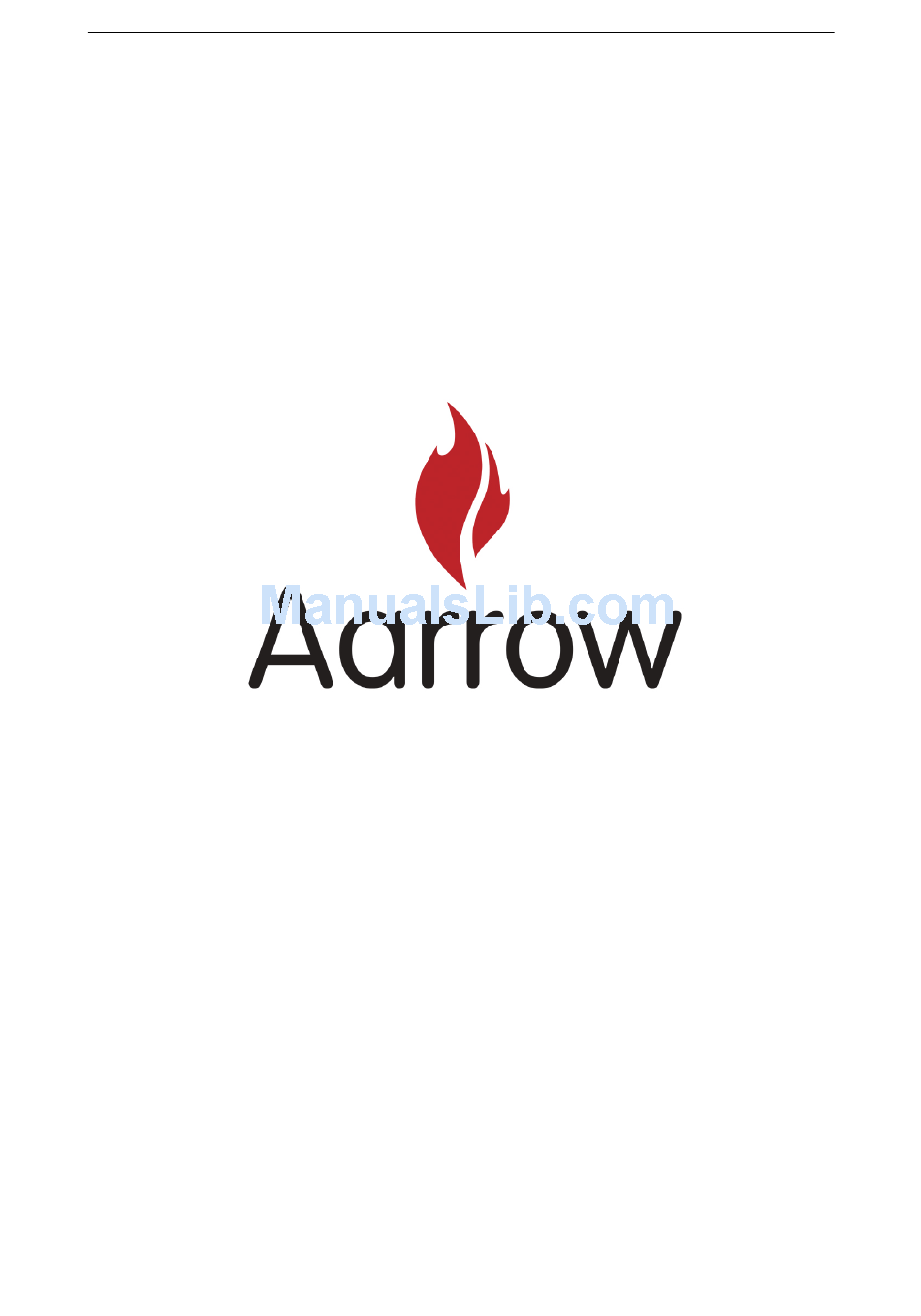

- Page 1 Aarrow Stove User Guide Aarrow Stove User Guide December 2015 BS EN 13240:2001 +A2:2004 CE BK530 Rev13...
- Page 2 Your Aarrow stove is built to the highest standard of craftsmanship using the best materials and the most modern equipment available. It is a highly e cient and sophisticated piece of machinery and when properly installed and operated it should provide a lifetime of heating satisfaction.
-
Page 3: Table Of Contents
Aarrow Stove User Guide Contents Warnings Health and Safety ......Smoke control areas ...... - Page 4 8.2 Convected heat ......9 Ongoing care for your Aarrow stove Adjusting the door hinges ..... . .
-
Page 5: Warnings
Aarrow Stove User Guide 1 Warnings Pure Petroleum coke or Bituminous house coal must not be burned in this appliance. The use of these fuels will invalidate the appliance guarantee. Arada recommends the use of HETAS approved smokeless fuels which have been deemed suitable for use on closed appliances, including multi fuel stoves. -
Page 6: Smoke Control Areas
Aarrow Stove User Guide 1.2 Smoke control areas Under the Clean Air Act local authorities may declare the whole or part of the district of the authority to be a smoke control area. It is an o ence to emit smoke from a chimney of a building, from a furnace or from any xed boiler if located in a designated smoke control area. -
Page 7: Solid Fuel
(www.solidfuel.co.uk) or HETAS (www.hetas.co.uk). 3 Before using your stove Aarrow stoves are designed to be operated with the re door(s) closed at all times, apart from refuelling (when alight) or cleaning (when cold). Never leave the appliance unattended for an extended length of time with the door(s) open. -
Page 8: Air Inlet Controls
4 Air inlet controls If you have an Aarrow iSeries stove please turn to section 4.2.1 on page 6 for information on how your air control system works and should be operated as it di ers from the information below. -
Page 9: Location And Operation Of The Controls
Aarrow Stove User Guide Please note that Aarrow ECB5PLUS SC and ECB7PLUS SC stoves have a xed primary air control. The air supply for these models is regulated and supplied via the air wash system and its associated control(s). 4.1 Location and operation of the controls Your stove has two air inlet controls. -
Page 10: Airwash System / Secondary Air
4.2 i Series air controls 4.2.1 i Series Cassette Stoves The Aarrow i Series cassette stove range features a single air control slider which correctly and conveniently con gures both the primary and secondary air Figure 2 on the following page illustrates the four main settings of the air control which should be used when burning either wood or solid fuels respectively. - Page 11 Aarrow Stove User Guide Figure 2: i Series air inlet controls. BK530 Rev13...
-
Page 12: Series Freestanding Stoves
Aarrow Stove User Guide 4.2.2 i Series Freestanding Stoves The Aarrow i Series freestanding stove features two air control sliders. The slider on the right hand side is used when burning solid fuels, whereas the slider on the left is used when burning wood. Keep the unused slider in the closed position. -
Page 13: Fuel Overloading
Aarrow Stove User Guide 5.1.2 Fuel overloading The maximum amount of fuel speci ed in this manual should not be exceeded, overloading can cause excess smoke. 5.1.3 Operation with door left open Operation with the door open can cause excess smoke. The appliance must not be operated with the appliance door left open except as directed in the instructions. -
Page 14: Burning Solid Fuels
Aarrow Stove User Guide 3. Fully open your air control(s) and light the re. 4. After the kindling has caught light, you should almost close the re door leaving it ajar by about 20mm. This will aid ue draw during the initial lighting of the re. -
Page 15: Burning Solid Fuels In An I Series Stove
Aarrow Stove User Guide On stoves with a riddling lever at On stoves with a riddling lever to the front of the stove body, push the side of the stove, lever the the control inwards. control downwards. 2. Set the airwash / primary air slider to about one quarter open and the primary air slider fully open (see section on Air inlet controls on page 4). - Page 16 Aarrow Stove User Guide Please do not attempt to burn solid fuels in a dedicated wood burning stove. To burn solid fuel, your stove must have a cast iron riddling grate to withstand the higher temperatures involved. To do so could damage your stove and will void your warranty.
-
Page 17: Warning - Fume / Smoke Emissions
Aarrow Stove User Guide 5.5 Warning - Fume / Smoke emissions Warning: Properly installed, with a suitable ue or chimney, operated and maintained correctly, this appliance will not emit fumes into the dwelling. Occasional fumes when de-ashing and refuelling may occur. -
Page 18: Reduced Burning
Aarrow Stove User Guide and clean the inside face of the glass with a damp cloth or with glass cleaner (available from stove shops and www.aradastoves.com). 6.2 Reduced burning When wood is burnt slowly in a closed appliance, it produces moisture and tar, which will create condensation and deposits in the chimney. -
Page 19: Ash Removal
Aarrow Stove User Guide and warmth from your Aarrow stove from Arada. You can nd a complete list of spares and consumables such as liners, grate bars and throat plates as well as items to enhance its visual appearance and e ciency such as Arada anthracite stove paint and rope kits. -
Page 20: Further Information For Multi Fuel Stove Owners
7 Further information for multi fuel stove owners 7.1 Multi fuel or Flexifuel grates The grate in your Aarrow stove comprises of a series of reciprocating cast iron bars seated on a pivoted comb. These should come pre-assembled in your new stove. -
Page 21: How Heat Is Delivered By Your Stove
8 How heat is delivered by your stove 8.1 Radiant heat All Aarrow stoves radiate heat into the room. The radiated heat is most intense at the front of the stove and less intense the further you move away from the stove. -
Page 22: Ongoing Care For Your Aarrow Stove
Aarrow Stove User Guide Aarrow i Series cassette stoves bene t from having a convection system which further encourages this movement of air supplying additional heat to the room. The colder air is drawn into a chamber at the base of the stove and warms up as it goes around the back of the stove before entering the room from the top of the stove. -
Page 23: Throat Plate
Once again we would like to thank you for buying your Aarrow stove. When you buy a Aarrow stove, you are not only buying a rst class appliance, you are buying a commitment from us to look after you and your appliance. - Page 24 Aarrow Stove User Guide details after this paragraph as well as a list of resources where you can discover more information about your stove and associated articles. • HETAS www.hetas.co.uk • Solid Fuel Association www.solidfuel.co.uk • Document J Building Regulations (Combustion Appliances) www.planningportal.gov.uk/...
-
Page 25: Guarantee
The following guarantee periods shall apply in respect of the following Arada stoves: • Non-boiler Aarrow and Villager stoves come with a lifetime guarantee • Non-boiler Hamlet stoves come with a ten year guarantee • Stratford and Villager boiler stoves come with a ve year guarantee •... - Page 26 Aarrow Stove User Guide 3. Any claim under this guarantee must be made through the approved Arada dealer where the stove was purchased and accompanied by proof of purchase (e.g. a valid receipt). Stoves not purchased from an approved Arada dealer will not be covered by this guarantee.
-
Page 27: General
Aarrow Stove User Guide be sourced through an approved dealer or directly from Arada online at www.aradastovesandspares.com. 12. The guarantee is not valid where any repairs or modi cations have been made to the stove which have been carried out by anyone other than Arada or its authorised representatives or approved dealers. - Page 28 Aarrow Stove User Guide This page is left intentionally blank BK530 Rev13...
- Page 29 Aarrow Stove User Guide Manual last updated: December 2015 ©Arada Ltd 2015 T: +44 (0)1297 35700 info@aradastoves.com Arada Ltd - Weycroft Avenue - Axminster - Devon - EX13 5HU www.aradastoves.com BK530 Rev13...
