Summary of Contents for Aarrow EcoBurn AFS1221

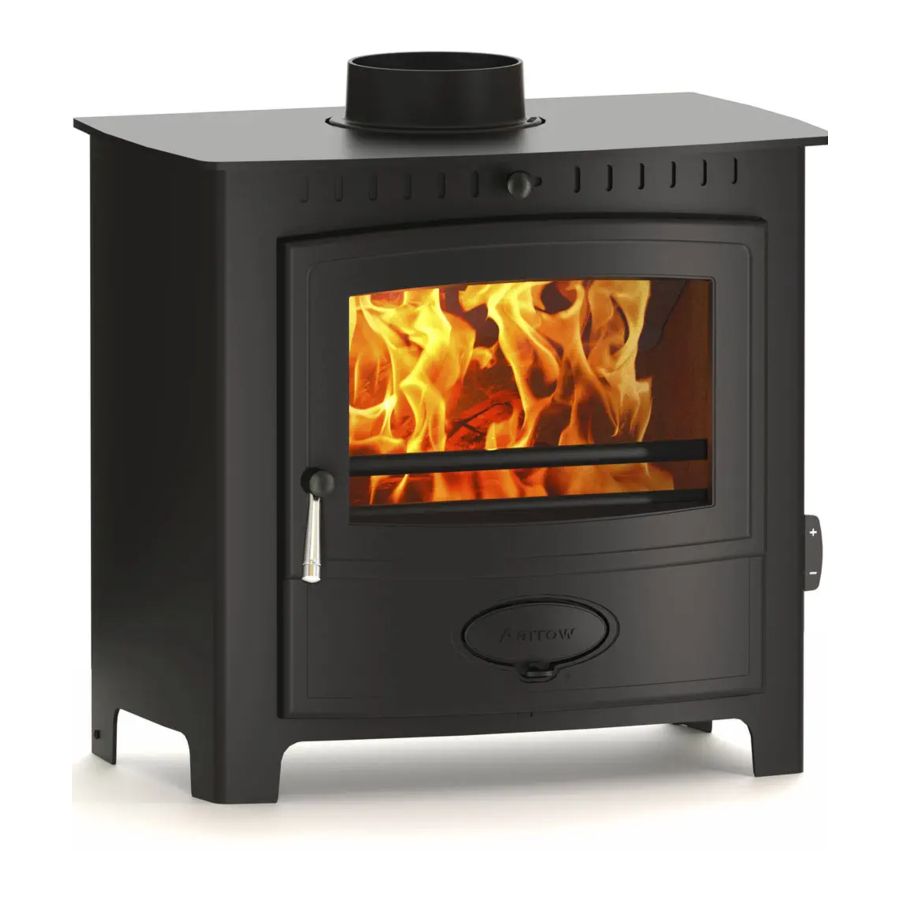

- Page 1 Operating & Installation Manual Wood / Multifuel Model Range Ecoburn 7 Multifuel PLEASE RETAIN THESE INSTRUCTIONS FOR FUTURE REFERENCE Rev 6 BK043 October 2006 AFS1221...
-
Page 2: Lifetime Guarantee
Congratulations on your choice of an Aarrow Stove. More than 20 years experience has been put into the development of our Ecoburn range to ensure ultimate performance and years of trouble free enjoyment. Every detail on this stove has been carefully engineered and designed which is why we are so confident in the reliability of our product that we offer a Should you have any questions about our Ecoburn Stoves... -
Page 3: Table Of Contents
INTRODUCTION Warning Notice Safety Notices The Principle Of The Fire Check List Technical Data INSTALLATION General Precautions Handling Hearth Combustible Materials Air For Combustion Fitting the Flue Outlet & Hotplate Flues & Chimneys Adjusting the Self Levelling Feet Wood Only Version Multifuel Version Firebox Liner Panels Optional Add In Boilers... -
Page 4: Warning Notice
TO USE THESE FUELS WILL INVALIDATE THE APPLIANCE GUARANTEE IF IN DOUBT CONTACT THE SOLID FUEL ASSOCIATION TELEPHONE NUMBER 0800 600 000 www.solidfuel.co.uk THE USE OF SPARE PARTS OTHER THAN THOSE SUPPLIED BY AARROW FIRES WILL INVALIDATE THE APPLIANCE GUARANTEE. Aarrow Ecoburn Wood & Multifuel Stoves... -
Page 5: Introduction
Fire cement is caustic, hand and eye protection should always be worn, prolonged contact with the skin should be avoided. Aarrow Fires Ltd will not be responsible for any consequential or incidental loss or injury however caused. Before continuing any further with the installation of this appliance please read the following guide to manual handling. -
Page 6: Check List
CHECK LIST Part Description ECB 5 & Visual Aid Wood (not to scale) 1. Grate bars 2. Wood burning tray 3. Stainless Steel Throat plate 4. Flue spigot 1 (4”) 5. Hotplate 1 (4”) 6. Rear liner (s) 7. Side liners ECB 7 ECB 7 ECB 5... -
Page 7: Check List
Part Description ECB 5 & Visual Aid Wood (not to scale) 8. Rear grate bar support 9. Comb assembly consisting of comb & comb extension 10. Fuel retainers 11. Fire door han- dle - Nickel Plated 12. Stainless steel Ashpan & Cover 13. -
Page 8: Technical Data
TECHNICAL DATA ECB 5 TECHNICAL DATA Wood Room Min/Max Room Heater Only 1 - 5 Output (kW) Room Heater with Domestic Hot Water with add in boiler type Max Output to Room (kW) Max Output to Water (kW) Height (mm) Width (mm) Depth (mm) * Height to Centre of Rear Flue... -
Page 9: Installation
GENERAL PRECAUTIONS Note - All installations must conform to the appropriate building regulations. The Building Regulations for England and Wales 2000 ref Approved Document J 2002 edition (issued by the DTLR). The Building Standards (Scotland) (Consolidation) Regulations. Detailed recommendations for installation of appliances, chimneys and flues are outlined in the current issue of the following British Standards:- BS6461, BS8303 and BS4543. -
Page 10: Fitting The Flue Outlet & Hotplate
INSTALLATION FITTING THE FLUE OUTLET AND HOT PLATE The flue outlet spigot is found packed inside the appliance. The hot plate (blanking plate) is supplied fitted to the top opening and is removed by turning clockwise (as is the flue outlet). Smear a very thin layer of fire cement on the faces of the flue outlet and the blanking plate. -
Page 11: For All Appliances
Due to the gradual introduction of European Chimney Standards chimneys will be specified according to their performance designation as defined in BS EN 1443 that covers the General Requirements for chimneys. The minimum performance designation required for use with solid fuel burning stoves is T450 N2 S D3. - Page 12 INSTALLATION Fig. 2. A Typical Rear Flue Layout Aarrow Ecoburn Wood & Mutifuel Stoves...
- Page 13 INSTALLATION YPICAL ETAL NSULATED HIMNEY YSTEM O BE INSTALLED TO THE CHIMNEY MANUFACTURERS INSTRUCTIONS IN COMPLIANCE BS7566 P WITH BUILDING REGULATIONS AND IEW OF REGISTER PLATE AND CLEARANCES FOR NON INSULATED FLUES A is minimum clearance for non-insulated flue = 1.5 x D to a non-combustible surface/material 3 x D to combustible surface/material Fig.
-
Page 14: Adjusting The Self Levelling Feet
INSTALLATION ADJUSTING THE SELF LEVELLING FEET The Aarrow Ecoburn Wood and Multifuel stoves are equipped with adjustable rear levelling feet, these are ideal for use where the hearth surface is not flat or level. Adjustment is as follows: • Position the stove on the hearth into its final rest- ing place, ensuring room for the flue connections etc. -
Page 15: Multifuel Grate
INSTALLATION MULTIFUEL STOVE VERSION- MULTIFUEL GRATE GRATE The grates in the Aarrow Ecoburn multifuel units comprise a series of reciprocating cast iron bars seated on a pivoted "comb". All bars in the grate are identical, but every other bar is turned through 180 degrees, with the ends of the bars marked "H"... -
Page 16: Firebox Liner Panels
INSTALLATION FIREBOX LINER PANELS The Aarrow Ecoburn Wood and Multifuel stoves use firebox liner panels to the sides and back of the firebox. The throat plate sits on top of the side and rear panels. These should come fitted to your stove, if however they are not proceed as follows to fit them as follows - •Open the fire door. -
Page 17: Optional Add In Boilers
OPTIONAL ADD IN BOILERS Aarrow Ecoburn Wood and Multifuel stoves offer the option of a slab boiler, which occupies the posi- tion of the rear firebox liner panels. Fitting: •Remove the fuel retainering bars, rear firebox liner panels and throat plate. •Knock out the blanking discs in the back plate corresponding to the terminals on the boiler. -
Page 18: Final Check List
The following details must be checked and completed in full by the installer at the time of installation. Please answer all questions as fully as possible. Aarrow Fires can not be held responsi- ble for chimney or installation. HOT WATER SYSTEMS... - Page 19 Hearths, Fireplaces, Flues and chimneys This checklist is to ensure hearths, fireplaces, flues and chimneys are satisfactory, and to show what you have done to comply with the requirements of The Building Regulations 2000 Approved Document J 2002. 1. Building address, where work has been carried out... 2.
-
Page 20: Cleaning - Internal Surfaces
•Burn slowly for the first four hours, then build up heat gradually to cure the paint. Note: Use only genuine Aarrow Fires touch-up spray as some paints interact. This could ruin the finish and invalidate the guarantee. DOOR GLASS The door glass should remain clear during normal daytime burning. -
Page 21: Annual Maintenance
ANNUAL MAINTENANCE It is important that your fire is regularly serviced in accordance with these instructions. This should be carried out at least annually by a qualified person and should consist of the following. Remove the fire lining(s), and throat plate, inspect all gasketing on doors, glass etc. -
Page 22: Disassemble Airwash
SERVICING & MAINTENANCE DISASSEMBLE AIRWASH The Aarrow Ecoburn air wash may be disassem- bled for cleaning or adjustment. To achieve this, the following procedure should be followed: Note - This should only be carried out when the fire is cold and unlit. •Unscrew (Anti-clockwise) the airwash control knob (Fig. -
Page 23: Fire Door Glass
FIRE DOOR GLASS In the event of the door glass being broken it can easily be replaced. Note: This operation should only be carried out when the appliance is unlit and cold. •The door should be lifted off the hinges so that the operations can be carried out on a workbench or similar level surface. -
Page 24: Service Record
Date of Visit Should you have any questions about your Ecoburn stove that is not covered in this manual please contact your Aarrow Fires retailer. Please keep all repair receipts safely. Please ensure you have this manual available when an engineer visits as they will complete the service record chart. -
Page 25: Operating Instructions
FUEL TYPES Wood- Any type of wood is suitable provided it is well seasoned and has a moisture content below 20%. This usually implies that the timber has been suitably stored to allow moisture to evaporate for at least nine months in the case of soft woods, and at least eighteen months in the case of hard wood. -
Page 26: Solid Fuel Burning
OPERATING INSTRUCTIONS ENSURE THAT YOU HAVE READ & UNDERSTOOD THESE INSTRUCTIONS BEFORE LIGHTING THE FIRE. ALWAYS WEAR SUITABLE PROTECTIVE FIRE GLOVES WHEN REFUELLING YOUR STOVE. SOLID FUEL BURNING Version Only) •Set the grate to ‘coal’ position. •Ensure that the ash pan is in position and the fire doors are closed. -
Page 27: Air Inlet Controls - Primary Air
AIR INLET CONTROLS Both Aarrow Ecoburn wood & multifuel stoves have two air inlets: •The primary air inlet providing under draught to the base of the fire chamber through the control slider located under the oval cover. •The air wash system (so called because its pre-heated high speed air washes across the inner face of the door glass, keeping it clear), which provides over draught. -
Page 28: Multi-Purpose Operating Tool
OPERATING INSTRUCTIONS MULTI-PURPOSE TOOL Your Aarrow stove comes with a multi-purpose operating tool, which is used for riddling, setting the multifuel grate *, (fuel position) , adjusting the air wash control knob and for the removal of the ashpan. SETTING THE GRATE (*Multifuel Version Only) To use the operating tool for setting the grate in the coal burning position or the wood burning position,... -
Page 29: Main Fire Door Handle
MAIN FIRE DOOR HANDLE A stove mitten is supplied with your Aarrow Ecoburn stove, this is provided for the operation of the fire door handle whilst the stove is in use. Care must be taken when opening and closing the fire door as any surrounding areas of the stove will be very hot. -
Page 30: Optional Extra Accessories
OPTIONAL EXTRA / ACCESSORIES Optional Extra ECB 5 Description Wood Aerosol Paint 101a Gothic Tracery ECB5 TRACE Lattice Tracery ECB5 TRACE Add In Boiler** AIB 0 Stove Gloves AFS997 Floor Fixing Kit 1135 ECB5 Stand * STAND Add On Low Canopy Add On High Canopy... -
Page 31: Spare Parts List
Part Description ECB 5 & Visual Aid Wood (not to scale) 1. Grate bars 2. Wood burning tray 1196 3. Stainless steel throat plate 1193 4. Flue spigot 009a 5. Hotplate AFGS 6. Rear liner(s) 1207 7. Side liners 1206 Aarrow Ecoburn Wood &... - Page 32 SPARE PARTS LIST Part Description ECB 5 & Visual Aid Wood (not to scale) 8. Liner Set 1205 9. Stainless steel ashpan 1199 10. Fuel Retainer 1190 11. Operating Tool 12. Replacement Glass & Gasket 1214 13. Glass Clips 1010 14.
-
Page 33: Spare Parts List
Part Description ECB 5 & Visual Aid Wood (not to scale) 17. Fire Door Rope Kit Complete With Glue 1021 18.Main Fire Door Assembly, Complete With Handle, Glass, Gaskets, Clips & Seal 1218 19. Door Handle Assembly 1306 20. Replacement Instructions 1121 21. -
Page 34: Guarantee
GUARANTEE Guarantee Once again we would like to thank you for buying an Aarrow Ecoburn stove. When you buy an Aarrow stove, you are not only buying a first class appliance - you are buying a commitment from us to look after you and your appliance for as long as you want. - Page 35 & tear. The use of non Aarrow replacement parts will invalidate your war- ranty. For full details contact your local Aarrow Fires retailer. All guarantees are in addition to your statutory rights. Please see page 34 for further information regard- ing the lifetime guarantee.
-
Page 36: Final Factory Checklist
FINAL FACTORY CHECK LIST Model... Serial No... QUALITY FINISH PARTS FLUE OUTLET HOT PLATE FUEL RETAINERS GRATE BARS / WOODBURNING TRAY FIREBOX LININGS THROAT PLATE AIR WASH DOOR CATCH / NICKEL PLATED HANDLE ASH PAN & COVER ADJUSTING FEET X 2 OPERATING TOOL CONVECTOR KIT FIXINGS X 4 OPERATING INSTRUCTIONS...
