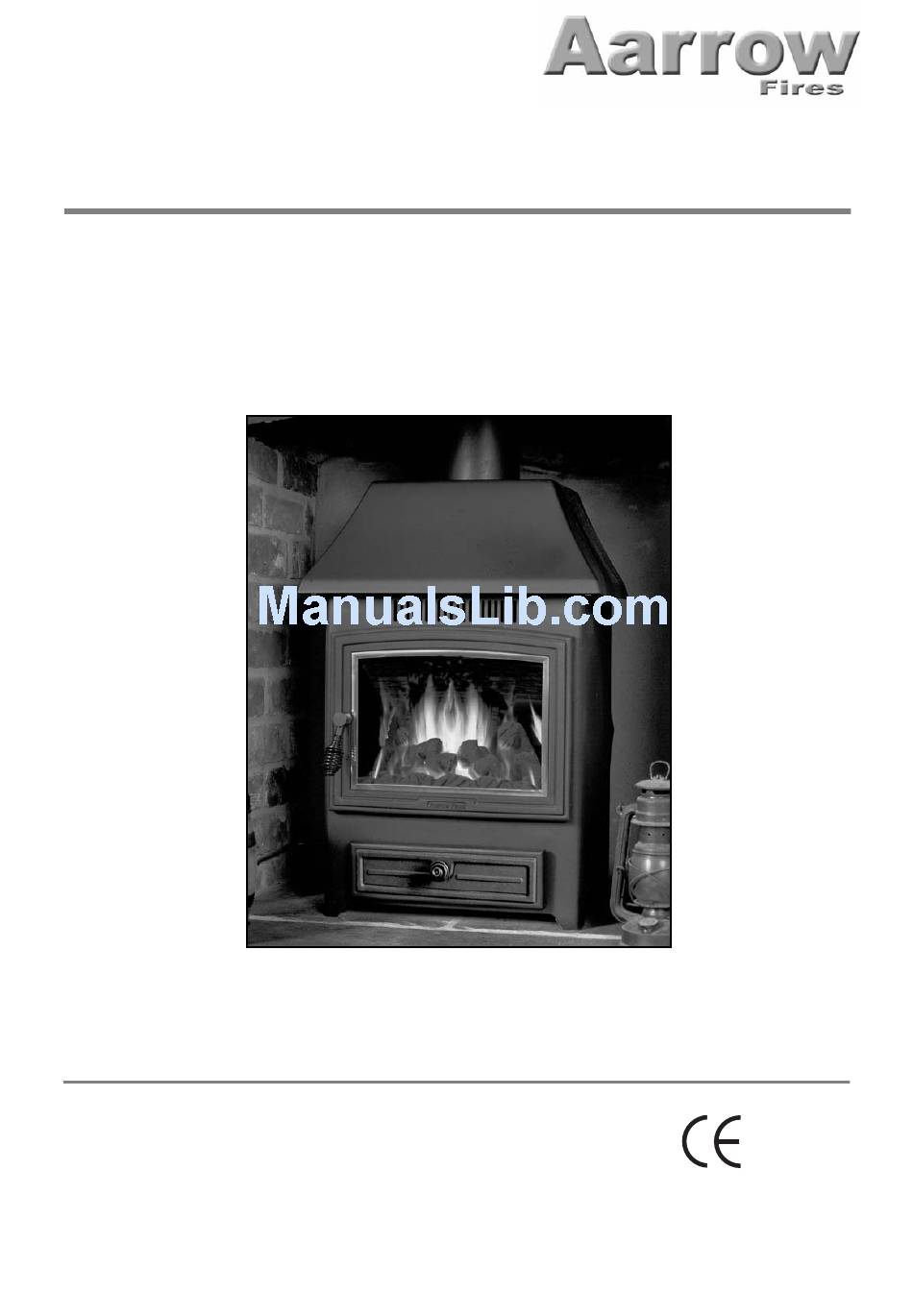

- Page 1 Operating & Installation Manual The Becton MK 2 Range of Gas Stoves (Becton 7 With Add On Canopy) PLEASE RETAIN THESE INSTRUCTIONS FOR FUTURE REFERENCE FOR USE IN COUNTRIES GB & IE Rev 9...
- Page 2 Lifetime Guarantee. Should you have any questions about our Becton Stoves that are not covered in this manual, please contact the Aarrow dealer in your area, or call our Technical support department on 01308 427234 Flaming Good Fires! ©...
-
Page 3: Table Of Contents
CONTENTS Page Page SERVICING INTRODUCTION Details of Pilot Assembly Safety Notices Glass & Trim Fitting General Information Component Replacement Statutory Requirements Replacement of the Door Seal OPERATING INSTRUCTIONS Regular Service Technical Data Annual Service Arranging the Coals Cleaning Outer Services Lighting &... -
Page 4: Introduction
INTRODUCTION References in this manual to British Standards and normal hygiene rules are followed. Statutory Regulations and Requirements apply only Always wash your hands before eating or to the United Kingdom. For Ireland the rules in drinking. force must be used. # In the event of a gas emergency, consult the Before installation, check that the local distribution telephone directory and ask for your local... -
Page 5: Statutory Requirements
# Coal Set see safety notice p4. Any alteration not approved by Aarrow Fires Ltd. All surfaces except the control knob, the control will invalidate the guarantee. door handle and control door are considered to be working surfaces. -
Page 6: Operating Instructions
OPERATING INSTRUCTIONS FIRE DIMENSIONS TECHNICAL DATA Category I For use in GB and IE at a supply pressure of 20mbar Becton Becton 7 Bunny Natural Natural Gas Aeromatic Aeromatic Main Burner AC13/112511 AC13/112511 (mod 263) (mod 263) Injector Bray 82-700 Bray 82-700 Max. - Page 7 Ensure location is correct. Do not force the matrix into position. If the coals and/or the coal matrices are damaged they must be replaced with genuine Aarrow replacement sets. Warning: An incorrect coal layout may cause Fig 3c soot to build up inside the fire and therefore invalidate the guarantee.
-
Page 8: Lighting & Controlling The Fire
OPERATING INSTRUCTIONS LIGHTING & CONTROLLING Step 1c. Keep the control knob pressed in for a further 15 seconds and then release. The pilot will THE FIRE remain alight. Under no circumstance must the fire be operated If pilot does not remain alight repeat this procedure. with the fire-door open or if the glass is cracked or broken. -
Page 9: Lighting & Controlling The Fire
OPERATING INSTRUCTIONS Step 4. To extinguish the pilot, turn the control knob to the OFF position. (Fig 4f) Incorporated into the pilot assembly is a flame failure device designed to shut off the gas supply in the event of the pilot flame being extinguished while the fire is unattended. -
Page 10: Installation
INSTALLATION INSTALLING THE FIRE The minimum effective height of the chimney must be 3 metres, it must be terminated with a suitable chimney pot or cowl and the chimney or flue shall Your CORGI qualified gas engineer should install be swept prior to installation unless the previous the fire in accordance with the following appliance was a gas appliance and the chimney is regulations and standards:-... - Page 11 INSTALLATION It is recommended that a smoke test is performed inside the fire to ensure that adequate flue draw is evident. REAR FLUE Open Hearth Fig 6a. Fit and seal a ‘T’ section (with soot box) directly into the flue spigot. The maximum horizontal section allowed is 150mm.
-
Page 12: Fire Location
INSTALLATION FIRE LOCATION The appliance must not be installed in a room or space, which contains a bath or shower. This fire is designed for use with either top or rear flue outlets and must be mounted on a hearth with a minimum of 12mm non-combustible material thickness. -
Page 13: Combustible Shelf Clearances
INSTALLATION The minimum height from the extreme top surface of the fire to the underside of a shelf or other projection made of wood or any other combustible material is shown on graph 1. Graph 1.Combustible Shelf Clearances The recommended minimum height from the extreme top surface of the fire to the underside of a non combustible shelf is 100mm. -
Page 14: Hearth Requirements
INSTALLATION HEARTH REQUIREMENTS To check the pressure to the burner it is necessary to ignite the appliance and set to 'high rate'. To comply with current Building Regulations the This is carried out by following instructions on fire must stand on a fireproof hearth, which has an pages 8 and 9. -
Page 15: Fire Testing
INSTALLATION FIRE TESTING Warning: The spillage monitoring system is a safety feature required by law and must not be adjusted or put out of action by the installer. If Flame failure device testing the spillage monitoring system or any of its parts are to be replaced, only original manufacturers Step 1 Ignite the appliance in accordance with parts are to be used. -
Page 16: Installation Check List
INSTALLATION CHECK LIST CHECKLIST Hearths, Fireplaces, Flues and chimneys This checklist is to ensure hearths, fireplaces, flues and chimneys are satisfactory, and to show what you have done to comply with the requirements of The Building Regulations 2000 Approved Document J 2002. 1. -
Page 17: Servicing
SERVICING DETAIL OF PILOT ASSEMBLY It is strongly recommended to leave the pilot on permanently. This will keep the fire and its components, including the ceramic coal set in a warmer state and give instant ignition to the burner. This in turn will reduce condensation in the chimney and any flue problems associated with this. -
Page 18: Glass & Trim Fitting
SERVICING DOOR TRIM Becton fire doors are fitted with a brushed steel finish trim as standard. This, clips on to the small lugs at the top and bottom of the aperture in the cast iron fire door, as a "spring fit". When fitted, the trim locks the glass retaining clips in position. -
Page 19: Component Replacement
SERVICING COMPONENT REPLACEMENT Step 4a Becton 7. Starting at one end press the new door seal into the adhesive, continue around the door, making sure that the two Step 1 Ensure the fire is cold. Turn off the gas ends of the seal are touching. Cut off any supply at the gas service cock. -
Page 20: Annual Service
SERVICING ANNUAL SERVICE CLEANING OUTER SURFACES THIS GAS APPLIANCE MUST BE SERVICED EVERY TWELVE MONTHS BY A QUALIFIED To clean the outside first the appliance must be GAS ENGINEER. cold. See "SAFETY NOTICES" ref coal set page 4. The outside finish of the fire is a durable high temperature paint, this will give off a slight odour Step 1 Isolate the gas supply to the fire using during the first few days of operation. -
Page 21: Fault Diagnosis
SERVICING FAULT DIAGNOSIS START Does the pilot Does the pilot Does the main ignite? stay alight? burner light? Fire satisfactory Is the gas supply Is their air in the Is the main turned on? injector blocked? system? Purge system Turn gas on Clean and replace as necessary... -
Page 22: Spare Parts
SERVICING GENERAL COMPONENTS Spare parts can be obtained by contacting the original supplier of the fire or Aarrow Fires. Fire Body Ancillary Components. Only use genuine Aarrow parts. ACCESSORIES AND OPTIONS Add on Canopies Elegant stands Bunny - Low available only Are available for the complete Becton Fire range. - Page 23 NOTES Becton Bunny & Becton 7 MK2 Gas stoves...
- Page 24 NOTES Becton Bunny & Becton 7 MK2 Gas stoves...
-
Page 25: Spare Parts List
SPARE PARTS Bunny Becton 7 Visual Aid Part Description Mk 2 (not to scale) Part No. Part No. 1. Becton 7 Mk 2 Coal Set AFGS088 1a. Becton Bunny Mk 2 Coal Set AFGS088A 2. Co-pilot Assembly AFGS089 AFGS089 3. Elbow Injector AFGS090 AFS090 4. - Page 26 SPARE PARTS Bunny Becton 7 Visual Aid Part Description Mk 2 Mk 2 (not to scale) Part No. Part No. 7. Fire Door Locking Assembly AFGS039 AFGS039 8. Control Door Handle Assembly AFGS098 AFGS098 9. Burner & Fixing AFGS092A AFGS092 10.
- Page 27 SPARE PARTS Bunny Visual Aid Becton 7 Part Description Mk 2 (not to scale) Part No. Part No. 14. Gasket Kit Inc. Clips AFS070 AFS089 15. Hotplate AFGS064 AFS010 16. Flue Outlet Spigot AFGS063 AFGS040 17. Becton 7 Mk 2 Gas Fire Door Rope Kit With Door Rope AFS048...
- Page 28 SPARE PARTS Bunny Visual Aid Becton 7 Part Description Mk 2 (not to scale) Part No. Part No. 20. Large Ceramic Panel AFGS093 AFGS093 21. Small Ceramic Panel AFGS094 AFGS094 22. Gas Tap AFGS025 AFGS025 Becton Bunny & Becton 7 MK2 Gas stoves...
-
Page 29: Guarantee
Becton fire. Our Lifetime Guarantee is offered as an addition to When you buy an Aarrow Fire, you are not only your statutory rights. buying a first class appliance - you are buying a commitment from us to look after you and your If you think your fire is not working correctly or in appliance for as long as you want. -
Page 30: Service Record
Date of Visit Should you have any questions about your Becton Multifuel Stove that is not covered in this manual please contact your Aarrow retailer. Please keep all repair receipts safely. Please ensure you have this manual available when an engineer visits as they will complete the service record chart. - Page 31 Documentation must be retained and produced in the event of a warranty claim. This guarantee specifically does not cover accidental damage, misuse, wear & tear. The use of non Aarrow replacement parts will invalidate your warranty. For full details contact your local Aarrow dealer. All guarantees are in addition to your statutory rights.
-
Page 32: Final Factory Checklist
FLUE OUTLET Checked by ........ HOTPLATE OPERATING INSTRUCTIONS GAS COCK Please ensure the enclosed registration card is completed and returned to Aarrow Fires and the following information completed for your own information. Date of Purchase........Name and address of supplier......................................
