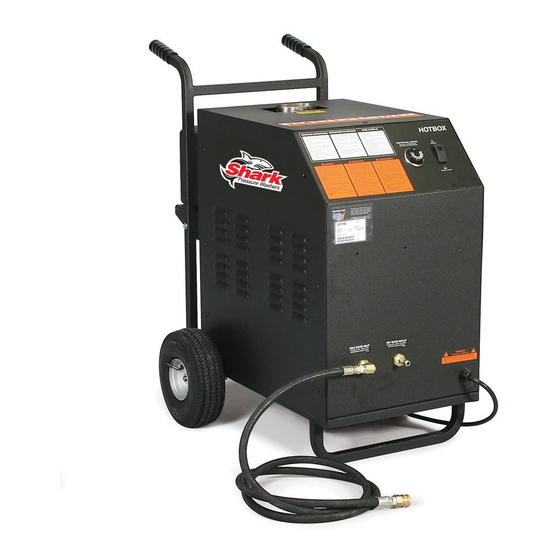

Shark HP-5030D Operating Instructions And Parts Manual
Shark hp pressure washer operating instruction and parts manual
Hide thumbs
Also See for HP-5030D:
- Operating instructions and parts manual (22 pages) ,
- Operating instructions and parts manual (18 pages)
Subscribe to Our Youtube Channel
Related Manuals for Shark HP-5030D
Summary of Contents for Shark HP-5030D

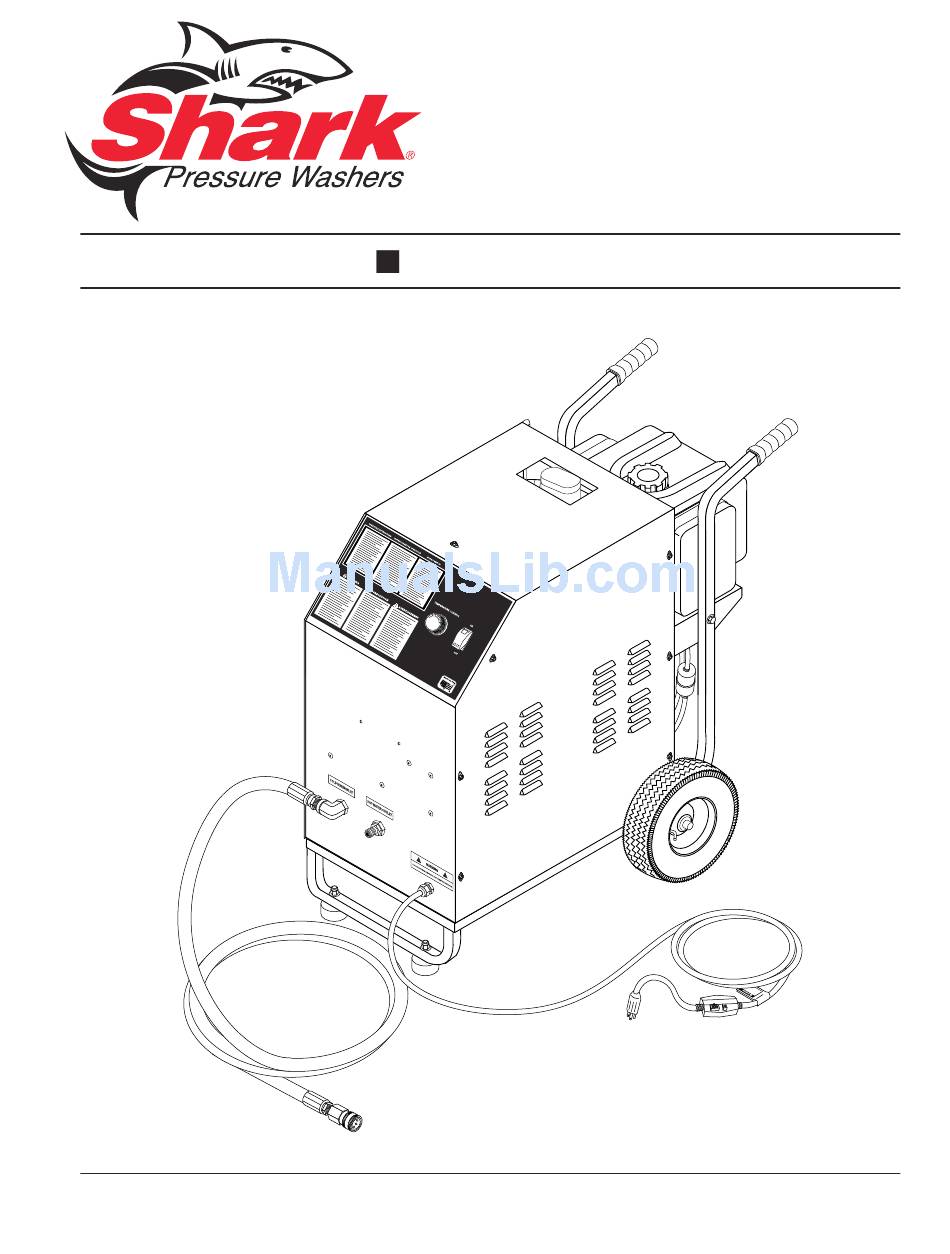

- Page 1 MODEL: HP OPERATING INSTRUCTION AND PARTS MANUAL HP-5030D For technical assistance or the SHARK dealer nearest you, call 1-800-771-1881 or visit our website at www.shark-pw.com #97-6133...
- Page 2 MACHINE SPECIFICATIONS Pump Volume At Pump Head: Machine Voltage: 5 GPM 120V/1Ph Pump Pressure At Pump Head: Total Machine Amperage: 3000 PSI 15 Amps Burner Type: Shipping Weight: Oil Fired - 380,000 BTU/Hr. 315 Lbs. Burner Fuel Pressure: Exhaust Stack Size: 120 PSI 3.5"...
-
Page 3: Table Of Contents
CONTENTS Introduction ............. 4 Field Service of Fuel Pump ........9 Important Safety Information ........4-5 Machine Assembly Exploded View ......10 Installation ............5,7 Machine Assembly Exploded View Parts List ..11 Component Identification ......... 6 Burner Assembly, Exploded View ......12 Starting and Operating Instructions ...... -
Page 4: Introduction
WATER HEATER SERIES OPERATOR’S MANUAL WARNING: Flammable liquids can INTRODUCTION WARNING create fumes which can ignite All information in this manual is based on the latest prod- causing property damage or uct information available at the time of printing. severe injury. This machine is designed to heat water from a cold water WARNING: Do not use gasoline, pressure washer. -
Page 5: Installation
WATER HEATER SERIES OPERATOR’S MANUAL 9. Never make adjustments on machine while it is in 22. Follow the maintenance instructions specified in the operation. manual. 23. When making repairs disconnect from electrical WARNING: High pressure spray WARNING source. can cause paint chips or other par- ticles to become airborne and fly 24. -
Page 6: Component Identification
WATER HEATER SERIES OPERATOR’S MANUAL COMPONENT IDENTIFICATION CAUTION HOT WATER: Must use insulated spray gun and wand. Pressure Washer 3,000 PSI Maximum (not included) Fresh Water Pressure Washer Coupler Faucet Garden Hose (not included) Diesel Fuel Tank Insulated Wand (not included) Insulated Spray Gun (not included) -
Page 7: Starting And Operating Instructions
WATER HEATER SERIES OPERATOR’S MANUAL Placement: 7. For hot water washing, turn the machine burner switch to the ON position. Adjust thermostat to desired tem- Do not locate near any combustible material. Keep all perature setting. (The burner will light automatically.) flammable material at least 20 feet away. -
Page 8: Maintenance And Service
WATER HEATER SERIES OPERATOR’S MANUAL Step 4 After circulating solution flush entire system with MAINTENANCE AND SERVICE fresh water. Winterizing Procedure: Removal of Soot In Heating Coil: Damage due to freezing is not covered by warranty. Ad- In the heating process fuel residue, in the form of soot here to the following cold weather procedures whenever deposits, may develop between the heating coil pipes the washer must be stored or operated outdoors under... -
Page 9: Field Service Of Fuel Pump
WATER HEATER SERIES OPERATOR’S MANUAL Fuel Control System: 5. Carefully remove the fuel pump (Item #53) from the blower motor, leaving the flexible zinc fuel line con- The machine utilizes a fuel solenoid valve located on the nected, carefully bend the fuel line and fuel pump fuel pump to control the flow of fuel to the combustion away from the blower motor. -
Page 10: Machine Assembly Exploded View
WATER HEATER SERIES OPERATOR’S MANUAL MACHINE ASSEMBLY EXPLODED VIEW 36 - Reverse View 97-6149 • 97-6162 • 97-6133 • Rev. 3/04... -
Page 11: Machine Assembly Exploded View Parts List
Screw, 6/32" x 2" 10-09004 Decal, Discharge 90-20041 Collar, 5/8" Bore Shaft 3010 10-09003 Decal, Inlet 95-07102225 Axle 11-013 Label, Shark Logo 90-4005 Washer, 5/8" 90-20061 Nut, 5/16", Cap 95-07200122 Bracket, Fuel Tank, Left 90-1018 Bolt, 5/16" x 1-3/4" 95-07200124... -
Page 12: Burner Assembly, Exploded View
WATER HEATER SERIES OPERATOR’S MANUAL BURNER ASSEMBLY EXPLODED VIEW PARTS LIST To Fuel Tank Inlet Outlet 97-6149 • 97-6162 • 97-6133 • Rev. 3/04... -
Page 13: Burner Assembly Exploded View Parts Lists
WATER HEATER SERIES OPERATOR’S MANUAL BURNER ASSEMBLY EXPLODED VIEW PARTS LIST ITEM PART NO. DESCRIPTION ITEM PART NO. DESCRIPTION 2-0036 Tee, 1/2", Fem., Steel Pipe 7-50044 Coupling, Fuel Pump 2-0046 Tee, 1/2", Street 7-15070 Coil Replacement 2-0052 Nipple, 1/2" JIC x 1/2" Pipe 6-021740 Reed, Replacement, MV60 2-0054... -
Page 14: Troubleshooting
WATER HEATER SERIES OPERATOR’S MANUAL TROUBLESHOOTING PROBLEM POSSIBLE CAUSE SOLUTION BURNER WILL NOT Disconnected or short in electrical All wire contacts should be clean and tight. No wiring breaks in wire. LIGHT Burner motor thermal protector If tripped, check voltage, connections and tripped extensions for cause. -
Page 15: Troubleshooting
Fuel filter partially clogged Replace as needed. Soot build up on coils Clean coils with soot remover. Lime build up on coils Clean inside of coils using Shark's coil cleaner. Improper burner nozzle See specifications. WATER Incoming water to machine warm or Lower incoming water temperature. -
Page 16: Preventative Maintenance
WATER HEATER SERIES OPERATOR’S MANUAL PREVENTATIVE MAINTENANCE MAINTENANCE SCHEDULE Machine Clean Daily Water Lines Check Daily Fittings Check Daily Fuel Filter Clean Weekly Inlet Strainer Clean Weekly Fuel Nozzle Clean Weekly Fuel Tank Clean Weekly Electrodes Adjust Monthly Fuel Pump Strainer Clean Monthly Electrode Wires... -
Page 17: Warranty
TICULAR PURPOSE. SHARK does not authorize any other party, including authorized Dealers, to make any representation or promise on behalf of SHARK, or to modify the terms, conditions, or limitations in any way. It is the buyer’s responsibility to ensure that the installation and use of SHARK products conforms to local codes. - Page 18 Form #97-6133 • Revised 3/04 • Printed in U.S.A.
