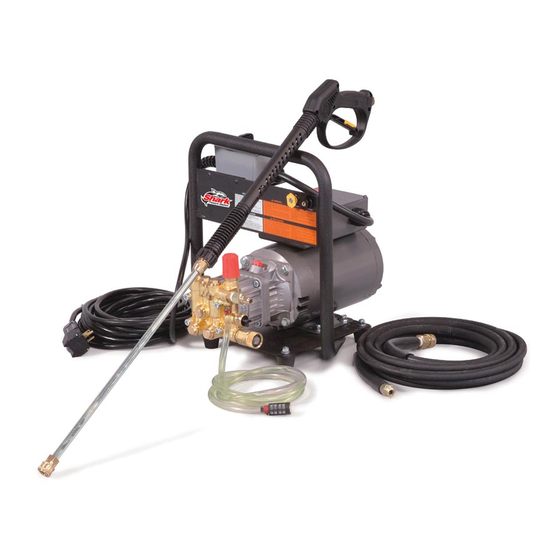

- Page 1 MODEL: HE OPERATING INSTRUCTION AND PARTS MANUAL HE-2010 HE-2015 For technical assistance or the SHARK dealer nearest you, call 1-800-771-1881 or visit our website at www.shark-pw.com 97-717...
-
Page 2: Table Of Contents
CONTENTS Important Safety Information ..............3-4 Component Identification ................ 5 Assembly Instructions ................6 Operating Instructions ................7 Applying Detergent and General Operating Techniques ......8 Shut Down and Clean-Up ............... 9 Storage ....................9 Troubleshooting ..................10 Preventative Maintenance ..............11 Oil Change Record ................ -
Page 3: Important Safety Information
WARNING: Flammable liquids INTRODUCTION WARNING can create fumes which can ig- nite, causing property damage or Thank you for purchasing a Pressure Washer. severe injury. Do not spray flam- All information in this manual is based on the latest prod- mable liquids. - Page 4 13. We will not be liable for any changes made to our standard machines, or any components not pur- chased from us. 14. Be certain all quick coupler fittings are secured be- fore using pressure washer. 15. Never run pump dry or leave spray gun closed longer than 5 minutes.
-
Page 5: Component Identification
COMPONENT IDENTIFICATION Plug (120V) Electric Power Motor Supply Water Oil Dip Faucet GFCI Stick Detergent Bucket (not included) Discharge Nipple Water Supply Hose Quick Coupler (not included) Inlet Connector Detergent Pick-up Tube Spray Nozzle Quick Coupler Wand Pressure Nozzle Trigger High Pressure Hose... -
Page 6: Assembly Instructions
ASSEMBLY INSTRUCTIONS Spray Pressure Nozzle Safety Wand Nozzle Latch Coupler Extension Spray Gun/ Wand High Pressure Hose STEP 1: Attach the high STEP 2: Attach nozzle extension to spray STEP 3: Pull the spring-loaded col- pressure hose to the spray gun/wand. -
Page 7: Operating Instructions
OPERATING INSTRUCTIONS Cold Water Source Garden Hose STEP 1: Connect garden hose to the STEP 2: Trigger the spray gun to STEP 4: Connect to ap- cold water source and turn water on eliminate trapped air then wait for propriate power supply. completely. -
Page 8: Applying Detergent And General Operating Techniques
DETERGENTS AND GENERAL OPERATING TECHNIQUES WARNING: Some detergents pump protector engages and cools the pump by dis- WARNING charging the warm water onto the ground. This thermal may be harmful if inhaled or in- device prevents internal damage to the pump. gested, causing severe nausea, fainting or poisoning. -
Page 9: Shut Down And Clean-Up
SHUTTING DOWN AND CLEAN-UP STEP 3: Turn off water supply. STEP 1: Remove de- STEP 2: Turn off machine by STEP 4: Press trigger flipping switch on rear of mo- tergent suction tube to release water pres- from container and in- tor. -
Page 10: Troubleshooting
TROUBLESHOOTING PROBLEM POSSIBLE CAUSE SOLUTION PUMP RUNNING Pump sucking air Check water supply and possibility of air seepage. NORMALLY BUT Check valves sticking Check and clean or replace if necessary. PRESSURE LOW ON Unloader valve seat faulty Check and replace if necessary. INSTALLATION Nozzle incorrectly sized Check and replace if necessary. -
Page 11: Preventative Maintenance
PREVENTATIVE MAINTENANCE This pressure washer was produced with the best available materials and quality craftsmanship. However, you as the owner have certain responsibilities for the correct care of the equipment. Attention to regular preventative maintenance procedures will assist in preserving the performance of your equipment. Contact your dealer for maintenance. -
Page 12: Exploded View
EXPLODED VIEW Models 201406D, 2015070 Models 201006D, 201007D, 2-11026D 96-723, 97-715, 97-716, 97-717 • REV. 2/04... -
Page 13: Exploded View Parts List
EXPLODED VIEW PARTS LIST ITEM PART # DESCRIPTION ITEM PART # DESCRIPTION 6-01062 GFCI, 120V, 15 Amp w/36' 12-3 4-12804015 Nozzle, SAQCMEG 1504 Cord (201006D, 201007D, Yellow (201006D, 201007D, 211026D) 2-11026D) 6-01060 GFCI, 120V 20 Amp w/36' 12-3 4-12803015 Nozzle, SAQCMEG 1503 Yellow Cord (201406D, 201507D) 1 (201406D, 201507D) 6-03911... -
Page 14: Hose And Spray Gun Assembly
HOSE & SPRAY GUN ASSEMBLY Pressure Nozzle Brass Soap Nozzle HOSE & SPRAY GUN ASSEMBLY PARTS LIST ITEM PART NO. DESCRIPTION ITEM PART NO. DESCRIPTION 2-2002 Coupler, 3/8" Female 2-2000 Coupler, 1/4” Female 2-0121 Quick Coupler O-Ring 2-0119 Quick Coupler O-Ring 4-0203030C Hose, 30' x 3/8"... -
Page 15: Warranty
TICULAR PURPOSE. SHARK does not authorize any other party, including authorized Dealers, to make any representation or promise on behalf of SHARK, or to modify the terms, conditions, or limitations in any way. It is the buyer’s responsibility to ensure that the installation and use of SHARK products conforms to local codes. - Page 16 Form #97-717 • Revised 2/04 • Printed in U.S.A.
