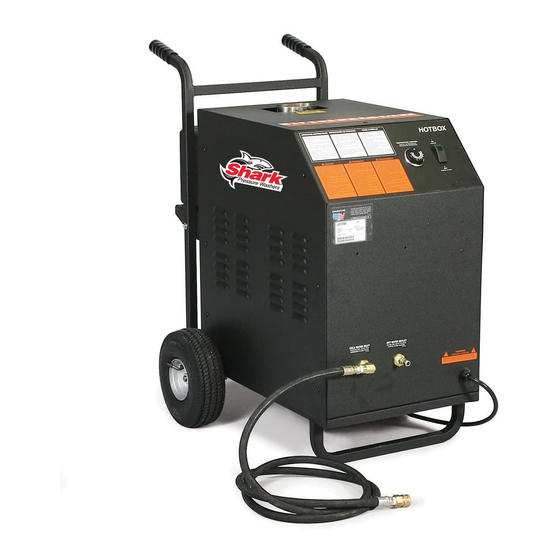

Shark HP-5030D Operating Instructions And Parts Manual
Hp series
Hide thumbs
Also See for HP-5030D:
- Operating instructions and parts manual (22 pages) ,
- Operating instructions and parts manual (18 pages)
Subscribe to Our Youtube Channel
Related Manuals for Shark HP-5030D
Summary of Contents for Shark HP-5030D
- Page 1 MODEL: HP OPERATING INSTRUCTION AND PARTS MANUAL HP-5030D SHARK PRESSURE WASHERS 4275 N.W. Pacific Rim Blvd. Camas, WA 98607 USA For technical assistance or the Shark Dealer nearest you, call 1-800-771-1881.
- Page 3 Exhaust Stack Size: HP-5030D 120 PSI HP-5030D 3.5" x 6.5" Machine Dimensions: HP-5030D Length = 29" Width = 41" Height = 47" SERIAL NUMBER: DATE PURCHASED: FOR SALES AND SERVICE, PLEASE CONTACT: Shark HP Manual • Form #97-6133 • Revised 3/02...
-
Page 4: Table Of Contents
MACHINE SPECIFICATIONS Introduction............. 5 Maintenance and Service ........9-10 Important Safety Information ....... 5-6 HP-5030D Exploded View ........11 Installation ............6,9 Burner Assembly, Exploded View ......12 Component Identification, HP-5030D ...... 7 Exploded Views, Parts Lists ........13 Starting and Operating Instructions ......8 Troubleshooting .......... -
Page 5: Introduction
UL approved ground fault circuit interrupter (GFCI) This manual covers the operation and maintenance of power cord. the HP-5030D heater module. All information in this manual is based on the latest product information avail- WARNING: Flammable liquids WARNING able at the time of printing. -
Page 6: Installation
HP SERIES OPERATOR’S MANUAL 8. High pressure developed by the attached pressure 20. We will not be liable for any changes made to our washer can cause bodily injury or damage. Use cau- standard machines, or any components not pur- tion when operating. -
Page 7: Component Identification, Hp-5030D
HP SERIES OPERATOR’S MANUAL COMPONENT IDENTIFICATION CAUTION HOT WATER: Must use insulated spray gun and wand. Pressure Washer 3,000 PSI Maximum (not included) Fresh Water Faucet Pressure Washer Coupler Garden Hose (not included) Diesel Fuel Tank Insulated Wand (not included) Insulated Spray Gun (not included) -
Page 8: Starting And Operating Instructions
HP SERIES OPERATOR’S MANUAL Electrical: 6. Start up attached pressure washer according to the manufacturers instructions. When a steady stream This machine, when installed, must be electrically of water flows from the spray gun and wand the ma- grounded in accordance to local codes. Check for proper chine is ready for cold water cleaning. -
Page 9: Maintenance And Service
HP SERIES OPERATOR’S MANUAL The areas around the HP should be kept clean and free Step 3 Attach a short section (3-5 ft.) of garden hose to of combustible materials, gasoline and other flammable the attached pressure washer to siphon solu- vapors and liquids. -
Page 10: Field Service Of Fuel Pump
HP SERIES OPERATOR’S MANUAL Burner Nozzle: 5. Carefully remove the fuel pump (Item #53) from the blower motor, leaving the flexible zinc fuel line con- Keep the tip free of surface deposits by wiping it with a nected, carefully bend the fuel line and fuel pump clean, solvent-saturated cloth, being careful not to plug away from the blower motor. -
Page 11: Hp-5030D Exploded View
HP SERIES OPERATOR’S MANUAL HP-5030D EXPLODED VIEW... -
Page 12: Burner Assembly Exploded View
HP SERIES OPERATOR’S MANUAL BURNER ASSEMBLY EXPLODED VIEW To Fuel Tank To Terminal Block Inlet Outlet... -
Page 13: Exploded View Parts List
2-0031 Elbow, 3/8" Street Pressure Loop 11-0110 Label, Hotbox, Control Panel 4-02100000 Hose, 1/4", Push-On, 11-013 Label, Shark Logo, X-Large Fuel Line Per Ft. Die Cut 4-0303 Wheel & Tire, 4" Steel Rim 7-726679 Ignition Wire / Silicon Cable 4-05088... -
Page 14: Troubleshooting
HP SERIES PRESSURE WASHER OPERATOR’S MANUAL TROUBLESHOOTING PROBLEM POSSIBLE CAUSE SOLUTION BURNER WILL NOT Disconnected or short in electrical All wire contacts should be clean and tight. No LIGHT wiring breaks in wire. Burner motor thermal protector If tripped, check voltage, connections and tripped extensions for cause. - Page 15 Fuel filter partially clogged Replace as needed. Soot build up on coils Clean coils with soot remover. Lime build up on coils Clean inside of coils using Shark's coil cleaner. Improper burner nozzle See specifications. WATER Incoming water to machine warm or Lower incoming water temperature.
-
Page 16: Preventative Maintenance
HP SERIES OPERATOR’S MANUAL PREVENTATIVE MAINTENANCE MAINTENANCE SCHEDULE Machine Clean Daily Water Lines Check Daily Fittings Check Daily Fuel Filter Clean Weekly Inlet Strainer Clean Weekly Fuel Nozzle Clean Weekly Fuel Tank Clean Weekly Electrodes Adjust Monthly Fuel Pump Strainer Clean Monthly Electrode Wires... -
Page 17: Warranty
TICULAR PURPOSE. SHARK does not authorize any other party, including authorized Dealers, to make any representation or promise on behalf of SHARK, or to modify the terms, conditions, or limitations in any way. It is the buyer’s responsibility to ensure that the installation and use of SHARK products conforms to local codes. - Page 18 4275 N.W. Pacific Rim Blvd. • Camas, WA 98607 • 1-800-771-1881 Form #97-6133 • Revised 3/02 • Printed in U.S.A.
