Logik L7SPDVD11 Instruction Manual

7" portable dvd player
Hide thumbs
Table of Contents

Advertisement

Quick Links

7" Portable DVD Player
Instruction Manual
L7SPDVD11
L7SPDVD11_IB_110322_Zell.indd 1
22/03/2011 12:14 PM

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the L7SPDVD11 and is the answer not in the manual?

Questions and answers

Related Manuals for Logik L7SPDVD11

Summary of Contents for Logik L7SPDVD11

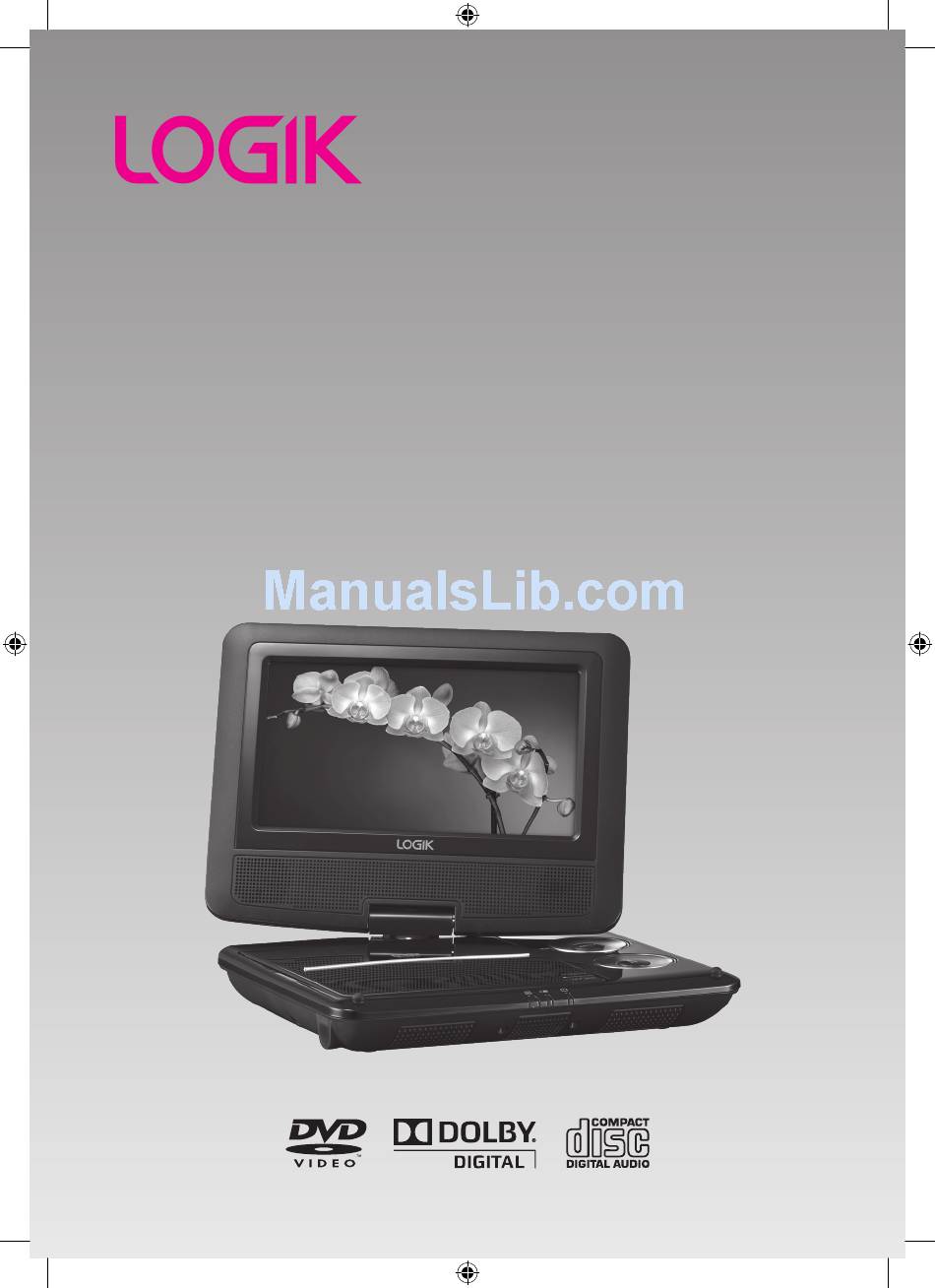

  • Page 1 7” Portable DVD Player Instruction Manual L7SPDVD11 L7SPDVD11_IB_110322_Zell.indd 1 22/03/2011 12:14 PM...
  • Page 2 L7SPDVD11_IB_110322_Zell.indd 2 22/03/2011 12:14 PM...
  • Page 3 L7SPDVD11_IB_110322_Zell.indd 3 22/03/2011 12:14 PM...

  • Page 4: Table Of Contents

    Contents Unpacking ........................6 Product Overview ......................7 Front View ..............................7 Right Side View ............................8 Remote Control ......................9 Removing the Insulating Strip from the Remote Control ........11 Battery Installation for the Remote Control ............11 How to Swivel the Display ..................12 Swivel Mode ............................
  • Page 5 Angle Selection ..........................20 Audio Channel ..........................20 Subtitle Language ........................... 21 INFO ..............................21 Programmable Memory ........................ 21 Zoom Selection ..........................21 TITLE ..............................21 MENU ..............................21 Customising the General Settings................22 Customising the Audio Settings ................23 Customising the Video Settings ................

  • Page 6: Unpacking

    Thank you for purchasing your new Logik Portable DVD Player. These operating instructions will help you use it properly and safely. We recommend that you spend some time reading this instruction manual in order that you fully understand all the operational features it offers.

  • Page 7: Product Overview

    Product Overview Front View LCD Display Speakers Disc Door Cursor Buttons Allows you to navigate the menu screen and adjust certain settings. Button: fast forward Press to perform fast forward playback. Button: fast reverse Press to perform fast reverse playback. Button: previous track ENTER Press to move back to the...

  • Page 8: Right Side View

    Right Side View SD/MMC/MS SD/MMC/MS Memory Card Slot COAXIAL Socket USB Slot ON/OFF Switch AV OUT Socket DC IN 9-12V Socket Earphone Socket GB-8 L7SPDVD11_IB_110322_Zell.indd 8 22/03/2011 12:15 PM...

  • Page 9: Remote Control

    Remote Control STEP Button Frame Advance in DVD mode. SEARCH Button STEP MUTE SOURCE To search and start playback from a selected point on the disc. 0-9, 10+ Number Buttons Create programs or locate a title/ chapter/track or specific time. DISPLAY SUBTITLE Button SUBTITLE...
  • Page 10 13. SOURCE Button Select among the different input sources: DVD / USB / Memory STEP MUTE SOURCE Card. 14. MUTE Button To mute or restore your DVD sound output. 15. DISPLAY Button DISPLAY To display the playtime and show SUBTITLE AUDIO MENU status information on the screen.

  • Page 11: Removing The Insulating Strip From The Remote Control

    Removing the Insulating Strip from the Remote Control Remove the insulating mylar strip from the battery if the battery is being used for the first time. It is located at the bottom back side of the remote control. Battery Installation for the Remote Control The remote control requires a CR2025, 3V Lithium battery.

  • Page 12: How To Swivel The Display

    • Do not dispose of the used battery as domestic waste. Dispose of it in accordance with the local regulations. • Small button cell batteries such as the one used in the remote control are easily swallowed by young children and this is dangerous. Keep loose button cells away from young children and make sure that the battery holder tray is secure in the remote control.

  • Page 13: Remote Control Operation Range

    Remote Control Operation Range Point the remote control at the unit no more than 2 metres from the remote control sensor and within 40° of the front of the unit. The operating distance may vary depending on the brightness of the room. ENTER SETUP VOL-...

  • Page 14: Charging The Battery

    Charging the Battery 1. Connect the mains adapter (Included) to the DC IN socket at the right side of the unit and then connect the mains adapter to a mains socket. • The LED indicator illuminates red indicating that the battery is in charging mode.

  • Page 15: Connections

    Connections Connecting to a TV If your TV has audio/video inputs, you can connect the unit to your TV using a 3.5mm to RCA AV Cable (not included). DVD Player Right Side SD/MMC/MS White To AV OUT AUDIO IN Socket VIDEO IN Yellow 3.5mm to RCA AV Cable...

  • Page 16: Using A Usb Device Or And Sd/Mmc/Ms Card

    Using a USB Device or and SD/MMC/MS Card General Operation You can play or view picture files (JPEG) or music files (MP3) from a USB device or SD/ MMC/MS card. 1. Connect the USB device or SD/MMC/MS card directly to the USB slot or SD/MMC/MS slot on the DVD player.

  • Page 17: Compatible Disc Types

    Compatible Disc Types Disc Types Disc Logo Recorded Content DVD-VIDEO (Digital Versatile Disc) AUDIO + VIDEO DVD±RW (Audio/Video format or JPEG AUDIO (MP3) + JPEG files) DVD+ReWritable DVD±R (DVD Recordable - Audio/Video AUDIO (MP3) + JPEG format or JPEG files) DVD+R CD-R (CD Recordable - Audio/Video format AUDIO (MP3) + JPEG...

  • Page 18: Turning On The Dvd Player

    1. Slide the ON/OFF switch to ON position on the side panel to turn the DVD player on. 2. The LOGIK DVD logo (start-up picture) will appear on the screen and the unit will start loading the disc automatically (if available).

  • Page 19: Pausing Playback

    Pausing Playback 1. During playback, press the button on the unit or the remote control to pause playback. 2. Press the button again on the unit or the remote control to resume normal playback. Selecting Chapter / Title time / Chapter time (for DVD) 1.

  • Page 20: Repeat Mode

    Repeat Mode Press the REPEAT button on the remote control repeatedly to select different repeat modes. Menu DVD Description CD Description First Press Repeat Chapter Repeat Track Second Press Repeat Title Repeat All Third Press Repeat All Repeat off – Forth Press Repeat off Slow...

  • Page 21: Subtitle Language

    Subtitle Language Press the SUBTITLE button on the remote control repeatedly to switch between different subtitle languages that are available on the disc. INFO You can view the disc information (such as current title / chapter / track number, total playing time or remaining time on the disc) without interrupting the disc playback.

  • Page 22: Customising The General Settings

    Customising the General Settings 1. Press the SETUP button to display the setup menu. - - GENERAL SETUP PAGE - - 2. Press the buttons to select TV DISPLAY WIDE ANGLE MARK GENERAL SETUP PAGE. OSD LANGUAGE CLOSED CAPTIONS SCREEN SAVER GOTO GENERAL SETUP PAGE 3.

  • Page 23: Customising The Audio Settings

    Customising the Audio Settings 1. Press the SETUP button to display the setup menu. - - AUDIO SETUP PAGE - - buttons to select AUDIO 2. Press the DOWNMINX DIGITAL OUTPUT SETUP PAGE. DOLBY DIGITAL GOTO AUDIO SETUP PAGE 3. Press the buttons to select the following options and then press the buttons to change the setting.

  • Page 24: Customising The Video Settings

    Customising the Video Settings 1. Press the SETUP button to display the setup menu. - - VIDEO SETUP PAGE - - buttons to select VIDEO 2. Press the SHARPNESS BRIGHTNESS SETUP PAGE. CONTRAST SATURATION GOTO VIDEO SETUP PAGE 3. Press the buttons to select the following options and then press the buttons to change the setting.
  • Page 25 SUBTITLE Allows you to choose the preferred subtitle language of your disc. If the preferred language is not available on the disc, the DVD player will automatically use the DVD disc’s default language. DISC MENU Allows you to choose the preferred menu language of your disc. If the preferred language is not available on the disc, the DVD player will automatically use the DVD disc’s default language.

  • Page 26: Customising The Password Settings

    Customising the Password Settings 1. Press the SETUP button to display the setup menu. - - PASSWORD SETUP PAGE - - 2. Press the buttons to select PASSWORD MODE PASSWORD PASSWORD SETUP PAGE. GOTO PASSWORD SETUP PAGE 3. Press the buttons to select the following options and then press the buttons to change the setting.

  • Page 27: Maintenance

    Maintenance Handling Discs • Do not touch the playback side of the disc. • Do not attach paper or tape to the disc. Playback side Cleaning Discs • Fingerprints and dust on the disc cause picture and sound deterioration. Wipe the disc from the centre outwards with a soft cloth.

  • Page 28: Hints And Tips

    Hints and Tips If a problem does occur, it may often be due to something very minor. The following table contains various tips. SYMPTOM CAUSE / SOLUTION No power. • Ensure the car power adapter or the mains adapter is connected.
  • Page 29 SYMPTOM CAUSE / SOLUTION The disc does not • There is no disc inside the unit (“NO DISC” appears on the play. display). • Insert the disc correctly with the graphics facing up. • Clean the disc. • A non-valid disc has been inserted, or the disc region number does not match the region number of the unit.

  • Page 30: Specifications

    Specifications Model L7SPDVD11 Electronical Parameters Power Requirements AC 100-240 V , 50/60 Hz (Mains Adapter) Dimensions (Approx.) 204(L) x 165(W) x 41(H) mm Power Consumption <10W Weight (Approx.) 0.9 kg Operating Humidity 5 % to 90 % Video Out 1Vp-p (75Ω) Audio Out 1.4 Vrms (1 KHz, 0 dB)

  • Page 31: Safety Warnings

    Safety Warnings Ventilation • Read all the instructions carefully before using the unit and keep them for future reference. • To prevent the risk of electric shock or fire • Retain the manual. If you pass the unit onto a hazard due to overheating, ensure that curtains third party make sure to include this manual.
  • Page 32 Supervision Service • Children should be supervised to ensure that • To reduce the risk of electric shock, do not they do not play with the unit and the remote remove screws. The unit does not contain control. any user-serviceable parts. Please leave all maintenance work to qualified personnel.
  • Page 33 NOTE: If you require a replacement for any of the items listed below, please quote their corresponding part numbers: Replacement Part Part Number Remote Control 1706-164009-16C Mains Adapter 5331-079510-04R Car Power Adapter 5338-081330-20P Earphones 7100-332015-02P Visit Partmaster.co.uk today for the easiest way to buy electrical spares and accessories.
  • Page 34 L7SPDVD11_IB_110322_Zell.indd 34 22/03/2011 12:15 PM...
  • Page 35 L7SPDVD11_IB_110322_Zell.indd 35 22/03/2011 12:15 PM...
  • Page 36 L7SPDVD11_IB_110322_Zell.indd 36 22/03/2011 12:15 PM...
