7" In Car Dual
Portable DVD Player
Instruction Manual
L7DUALM11

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the L7DUALM11 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Logik L7DUALM11

Summary of Contents for Logik L7DUALM11

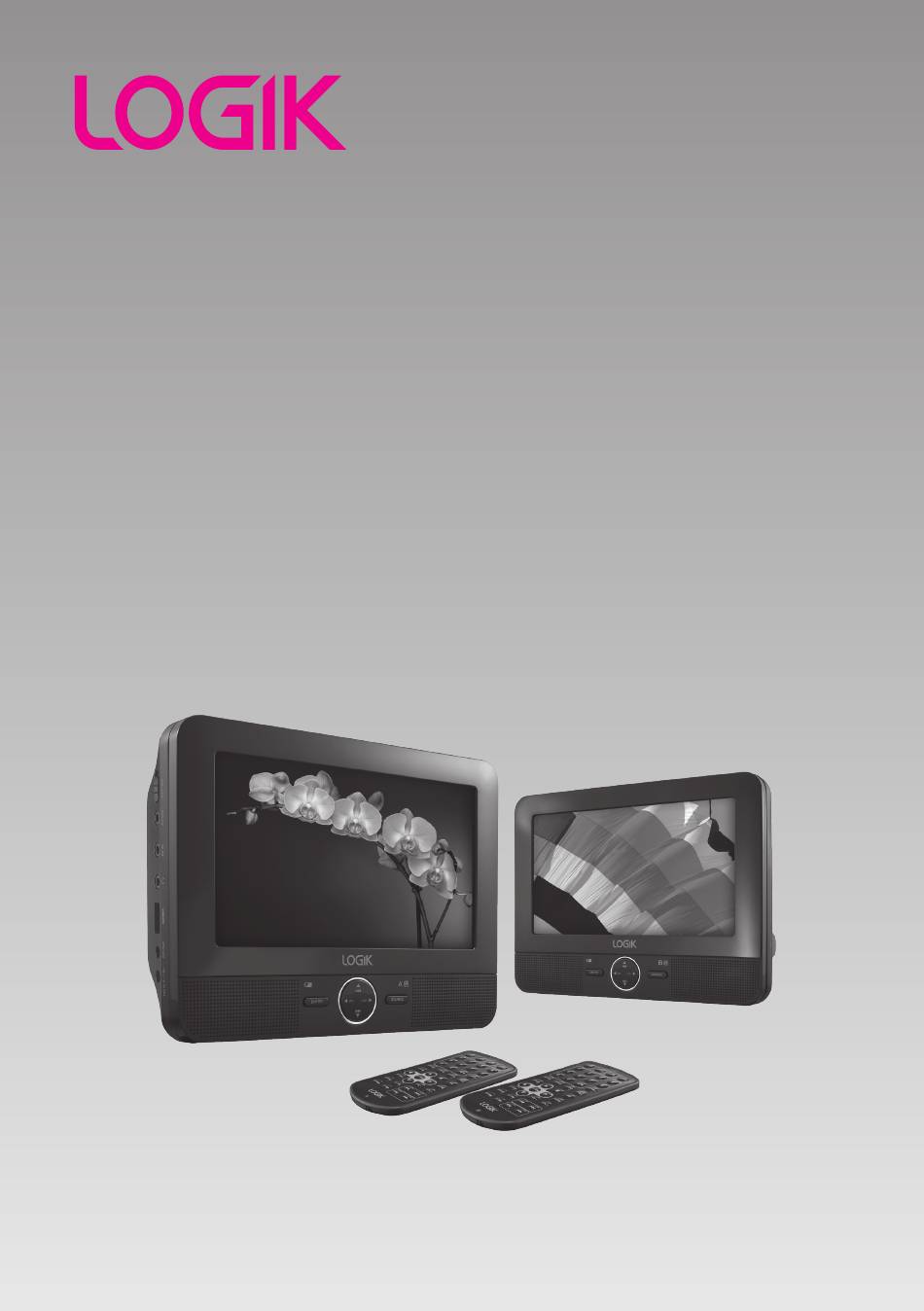

  • Page 1 7” In Car Dual Portable DVD Player Instruction Manual L7DUALM11...

  • Page 3: Table Of Contents

    Contents Unpacking ........................5 Product Overview ......................6 DVD Players A & B ..........................6 Remote Controls A & B ....................7 Removing the Insulating Strips from the Remote Controls ........9 Battery Replacement for the Remote Control ..............9 Remote Control Operation Range ................10 In-Car Use ........................
  • Page 4 Repeat Mode ............................. 20 Slow ..............................21 Angle Selection ..........................21 Audio Channel ..........................21 Subtitle Language ........................... 21 Info ................................ 21 Programmable Memory ........................ 22 Zoom Selection ..........................22 Title ............................... 22 Menu ..............................22 Customising the General Settings................22 Customising the Audio Settings ................

  • Page 5: Unpacking

    Thank you for purchasing your new Logik Portable DVD Player. We recommend that you spend some time reading this instruction manual in order to fully understand all the operational features it offers. You will also find some hints and tips to help you resolve any issues.

  • Page 6: Product Overview

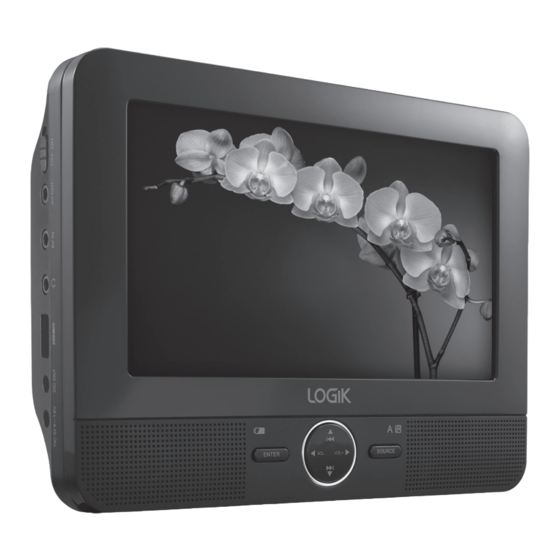

    Product Overview DVD Players A & B Front View LCD Display Remote Sensor Receive signals from the remote control. Speakers ENTER Button Confirm selection on a menu screen. Cursor Buttons ENTER SOURCE VOL– VOL+ Navigate the menu screen and adjust certain settings.

  • Page 7: Remote Controls A & B

    Remote Controls A & B STEP Button Frame Advance in DVD mode. STEP MUTE SOURCE SEARCH Button To search and start playback from a selected point on the disc. 0-9, 10+ Number Buttons Create programmes or locate a title/ chapter/track or specific time. DISPLAY SUBTITLE Button SUBTITLE...
  • Page 8 13. SOURCE Button Select an input source: DVD / USB / Memory Card. STEP MUTE SOURCE 14. MUTE Button Mute or restore your DVD sound output. 15. DISPLAY Button Display the playtime and show status information on the screen. DISPLAY 16.

  • Page 9: Removing The Insulating Strips From The Remote Controls

    Removing the Insulating Strips from the Remote Controls Remove the insulating mylar strips from the batteries if the batteries are being used for the first time. It is located at the bottom rear side of the remote controls. Battery Replacement for the Remote Control The remote control requires a CR2025, 3V Lithium battery.

  • Page 10: Remote Control Operation Range

    • Do not dispose of the used battery as domestic waste. Dispose of it in accordance with the local regulations. • Small button cell batteries such as the one used in the remote control are easily swallowed by young children and this is dangerous. Keep loose button cells away from young children and make sure that the battery holder tray is secure in the remote control.

  • Page 11: In-Car Use

    In-Car Use Using the DVD Players A and B Together (in-car use) To playback on both DVD players A and B together, use the car power adapter (included) to connect both units to the car’s cigarette lighter socket. The included 12V car power adapter is designed for use with vehicles that have a 12V negative ground electrical system.

  • Page 12: Mounting The Dvd In A Car

    Mounting the DVD in a Car Use the supplied mounting kit to install the DVD players on the back of the vehicle’s headrests. Align the angled support’s bolt to the screw hole on the back of the DVD unit. Turn the bolt clockwise and secure the support.

  • Page 13: Installation Guide

    Grip the DVD firmly with both hands and slot the angled support firmly into the support bar. It will click. Ensure the entire unit is secure. Adjust the angle of the DVD unit, then secure by tightening the bolt on the right. To remove the DVD from the horizontal support bar, support the DVD unit with one hand.

  • Page 14: Using The Dvd Players A And B Indoors

    Using the DVD Players A and B Indoors Using the Mains Adapter (for indoor use) The mains adapter (DC9V, 2A output) supplied is for using and recharging the DVD players A or B separately. To recharge the DVD Players separately, one more adapter is needed and sold separately. Please contact Partmaster to order the adapter.

  • Page 15: Connections

    Connections Connecting a TV (for the DVD Player Only) If your TV has Audio/Video inputs, you can connect the DVD player to your TV by using a standard AV cable (not included). DVD player left side 3.5mm to RCA AV Converter RCA AV Cable (included) (not included)

  • Page 16: Connecting To A Multi-Channel Audio Receiver

    Listening with an External Audio Device Connect the DVD player to the left/right Audio In sockets on the audio device by using the included 3.5mm to RCA AV Converter and a standard RCA Stereo Audio Cable (not included). Turn on your audio device and follow the instructions provided with it to select the AUDIO IN function.

  • Page 17: Using The Stand For Indoor Use

    Using The Stand For Indoor Use You can stand the DVD player up on a desk or table by using the stand on the bottom. DVD player left side Using an USB Device or/and SD/MS/MMC Card General Operation You can play or view picture files (JPEG) or music files (MP3) from a USB device or SD/MS/MMC card.

  • Page 18: Compatible Disc Types

    Compatible Disc Types Disc Types Disc Logo Recorded Content DVD-VIDEO (Digital Versatile Disc) AUDIO + VIDEO DVD±RW (Audio/Video format or JPEG files) AUDIO (MP3) + JPEG DVD+ReWritable DVD±R (DVD Recordable - Audio/Video format AUDIO (MP3) + JPEG or JPEG files) CD-R (CD Recordable - Audio/Video format or AUDIO (MP3) + JPEG JPEG files)

  • Page 19: Turning On The Dvd Player

    Turning On the DVD Player Slide the ON/OFF switch to ON position on the left panel to turn the DVD player on. The LOGIK DVD logo (start-up picture) will appear on the screen and the unit will start loading the disc automatically (if available).

  • Page 20: Playback Pausing

    Playback Pausing During playback, press the button on the remote control to stop playback for a while. Press the button again on the remote control to resume normal playback. Selecting Chapter / Title time / Chapter time (for DVD) During Playback, press the SEARCH button repeatedly on the remote control to display the disc information text line for Chapter / Title time / Chapter time.

  • Page 21: Slow

    Slow Press the SLOW button on the remote control when a DVD is playing to enter slow playback. Each time you press the SLOW button on the remote control, the playback speed changes in the following sequence: 1/16 Normal 1/16 Angle Selection Some DVDs contain scenes which have been shot from a number of different angles.

  • Page 22: Programmable Memory

    Programmable Memory For DVD, CD Press the PROGRAM button to display the PROGRAM MENU. Press • the 0-9, 10+ buttons to input the title/chapter/track number and then press the buttons to select START. To resume normal playback, press the PROGRAM button and press •...
  • Page 23 Press the buttons to select the following options and then press the buttons to change the setting. TV DISPLAY To select the aspect ratio of the playback picture. 4:3 PANSCAN If you have a conventional TV and want both sides of the wide picture to be trimmed or formatted to fit your TV screen.

  • Page 24: Customising The Audio Settings

    Customising the Audio Settings Press the SETUP button to display the setup menu. - - AUDIO SETUP PAGE - - buttons to select AUDIO Press the DOWNMINX SETUP PAGE. DIGITAL OUTPUT DOLBY DIGITAL GOTO AUDIO SETUP PAGE Press the buttons to select the following options and then press the buttons to change the setting.

  • Page 25: Customising The Video Settings

    Customising the Video Settings Press the SETUP button to display the setup menu. - - VIDEO SETUP PAGE - - buttons to select VIDEO Press the SHARPNESS SETUP PAGE. BRIGHTNESS CONTRAST SATURATION GOTO VIDEO SETUP PAGE Press the buttons to select the following options and then press the buttons to change the setting.
  • Page 26 DISC MENU Allows you to choose the preferred menu language of your disc. If the preferred language is not available on the disc, the DVD player will automatically use the DVD disc’s default language. PARENTAL This feature allows you to block disc playback with specific ratings. The rating levels are from 1 to 8 and are country-dependent.

  • Page 27: Customising The Password Settings

    Customising the Password Settings Press the SETUP button to display the setup menu. - - PASSWORD SETUP PAGE - - buttons to select PASSWORD Press the PASSWORD MODE SETUP PAGE. PASSWORD GOTO PASSWORD SETUP PAGE Press the buttons to select the following options and then press the buttons to change the setting.

  • Page 28: Maintenance

    Maintenance Handling Discs • Do not touch the playback side of the disc. • Do not attach paper or tape to the disc. Playback side Cleaning Discs • Fingerprints and dust on the disc cause picture and sound deterioration. Wipe the disc from the centre outwards with a soft cloth.

  • Page 29: Hints And Tips

    Hints and Tips If a problem does occur, it may often be due to something very minor. The following table contains various tips. Symptom Cause / Solution No power. • Ensure the car power adapter or the mains adapter is connected. •...
  • Page 30 Symptom Cause / Solution The disc does not • There is no disc inside the unit (“NO DISC” appears on the display). play. • Insert the disc correctly with the graphics facing up. • Clean the disc. • A non-valid disc has been inserted, or the disc region number does not match the region number of the unit.

  • Page 31: Specifications

    Specifications Model L7DUALM11 Disc Format DVD, CD, CD-R, CD-RW, JPEG Picture CD Video System PAL, NTSC LCD Screen 7” Wide-Screen Active-Matrix TFT Type Audio: Video Decompression MPEG-2 2-Channel Analogue Audio Characteristic Dolby Digital Decoding Speaker 2 Built-in stereo speaker Terminals...

  • Page 32: Safety Warnings

    Safety Warnings Ventilation • Read all the instructions carefully before using the unit and keep them for future reference. • To prevent the risk of electric shock or fire hazard • Retain the manual. If you pass the unit onto a due to overheating, ensure that curtains and third party make sure to include this manual.
  • Page 33 Batteries CAUTION • Batteries used in the remote control for this unit RISK OF ELECTRIC SHOCK DO NOT OPEN are easily swallowed by young children and this is dangerous. The lightning flash with arrowhead symbol, within an equilateral triangle, is • Keep loose batteries away from young children intended to alert the user to the presence and make sure that the battery holder tray is...
  • Page 34 There are separate collection systems for recycling in the EU. For more information, please contact the local authority or your retailer where you purchased the product. All trademarks are the property of their respective owners and all rights are acknowledged. DSG Retail Ltd • Maylands Avenue • Hemel Hempstead Herts • HP2 7TG • England IB-L7DUALM11-121029V3...
