Logik L72PDT13E Quick Start Manual

Quick Start Guide
GB

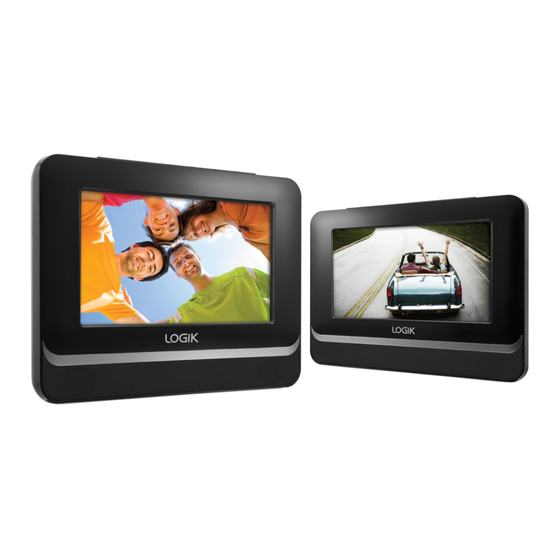

Dual 7"
Portable DVD Player
Thank you
for purchasing your new Logik DVD Player.
Please follow this quick start guide for a successful rst time set up.
We recommend that you spend some time reading the instruction manual in order to
fully understand all the operational features it offers.
Read all the safety instructions carefully before use and keep the instruction manual for
future reference.
1 1
Unpacking
Remove all items from the packaging. Retain the packaging. If you dispose of it please
do so according to any local regulations.
DVD Player x 2 Remote Control x 2
(with battery)
REPEAT REPEAT
POWER DISPLAY /PROG A-B
AUDIO/
ANGLE
SUBTITLE/
TITLE
MENU/
ZOOM
STOP/ SETUP
SLOW
ENTER GOTO
VOL– VOL+
SOURCE MUTE
Mains Adapter x 2 Car Power
Adapter
Instruction Manual Quick Start Guide
L72PDT13E
2 2
Operating your remote control
1. Slide and hold the battery release tab in the direction of
the arrow.
2. Pull out the battery holder and remove the old battery.
3. Replace with a new battery.
4. Insert the battery holder back into the remote control.
Install the batteries correctly by following the
polarity (+ and -) indications in the battery
compartment.
3 3
Connecting to the Mains Supply
The mains adapter (DC12V output) supplied
is only for using the DVD Player
4 4
Using in a car
Connecting for in-car Use
The included 12V car power adapter is designed for use with vehicles that have a 12V
electrical system.
Mounting Kit x 2
DVD Player A
(Right side)
1
2
3
4
Power adaptor
To the mains
socket
To DC IN
12V Socket
USB
AV OUT PHONE DC IN 12V • ON OFF •
DVD Player
• ON OFF •
(Right side)
DVD Player B
(Right side)
Car Power Adapter
(Included)
To DC IN
To DC IN
12V Socket
12V Socket
5 5
Mounting in a car
1. Insert DVD Player A and B into a 3. Loop the straps around the headrest,
designed bags with the DVD Player facing the rear
seat, then fasten the straps with the
2. Thread the mounting kit's strap
clip.
ends through the strap eyelets.
Installation Guide
DVD Player A
Remote POWER DISPLAY /PROG REPEAT REPEAT A-B
ANGLE AUDIO/
TITLE SUBTITLE/
Control A ZOOM MENU/
STOP/ SLOW SETUP
ENTER GOTO
VOL– VOL+
SOURCE MUTE
6 6
Basic operation
DVD Player A
1. Slide the ON/OFF switch to the ON position.
(Right side)
2. Slide the OPEN switch to open the disc cover.
3. Hold the disc by its sides and carefully place
onto the disc holder with the label side facing
up. Gently push the disc down until you hear
a "click".
4. Close the disc cover. Use the stand located at
the rear of the unit or hold the DVD player in
your hands (be careful not to touch the unit's
disc door). The unit starts playback if the disc
does not have any menus recorded on it. If
the disc has one or more titles recorded on it,
a menu screen will appear on the screen.
5. To play a title, press the / 0-9 buttons
on the remote control to highlight the title and
then press the button on the unit or the
remote control.
T T
You will nd that there are many exciting features available.
ip: ip:
To get to know all these features, please take some time to read the
instruction manual provided.
DVD Player B
Car Power
Adapter
POWER DISPLAY /PROG REPEAT REPEAT A-B Remote
AUDIO/ ANGLE
TITLE SUBTITLE/
MENU/ ZOOM
Control B
STOP/ SLOW SETUP
ENTER GOTO
VOL– VOL+
SOURCE MUTE
DVD Player B
(Right side)
Power
switch
• ON OFF •
REPEAT REPEAT
POWER DISPLAY
/PROG A-B
AUDIO/
ANGLE
SUBTITLE/
TITLE
MENU/
ZOOM
STOP/ SETUP
SLOW
ENTER GOTO
VOL– VOL+
SOURCE MUTE
QSG-L72PDT13E-130314V1-1
