7" portable dvd player

Advertisement

Quick Links

7" Portable DVD Player
Instruction Manual
L7SLIDE11

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the L7SLIDE11 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Logik L7SLIDE11

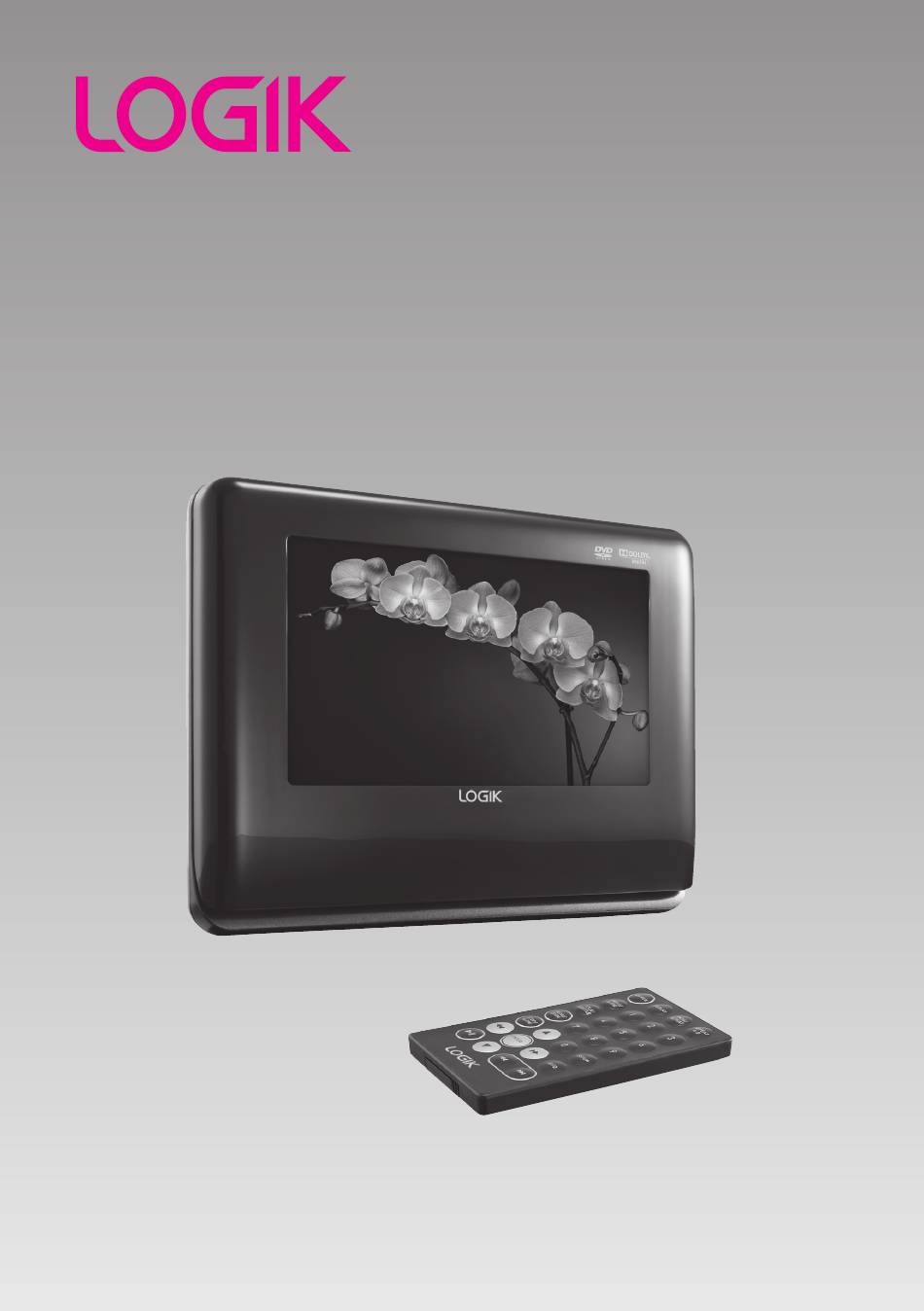

  • Page 1 7” Portable DVD Player Instruction Manual L7SLIDE11...
  • Page 4: Table Of Contents

    Contents Unpacking ������������������������������������������������������������������������������������������������������������������������������� 6 Product Overview ������������������������������������������������������������������������������������������������������������������� 7 Left Side View and Front View ������������������������������������������������������������������������������������������������������������������������7 Top View �����������������������������������������������������������������������������������������������������������������������������������������������������������������8 Rear View ���������������������������������������������������������������������������������������������������������������������������������������������������������������8 Right Side View ����������������������������������������������������������������������������������������������������������������������������������������������������8 Remote Control ����������������������������������������������������������������������������������������������������������������������� 9 Removing the Insulating Strip from the Remote Control �������������������������������������������������10 Battery Replacement for the Remote Control ��������������������������������������������������������������������10 –...
  • Page 5 Audio CD, JPEG Picture CD Playback�����������������������������������������������������������������������������������19 Loading a Disc ��������������������������������������������������������������������������������������������������������������������������������������������������� 19 Playing an Audio CD ��������������������������������������������������������������������������������������������������������������������������������������� 19 Playing MPEG4/JPEG Picture CD ���������������������������������������������������������������������������������������������������������������� 20 The Playback Navigator and Settings ���������������������������������������������������������������������������������21 Program Playback ����������������������������������������������������������������������������������������������������������������22 Adding files to the Program List ����������������������������������������������������������������������������������������������������������������� 22 Deleting Files from the Program List ��������������������������������������������������������������������������������������������������������...
  • Page 6: Unpacking

    Thank you for purchasing of your new Logik 7” Portable DVD Player� We recommend that you spend some time reading this instruction manual in order that you fully understand all the operational features it offers� You will also find some hints and tips to help you resolve any issues�...
  • Page 7: Product Overview

    Product Overview Left Side View and Front View OK Button 1� LCD Screen 6� Press to confirm selections on the 2� Speakers (Behind the front panel) menu screen� 3� IR Sensor STOP Button 7� Source Button 4� Press to stop playing a disc� Press to select the desired input signal source: DVD/USB/CARD�...
  • Page 8: Top View

    Top View 1� SD/MMC/MS Card Slot Rear View 1� Stand Right Side View AV OUT PHONE DC IN 12V 1� USB Socket 4� PHONE Socket To insert a USB storage device� 5� Charging LED Indicator VOL Control 2� 6� DC IN 12V Socket To adjust the volume�...
  • Page 9: Remote Control

    Remote Control DISPLAY Button 1� Press to display the disc information REPEAT/ REPEAT SOURCE DISPLAY during playback� PROG SOURCE Button 2� AUDIO/ ANGLE Press to select the desired input signal SUBTITLE/ source: DVD/USB/CARD� TITLE AUDIO/ANGLE Button 3� MENU/ ZOOM • Press to select one of the audio soundtracks on a DVD (if more than SETUP SLOW...
  • Page 10: Removing The Insulating Strip From The Remote Control

    Removing the Insulating Strip from the Remote Control Remove the insulating mylar strip from the battery if the battery is being used for the first time� It is located at the bottom backside of the remote control� Battery Replacement for the Remote Control The remote control requires a CR2025, 3V Lithium battery�...
  • Page 11: Handling The Battery

    Handling the Battery • Improper or incorrect use of batteries may cause corrosion or battery leakage, which could cause fire, personal injury or damage to property� • Install the battery correctly by following the polarity (+ and –) indications in the battery compartment�...
  • Page 12: Power Source

    Power Source Mains Power • This unit operates with a DC 12V 1�0A mains adapter (included)� • Connecting the unit to any other power source may cause damage to the unit� Unwind the mains adapter to its full length� Connect the mains adapter to the AC socket on the rear of the unit and a mains socket�...
  • Page 13: Using The Car Power Adapter (For In-Car Use)

    Using the Car Power Adapter (for in-car use) The 12V car power adapter allows the unit to be used with vehicles that have a 12V, negative ground electrical system� Right side of the DVD Player AV OUT PHONE To Cigarette DC IN 12V Lighter Socket Car Power Adapter (included)
  • Page 14: Using Earphones

    Using Earphones Turn down the volume before connecting the earphones� Slowly raise the volume with the earphones on until you reach your desired volume� When earphones are connected, the speaker is automatically disabled� Right side of the DVD Player AV OUT PHONE DC IN 12V AV OUT PHONE...
  • Page 15: Compatible Disc Types

    Compatible Disc Types Disc Types Disc Logo Recorded Content DVD-VIDEO (Digital Versatile Disc) AUDIO + VIDEO DVD±RW (Audio/Video format or JPEG files) AUDIO + VIDEO + JPEG DVD+ReWritable DVD±R (DVD Recordable - Audio/Video AUDIO + VIDEO + JPEG format or JPEG files) DVD+R CD-R (CD Recordable - Audio/Video format or AUDIO + VIDEO + JPEG...
  • Page 16: Dvd Playback

    DVD Playback Ensure that the screen protection film is removed before use� This instruction manual explains the basic instructions for operating this unit� Some DVDs are produced in a manner that allows for specific or limited operation during playback� Therefore, this unit may not respond to all operating commands� This is not a defect� Please refer to the instructions accompanying the specific DVD in question for more information about the options available on that DVD�...
  • Page 17: Previous And Next

    Previous and Next 1� During playing, press the buttons on the unit or the button on the remote control to go back to the start of the previous chapter� Each press of this button will skip a chapter until the start of the disc� 2�...
  • Page 18: Subtitle Language

    Subtitle Language Press the SUBTITLE/TITLE button on the remote control repeatedly to switch between different subtitle languages that are available on the disc� Angle Selection Some DVDs contain scenes which have been shot from a number of different angles� For these discs, the same scene can be viewed from each of these different angles�...
  • Page 19: Audio Cd, Jpeg Picture Cd Playback

    Audio CD, JPEG Picture CD Playback Loading a Disc Slide the ON/OFF switch to the ON position� 1� 2� Slide the front panel to open the disc compartment� 3� Hold the disc by its sides and carefully place onto the disc holder with the label side facing up�...
  • Page 20: Playing Mpeg4/Jpeg Picture Cd

    Playing MPEG4/JPEG Picture CD 011101_22.JPG 47 / 115 011101_01 Filter 011101_12 Repeat : Off 011101_13 Mode : Normal 011101_22 011101_26 011101_31 011101_33 011101_34 W: 1024 H: 768 1� Press the buttons on the unit or the buttons on the remote control to highlight a MPEG/JPEG file and then press the OK button on the unit or the remote control to slide show the picture or playback the MPEG4 video�...
  • Page 21: The Playback Navigator And Settings

    The Playback Navigator and Settings Elapsed Time Total File Number Remaining Time Play Status 00:00:03 / 00:04:26 File Path /Track03.CDA 4 / 11 Playing File Filter Playback Settings Track01 Browser List Repeat : Off Track02 Mode : Normal Track03 Track04 Track05 Preview Window Music Playing...
  • Page 22: Program Playback

    Program Playback Adding files to the Program List button on the unit or the /SLOW button on the remote control twice to 1� Press the completely stop playback� 2� Press the button on the unit or the button on the remote control to enter the right screen of the navigator�...
  • Page 23: Deleting Files From The Program List

    Deleting Files from the Program List 1� Repeat steps 1, 2 and 3 as described in “Adding files to the Program List” section� 2� Press the button on the unit or the button on the remote control to enter the left screen in Program view�...
  • Page 24: Customising The Language Settings

    Customising the Language Settings Press the SETUP button on the remote 1� OSD Language : English Language control to display the system setup menu� : Off Subtitle MPEG4 Subtitle : Central European 2� Press the buttons on the unit or the Video : English Audio...
  • Page 25: Customising The Video Settings

    Customising the Video Settings Press the SETUP button on the remote 1� Aspect Ratio : 16:9 Language control to display the system setup menu� : PAL TV System Picture Mode : User 2� Press the buttons on the unit or the Video buttons on the remote control to select Rating...
  • Page 26: Customising The Rating Settings

    Customising the Rating Settings Parental control Press the SETUP button on the remote 1� Parental control : 1. Kid Safe Language Set Password control to display the system setup menu� Video 2� Press the buttons on the unit or the buttons on the remote control to select Rating Rating and then press the button on...
  • Page 27: Set Password

    Set Password Press the SETUP button on the remote 1� Parental control : 1. Kid Safe Language control to display the system setup menu� Set Password 2� Press the buttons on the unit or the Video buttons on the remote control to select Rating and then press the button on Rating the unit or the...
  • Page 28: Maintenance

    Maintenance Handling Discs Playback side • Do not touch the playback side of the disc� • Do not attach paper or tape to the disc� Cleaning Discs • Fingerprints and dust on the disc cause picture and sound deterioration� Wipe the disc from the centre outwards with a soft cloth�...
  • Page 29: Hints And Tips

    Hints and Tips If a problem does occur, it may often be due to something very minor� The following table contains various tips� Menu Description No power� • Ensure the mains adapter is connected� • Make sure that the unit is turned on� • Make sure that you select ON mode�...
  • Page 30 Menu Description The disc does • There is no disc inside the unit (“No Disc” appears on the screen)� not play� • Insert the disc correctly with the graphics facing up� • Clean the disc� • A non-valid disc has been inserted, or the disc region number does not match the region number of the unit�...
  • Page 31: Specifications

    Specifications Model L7SLIDE11 Disc Format DVD+/–R, DVD+/–RW, CD, CD-R, CD-RW, JPEG Picture CD Video System PAL, NTSC Video Decompression MPEG-2, MPEG4 (maximum resolution 720x576@25/30fps) LCD Screen 7” TFT LED Panel Audio: Audio Characteristic 2-Channel Analogue Dolby Digital Decoding Speaker 2 Built-in stereo speaker Terminals: USB 2�0 x 1 (maximum 8GB),...
  • Page 32: Safety First

    Safety Warnings • Read all the instructions carefully before Ventilation using the unit and keep them for future • To prevent the risk of electric shock or fire reference� hazard due to overheating, ensure that curtains and other materials do not obstruct • Retain the manual�...
  • Page 33 Batteries Service • Batteries used in the remote control for this • To reduce the risk of electric shock, do not unit are easily swallowed by young children remove screws� The unit does not contain and this is dangerous� any user-serviceable parts� Please leave all maintenance work to qualified personnel�...
  • Page 34 NOTE: If you require a replacement for any of the items listed below, please quote their corresponding part numbers: Replacement Part Part Number Remote Control (with battery) 504M315105 Mains Adapter 5140F101116 Car Power Adapter 50448101101 3�5mm to RCA AV Cable 30430912003 Earphones 30430220002...
