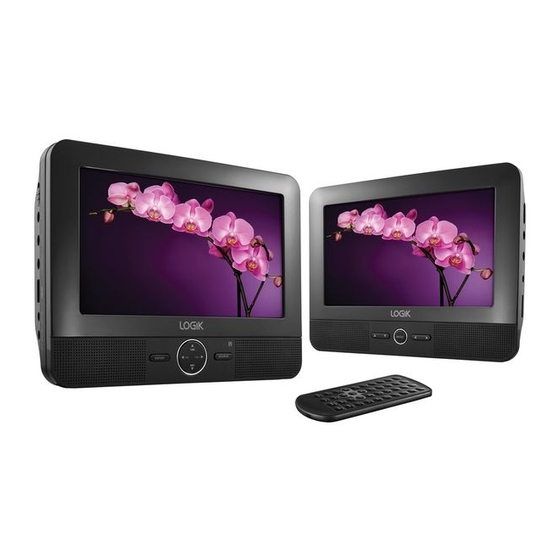

7 inch in car twin portable dvd player
Hide thumbs
Table of Contents

Advertisement

Quick Links

Instruction Manual
7" In Car Twin Portable
DVD Player
L7TWIN11

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the L7TWIN11 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Logik L7TWIN11

Summary of Contents for Logik L7TWIN11

  • Page 1 Instruction Manual 7” In Car Twin Portable DVD Player L7TWIN11...

  • Page 2: Table Of Contents

    Contents Safety Warnings ..........................4 Unpacking ............................6 Product Overview ..........................7 DVD Player ................................. 7 Monitor ..................................8 Remote Control ..........................9 Removing the Insulating Strip from the Remote Control ............11 Battery Replacement for the Remote Control ..................11 Remote Control Operation Range ....................12 Using in a Car ..........................13 Using the Car Power Adapter (for in-car use) .....................13 Using the DVD Player Only ..........................13...
  • Page 3 Previous and Next ..............................24 Fast Forward and Fast Reverse .........................24 Repeat Mode ................................25 Slow ...................................25 Angle Selection ..............................25 Audio Channel ...............................25 Subtitle Language ..............................25 Customising the General Settings....................26 Info .....................................26 Programmable Memory .............................26 Zoom Selection ..............................26 Title ....................................26 Menu ..................................26 Customising the Audio Settings ....................28 Customising the Video Settings ....................29 Customising the Preference Settings ..................29...

  • Page 4: Safety Warnings

    Safety Warnings • Read all the instructions carefully before • A minimum distance of 5cm around the using the unit and keep them for future unit should be maintained to allow for reference. sufficient ventilation. • Retain the manual. If you pass the unit •...
  • Page 5 Batteries Service • Batteries used in the unit are easily • To reduce the risk of electric shock, do not swallowed by young children and this is remove screws. The unit does not contain dangerous. any user-serviceable parts. Please leave all maintenance work to qualified personnel.

  • Page 6: Unpacking

    Thank you for purchasing your new Logik DVD Player. We recommend that you spend some time reading this instruction manual in order that you fully understand all the operational features it offers. You will also find some hints and tips to help you resolve any issues.

  • Page 7: Product Overview

    Product Overview DVD Player Front View 1. LCD Display 2. Remote Sensor Receives signals from the remote control. 3. Speakers 4. ENTER Button Press to confirm selections on the menu screen. ENTER VOL– VOL+ SOURCE 5. Cursor Buttons Allows you to navigate the menu screen and adjust certain settings.

  • Page 8: Monitor

    Monitor Front View 1. LCD Display 2. Speakers 3. Cursor Buttons Allows you to navigate the menu screen and adjust certain settings. 4. MODE Button Adjusts Brightness, Contrast, Colour, Language or Resets the setting on the MODE monitor. 5. Cursor Buttons Allows you to navigate the menu screen and adjust to certain settings.

  • Page 9: Remote Control

    Remote Control 1. STEP Button Frame Advance in DVD mode. 2. SEARCH Button STEP MUTE SOURCE To search and start playback from a selected point on the disc. 3. 0-9, 10+ Number Buttons Create programs or locate a title/chapter/ track or specific time. DISPLAY 4.
  • Page 10 13. SOURCE Button Select among the different input sources: DVD / USB / Memory Card. STEP MUTE SOURCE 14. MUTE Button To mute or restore your DVD sound output. 15. DISPLAY Button To display the playtime and show DISPLAY status information on the screen. SUBTITLE AUDIO MENU...

  • Page 11: Removing The Insulating Strip From The Remote Control

    Removing the Insulating Strip from the Remote Control Remove the insulating mylar strip from the battery if the battery is being used for the first time. It is located at the bottom back side of the remote control. Battery Replacement for the Remote Control The remote control requires a CR2025, 3V Lithium battery.

  • Page 12: Remote Control Operation Range

    • Do not dispose of the used battery as domestic waste. Dispose of it in accordance with the local regulations. • Small button cell batteries such as the one used in the remote control are easily swallowed by young children and this is dangerous. Keep loose button cells away from young children and make sure that the battery holder tray is secure in the remote control.

  • Page 13: Using In A Car

    Using in a Car Using the Car Power Adapter (for in-car use) The included 12V car power adapter is designed for use with vehicles that have a 12V negative ground electrical system. Monitor DVD player right side left side To the cigarette lighter socket DC+AV Cable (included)

  • Page 14: Mounting The Dvd In A Car

    Mounting the DVD in a Car Use the supplied mounting kit to install the DVD players on the back of the vehicle’s headrests. 1. Align the angled support’s bolt to the screw hole on the back of the DVD unit. Turn the bolt clockwise and secure the support.

  • Page 15: Installation Guide

    4. Grip the DVD firmly with both hands and slot the angled support firmly into the support bar. It will click. Ensure the entire unit is secure. 5. Adjust the angle of the DVD unit, then secure by tightening the bolt on the right. 6.

  • Page 16: Using Indoor

    Using Indoor Using the Mains Adapter (for indoor use) The mains adapter (DC9V, 1.5A output) supplied is for using the DVD player and the monitor together. For using the DVD Player and the Monitor separately, one more adapter is needed and sold separately.

  • Page 17: Connections

    Connections Watching a DVD on the DVD Player and the Monitor You can watch the same DVD on the DVD player and the monitor. Monitor DVD player right side left side DC+AV Cable (included) To AV IN & DC IN sockets To AV OUT &...

  • Page 18: Connecting A Stereo Receiver Or Amplifier (For The Dvd Player Only)

    Connecting a Stereo Receiver or Amplifier (for the DVD Player Only) The DVD player can play two channels Dolby Digital. DVD player left side 3.5mm to RCA AV Stereo Receiver / RCA stereo Amplifier Converter audio Cable (included) (not included) To AV OUT socket Listening with an External Audio Device...

  • Page 19: Connecting Game Consoles/Video Devices (For The Monitor Only)

    Connecting Game Consoles/Video Devices (for the Monitor Only) You can use the monitor as a display for game consoles or other video devices. Playing Games or Watching Videos on the Monitor Only Monitor right side Game System / Video Equipment 3.5mm to RCA AV RCA AV Cable Converter...

  • Page 20: Using The Stand For Indoor Use

    Using Earphones Turn down the volume before connecting the headphones/earphones. Slowly raise the volume of the headphones/earphones until you reach your desired volume. When headphones/ earphones are connected, the speaker is automatically disabled. Headphones / Earphones Avoid listening to sound [1/8”...

  • Page 21: Using An Usb Device Or/And Sd/Mmc/Ms Card

    Using an USB Device or/and SD/MMC/MS Card General Operation You can play or view picture files (JPEG) or music files (MP3) from a USB device or SD/MMC/ MS card. 1. Connect the USB device or SD/MMC/MS card directly to the USB slot or SD/MMC/MS slot on the DVD player.

  • Page 22: Compatible Disc Types

    Compatible Disc Types Disc Types Disc Logo Recorded Content DVD-VIDEO (Digital Versatile Disc) AUDIO + VIDEO DVD±RW (Audio/Video format or JPEG files) AUDIO (MP3) + JPEG DVD+ReWritable DVD±R (DVD Recordable - Audio/Video AUDIO (MP3) + JPEG format or JPEG files) CD-R (CD Recordable - Audio/Video format or AUDIO (MP3) + JPEG JPEG files)

  • Page 23: Turning On The Dvd Player

    DVD player on and the ON/OFF switch to ON position on the right panel to turn the monitor on. 2. The LOGIK DVD logo (start-up picture) will appear on the screen and the unit will start loading the disc automatically (if available).

  • Page 24: Playback Pausing

    Playback Pausing 1. During playback, press the button on the remote control to stop playback for a while. 2. Press the button again on the remote control to resume normal playback. Selecting Chapter / Title time / Chapter time (for DVD) 1.

  • Page 25: Repeat Mode

    Repeat Mode Press the REPEAT button on the remote control repeatedly to select different repeat modes. Menu DVD Description CD Description First Press Repeat Chapter Repeat Track Second Press Repeat Title Repeat All Third Press Repeat All Repeat off Forth Press Repeat off –...

  • Page 26: Customising The General Settings

    Info You can view the disc information (such as current title / chapter / track number, total playing time or remaining time on the disc) without interrupting the disc playback. During playback, press the DISPLAY button on the remote control to display the available disc information on operation status.
  • Page 27 3. Press the buttons to select the following options and then press the buttons to change the setting. TV DISPLAY To select the aspect ratio of the playback picture. 4:3 PANSCAN If you have a conventional TV and want both sides of the wide picture to be trimmed or formatted to fit your TV screen.

  • Page 28: Customising The Audio Settings

    Customising the Audio Settings 1. Press the SETUP button to display the setup menu. - - AUDIO SETUP PAGE - - buttons to select AUDIO 2. Press the DOWNMINX SETUP PAGE. DIGITAL OUTPUT DOLBY DIGITAL GOTO AUDIO SETUP PAGE 3. Press the buttons to select the following options and then press the buttons to change the setting.

  • Page 29: Customising The Video Settings

    Customising the Video Settings 1. Press the SETUP button to display the setup menu. - - VIDEO SETUP PAGE - - buttons to select VIDEO 2. Press the SHARPNESS SETUP PAGE. BRIGHTNESS CONTRAST SATURATION GOTO VIDEO SETUP PAGE 3. Press the buttons to select the following options and then press the buttons to change the setting.
  • Page 30 DISC MENU Allows you to choose the preferred menu language of your disc. If the preferred language is not available on the disc, the DVD player will automatically use the DVD disc’s default language. PARENTAL This feature allows you to block disc playback with specific ratings. The rating levels are from 1 to 8 and are country-dependent.

  • Page 31: Customising The Password Settings

    Customising the Password Settings 1. Press the SETUP button to display the setup menu. - - PASSWORD SETUP PAGE - - 2. Press the buttons to select PASSWORD MODE PASSWORD SETUP PAGE. PASSWORD GOTO PASSWORD SETUP PAGE 3. Press the buttons to select the following options and then press the buttons to change the setting.

  • Page 32: Maintenance

    Maintenance Handling Discs • Do not touch the playback side of the disc. • Do not attach paper or tape to the disc. Playback side Cleaning Discs • Fingerprints and dust on the disc cause picture and sound deterioration. Wipe the disc from the centre outwards with a soft cloth.

  • Page 33: Hints And Tips

    Hints and Tips If a problem does occur, it may often be due to something very minor. The following table contains various tips. Symptom Cause / Solution No power. • Ensure the car power adapter or the mains adapter is connected.
  • Page 34 Symptom Cause / Solution The disc does not • There is no disc inside the unit (“NO DISC” appears on the play. display). • Insert the disc correctly with the graphics facing up. • Clean the disc. • A non-valid disc has been inserted, or the disc region number does not match the region number of the unit.

  • Page 35: Specifications

    Specifications Model L7TWIN11 Power Mains Adapter Input: AC 100-240V~ 50/60Hz 0.4A Output: DC 9V 1.5A Car Cigarette Lighter Adapter Input: DC 12V 2.0A Output: DC 12V 2.0A Main Unit Input: DC 9-12V 1.5A Power Consumption <10W Speaker Output Power 1W rms x 2 USB Power 0.2A...
  • Page 36 For more information, please contact the local authority or your retailer where you purchased the product. All trademarks are the property of their respective owners and all rights are acknowledged. DSG Retail Ltd. (co. no. 504877) Maylands Avenue, Hemel Hempstead, Herts., HP2 7TG, UK IB-L7TWIN11-131205V5...
