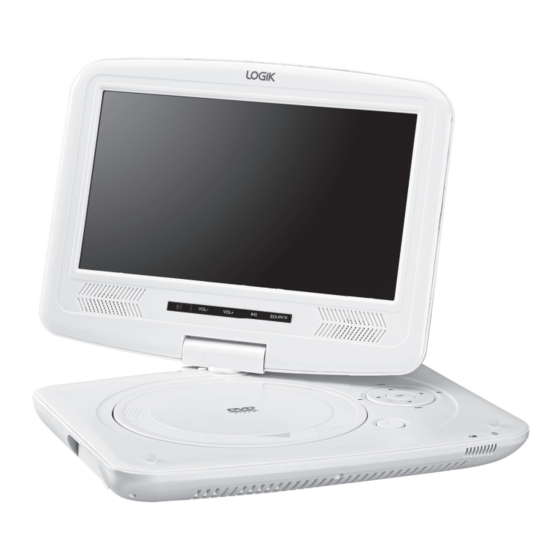

Logik L9SPDW14 Instruction Manual

9” portable dvd player
Hide thumbs Also See for L9SPDW14:
Table of Contents

Advertisement

Quick Links

Download this manual
Instruction Manual
9" Portable DVD Player
L9SPDW14

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the L9SPDW14 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Logik L9SPDW14

Summary of Contents for Logik L9SPDW14

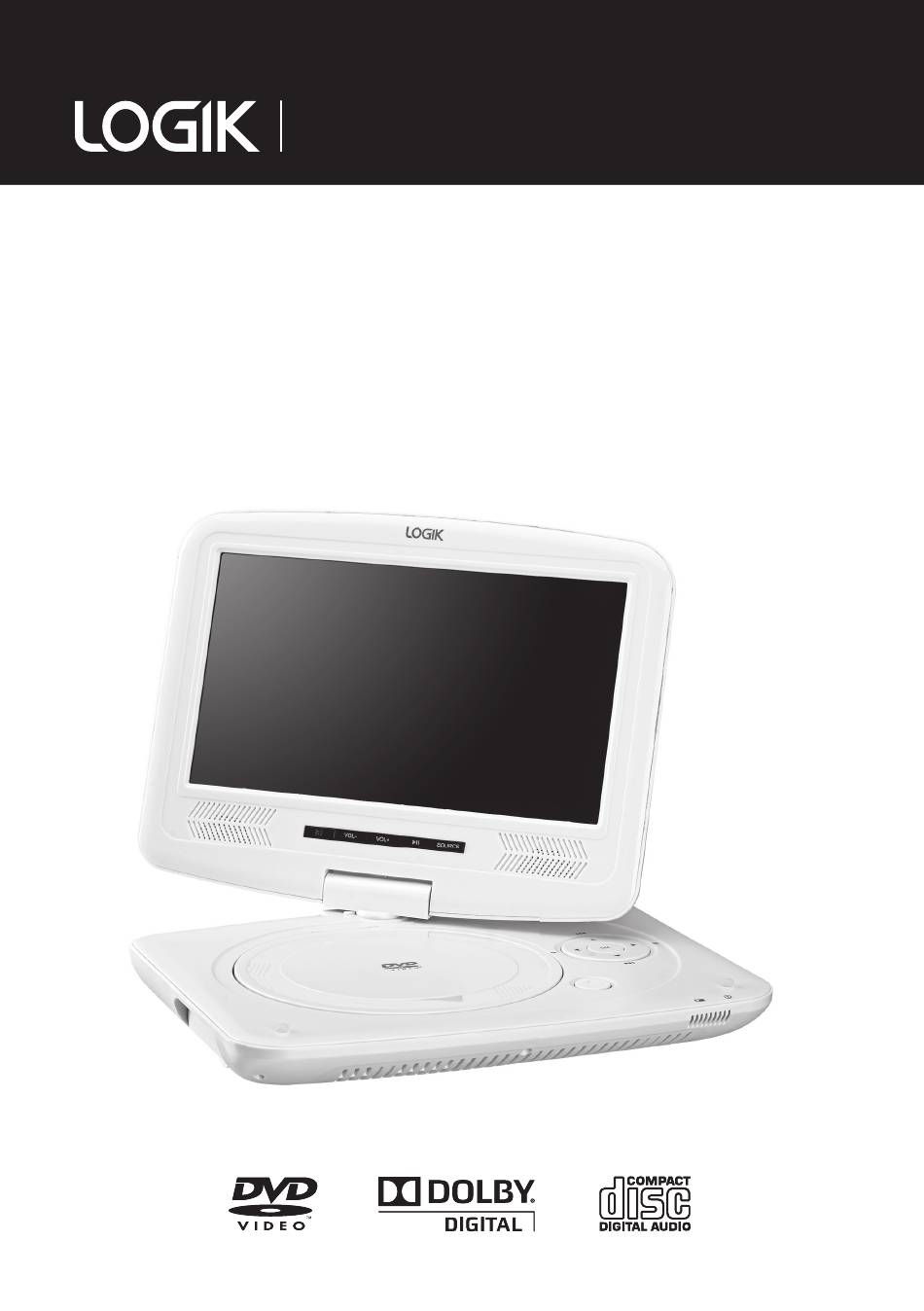

  • Page 1 Instruction Manual 9” Portable DVD Player L9SPDW14...

  • Page 3: Table Of Contents

    Contents Safety Warnings ......................5 Unpacking ........................7 Product Overview ......................8 Front View ..............................8 Right Side View ............................9 Remote Control ......................10 Removing the Plastic Strip from the Remote Control..........12 Battery Installation for the Remote Control ............12 How to Swivel the Display ..................13 Swivel Mode ............................
  • Page 4 Previous and Next..........................23 Fast Forward and Fast Reverse ....................23 Repeat Mode ............................. 23 Slow ..............................24 Angle Selection ..........................24 Audio Channel ..........................24 Subtitle Language ........................... 24 Info ................................ 24 Programmable Memory ........................ 25 Zoom Selection ..........................25 Title ...............................

  • Page 5: Safety Warnings

    Safety Warnings • Read all the instructions carefully before using • A minimum distance of 5cm around the unit the unit and keep them for future reference. should be maintained to allow for sufficient ventilation. • Retain the manual. If you pass the unit onto a third party make sure to include this manual.
  • Page 6 Batteries Service • Batteries used in the unit are easily swallowed • To reduce the risk of electric shock, do not by young children and this is dangerous. remove screws. The unit does not contain any user-serviceable parts. Please leave all •...

  • Page 7: Unpacking

    Thank you for purchasing your new Logik Portable DVD Player. These operating instructions will help you use it properly and safely. We recommend that you spend some time reading this instruction manual in order that you fully understand all the operational features it offers.

  • Page 8: Product Overview

    Product Overview Front View LCD Display Speakers Remote Sensor Receives signals from the remote control. VOL – / VOL + Button Decreases and increases the volume. PLAY / PAUSE Button Starts/pauses/resumes playback of a disc. SOURCE Button 180° Selects the desired input signal source: DVD/USB/MEMORY CARD.

  • Page 9: Right Side View

    Right Side View AV OUT COAXIAL ON OFF DC IN 9-12V SD/MMC Memory Card Slot COAXIAL Socket USB Slot ON/OFF Switch AV OUT Socket DC IN 9-12V Socket Earphones Socket...

  • Page 10: Remote Control

    Remote Control STEP Button Frame Advance in DVD mode. SEARCH Button STEP MUTE SOURCE Search and start playback from a selected point on the disc. 0-9, 10+ Number Buttons Create programmes or locate a title/ chapter/track or specific time. DISPLAY SUBTITLE Button SUBTITLE AUDIO...
  • Page 11 13. SOURCE Button Select from amongst the different input sources: STEP MUTE SOURCE DVD / USB / Memory Card. 14. MUTE Button Mute or restore your DVD sound output. 15. DISPLAY Button DISPLAY Display the playtime and show SUBTITLE AUDIO MENU status information on the screen.

  • Page 12: Removing The Plastic Strip From The Remote Control

    Removing the Plastic Strip from the Remote Control Remove the plastic strip from the battery if the battery is being used for the first time. It is located at the bottom end of the remote control. Battery Installation for the Remote Control The remote control requires a CR2025, 3V Lithium battery.

  • Page 13: How To Swivel The Display

    • Do not dispose of the used battery as domestic waste. Dispose of it in accordance with the local regulations. • Small button cell batteries such as the one used in the remote control are easily swallowed by young children and this is dangerous. Keep loose button cells away from young children and make sure that the battery holder tray is secure in the remote control.

  • Page 14: Mounting The Dvd In A Car

    Mounting the DVD in a Car Use the supplied mounting kit to install the DVD player on the back of the vehicle’s headrests. 1. Align the angled support’s bolt to the screw hole on the back of the DVD unit. Turn the bolt clockwise and secure the support.

  • Page 15: Installation Guide

    4. Grip the DVD firmly with both hands and slot the angled support firmly into the support bar. It will click. Ensure the entire unit is secure. 5. Adjust the angle of the DVD unit, then secure by tightening the bolt on the right.

  • Page 16: Remote Control Operation Range

    Remote Control Operation Range Point the remote control at the unit no more than 2 metres from the remote control sensor and within a 40° arc of the front of the unit. The operating distance may vary depending on the brightness of the interior environment. 180°...

  • Page 17: Charging The Battery

    Charging the Battery 1. Connect the mains adapter (included) to the DC IN socket at the right side of the unit and then connect the mains adapter to a mains socket. • The LED indicator illuminates red indicating that the battery is charging. When the battery is charged to full capacity, the LED indicator illuminates green.

  • Page 18: Connections

    Connections Connecting to a TV If your TV has audio/video inputs, you can connect the unit to your TV using a 3.5mm RCA AV Cable (not included). DVD Player Right Side AV OUT COAXIAL ON OFF DC IN 9-12V To AV OUT VIDEO IN Socket AUDIO IN...

  • Page 19: Using A Usb Device Or And Sd/Mmc Card

    Using a USB Device or and SD/MMC Card General Operation You can play or view picture files (JPEG) or music files (MP3) from a USB device or SD/ MMC card. Step Action DVD Unit / Remote Control Connect the USB device or SD/MMC card directly to the USB slot or SD/ MMC slot AV OUT...

  • Page 20: Compatible Disc Types

    Press SOURCE AV OUT COAXIAL ON OFF DC IN 9-12V Press ENTER to exit the USB/SD/MMC card menu AV OUT COAXIAL ON OFF DC IN 9-12V The DVD player will return to disc – mode automatically Compatible Disc Types Disc Types Disc Logo Recorded Content DVD-VIDEO (Digital Versatile Disc)

  • Page 21: Region Code

    1. Slide the ON/OFF switch on the unit to ON position on the right panel to turn the DVD player on. 2. The LOGIK DVD logo (start-up picture) will appear on the screen and the unit will start loading the disc automatically (if available).

  • Page 22: Basic Dvd Playback

    Basic DVD Playback 1. Make sure the unit is either plugged into the power socket through the mains adapter or the battery is fully charged. 2. Slide the ON/OFF switch on the unit to the ON position. 3. Press the OPEN switch on the unit to open the disc cover.

  • Page 23: Stop Playback

    Stop Playback 1. Press the button on the remote control to stop playback where you stopped watching. The display will show “ ”. With some discs, the unit can recall the stopped location, such as on DVDs. 2. Press the button on the unit or the remote control to resume playback from the location where playback was stopped or from the beginning of the disc.

  • Page 24: Slow

    Slow Press the SLOW button on the remote control when a DVD is playing to enter slow playback. Each time you press the SLOW button on the remote control, the playback speed changes in the following sequence: 1/16 Normal 1/16 Angle Selection Some DVDs contain scenes which have been shot from a number of different angles.

  • Page 25: Programmable Memory

    Programmable Memory DVD, CD Press the PROGRAM button on the remote control to display • the PROGRAM MENU. Press the 0-9, 10+ buttons on the remote control to input the title/chapter/track number and then press the buttons on the unit or the remote control to select START.
  • Page 26 3. Press the buttons to select the following options and then press the buttons to change the setting. TV DISPLAY To select the aspect ratio of the playback picture: 4:3 PANSCAN If you have a conventional TV and want both sides of the wide picture to be trimmed or formatted to fit your TV screen.

  • Page 27: Customising The Audio Settings

    Customising the Audio Settings 1. Press the SETUP button to display the setup menu. - - AUDIO SETUP PAGE - - buttons to select AUDIO 2. Press the DOWNMINX LT/RT DIGITAL OUTPUT SPDIF/OFF STEREO SETUP PAGE. DOLBY DIGITAL SPDIF/RAW DUAL MONO DYNAMIC SPDIF/PCM L-MONO...

  • Page 28: Customising The Video Settings

    Customising the Video Settings 1. Press the SETUP button to display the setup menu. - - VIDEO SETUP PAGE - - buttons to select VIDEO 2. Press the BRIGHTNESS CONTRAST SETUP PAGE. COLOUR GOTO VIDEO SETUP PAGE 3. Press the buttons to select the following options and then press the buttons to change the setting.
  • Page 29 AUDIO Allows you to choose the preferred audio language of your disc. If the preferred language is not available on the disc, the DVD player will automatically use the DVD disc’s default language. SUBTITLE Allows you to choose the preferred subtitle language of your disc. If the preferred language is not available on the disc, the DVD player will automatically use the DVD disc’s default language.

  • Page 30: Customising The Password Settings

    Customising the Password Settings 1. Press the SETUP button to display the setup menu. - - PASSWORD SETUP PAGE - - buttons to select 2. Press the PASSWORD MODE PASSWORD PASSWORD SETUP PAGE. GOTO PASSWORD SETUP PAGE 3. Press the buttons to select the following options and then press the buttons to change the setting.

  • Page 31: Maintenance

    Maintenance Handling Discs • Do not touch the playback side of the disc. • Do not attach paper or tape to the disc. Playback side Cleaning Discs • Fingerprints and dust on the disc cause picture and sound deterioration. Wipe the disc from the centre outwards with a soft cloth.

  • Page 32: Hints And Tips

    Hints and Tips If a problem does occur, it may often be due to something very minor. The following table contains various tips. Problem Solution No power. • Ensure the car power adapter or the mains adapter is connected. • Make sure that the unit is turned on.
  • Page 33 Problem Solution The disc does not • There is no disc inside the unit (“NO DISC” appears on the play. display). • Insert the disc correctly with the graphics facing up. • Clean the disc. • A non-valid disc has been inserted, or the disc region number does not match the region number of the unit.

  • Page 34: Specifications

    Specifications L9SPDW14 Model Power Mains Adapter Input AC 100-240V~ 50/60Hz Output DC 9-12V 1.0A Main Unit Input DC 9-12V 1.0A Power Consumption <10W Speaker Output Power 1W rms x 2 USB Power 0.2A Battery Power Output Power 7.4V Charge Time...
  • Page 36 For more information about where you can drop off your waste for recycling, please contact your local authority, or where you purchased your product. All trademarks are the property of their respective owners and all rights are acknowledged. DSG Retail Ltd. (co. no. 504877) Maylands Avenue, Hemel Hempstead, Herts., HP2 7TG, UK IB-L9SPDW14-141125V2...
