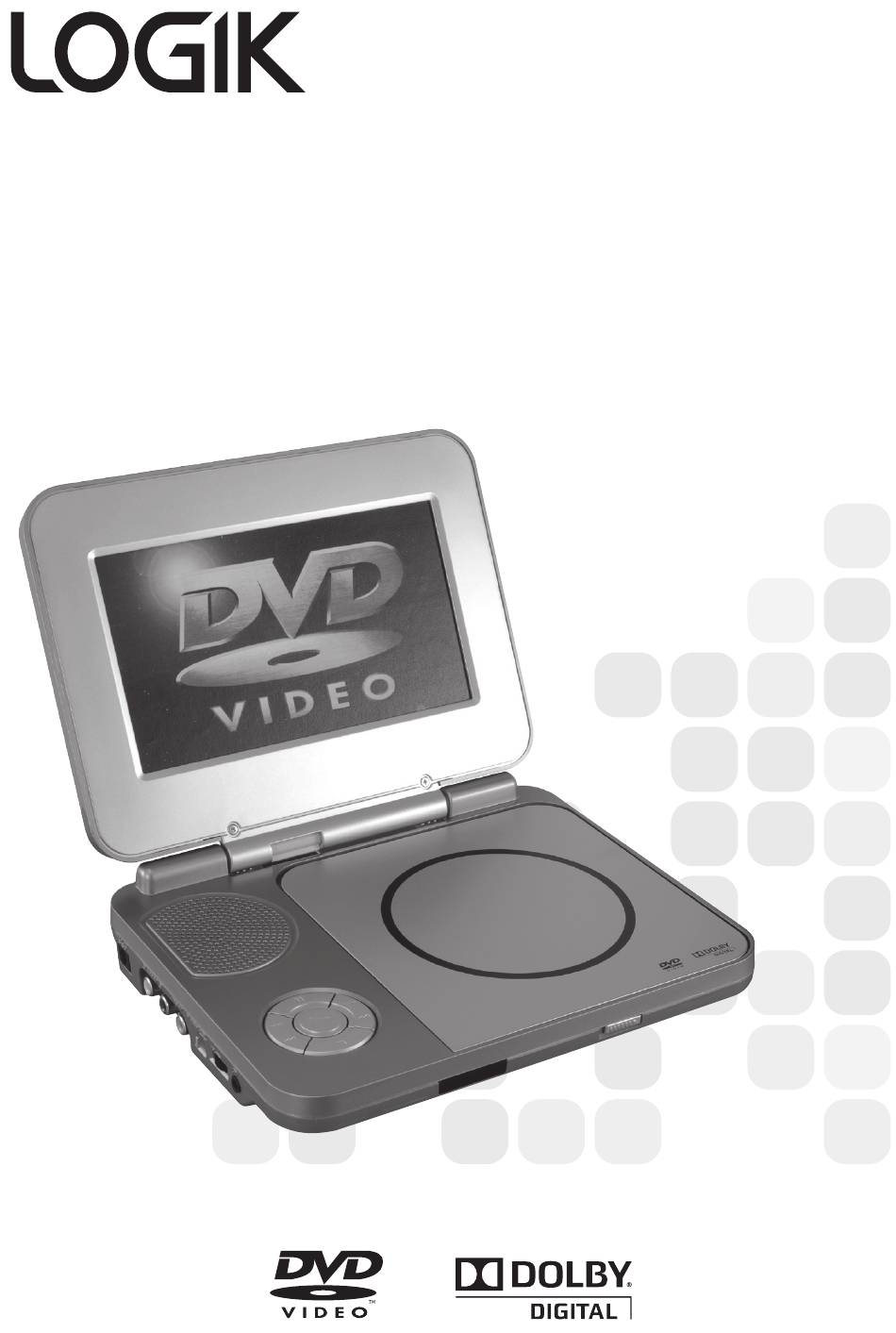

- Page 1 7” Portable DVD Player Instruction Manual L7PDVD10...
-
Page 2: Table Of Contents
Contents Unpacking the DVD Player ..................4 Product Overview ......................5 DVD Player .............................5 Remote Control ...........................6 Remove the Insulating Strip from the Remote Control ............7 Battery Installation for the Remote Control ................7 Remote Control Operation Range ....................8 Power Supply ........................9 Using the Mains Adapter (for indoor use) ..................9 Using the Car Power Adapter (for in-car use) ................9 Using the Built-in Battery ...................... - Page 3 Locating a Desired Section ..................16 Locating a Specific Title ......................... 16 Locating a Specific Chapter / Track ................... 16 Locating a Specific Time ....................... 16 DVD Programmable Memory ................... 17 Repeat Playback ......................18 Repeating a Chapter ........................18 Repeating a Title..........................
-
Page 4: Unpacking The Dvd Player
Congratulations on the purchase of your new Logik DVD Player. We recommend that you spend some time reading this instruction manual in order that you fully understand all the operational features it offers. You will also find some hints and tips to help you resolve any issues. -
Page 5: Product Overview
Product Overview DVD Player 4 5 6 8 9 10 LCD Screen SEARCH Button Press to perform fast forward playback. DC IN 9V-12V Socket SEARCH Button AUDIO / VIDEO OUT Sockets Press to perform fast reverse playback. CHARGE / STANDBY / ON Switch CHARGING Indicator VOLUME Control A green light will illuminate when the... -
Page 6: Remote Control
Remote Control VIDEO MODE Button Adjust Brightness, Panel Display and Contrast of the LCD screen. PREV Button Move back to the beginning of the current chapters/titles for DVD; or previous track for CD. SEARCH Buttons SEARCH: Fast reverse playback. SEARCH: Fast forward playback. GOTO Button Skip directly to a location on a DVD. -
Page 7: Remove The Insulating Strip From The Remote Control
Remove the Insulating Strip from the Remote Control Remove the insulating mylar strip from the battery if the battery is being used for the first time. It is located at the bottom back side of the remote control. Battery Installation for the Remote Control Press and hold the battery release Remove the old battery, and place a tab and pull out the battery holder... -
Page 8: Remote Control Operation Range
Remote Control Operation Range Point the remote control at the DVD player no more than 2 metres from the remote control sensor and within 40° of the front of the DVD player. The operating distance may vary depending on the brightness of the room. -
Page 9: Power Supply
Power Supply Using the Mains Adapter (for indoor use) Left Side of Unit To Mains Socket To DC IN 9V-12V Socket Mains Adapter (included) • Only use the mains adapter provided with the unit. Do not use it with any other equipment. •... -
Page 10: Using The Built-In Battery
Using the Built-in Battery The unit has a built-in, non-replaceable, rechargeable battery. Charge the built-in battery before using it for the first time. The normal charging time should be 4-5 hours. The charging light will go out when the built-in battery is fully charged. To Recharge the Built-in Battery To Mains Socket Mains Adapter (included) -
Page 11: Connections
Connections Connecting a TV If your TV has audio/video inputs, you can connect the unit to your TV using a standard Audio/ Video cable. Left Side of Unit White Red Yellow To AUDIO / VIDEO OUT Sockets Audio / Video Cable (not included) Watching a DVD on your TV Turn on the unit. -
Page 12: Compatible Disc Types
Compatible Disc Types Disc Types Disc Logo Recorded Content DVD-VIDEO (Digital Versatile Disc) AUDIO + VIDEO DVD±RW (Audio/Video format or JPEG files) AUDIO + VIDEO + JPEG DVD+ReWritable DVD±R (DVD Recordable - Audio/Video format AUDIO + VIDEO + JPEG or JPEG files) DVD+R CD-R (CD Recordable - Audio/Video format or AUDIO + VIDEO + JPEG... -
Page 13: Turning On The Unit
Turning on the Unit CHARGE / STANDBY / ON switch on the left side of Slide the the unit to the ON position. The DVD logo (start-up picture) will appear on the screen. CHARGE / STANDBY / ON switch to the After use, slide the STANDBY (power off ) position. -
Page 14: Skip (Forward / Reverse)
Skip (Forward / Reverse) PREV button to move back to the beginning of the current chapters/titles for a Press the DVD; and to move back to the previous track for a CD. NEXT button to move forward to next chapters/tracks/titles. Press the For audio CDs, use the number buttons on the remote control to play the desired track immediately. -
Page 15: Angle Selection
Angle Selection Some DVDs contain scenes which have been shot from a number of different angles. For these discs, the same scene can be viewed from each of these different angles. While you are playing a DVD with different angles recorded, press the ANGLE button to view the number of current angles Sequence of angle shots available. -
Page 16: Locating A Desired Section
Locating a Desired Section Locating a Specific Title If a DVD contains title numbers, you can locate a specific title by directly selecting its title number. GOTO button to search for your desired title. Press the Press the buttons to highlight a title field and then press the corresponding number button(s) for the title you want. -
Page 17: Dvd Programmable Memory
DVD Programmable Memory You can combine your favourite titles/chapters and play them in the order of your choice. During the DVD playback, press the MEMORY button and the following display will appear. Clear: Delete all the input programs. Tt:01ch:05 Tt: ch: Tt: ch: Tt: ch: Exit:... -
Page 18: Repeat Playback
Repeat Playback You can play a specific title or chapter repeatedly. (Title repeat, chapter repeat, A-B repeat) Repeating a Chapter You can play the same chapter repeatedly. While the DVD is playing, press the REPEAT DISC button until the indicator displays on Chapter the screen. -
Page 19: Viewing Jpeg Files
Viewing JPEG Files This unit can play JPEG files recorded on a CD-R or CD-ROM disc (CD-RW is not recommendable). Open the disc door. Hold a JPEG file disc by its sides and carefully place onto the spindle with the label side facing up. -
Page 20: Customising The Function Settings
Customising the Function Settings Language Setup SETUP button in stop mode. Press the Press the button to select Language Setup Language Video System Page. - - Language Setup Page - - OSD Language Press the buttons to select the option (OSD Audio Language, Audio, Subtitle or Disc Menu), then Subtitle... -
Page 21: System Setup
System Setup SETUP button in stop mode. Press the Press the buttons to select System Page. Language Video System Press the buttons select the option (TV - - System Page - - Wide TV Display Display, Parental, Password or Default), then Parental press the button. - Page 22 Parental Control Setup DVDs are rated according to their content and some are equipped with a password function. The contents allowed by parental lock level and the way a DVD is controlled may vary from disc to disc. For example, if the disc allows, you could lock-out violent scenes unsuitable for children or you could lock out playback of the disc altogether.
-
Page 23: Maintenance
Maintenance Handling Discs • Do not touch the playback side of the disc. • Do not attach paper or tape to the disc. Playback side Cleaning Discs • Fingerprints and dust on the disc cause picture and sound deterioration. Wipe the disc from the centre outwards with a soft cloth. -
Page 24: Hints And Tips
Hints and Tips If a problem does occur, it may often be due to something very minor. The following table contains various tips. SYMPTOM CAUSE AND SOLUTION No power. • Ensure the car power adapter or the mains adapter is connected. •... -
Page 25: Specifications
Specifications Model L7PDVD10 Disc Format DVD, CD, CD-R, CD-RW & JPEG Video System Video Decompression MPEG-2 LCD Display 7” TFT Type Audio: Audio Characteristic 2-Channel Analog Dolby Digital Decoding Speaker One Mono Speakers Power Adapter: Power Supply AC 100~240V 50~60Hz (For EU Users) -
Page 26: Safety Warnings
Safety Warnings Ventilation • Read all the instructions carefully before using the unit and keep them for future • To prevent the risk of electric shock or reference. fire hazard due to overheating, ensure that curtains and other materials do not •... - Page 27 Batteries CAUTION • Batteries used in the remote control for this RISK OF ELECTRIC SHOCK unit are easily swallowed by young children DO NOT OPEN and this is dangerous. The lightning flash with • Keep loose batteries away from young arrowhead symbol, within an children and make sure that the battery equilateral triangle, is intended...
- Page 28 NOTE: If you require a replacement for any of the items listed below, please quote their corresponding part numbers: Replacement Part Part Number Remote Control 043-A13232W210 Car Power Adapter 133-030627W004 Mains Adapter 133-010901W142 Earphone 114-010331W002 Instruction Manual 811-837391W071 Quick Start Guide 810-837395W030 Visit Partmaster.co.uk today for the easiest way to buy electrical spares and accessories.
