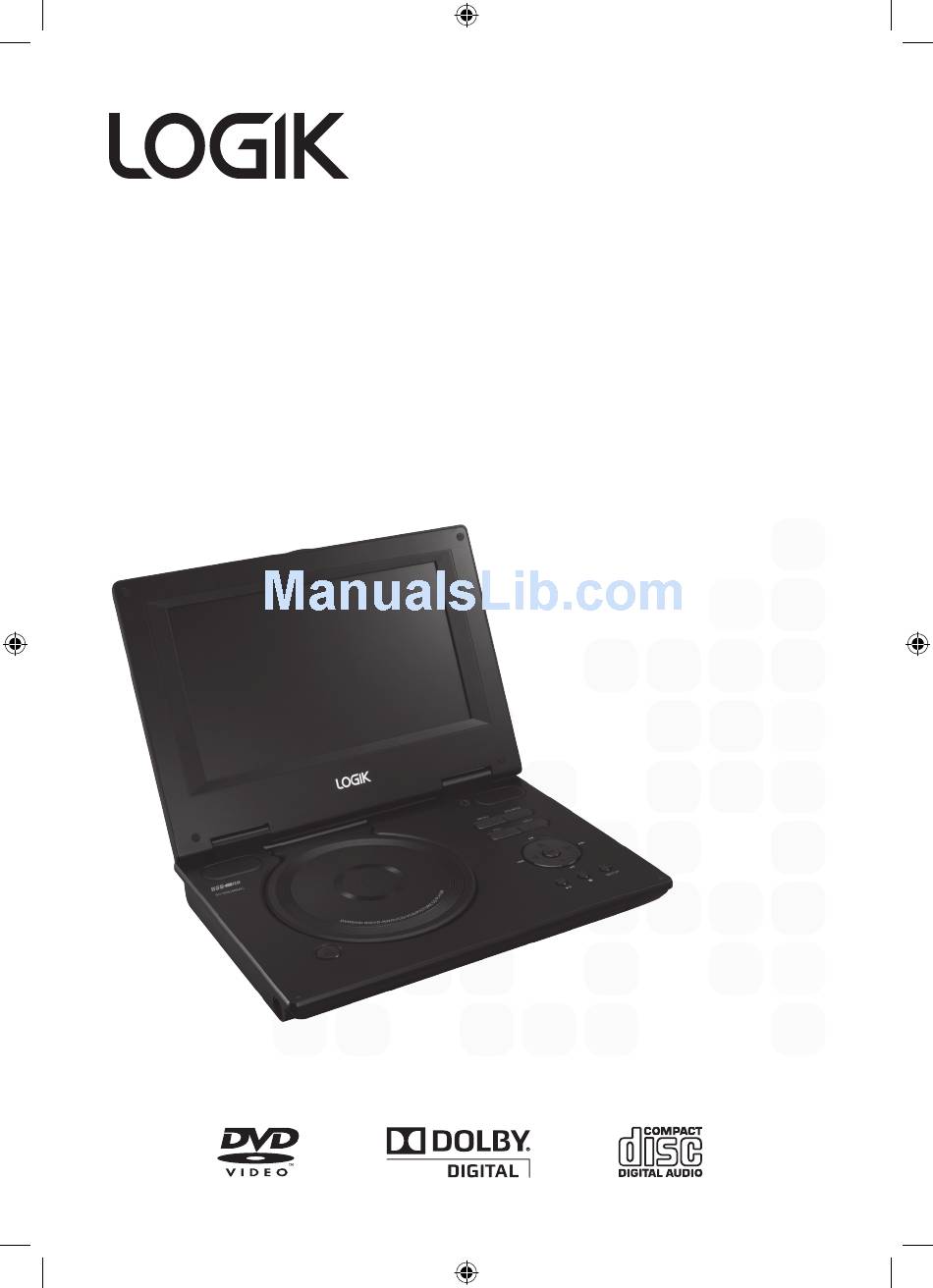

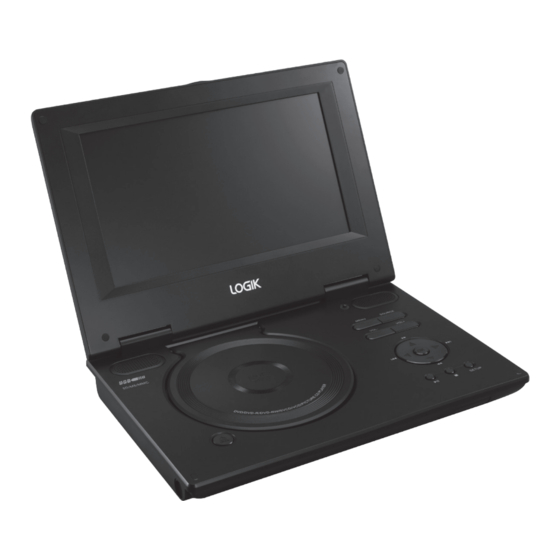

Page 1: Portable Dvd Player
Portable DVD Player Instruction Manual L9PDVD10 L9PDVD10_IB_110225.indd 1 2/25/11 6:30 PM... -
Page 2: Table Of Contents
Contents Unpacking ........................4 Product Overview ......................5 DVD Player .............................5 Remote Control ...........................6 Battery Installation for the Remote Control ................7 Remote Control Operation Range ....................7 Power Supply ........................8 Using the Mains Adapter (for indoor use) ..................8 Using the Car Power Adapter (for in-car use) ................8 Connections ........................9 Connecting a TV ..........................9 Connecting a Coaxial Audio Receiver ..................9... - Page 3 Audio Selection ..........................13 Subtitle Selection ..........................13 Viewing the Disc Playback Information ................... 14 Programmable Memory ........................ 14 Zoom Selection ..........................15 Adjusting the LCD Screen ......................15 Repeating a Specific Section ....................... 15 TITLE ..............................15 Using a USB Flash Drive or and SD/MMC/MS Card ..........16 General Operation ...........................
-
Page 4: Unpacking
Congratulations on the purchase of your new Logik Portable DVD Player. We recommend that you spend some time reading this instruction manual in order that you fully understand all the operational features it offers. You will also find some hints and tips to help you resolve any issues. -
Page 5: Product Overview
Product Overview DVD Player MENU SOURCE VOL– VOL+ SETUP 1011 LCD Screen Open Button Press to open the disc door. Panel Switch PLAY / PAUSE Button Speaker Press to start playback or pause. MENU / PBC Button STOP Button PBC on / off switch. Return to DVD root Stop playing a disc. -
Page 6: Remote Control
Remote Control A-B Button Perform point-to-point repeat playback on a DVD or CD. SEARCH Button To search and start playback from a selected point on the disc. MUTE Button To mute and restore your DVD sound output. SOURCE Button Select among the different input sources: DVD / CARD / USB. -
Page 7: Battery Installation For The Remote Control
Battery Installation for the Remote Control 1. Press and lift the back cover up to open 2. Insert two AAA size batteries. Make sure the battery compartment of the remote to match the (+) and (–) ends of the control. battery compartment. -
Page 8: Power Supply
Power Supply Using the Mains Adapter (for indoor use) Right Side of DVD Player To Mains Socket SD/MMC/MS COAXIAL AV-OUT ON-OFF DC IN 0-12V To DC IN 9V-12V Socket Mains Adapter (included) • Only use the included mains adapter. Do not use it with any other equipment. • When the unit is not going to be used for a long period of time, disconnect the mains adapter from the mains socket. -
Page 9: Connections
Connections Connecting a TV If your TV has audio/video inputs, you can connect the unit to your TV using a standard Audio / Video Cable. Right Side of DVD Player SD/MMC/MS COAXIAL AV-OUT ON-OFF DC IN 0-12V To AV OUT Sockets Audio / Video Cable (included) Watching a DVD on your TV 1. -
Page 10: Compatible Disc Types
Compatible Disc Types Disc Types Disc Logo Recorded Content DVD-VIDEO (Digital Versatile Disc) AUDIO + VIDEO DVD±RW (Audio/Video format or JPEG files) AUDIO + VIDEO + JPEG DVD+ReWritable DVD±R (DVD Recordable - Audio/Video format AUDIO + VIDEO + JPEG or JPEG files) DVD+R CD-R (CD Recordable - Audio/Video format or AUDIO + VIDEO + JPEG... -
Page 11: Turning On The Dvd Player
1. Switch the ON/OFF button to ON on the side panel to turn the DVD player on. 2. The LOGIK DVD logo (start-up picture) will appear on the screen. 3. After use, switch the ON/OFF button to OFF on the side panel to turn the DVD player off. -
Page 12: Selecting Chapter / Title Time / Chapter Time (For Dvd)
Selecting Chapter / Title time / Chapter time (for DVD) 1. Press the buttons to go to the previous or next Chapter / Title time / Chapter time. 2. Press the SEARCH button to display the disc information text line for Chapter / Title time / Chapter time. -
Page 13: Slow
Slow 1. Press the SLOW buttons when a disc is playing to enter slow playback. Each time you press the SLOW buttons, the playback speed changes in the following sequence: 1/16 Normal 1/16 Angle Selection Some DVDs contain scenes which have been shot Sequence of angle shots from a number of different angles. -
Page 14: Viewing The Disc Playback Information
Viewing the Disc Playback Information You can view the disc information (such as current title / chapter / track number, total playing time or remaining time on the disc) without interrupting the disc playback. During playback, press the DISPLAY button to display the available disc information on operation status. -
Page 15: Zoom Selection
Zoom Selection This function allows you to enlarge or shrink the video image or picture on the screen. For DVD 1. During playback, press the ZOOM button. The square frame appears briefly in the right bottom of the picture. 2. Press the ZOOM button repeatedly to display the picture with different scales. -
Page 16: Using A Usb Flash Drive Or And Sd/Mmc/Ms Card
Using a USB Flash Drive or and SD/MMC/MS Card General Operation You can play or view data files (JPEG) from USB flash drive or SD/MMC/MS cards. 1. Connect the USB flash drive or SD/MMC/MS card directly to the USB port or SD/MMC/MS port on the DVD player. -
Page 17: Customising The General Settings
Customising the General Settings 1. Press the SETUP button to display the setup menu. - - GENERAL SETUP PAGE - - 2. Press the buttons to select GENERAL TV DISPLAY WIDE SETUP PAGE. ANGLE MARK OSD LANGUAGE CLOSED CAPTIONS SCREEN SAVER GOTO GENERAL SETUP PAGE 3. -
Page 18: Customising The Audio Settings
Customising the Audio Settings 1. Press the SETUP button to display the setup menu. - - AUDIO SETUP PAGE - - 2. Press the buttons to select AUDIO DOWNMINX SETUP PAGE. DIGITAL OUTPUT DOLBY DIGITAL GOTO AUDIO SETUP PAGE 3. Press the buttons to select the following options and then press the buttons to change the setting. -
Page 19: Customising The Video Settings
Customising the Video Settings 1. Press the SETUP button to display the setup menu. - - VIDEO SETUP PAGE - - 2. Press the buttons to select VIDEO SHARPNESS SETUP PAGE. BRIGHTNESS CONTRAST SATURATION GOTO VIDEO SETUP PAGE 3. Press the buttons to select the following options and then press the buttons to change the setting. - Page 20 DISC MENU Allows you to choose the preferred menu language of your disc. If the preferred language is not available on the disc, the DVD player will automatically use the DVD disc’s default language. PARENTAL This feature allows you to block disc playback with specific ratings.
-
Page 21: Customising The Password Settings
Customising the Password Settings 1. Press the SETUP button to display the setup menu. - - PASSWORD SETUP PAGE - - 2. Press the buttons to select PASSWORD PASSWORD MODE SETUP PAGE. PASSWORD GOTO PASSWORD SETUP PAGE 3. Press the buttons to select the following options and then press the buttons to change the setting. -
Page 22: Maintenance
Maintenance Handling Discs • Do not touch the playback side of the disc. • Do not attach paper or tape to the disc. Playback side Cleaning Discs • Fingerprints and dust on the disc cause picture and sound deterioration. Wipe the disc from the centre outwards with a soft cloth. -
Page 23: Hints And Tips
Hints and Tips If a problem does occur, it may often be due to something very minor. The following table contains various tips. SYMPTOM CAUSE / SOLUTION No power. • Ensure the car power adapter or the mains adapter is connected. • Make sure that the unit is turned on. -
Page 24: Specifications
Specifications Model L9PDVD10 Electronical Parameters Power Requirements AC 100-240 V , 50/60 Hz Dimensions (Approx.) 260(L) x 182(W) x 37.5(H) mm Power Consumption <10W... -
Page 25: Safety Warnings
Safety Warnings Ventilation • Read all the instructions carefully before using the unit and keep them for future • To prevent the risk of electric shock or reference. fire hazard due to overheating, ensure • Retain the manual. If you pass the unit that curtains and other materials do not onto a third party make sure to include this obstruct the ventilation vents. - Page 26 Batteries CAUTION • Batteries used in the remote control for this RISK OF ELECTRIC SHOCK unit are easily swallowed by young children DO NOT OPEN and this is dangerous. The lightning flash with arrowhead • Keep loose batteries away from young symbol, within an equilateral children and make sure that the battery triangle, is intended to alert the...
- Page 27 L9PDVD10_IB_110225.indd 27 2/25/11 6:31 PM...
- Page 28 NOTE: If you require a replacement for any of the items listed below, please quote their corresponding part numbers: Replacement Part Part Number Remote Control 1706-054052-01R Video / Audio Cable 7200-W15304-02R Car Power Adapter 5300-081330-15R Earphones 7100-332015-00R Main Adapter 5313-079515-04R Car Bag 1704-10600D-01R Visit Partmaster.co.uk today for the easiest way to buy electrical...
